SVS Ultra Bookshelf Speakers Review

by August 18, 2014

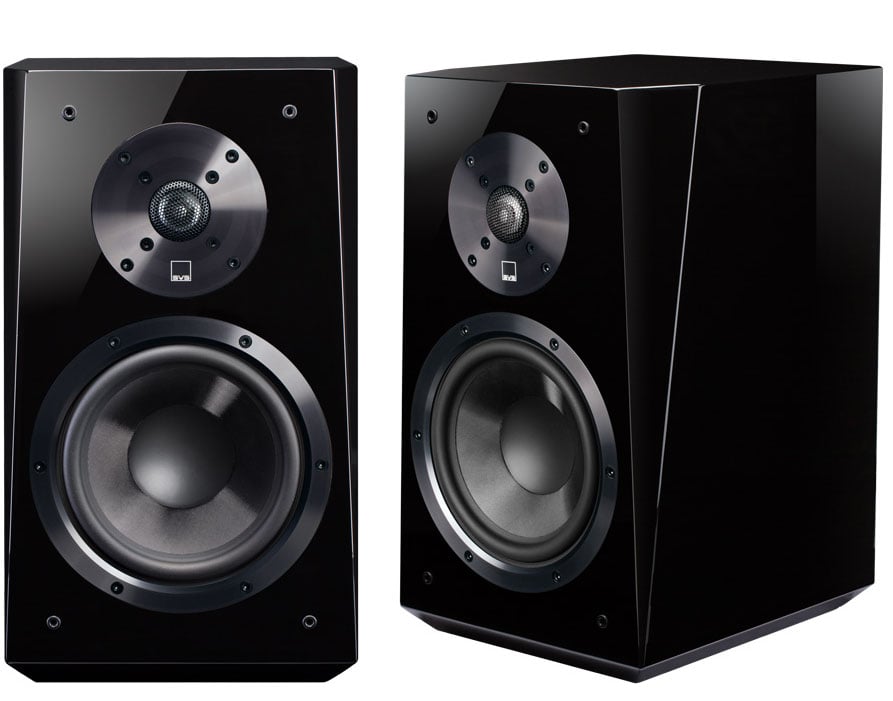

SVS Ultra Bookshelf Speakers

SVS Ultra Bookshelf Speakers

  • Product Name: Ultra Bookshelf Speakers
  • Manufacturer: SVS
  • Performance Rating: StarStarStarStarhalf-star
  • Value Rating: StarStarStarStarStar
  • Review Date: August 18, 2014 08:00
  • MSRP: $ 999/pair
  • Buy Now

SVS Ultra Series Bookshelf Specifications

  • Two-way bookshelf, 1.7” rear port, ¾” MDF with 1” baffle, braced
  •  Finishes: Black Oak Veneer, White or Gloss Black
  •  6.5” Glass fiber cone with cast frame and vented former
  •  1” Aluminum dome tweeter
  • 2-way crossover, 2nd order HP/LP (electrical) Air core inductors, premium capacitors
  •  Xover Freq: 2kHz
  • Port Specifications: 1.7in Flared rear port

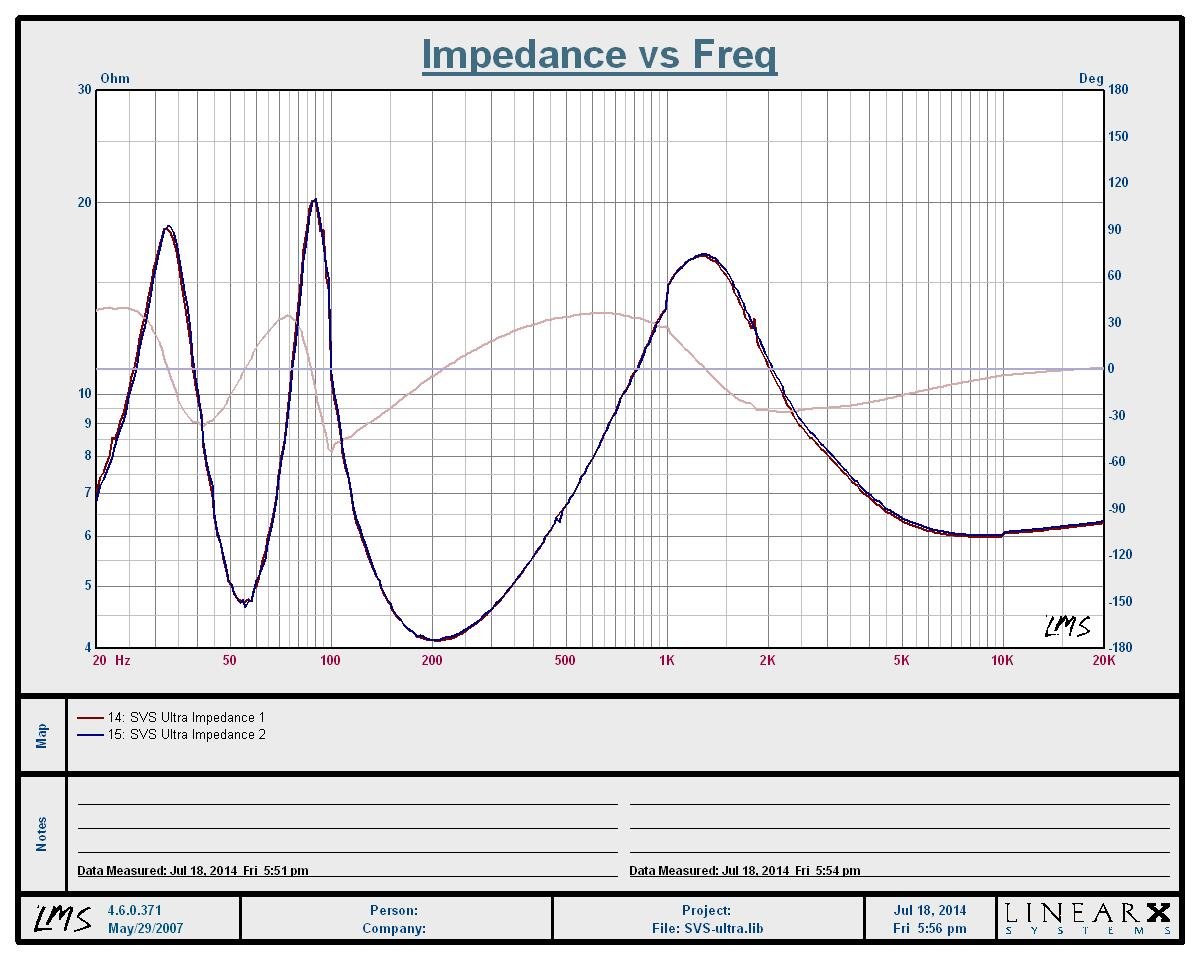

  •  Impedance: 8 ohm rated but measured 4 ohms, 87dB Efficiency (measured 300Hz – 3kHz)
  • Frequency Response: 45Hz to 32kHz +- 3dB
  •  Dimensions: 15” x 8” x 10”
  • Weight: 20lbs each

Pros

  • High end sound quality at a reasonable price
  • Excellent build quality
  • Rugged design can be played loudly without distress

Cons

  • 4 ohm speaker despite the 8 ohm rating
  • May need to add a sub to achieve full range sound



SVS Ultra Bookshelf Introduction

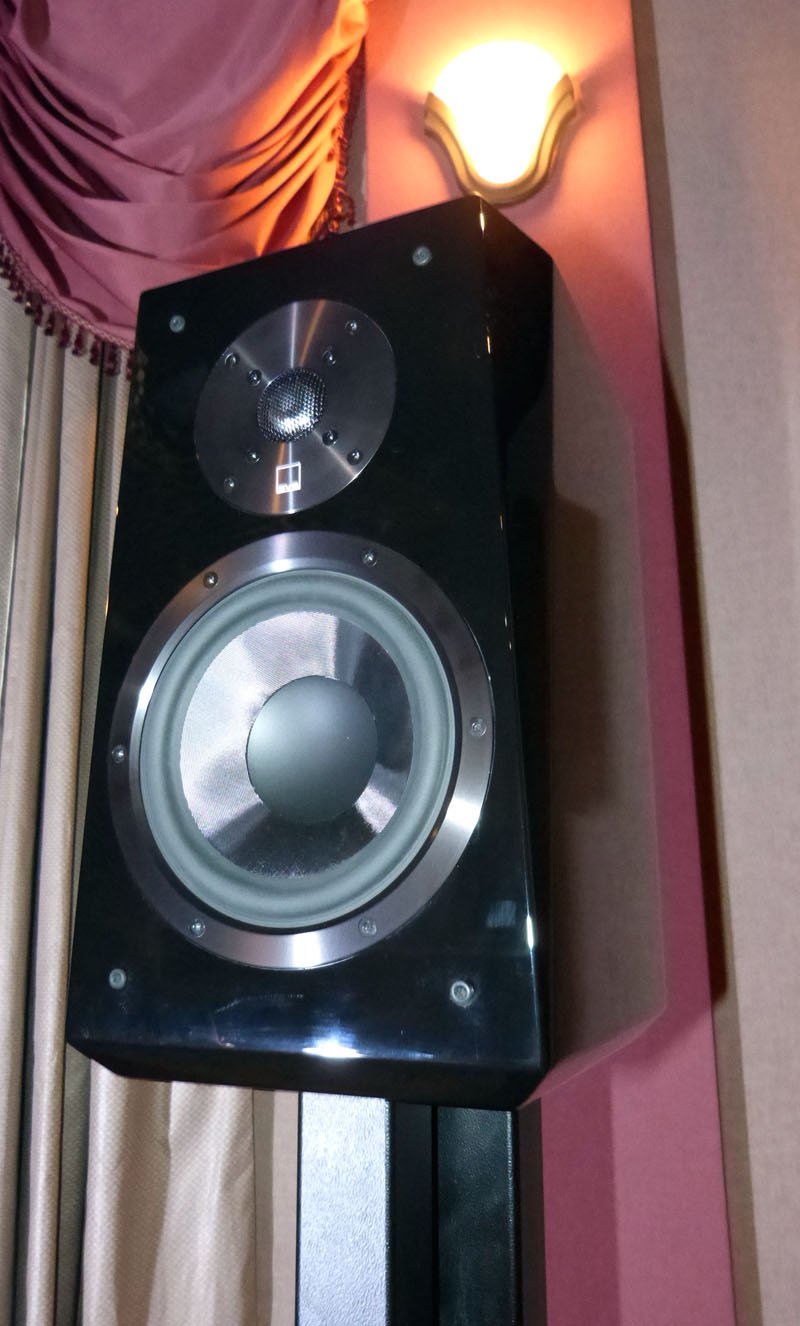

SVS Ultra Front ViewSVS is known for their legendary subwoofer performance, quite often leading the industry in the performance per dollar equation.  However, when they announced their Ultra Series of speakers with claims of high fidelity and value, I was a bit skeptical.  This was especially the case since past speaker offerings from SVS failed to impress me.  Thus I just had to get my hands on the new Ultra Series Bookshelf speakers to see if they were the real deal or not, especially after hearing Marshall sing his praises about their Ultra Towers.  So do they live up to the SVS name?

Read on to find out and also check out our impressions via our YouTube Video Review.

SVS Ultra Bookshelf Youtube Video Review

Design Overview

The ultra cabinet is constructed of sturdy 3/4" MDF with a solid 1" thick front baffle.

The SVS Ultra bookshelf speaker is a two-way, rear ported speaker with a 6.5” glass fiber cone and 1” aluminum dome tweeter.  In reality the woofer cone material is nothing more than treated paper upon closer inspection but glass fiber sounds more interesting so I’ll give it to them.  The woofer has a nice cast basket frame, substantial motor structure and a vented former to help reduce turbulence at the gap and also provide some degree of cooling for the voice coil.  The 1” aluminum dome tweeter features a ferrite motor structure, a plastic phase plug to reduce high frequency break-up mode, and a metal screen to protect it from curious children with prying hands.  The crossover is a 2-way, 2nd order electrically symmetric HP and LP featuring an air core inductor and poly capacitor on the tweeter circuit and rugged iron core choke on the woofer.  The metalized padding resistor on the tweeter is on its own standoff to improve heat dissipation.  This is a little detail often forgotten by lesser designed products.  The cores are all orthogonally oriented to reduce crosstalk coupling and the speaker wires are encased in foam padding to eliminate mechanical buzz in the cabinet.

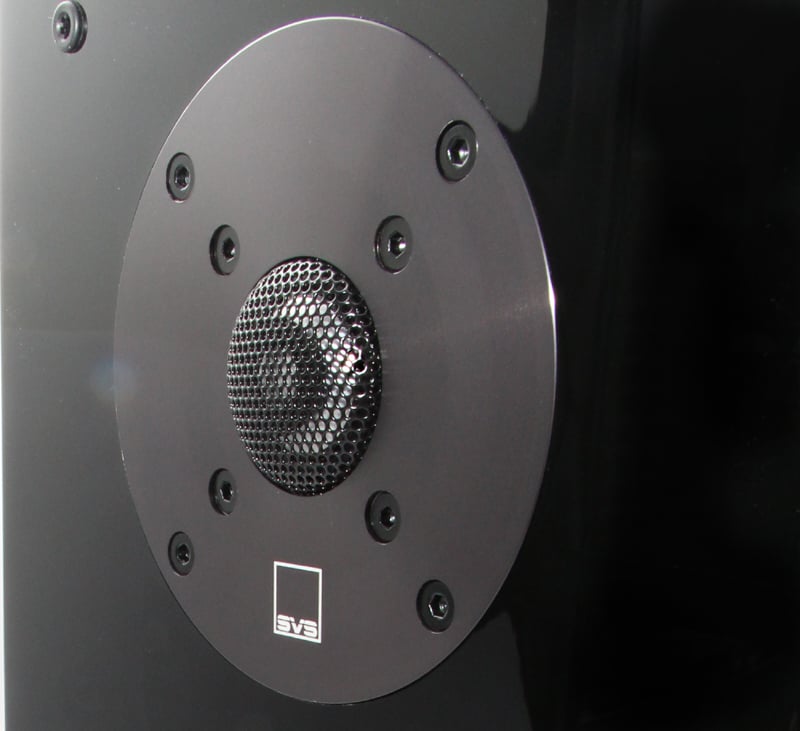

SVS Ultra Mid Woofer   SVS Ultra Tweeter

SVS Ultra Drivers

SVS Ultra Internal View Crossover

SVS Ultra Internal View

The cabinet is constructed of ¾” MDF instead of the standard 5/8”, with a full 1” thick front baffle where rigidity is needed most, especially since both drivers are countersunk and flush mounted into the baffle to reduce diffraction.  The cabinet is further stiffened with a generously sized brace that is firmly affixed to all surfaces instead of the cheap stick style bracing often found on less costly speaker systems.  The cabinet is generously stuffed with insulation and I actually had to remove some of it to get a peek of the crossover.  The outer surfaces are radiused to reduce diffraction and the grille is constructed of thick MDF instead of cheap flimsy plastic.  This provided excellent rigidity and allowed for the grille to be tightly fit onto the frame to reduce losses.

SVS Ultra Back View

SVS Ultra Bookshelf Back View

This speaker has all of the right parts to make for a good quality design with solid engineering principles to back it up.

The SVS Ultra bookshelf speakers come standard as bi-ampable or bi-wireable, a feature many competitors either lack or charge a premium for. We chose to single amp the speakers for our listening tests.

SVS utilized the National Research Council (NRC) anechoic chamber in Canada to measure and test the Ultra speakers in addition to voice tuning it in real rooms.  This speaker has all of the right parts to make for a good quality design with solid engineering principles to back it up.

The SVS Ultra bookshelf speakers come in three finish options {black oak veneer, white or gloss black} and all finishes are real veneer, not vinyl wrap.  SVS doesn’t up charge for any of these finishes.  Ours came in gloss black which looks exquisite and I highly recommend choosing this finish.

Let’s take a listen to see if they live up to the hype.
