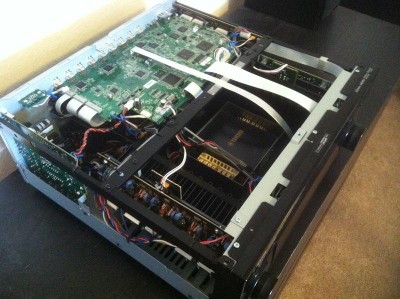

Yamaha RX-A2020 Menu System & YPAO Room EQ

By

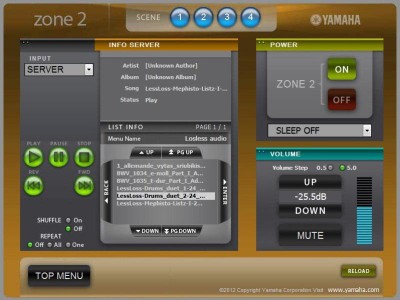

If there is one area that most receivers need a major overhaul, it is their on screen display, or GUI (Graphical User Interface). Most GUIs are out of date, monochromatic, have no images, and are just downright ugly. With a world full of beautiful mobile apps and HD displays, there is no excuse for receiver manufacturers to not jump on board the eye candy bandwagon. Yamaha attempted to address this issue with their first line of Aventage receivers, and this continues to be a step in the right direction. The GUI is both icon and text based, and is easy to read. While we really like that Yamaha tried to spruce up the GUI, the pictures remain low resolution and rather dull. Please note that Yamaha is not alone in this respect, their GUI is among the best I have seen, but I am a sucker for pretty displays. It would be nice to see Yamaha put higher quality icons and text in the display, more similar to the GUIs on modern TVs and Blu-ray players. Still, I do like all the customization available, such as initial volume, input assignment, and a host of speaker options. You can change DSP, input, and scene modes all on-screen, which is great if you have a monitor hooked up in Zones 2 or 3. All in all, the menu system allows for a hefty amount of customization, and is easy to navigate once you get used to it.

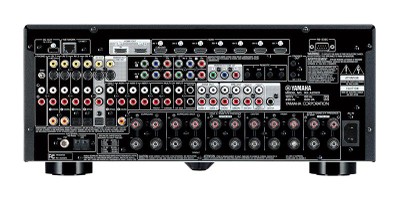

Power Amplifier Assignability & Speaker Setup

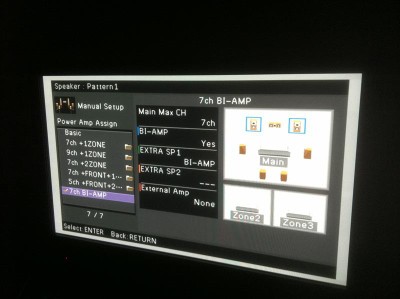

When setting up your speaker arrangement in the power amp assign portion of the GUI, you are given 7 different options for speaker layout. Each option is accompanied by a picture of each zone, showing what speakers are active. You have complete versatility to power up to a 9.2 system with the internal amps, but some of the configurations rely on an external amp for your front speakers. You can also bi-amp your front speakers if you want, but this disables the Intelligent Amp Design feature, so Zones 2 and 3 have to be powered by an external amp. One speaker configuration that is noticeably absent is a simple 5.1 system. You have to select one of the other 7 or 9 channel options, and then disable the extra speakers via the manual speaker setup menu. This part is a little weird, but if you choose to use YPAO, it will figure out your setup automatically.

parametric EQ (PEQ)
Yamaha RX-A2020 Speaker Assignability Chart

Each speaker can be set to large or small. When they are set to small, there is a crossover adjustment for front, center, surround, and surround back speakers. Each set of speakers can be set with a crossover of 40, 60, 80, 90, 100, 110, 120, 160, or 200 Hz (there are no crossover options for Zones 2 or 3). With all of the crossover frequencies to choose from, unlike a budget receiver, users can really customize the receiver to fit their speakers properly.

Speakers can be further customized with a built in parametric equalizer (PEQ). Although some PEQs allow adjustment down to 20Hz, Yamaha limits theirs to 62.5Hz. I am not sure why Yamaha does not allow manual or automatic (YPAO) EQ below 62.5Hz, but it is unfortunate as this cutoff remains a limit on the user’s ability to EQ a subwoofer. On a positive note, you can copy the PEQ settings from YPAO over to a manual mode where you can see exactly what YPAO is doing to your system and fine tune it however you want.

speaker assignability

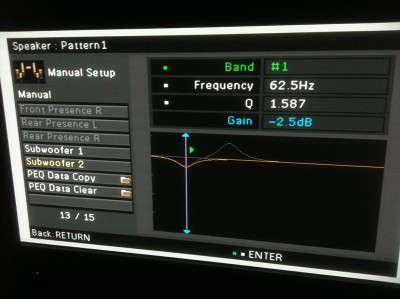

Yamaha RX-A2020 Parametric EQ

I am especially a fan of the RX-A2020’s subwoofer options. It has dual subwoofer outputs that can be configured independently; level, distance, and phase can each be adjusted. Additionally, you can set the subwoofer layout to: left + right, front + rear, or monaural x2, though the user manual offers no information on how the system reconfigures the subs in those settings (traditionally, Yamaha's subwoofer outputs have been parallel). At Audioholics, we think your subwoofer is one of your most important speakers, and are glad to see Yamaha offering independent control and layout options.

For more information, read: Home Theater Multiple Subwoofer Set-Up Guide

Yamaha also allows for two separate settings to be saved in the speaker setup menu. This is a great feature for individuals who want to quickly test how different setup patterns, such as different crossover frequencies, affect their system.

YPAO

Yamaha has been in the game of room correction for a long time, and chooses to use their proprietary YPAO room correction system on all of their AV receivers. In order to put YPAO through its paces, I took frequency response measurements before and after running YPAO. The room the measurements were taken in was not the primary listening room, I moved the speakers into a spare room and set them in place. Because most people don’t have a properly treated room, I wanted to see what YPAO would do in a room without any passive room treatments..

The black line in the plot below was taken prior to running YPAO, and the other two lines were taken with the “Flat” EQ enabled after running an 8 point YPAO calibration. YPAO automatically set my Martin Logan Theos to large (red line), but I changed them back to small with a 60Hz crossover (blue line) to see if I could improve the freq. response between 50Hz and 120Hz. For each line below, a measurement was taken at three different locations, with 1/12 octave smoothing, and then averaged.

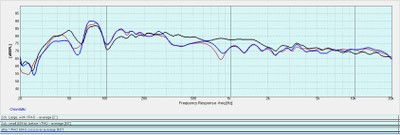

YPAO graph

YPAO obviously did some work between about 300Hz and 2KHz. The only result that caught me off guard was the increased dip at 60Hz, I had hoped that YPAO would blend the front speakers and subs more smoothly. The dips and peaks at 60Hz, 80Hz, and 100Hz were all accentuated by YPAO. A combination of careful speaker placement, room treatments, and equalization are all needed to achieve a reasonably flat frequency response.
