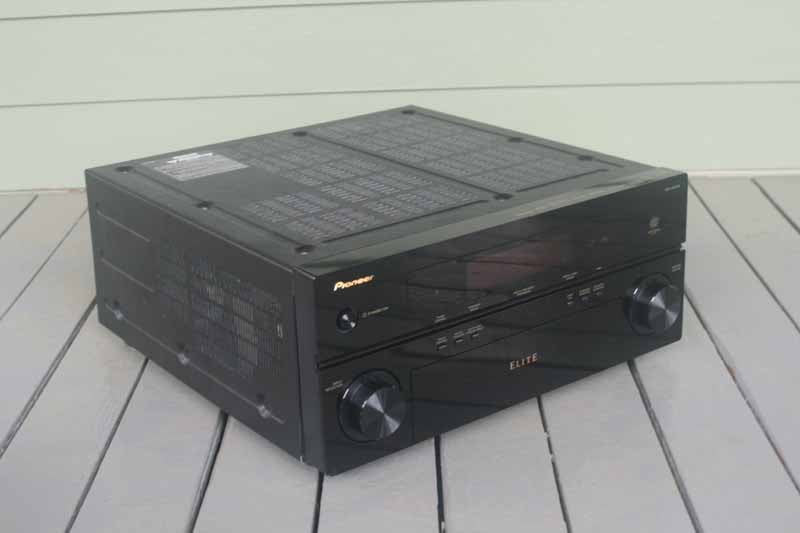

Pioneer VSX-94TXH 7.1 A/V Receiver with HDMI 1.3a Review
Pioneer VSX-94TXH 7.1 Receiver
- Product Name: VSX-94TXH
- Manufacturer: Pioneer
- Performance Rating:
- Value Rating:
- Review Date: April 28, 2008 01:55
- MSRP: $ 1800
DSP: 3rd Gen.
Analog Devices SHARC + 48-Bit Freescale DSP Power Ratings: 7
x 140 watts per channel (8 ohms, 20 Hz-20 kHz, <.09%THD) HDMI: 1.3a with support
for Deep Color, 24p and SACD/DVD-Audio support Crossover: 50,
80, 100, 150, 200Hz Remote: Programmable/learning
remote (glow keys, not backlit) Video Inputs: 4 x

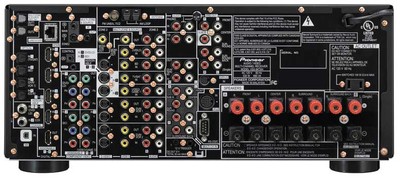

HDMI (1.3); 3 x Component Video (100MHz); 7 sets composite and S-video inputs Video Outputs:
100MHz Component video output, 3 composite/S-video outputs, Multi-Zone
composite video output Audio Inputs: 7.1
multi-channel inputs, 6 assignable digital inputs (4 optical, 2 coaxial), 8
analog inputs Audio Outputs: 2
optical digital outputs, multi-zone stereo pre-amp level audio outputs, 7.1
preamp outputs Additional
Connections: RS-232C port for third party control Systems, remote I/O
ports, 2 assignable +12V triggers
HD Audio Support: Dolby
TrueHD, Dolby Digital Plus, dts-HD Master Audio
Audio DAC: 192 kHz/24bit DAC x 7
Dimensions: 16 9/16" x 7 3/8"
x 18 1/16"
Pros
- THX Select2 Certification
- 4 x HDMI 1.3a inputs
- Deep Color, xvYCC Support
- RS-232C control & dual 12V triggers
- Home Media Gallery system
Cons
- No Zone 2/3 Remote
- Using S/PDIF source alongside HDMI video requires front panel setting
- Cluttered remote control w/ no backlight
- Non-removable power cord

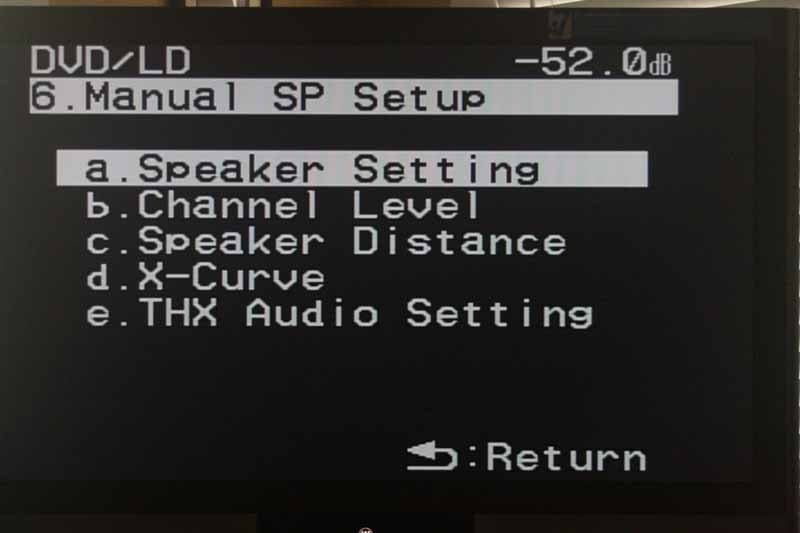

- Confusing Setup/Menu interface
VSX-94TXH Introduction
The last Pioneer receiver review I personally did was in 2005 on an entry-level product (the VSX-815) which struck me as a good balance between available features and power. It will seem pretty obvious when I say that this flagship Elite AV receiver product trumps my last experience by quite a bit. It also, however brings a certain amount of expectation. Being a top of the line model, the VSX-94TXH has a lot of competition and is going to need to distance itself in some areas before being crowned the leader in any particular department.
Keeping Up with the Joneses?
While I don't recommend it for personal finances, keeping up with the Joneses is a necessity for today's flagship receiver products. If you can't maintain some sort of edge in this market, there are plenty of companies with the infrastructure to deliver a product that can quickly dominate the market. Pioneer has its share of special features, but let's see how they compare in a quick survey of the market:
| Manufacturer | Pioneer | Marantz | Denon | Yamaha | Onkyo |
|---|---|---|---|---|---|
| Model | VSX-94TXH | SR8002 | AVR-4308CI | RX-V3800 | TX-NR905 |
| MSRP | $1800 | $1999 | $2499 | $1699 | $2099 |
| Power | 140Wx7 | 125Wx7 | 140Wx7 | 140Wx7 | 140Wx7 |
| HDMI In/Out |
4/1 | 4/1/1 | 4/2 | 4/1 | 4/2 |
| HDMI Version | 1.3a | 1.3a | 1.3a | 1.3a | 1.3a |
| Deep Color | Yes | Yes | Yes | Yes | Yes |
| xvYCC | Yes | Yes | Yes | Yes | Yes |
| HDMI Upconvert | 1080p | 480p | 1080p | 1080p | 1080p |
| THX Certification | Select2 | Select2 | No | No | Ultra2 |

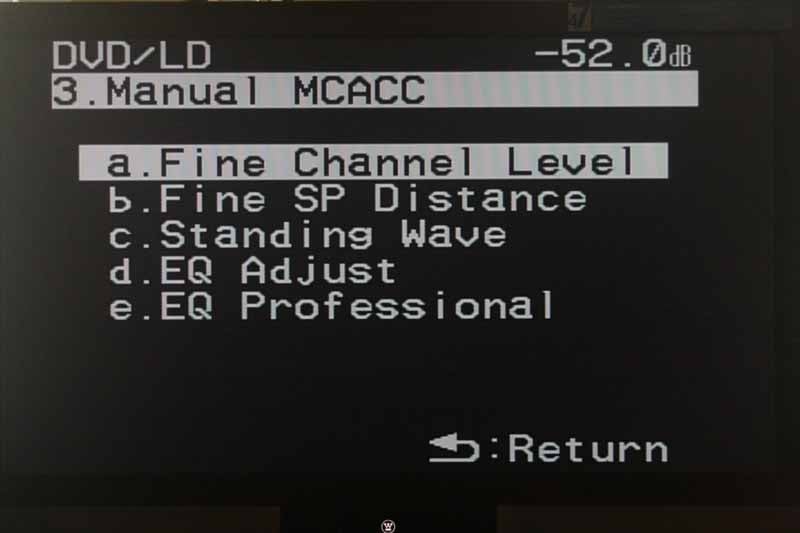

| Room EQ | MCACC | MultEQ | MultEQ XT |
YPAO | MultEQ XT |
| Video Processing | DCDi | SD-only | DCDi | ABT1010 |
Reon-VX |
When taking a look at the other AV receivers in this price range, the Pioneer has the cards somewhat stacked against it. It's not overpriced and it certainly has a lot of important features, but it isn't exactly rising to the top of the pack. What that said, companies like Harman Kardon don't even have a seat at the table. Some of the notable features of the Pioneer VSX-94TXH include:
- THX Select2 Certified
- Home Media Gallery (Internet radio, Neural Music Direct)
- Support for Dolby TrueHD, Dolby Digital Plus, dts-HD Master Audio
- Deep Color, xvYCC and SACD Support by HDMI
- 1080p Upconversion of SD signals via HDMI
- XM HD Surround by Neural THX Technologies
- RS-232C control, two 12VDC triggers
- 2nd Zone Audio/Video Output
- Faroudja DCDi video processing
