Predictions of Dolby Atmos Success or Failure Five Years Later

by January 28, 2020
Successes and Failures of Dolby Atmos

Successes and Failures of Dolby Atmos

Five years ago, Dolby launched Home Atmos, and Audioholics published two articles that took different views of its potential for success: 5 Reasons Dolby Atmos May be DOA and ‘5 Reasons Why Dolby Atmos Will Succeed.’ Now that some time has passed to see how the Atmos has panned out, we decided to revisit these predictions to see what was correct and what turned out not to be.

Regular readers of Audioholics will remember that the more pessimistic article of the two turned out to be a source of controversy for Audioholics that earned us an anti-Atmos reputation merely for publishing the pessimistic predictions of a single contributing writer. Of course, it is not the case that Audioholics as a whole holds animosity against Dolby or Atmos. Audioholic’s content is created by a group of contributing writers, and, as with any group, not all of the writers hold identical views, but Audioholics is willing to publish differing viewpoints so long as they are well-informed.


So how well did the authors of these respective articles do in predicting the future? Of course, the answer to that is well-known by most home theater enthusiasts by now, and Home Atmos has achieved a resounding victory, at least in terms of wide adaptation. Most Blu-ray releases of new Hollywood movies include an Atmos sound mix, and support for the Atmos format is now included on all newer UHD Blu-ray players and mid-priced and higher AVRs. But ‘success’ here can mean more than just market share, and we should also ask the question has Home Atmos improved home audio in general? The answer to that is complicated and not as clear-cut.

Has Atmos Improved Home Audio?

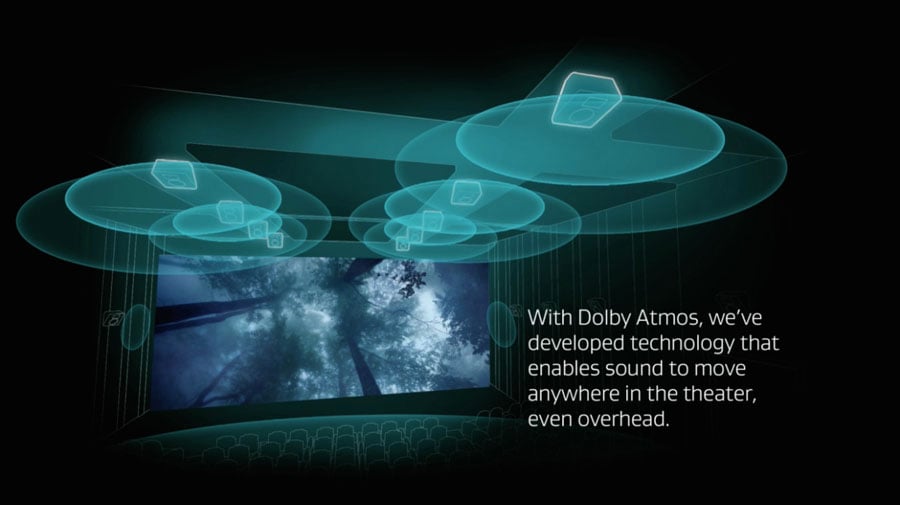

AtmosYou might be asking yourself at this point, “How has Atmos been anything other than an improvement? After all, it is a far more sophisticated format than conventional sound mixes!” While it is true that Home Atmos is a more advanced sound mix format than prior formats, it is also more complex and demanding, and that has taken a toll on home audio on the whole. To be fair, a well-designed and competently-assembled Atmos system really is a superior sonic experience over prior sound systems. But a better question at this point might be, "How much better is the Atmos experience over previous sound formats and how many Home Atmos systems were put together competently?"

Let’s tackle that first question: how much better is the Atmos experience over prior sound formats? It should be said that without the additional channels, Atmos doesn’t have any real advantage over a properly-engineered standard sound mix such as DTS:HD Master Audio or Dolby TrueHD. If the standard sound mix is well-done, the panning and spatial cues of sound sources should be indistinguishable from that of coordinate space of an object-oriented sound mix like Dolby Atmos from a two-channel system to a 7.1 system. To utilize the advantages of Atmos, the extra channels are needed. The problem is that, for the most part, the extra channels are ‘height’ channels that only convey vertical information, but human hearing isn’t as well-equipped to track overhead sounds as well as sounds coming from roughly the same altitude as our ears. The overhead soundstage, such that it is, could never be as well-defined as the more horizontal soundstage. Does the overhead content add to the experience? Yes, we can perceive it, but does it add a lot? In this writer’s opinion, no. It is only slightly more spatial information than could be had before. I would bet real money that, in a blind comparison between a standard 7.1 mix and a 7.1.4 Dolby Atmos mix, most people would find the difference to be slight. It should be noted here that Atmos sound mixes can have support for a ‘front wide’ speaker on the horizontal plane between the front left/right speakers and side surround speakers, but very few Atmos processors support ‘front wide’ channels. Even fewer home installs can accommodate a speaker layout incorporating "front wide" channels.

Front Wide speakers

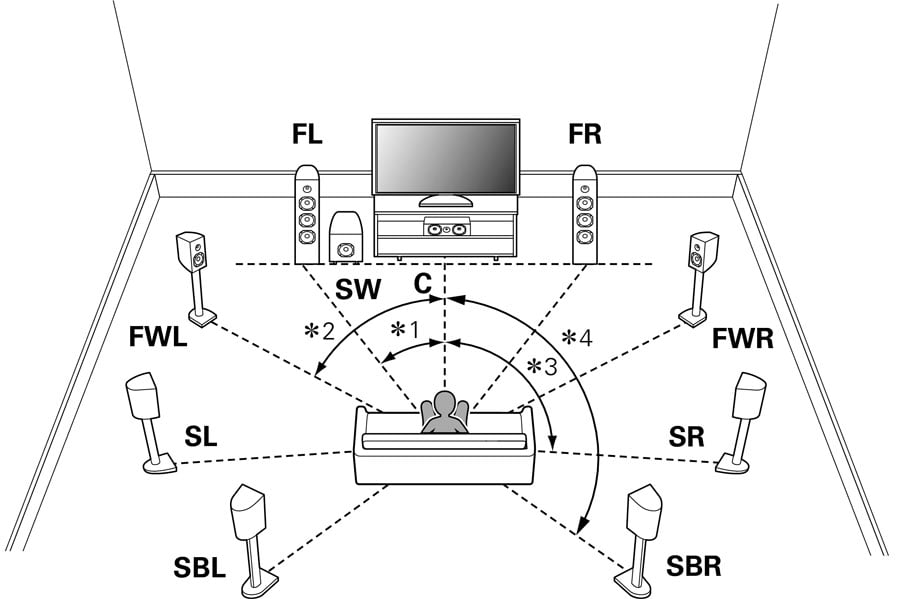

Atmos speaker positions with front wides: image courtesy of Denon

At this point, it might be argued, “so what if the effect isn’t enormous; it still comprises an improvement, so why not go after an improvement in sound if an improvement can be had?” Ideally, there is no reason not to go for the kind of improvement that Atmos can offer. Ideally. The problem is circumstances are rarely ideal. As was said before, Atmos is a more complicated and demanding system to set up correctly than a standard 5.1 or 7.1 setup. However, it is becoming a baseline feature of AVRs at around $500 and above. Most people who are looking to set up a home theater today will have Atmos on their checklist of features, regardless of their budget. The good news is that AVRs with Atmos can be had for not too much money, but the bad news is that the manufacturers have to take other shortcuts in order to accommodate Atmos channels and Atmos processing in a budget receiver. The shortcuts that they take usually come at the expense of the amplifier which will very likely have a larger role to play in sound quality than extra Atmos channels. So Atmos can hurt the sound quality of a system more than it can help, where the user doesn’t have a large budget for their sound system. We have seen a trend of shrinking power supplies and growing channel count in AVRs, and that is basically an exchange of quality for quantity. In many systems, Home Atmos has often been a step back for fidelity in sound, not a step forward.

For more information, see: Power Manipulation in Dolby Atmos AV Receivers

Atmos speaker positions.jpg

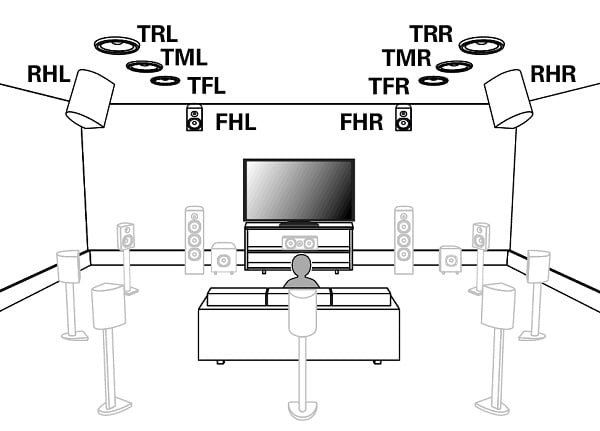

Atmos speaker positions: image courtesy of Denon

The same principle holds true when there is a limited budget for loudspeakers. The front stage speakers are by far the most important part of any home theater system and are comprised of the front left, right, and center speakers. The front stage set along with the subwoofers makes up 90% of the sound of home theater. That is the area of a sound system where compromises can most degrade sound quality. However, if there is only so much money in the budget for the speakers, the quality of the speakers becomes diluted as more speakers have to be added to the system. The quality of the front stage will inevitably take a hit as seven or nine speakers or more have to be purchased within the same budget, and the sound of the system as a whole is diminished.

The idea of AVR’s being underpowered for the inclusion of Atmos or a lessened front stage in favor of ever more surround speakers relates to our other question of proper set up: how many Home Atmos systems are put together competently? In other words, how many users have the know-how to properly place and calibrate a Dolby Home Atmos system? Given that proper speaker placement and set up of a relatively simple 5.1 system was uncommon for the average person, we are going to guess that not many people will be able to correctly deal with an Atmos system. If the system is set up incorrectly, the result can be a degradation in sound, not an improvement. Those who have the time and wherewithal to properly set up an Atmos system will know to use the Dolby Home Atmos Installation Guide or at least refer to their Atmos-equipped AVR or Atmos sound system user manual. But, even then there are aspects of Atmos that are important for success that is not really addressed by these guides.

Sound bounce question.jpg

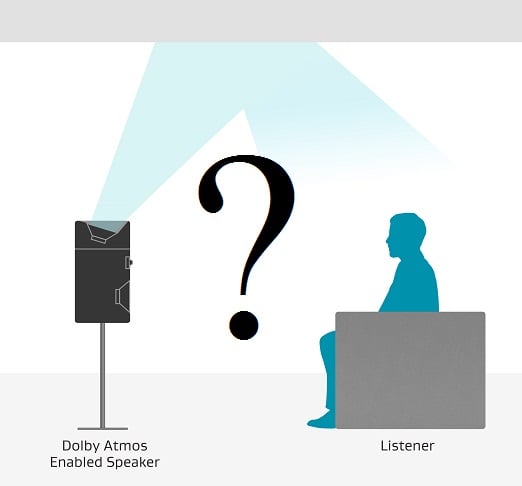

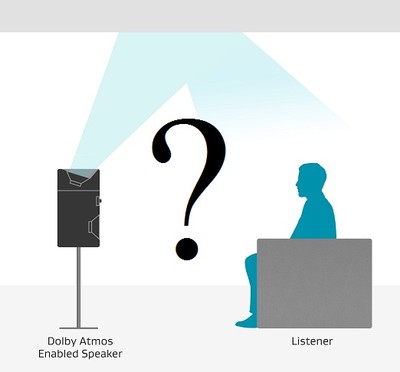

The "Bouncy House" Atmos Reflection Speaker

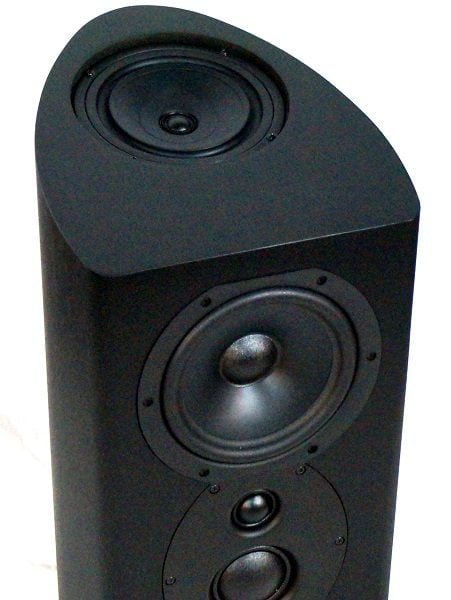

Atmos speakerC.jpgOne facet of Home Atmos that we don’t see addressed much concerns the ‘Atmos Enabled’ speakers (aka. 'bouncy house') that use ceiling reflections to create a sense of sound coming from above, and we have seen mixed results of their efficacy. We have experience with some speaker systems that use these reflections well and did manage to create the intended effect, but, on the other hand, some other speaker systems utterly failed to pull this trick off, and the intended sound was heard coming directly from the speaker itself rather than a reflection. That, of course, makes things sound worse, not better. What is not often mentioned about Atmos-enabled speakers or Atmos modules is that they should be positioned above the listening position- as high as possible, to increase the chances of creating a successful effect. The reason for higher elevation placement is that these speakers often spray sound out at a wide angle, and if the listener gets hit directly with a significant amount of this off-axis sound, the Atmos effect is ruined. Many Atmos modules and Atmos-enabled speakers do not do a good job of shielding the listener from direct sound from the speaker, and so the precedence effect comes into play (the precedence effect is where the first arrival of sound on the listener determines its perceptual location, even the same signal arrives at a higher amplitude from a different location at a slightly delayed time). Dolby has mandated a certain response curve for Atmos modules which supposedly help to alleviate this effect, but, in our HRTF analysis, it was found to be a poor solution.

To Atmos or Not to Atmos

Returning to our original question asking if Home Atmos has improved home audio, the answer is, as is so often in hi-fi audio, it depends. For high-end home theater, the performance improvement is unquestionable, but for entry-level systems, absolutely not. For middle-tier systems, it depends on how extensive the Atmos system is pushed and whether it is properly set up. A medium-budget 5.1.2 Atmos system in a medium to small room is probably fine if the setup guidelines were followed and the user isn’t going after THX reference loudness levels. This type of system would encompass an AVR that can normally be had for around $1k. It would be all the better if in-ceiling speakers were used rather than Atmos module speakers as well. We should also mention that, in our experience, we find the Atmos upmixer to be leagues better than older upmixing algorithms, so we do find improvement on that front. It should also be mentioned that content produced in Dolby Atmos has had mixed results as well; Disney films, in particular, seem to suffer from inconsistent quality in their Atmos mixes.

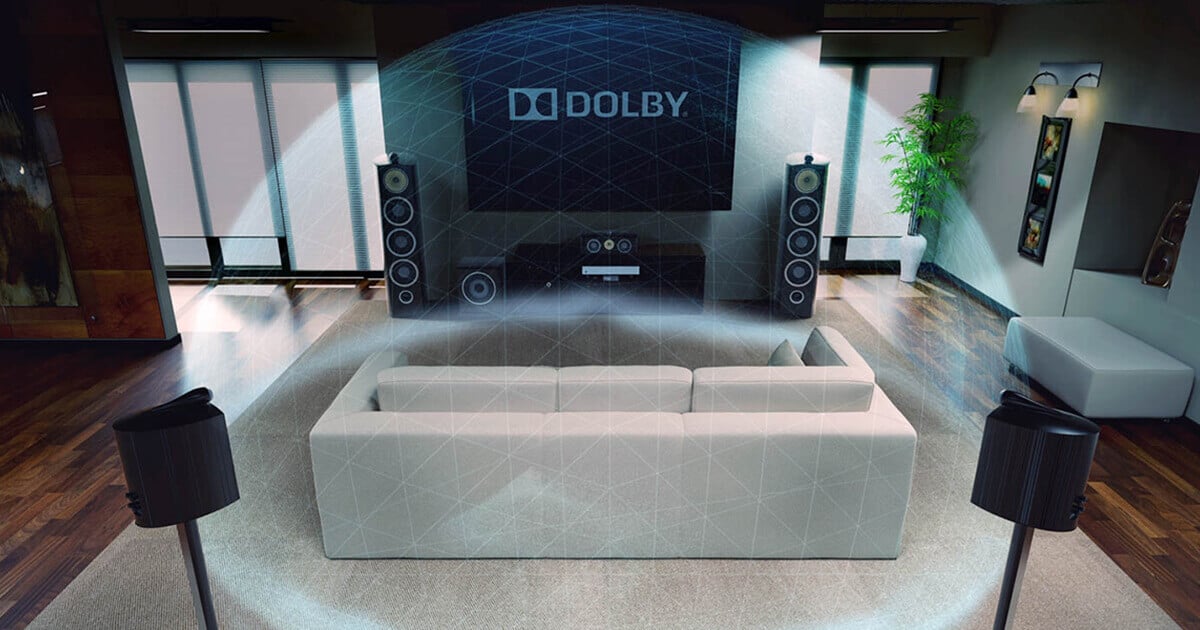

Atmos Room

However, if we take a wider view of the audio hobby as a whole, it is hard to say whether Atmos has really improved audio. We don’t have any concrete consumer usage information, but we are guessing that most Atmos systems deployed in households are using up-firing speakers to simulate a height effect. We would also venture to guess that in many cases the effect isn’t working as intended. And what is more, it is coming at a qualitative cost to the rest of the system as amplifier and loudspeaker quality is diluted for quantity. Another thing that is worth mentioning here is the Atmos Paradox that we wrote about when Home Atmos was announced; if it seems like a requirement to have all of these extra speakers in a modern home theater, that could be a turnoff to prospective audio enthusiasts who could be intimidated by the complexity of a seven or nine or eleven channel system. It would be a shame for someone who wants to get into home theater but decides not to from thinking that a complex Atmos system is the current minimum standard for a good home theater.

How do you feel Dolby Atmos has impacted the sonic enjoyment in your home theater? Share your experiences in the related forum thread below.
