Perlisten Audio: The THX Dominus Line Has Finally Been Breached!

By
Perlisten THX Certified Dominus

Perlisten THX Certified Dominus

Summary

  • Product Name: S7t Tower, S7c Center, S5m Monitor, S4s Surround, S4b Bookshelf, R5t Tower, D212s Subwoofer, D12s Subwoofer, D15s Subwoofer, D215s Subwoofer
  • Manufacturer: Perlisten
  • Review Date: March 09, 2021 12:15
  • MSRP: $8,000/ea - S7t Tower Speaker, $9,000/ea - D215s subwoofer
  • First Impression: Gotta Have It!
  • Buy Now

Executive Overview

THX logos.jpgA few years ago, THX reorganized their certifications that expanded them to include a wider range of performance categories. Previously, THX had certifications of Select2 and Ultra2 which indicated that the equipment was sufficient for certain room sizes and viewing distances (10’ viewing distance/2,000 cubic foot room for Select2 and 12’ viewing distance/3,000 cubic room for Ultra2). Both of these certifications were replaced with four new levels of certification: Compact (8 foot viewing distance/1,000 cubic foot room), Select (10-12 foot viewing distance/2,000 cubic foot room), Ultra (12 foot viewing distance/3,000 cubic foot room), and Dominus (20 foot viewing distance/6,500 cubic foot room). Given how arduous the THX certification is for Ultra, many in the industry speculated whether any loudspeaker product would ever achieve THX Certified Dominus which is far more demanding. THX has very stiff requirements for a whole host of aspects of loudspeaker performance that look at frequency response both on and off-axis, dynamic range, distortion characteristics, impedance, sensitivity, and other qualities. The speaker must be able to maintain a very high level of sound quality at the listening position at an 85dB nominal level with 105dB peaks, and 95dB nominal with 115dB peaks for subwoofers. That is asking a lot at a 20-foot distance in a 6,500 cubic foot room. To give an idea of how large a room of that many cubic feet would be, think of a room with a 20-foot width, 40-foot length, and an 8-foot ceiling; that is a good deal larger than your average home theater room.

A group of loudspeaker engineers took THX’s extreme requirements for Certified Dominus as a dare, and they formed a company that would produce the world’s first (and, as of the time of this writing, only) THX Certified Dominus speakers and subwoofers. The company they formed is called Perlisten Audio, which is named after abbreviating the phrase ‘perceptual listening experience.’ To be sure, these engineers didn’t form the company merely for the purpose of just making the world’s first Certified Dominus speakers. They decided to form the company to make the kind of speakers that took full advantage of their knowledge and talent, in other words, the best loudspeakers that they knew how to make and that they would want to own. Given the extensive talent of the team and cumulative years of experience between them, it’s not surprising to see the level of innovation that they managed to come up with now that they were no longer constrained by the normal limits of typical product development goals. This was going to be a loudspeaker engineer’s loudspeaker and not just loudspeaker design per marketing research that assesses consumer desire in some market segment.

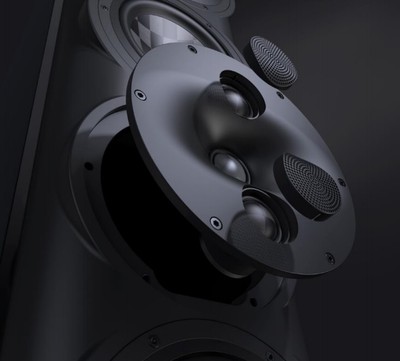

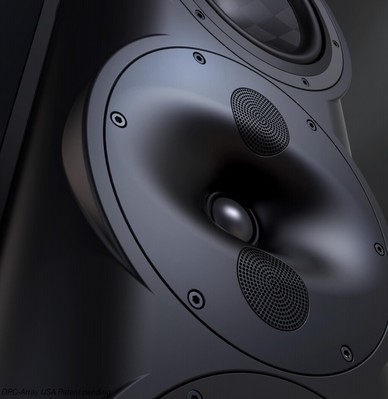

DPC array.jpg     DPC array exploded.jpg

It takes some serious speakers to break the THX Certified Dominus barrier, so how did Perlisten accomplish this feat? The answer is cutting-edge loudspeaker design combined with brute force air displacement. An example of the leading edge technology employed by Perlisten is their ‘DPC’ array that uses three 1.1” drivers across a waveguide that is used on all of Perlisten’s speakers. The ‘tweeter’ is the dome mounted in the middle of the waveguide while two upper midrange drivers are mounted above and below the mouth of the waveguide. These upper midrange drivers are not tasked with playing lower midrange which greatly alleviates their displacement requirements nor are they tasked with playing treble which greatly alleviates their requirements for low mass. Giving the drivers a more focused frequency band enables the engineers to optimize them much more than wide-band drivers. It also allows the engineers to optimize the tweeter for a higher treble range which enables it to perform that much better within its allocated range.

S7t white.jpgThe waveguide also has a major role to play here, as optimal waveguide geometries are not easy to conjure. Perlisten’s waveguide keeps the tweeter’s horizontal dispersion wide and the vertical dispersion narrow at a consistent directivity up to the high-frequency limits of human hearing. It’s the perfect shape for a directivity match with the midrange drivers. The really cool thing about the DPC array is that the three drivers are used to reduce each other’s vertical dispersion and also strengthen the axial response by means of phase summation and cancellation. Separate drivers that play the same frequency will inevitably start interfering with each other at high enough frequencies, and often times this can be a problem, but for Perlisten, it’s a solution to reduce acoustic reflections off of the floor and ceiling. This is a part of what is called beamforming, and it is a similar technique to how 5G transmitters precisely deliver a strong signal to a receiver in a specific direction instead of spraying it inefficiently over a broad angle. Likewise, the woofers flanking the DPC array do the same thing at lower frequencies, so vertical dispersion is restricted by design for all the deepest bass frequencies. While a restricted vertical dispersion can be a desirable feature, a wide horizontal dispersion can also be desirable, and Perlisten’s design looks to encourage a wide dispersion while discouraging vertical dispersion in a very clever approach to directivity control.

One neat attribute about Perlisten’s system of directivity control is that it doesn’t need the speaker to have a really wide footprint. Almost all other loudspeakers with highly controlled directivity use large horns to accomplish that objective, but, as a consequence, they are very large speakers with a wide front baffle. Perlisten’s flagship speaker is not much larger than a normal tower speaker, but it is behaving in a way that you would expect from a gigantic speaker.


Along with clever approaches in directivity control, Perlisten also tackles THX Certified Dominus in allocating raw displacement only where it is needed instead of having it in frequency ranges where it isn’t necessary. The reason is that the quantity of air that needs to be moved to maintain the same SPL rises exponentially as frequencies fall. For example, Perlisten’s S7 series uses four 7” bass drivers to move air below 1kHz where things get tougher, especially below 100Hz. 1kHz, on the other hand, would be tough for a dome tweeter but is not much of a challenge for a couple of midrange domes in addition to the tweeter. The midrange drivers get filtered out at 4.4kHz leaving the tweeter alone to reproduce that range for which it is far more suited. Perlisten’s driver layout ensures that the speakers will be able to play at high levels with very low distortion which is, of course, mandated by THX to achieve a Dominus rating. It’s worth pointing out that Perlisten’s R5t floor-standing speaker, a very substantial three-way tower, is only Dominus certified for a surround role. Only Perlisten’s S series is THX Certified Dominus for front LCR roles and are presently the only speakers in the world officially certified for that function. As was said before, it is asking a lot to achieve THX Reference levels at a 20-foot viewing distance. Indeed, it requires the S series to have a relatively high 92dB sensitivity, and that is extremely high for a speaker with a -10dB frequency of 22Hz. This is a speaker that has high sensitivity as well as deep bass extension, all while maintaining a reasonable size; so much for Hoffman’s iron law!

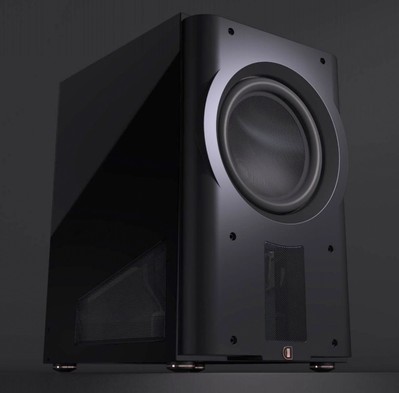

The THX Certified Dominus also extends to Perlisten’s subwoofers. Needless to say, it takes one heck of a sub to hit Certified Dominus since subs have an additional 10dB level of output needed beyond the main loudspeakers, but Perlisten’s subs look like they have the chops to do it. First of all, the drivers boast 30mm of one-way linear excursion which signifies a tremendous level of controlled displacement. We should emphasize the word ‘control’ here since there are subwoofer drivers that can move further than that, however, they don’t do so in a controlled manner, whereas the Perlisten subwoofer driver cones can move over two inches both ways with near-absolute control over the cone position. Linear excursion means the cone tracks the signal accurately, so the driver can move that distance only while only producing the sounds that it is supposed to without adding distortion products. Perlisten is able to achieve this level of linear excursion by employing all of the tricks of modern driver engineering including using a carbon-fiber composite cone, multiple shorting rings, massive magnet motors, and multi-layered spiders for suspension that doesn’t inhibit the driver’s travel until absolutely necessary. For an even greater degree of control, Perlisten’s flagship subwoofers, the D215s and D212s, uses a push-pull driver arrangement where another driver is added to counteract asymmetric distortion that results in far lower even-order harmonic distortion products. I would say that is overkill to achieve low distortion, but these are the lengths you can go to for no-holds-barred, state-of-the-art performance, especially if you don’t want the subwoofer to be the size of a refrigerator.

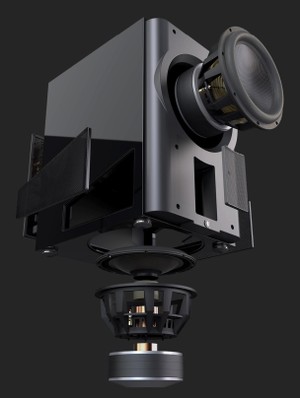

D212s.jpg      D212s exploded.jpg

Of course, all of that linear excursion isn’t useful without adequate power to take advantage of it, but the Perlisten subwoofers have a very serious power plant in a 3kW short-term RMS class-D amplifier. What is more, that amplification is very tightly controlled by a lightning-fast 32-bit ARM processor that monitors temperature, current, voltage, fault detection, and performance diagnostics in realtime. This is complemented by a powerful DSP that enables users to fine-tune the subwoofers’ behavior to an extraordinary degree using app control supported by iOS and Andriod devices. Users can switch between different inputs (the Perlisten has both balanced and unbalanced inputs) as well as adjust input gain, phase, low-pass filter behavior, different performance modes, and users can even configure a 10-band parametric equalizer. There are three different presets that all of these settings can be saved on. Smartphone apps are nifty, but what if your phone isn’t handy at the moment? Perlisten has a 2.4” LCD touchscreen display mounted at the top front of their subs for easy access to many of these functions.

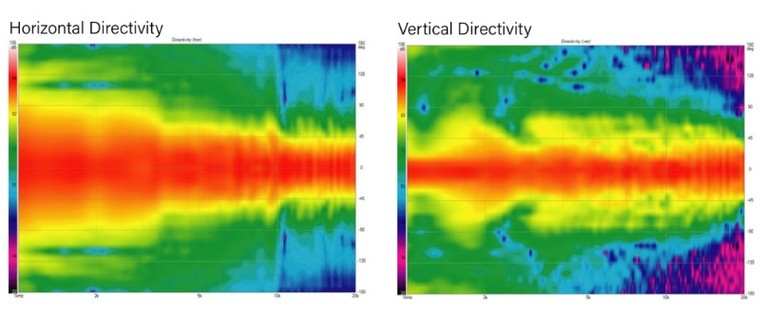

S7t dispersion.jpg

All of Perlisten’s technology sounds cool and all, but a lot of audio companies make hyperbolic marketing claims about the advanced technology in their products, and a lot of times, it turns out not to be the greatest thing since sliced bread. Since Perlisten is a new company, they decided to set themselves apart by offering proof of their technology’s effectiveness which is something many other companies rarely do. Not only do they attain the highest possible THX certification, but they also publish detailed data on the performance of their products. Every single one of their loudspeakers has the associated CTA-2034 graph and polar map of both vertical and horizontal dispersion. This is ideally how every loudspeaker company should function, but very few actually do. Many loudspeaker manufacturers don’t do this because it invites unnecessary scrutiny, but Perlisten is a company with something to prove, and their measurements indicate a loudspeaker with absolutely top-notch performance. In fact, the lengths in which they go to control vertical dispersion yield some of the very best vertical directivity control measurements I have ever seen. The horizontal dispersion pattern is also beautifully uniform. This adds up to excellent directivity indexes which means that these speakers place the sound exactly where the designer intends for it to go and nowhere else, and all of it bearing an accurate response at every angle. These are an acoustician’s dream speaker.

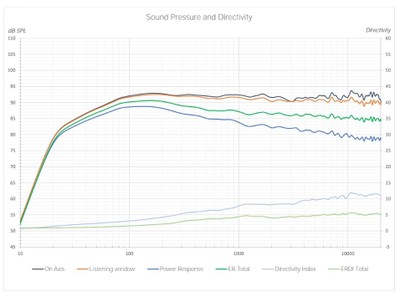

S7t CTA-2034.jpg

PerListen S7t CTA-2034 Measurements

PerListen Future Tech Speakers Today

The technology deployed to make Perlisten’s speakers sound futuristic is matched by their futuristic industrial design too. They have a smooth look that rounds the vertical edges while keeping the horizontal edges more angular. If these are from the future, it is a clean ‘Star Trek’ future rather than a baroque ‘Blade Runner’ futurism that has a convoluted and busy aesthetic. They don’t look like traditional loudspeakers and subwoofers, but they do look sleek and very cool. Perlisten’s products can be had in a wide range of colors, and they are amenable to custom colors as well as some real wood veneers if a customer has a specific request.

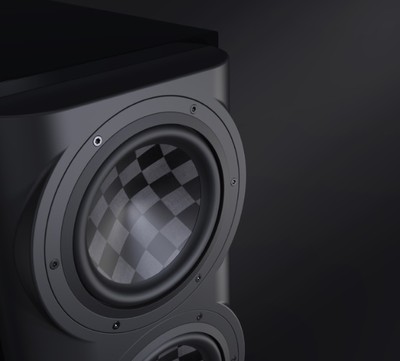

Perlisten woofer.jpg

Of course, something that looks this nice and also has this level of engineering does come at a price. Pushing the envelope this far isn’t an inexpensive endeavor, and Perlisten’s flagship tower speaker, the S7t, starts at $8k each (for the premium high gloss finish), and their flagship subwoofer, the D215s, starts at $9k (also in high gloss). However, if you want some of the most sophisticated loudspeakers and subwoofers that are available, in both looks and technology, that is certainly not an unreasonable cost. Perlisten products can only be purchased from dealers. They are still establishing a dealer network, so if you are interested in purchasing a Perlisten loudspeaker, the way to do that is to contact their distributor, Fidelity Imports (https://fidelityimports.com), with queries on where to purchase. Perlisten isn’t doing direct sales which makes sense since most people buying at this price point do want a demo first. All of their products come backed with a 5-year warranty. We are very intrigued by Perlisten’s offerings and will be taking a much closer look at their speakers in a full review in the future. Keep an eye on Audioholics to see what we find; is THX Dominus just for bragging rights, or is it the ultimate endgame for home theater?

About the author:

James Larson is Audioholics' primary loudspeaker and subwoofer reviewer on account of his deep knowledge of loudspeaker functioning and performance and also his overall enthusiasm toward moving the state of audio science forward.

View full profile

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

Recent Forum Posts:

kini posts on March 15, 2021 12:03
shadyJ, post: 1468298, member: 20472
Narrow dispersion and wide dispersion just have two different soundstages. Supposedly narrow dispersion can have more precise imaging, and wide dispersion can have a greater sensation of spaciousness. However, in my experience, both can image pretty well. By the way, KEFs don't really have that wide of a dispersion pattern. I am not even sure it's all that much wider than Klipsch which uses a 90-degree horn.
In my room the Kefs have a much, much wider and taller soundstage than my Klipschs had. It's night and day with movies and TV though more subtle with music.
AcuDefTechGuy posts on March 14, 2021 14:51
BoredSysAdmin, post: 1468272, member: 28046
what's the price for S4b bookshelf?
S4s MSRP $5,990/pair
S4b MSRP $6,990/pair
S5m MSRP $12,990/pair
S7c MSRP $6,995 each
S7t MSRP $15,990/pair
R5t MSRP $5,990/pair
D215s MSRP $8,995 each
shadyJ posts on March 14, 2021 14:40
BoredSysAdmin, post: 1468272, member: 28046
what's the price for S4b bookshelf?
I'll inquire.
shadyJ posts on March 14, 2021 14:37
kini, post: 1468267, member: 58144
I can understand the need for the narrow dispersion and beaming in large rooms in order to achieve the volume required by the standard but it seems something like this would be a poor choice in a smaller room with much shorter listening distances. I experienced a much improved soundstage with my Kefs compared to the relatively narrow dispersion of my previous Klipsch speakers.
Narrow dispersion and wide dispersion just have two different soundstages. Supposedly narrow dispersion can have more precise imaging, and wide dispersion can have a greater sensation of spaciousness. However, in my experience, both can image pretty well. By the way, KEFs don't really have that wide of a dispersion pattern. I am not even sure it's all that much wider than Klipsch which uses a 90-degree horn.
Pogre posts on March 14, 2021 14:01
kini, post: 1468267, member: 58144
I can understand the need for the narrow dispersion and beaming in large rooms in order to achieve the volume required by the standard but it seems something like this would be a poor choice in a smaller room with much shorter listening distances. I experienced a much improved soundstage with my Kefs compared to the relatively narrow dispersion of my previous Klipsch speakers.
I don't think many people with small rooms will be buying Dominus certified speakers. The whole goal is for a large room long seating distance.
