Oppo BDP-93 & BDP-95 Universal Blu-ray Player Measurements Report

by March 14, 2011
Oppo BDP-93 & 95

Oppo BDP-93 & 95

Introduction

Just a few short years ago, Oppo dazzled us with their first generation Universal Blu-ray players, the BDP-83, and BDP-83SE, respectively.  These players were so good that a particular high end company decided to shoehorn the entire product into its own chassis and charge a $3k+ premium for it.  We did a full barrage of audio and video tests on these new Oppo players and found benchmark performance on everything but the analog bass management functions.  With Oppo's recent release of their second generation players, the BDP-93 and BPD-95, respectively, we were curious not only to see if Oppo addressed our minor concerns of their first generation players, but also how far they were able to push the envelope of performance with these new premier players.  Is the BDP-95 (MSRP $999)  really worth 2X the cost of the BDP-93 (MSRP: $499)?  Read on to find out....

Set-Up

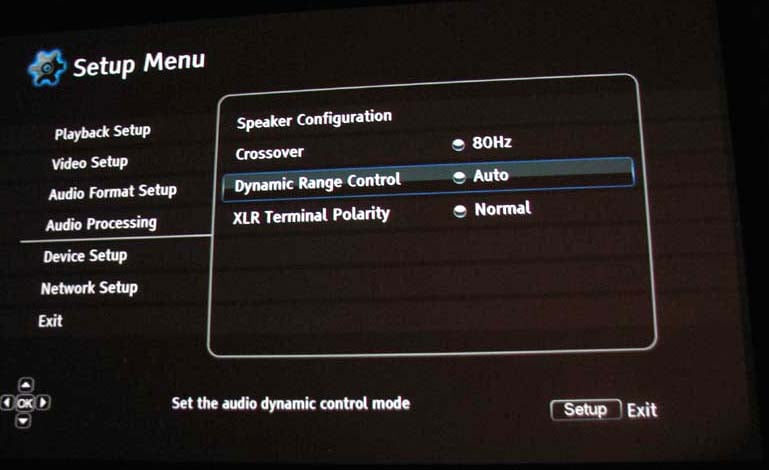

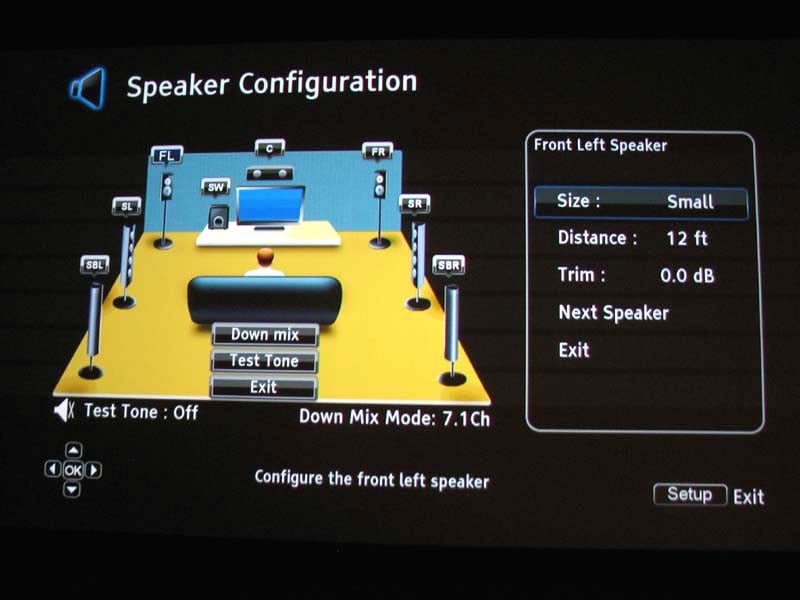

Configuration of both the BDP-93 and BDP-95 players is virtually identical.  They follow the same setup procedures found on the BDP-83 which we found to be very intuitive.  The only real gripe we found was that, on occasion, both players seemed unresponsive to the remote control.  There were instances where we tried to navigate through the setup menus where the players simply didn't respond.  We informed Oppo about this and they also confirmed some users occasionally experienced similar issues.  We suspect it's an issue with the remote control or receiver.  Oppo is currently investigating this and based on their track record, you can be assured it will be resolved promptly.

Both Oppo players share a similar Lexiconish front faceplate while the BDP-95 adds a touch of class by backlighting the main playback buttons.  The BDP-95 also has a larger power button with the Oppo logo embedded in it.  Both players yield a much nicer look compared to their predecessor BDP-83 series players.

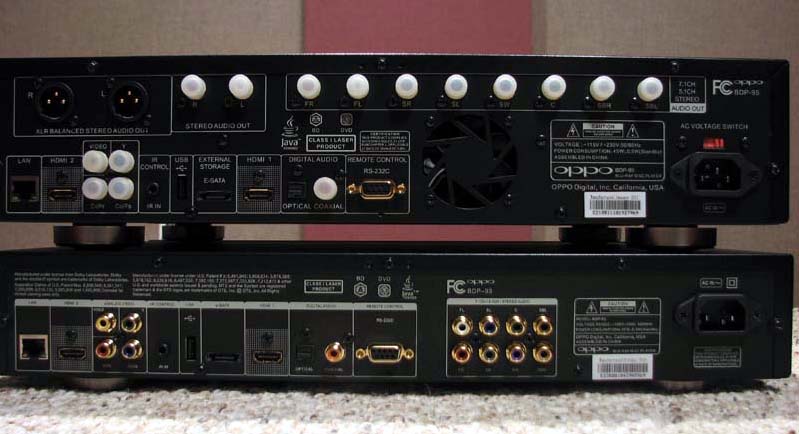

Oppo BDP-93 & BDP-95 Backpanels

Backpanel Views of Oppo BDP-93 (bottom) & BDP-95 (top)



Both players have the same complement of I/O's (two HDMI, one component, composite, toslink, coax, Ethernet, etc) though the BDP-95 adds dedicated unbalanced and balanced stereo analog outputs.  The Oppo BDP-93 does NOT have dedicated stereo analog outputs.  Users wanting to run analog stereo to a second zone from the Oppo can do so only if they are not already utilizing the dedicated multi channel outputs.

The 8 channel preouts of the BDP-95 are also spaced further apart and horizontally arranged into one long row instead of two rows like the BDP-93.  Both players analogue outputs are color coded to better mark corresponding channels.  Both players also sport detachable power cords, though the BDP-95 is of three-prong type while the BDP-93 is two-pronged.  The BDP-95 grounding scheme requires a 3 prong power receptacle for its balanced analog outputs to maintain a truly differential signal path from input to output and thus improving Common Mode Rejection and further reducing the noise floor.

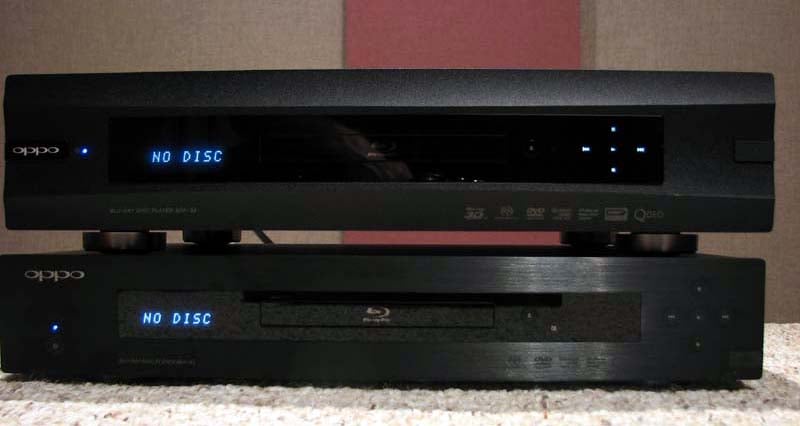

As you can see in the above photo, the BDP-95 is slightly taller than the BDP-93.  Both players measure 16-7/8" wide by 12-1/4" deep while the BDP-93 is 3-1/8" high and the BDP-95 is 4" high.  The BDP-93 also weighs in at 10.8lbs while the BDP-95 weighs an impressive 16lbs.

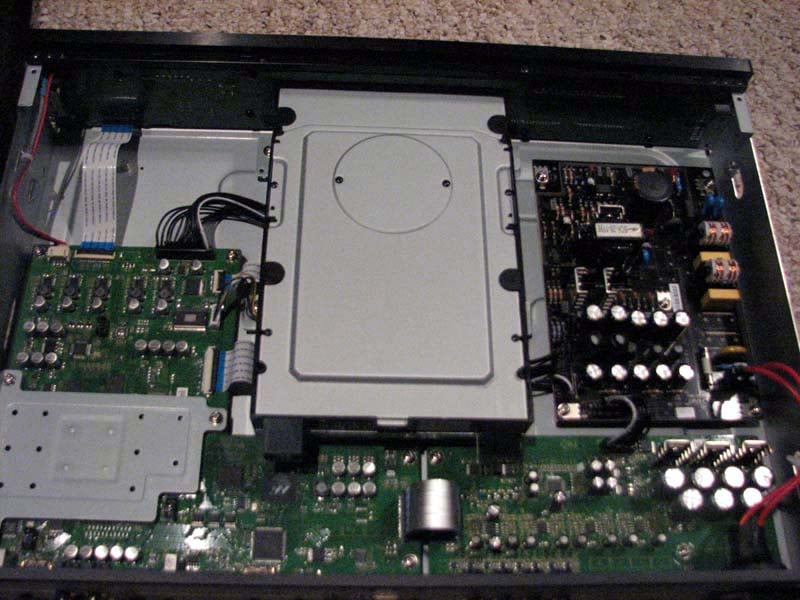

 Oppo BDP-93 Inside  Oppo BDP-95 Inside

Inside View of Oppo BDP-93 (left pic) & BDP-95 (right pic)

We honestly weren't expecting such differences in build quality between the two players.  Once we popped their hoods, the BDP-93 seemed hollow in comparison.  It was almost as if they were two completely different players.   Both players utilize identical video circuitry while the BDP-95 gets a significant audio upgrade by implementing premium ES9018 Sabre32 DAC's and a dedicated analog power supply with a Rotel built toroidal power transformer.  Both players share the exact same transport which was kind of a bummer to us.  We would have liked to see a slightly beefed up disc drawer for the BDP-95 if for no other reason than high end appeal.

We asked Oppo to provide us a complete list of differences between both players which is tabulated below.

BDP-95 BDP-93
ESS Sabre32 Reference DAC for the 7.1ch analog output Cirrus CS4382A DAC for the 7.1ch analog output
A second ESS Sabre32 Reference DAC for the stereo analog output No dedicated stereo output (The 7.1ch output can be set to stereo mode)
Fully balanced XLR output for stereo No XLR balanced output
Linear power supply with Rotel-made toroidal transformer for the audio section Switching power supply
Higher grade op-amps and passive electronic components Regular audio grade op-amps and passive electronic components
Bigger and heavier chassis
A lot more engineering hours put into the design
