Outlaw Audio RR2150 Stereo RetroReceiver Review
- RMS Power (watts): 100w, 20Hz-20 kHz @ 8 ohms, <0.03% THD. Both channels driven
- Dimensions (W x H x D): 17.1” W x 5.75” H x 15” D
- Weight (pounds): 27lbs
- Warranty: 2 years
- Phono Inputs: 1
- USB Inputs: 1
- Stereo Inputs/Outputs: 6/3
- Optical Inputs/Outputs: 0/0
- Digital Coaxial Inputs/Outputs: 0/03333
- Subwoofer Outputs: 1, selectable crossover
- Headphone Output: Yes
- IR Inputs/Outputs: 1/1
- 12v Trigger: 1
Pros
- Subwoofer output
- USB-B input
- Eye-catching design
- Excellent amplifier performance
Cons

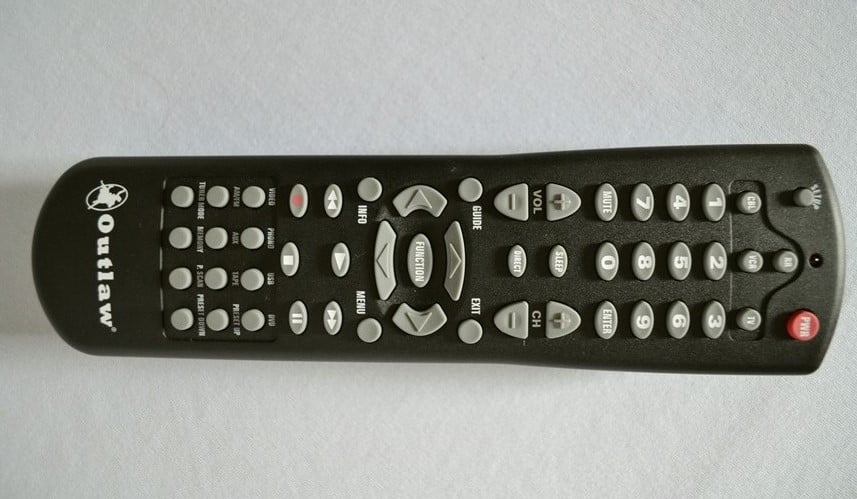

- Cluttered remote control
- No digital coax or digital optical inputs
Outlaw Audio RR2150 Review Introduction
Two Channel stereo receivers haven’t been cutting edge since the 1960s, but that hasn’t stopped manufacturers from refining and advancing the technology all the way up to today. Throughout the years people have experimented with three-channel, quadraphonic, and modern 5.1 mixes, but none of those technologies hit a stride in the mainstream market. Two channel stereo is still the main choice for recording and listening to music. In an attempt to move stereo receivers a little bit more into the 21st century, while still maintaining all of the form and function of past generations, Outlaw came up with the RR2150 RetroReceiver. The inclusion of bass management for subwoofer integration, a USB port, and 3.5mm aux jack make the RR2150 a boundary spanner between an older generation (of people and gear) and a younger one.
Rear Panel: Inputs, Outputs, and Switches
It’s sort of ironic to call a stereo receiver “feature rich”, but the RR2150 comes pretty close. No, it doesn’t jump head first into the world of home theater with HDMI inputs and network functionality. It doesn’t even have optical or digital coax inputs. However, it takes a step in the right direction while firmly remaining a classic stereo receiver.
The first jump ahead is the inclusion of a USB-B port on the rear of the unit. This allows for the connection of a computer directly to the RR2150 using a USB-A to USB-B cable. With this setup, the computer decodes the audio and sends a hopefully bit-for-bit perfect PCM signal to the receiver (The RR2150 will not accept DSD). One of the main advantages of having a computer do all of the processing is that a computer is able to decode any file format in existence. This configuration also allows a user to bypass the likely crap-tacular DAC (digital to analog converter) in the computer, and use the RR2150’s superior DAC. In a world of computer audio, this is an invaluable feature and one that we used quite often during listening tests.
On the back of the RR2150 you’ll also notice three stereo audio inputs and one phono input with grounding connector. The phono input does have a pre-amp with MM/MC switch, a feature that vinyl lovers will surely appreciate. A nifty “External Processor” loop supplements the typical pre-out/main-in loop. The External Processor loop can be enabled/disabled by a simple button on the front panel. This makes it easy to hook up some sort of EQ unit that you only want to use part of the time. This is a really convenient feature, because the only way to bypass an external processor hooked up to the typical pre-out/main-in loop would be to physically unplug it and reinsert the jumpers to complete the loop. The last analog input, for a grand total of six, is a 3.5mm jack on the front of the unit, which makes connection of a portable MP3 player convenient (Who are we kidding, no one still uses a dedicated MP3 player do they? That’s what a smart phone is for; right?).
Outlaw RR2150 Rear Panel
We’re not done talking about the back of the RR2150 yet quite yet. There’s standard FM and AM antenna hookups, “Tape Out” for recording, a 12v trigger, and 3.5mm IR pass-through jacks. You’ll also find four sets of binding posts, two for “Speakers A” and two for “Speakers B”.
The last feature on the rear panel, and surely the most important for some users, is an RCA subwoofer output and accompanying bass management selector switch. When stereo receivers became a household commodity, dedicated subwoofers didn’t exist. Consumers had giant, and often ugly (Cliff’s opinion), full-range speakers. As home audio technology advanced, consumers started trading out full-range speakers in favor of smaller sub/sat systems. While many of us still run full-range towers, smaller satellite or bookshelf speakers coupled with a subwoofer can sound similarly good and typically offer a much less imposing profile.
The bass management switch has four different settings: BP (Bypass), 100, 80, and 60Hz. When set on Bypass, a full range signal is sent to both the subwoofer and the main speakers. With this setup, you should use the low-pass filter built into your subwoofer. However, you can offload bass management to the RR2150 by selecting 100, 80, or 60Hz. This way, the RR2150 uses Outlaw’s ICBM-1 bass management system and engages a 2nd order (12dB/octave) Butterworth filter.
Front Panel: Knobs, Buttons, and Lights
Although many audiophiles would like to think they can surmise everything there is to know about a product by glancing at the rear panel, the gorgeous front panel on the RR2150 demands a good look. Inspired by the art deco radios of the past, the front panel is brushed aluminum with custom tooled knobs. Little blue LED lights rest in the center of some of the buttons, adding utility as they indicate the state of a button, and a modern styling.

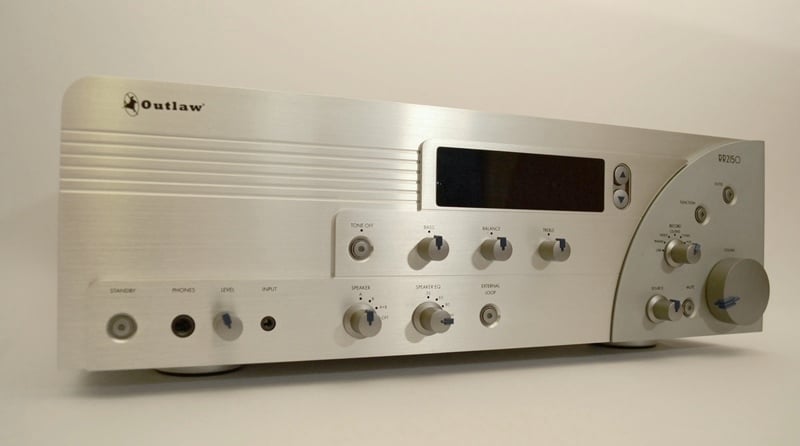

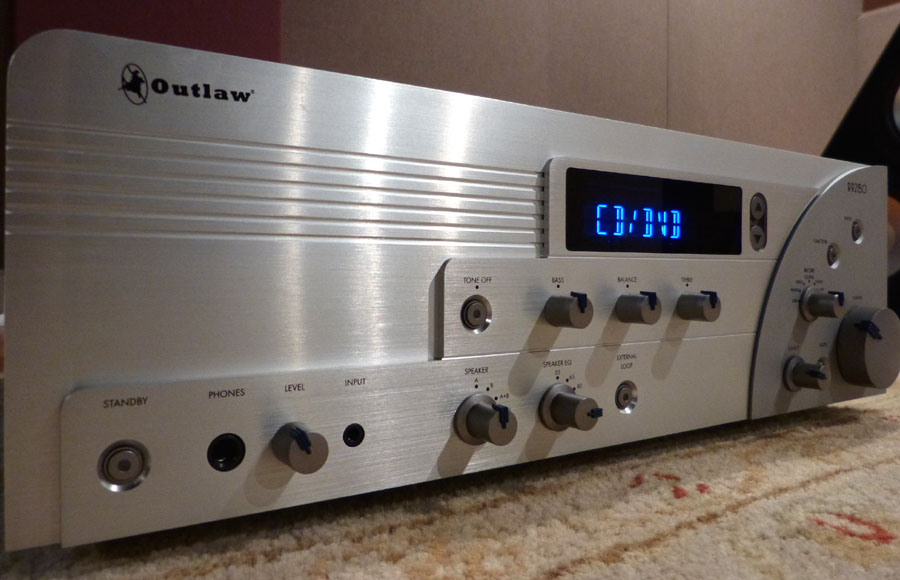

Outlaw Audio RR2150 Front Panel

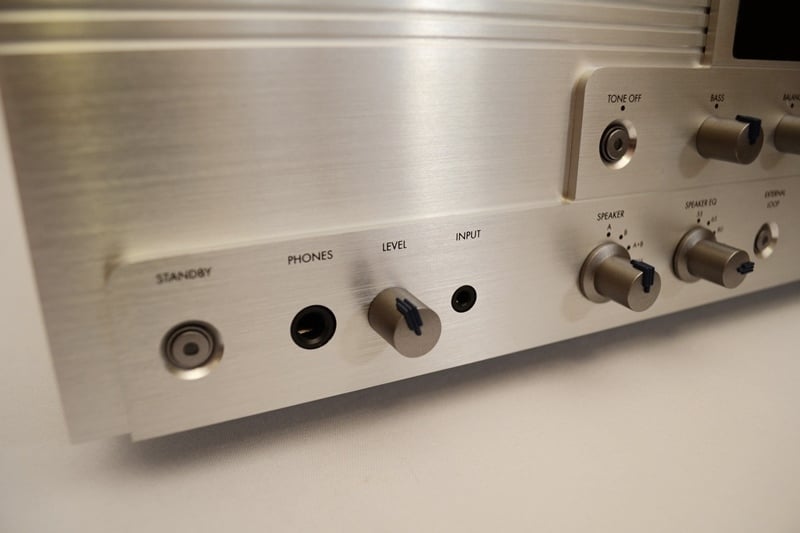

On the front panel, you will find a ¼ headphone jack with independent volume control. You can’t always use the big speakers, and with the proliferation of high-end headphones recently, this is a nice feature to have.
There’s also the previously mentioned 3.5mm input and speaker selector with the standard four options: A, B, A+B, Off. The speaker outputs are wired in parallel which is the preferred way of connecting multiple speaker pairs. Though this means the load impedance the amp sees is cut in half (assuming speakers with identical impedances are connected). This will cause the double the current draw in these cases so use caution when running two pairs of speakers simultaneously.
When using the headphone jack, the main speakers are still enabled unless you turn them off using the speaker selector control. There are also tone controls for bass and treble. Both offer ± 6.5dB of adjustment, with the treble adjustment at 10kHz and bass at 50Hz. I used the controls a small amount during my listening tests. Although they were unnecessary with my MartinLogan Theos, I liked the bass boost on my MartinLogan LX16 bookshelf speakers and enjoyed a few dB of attenuation in the treble on the Polk Audio LSiM703. There’s a Tone Off button to defeat the tone controls, and in between the bass and treble knobs is a balance knob. An extra bonus is that tone and balance controls work for the headphones as well.
If the ±6.5dB at 50Hz isn’t enough extra boom-boom for you, Outlaw also incorporated a Speaker EQ knob that adds a 6dB boost at 55, 65, or 80Hz. The purpose of this adjustment is to add bass around the point that a small bookshelf speaker starts to roll off. We’d caution users to be careful to not overdrive their speakers when using the Speaker EQ function. Additionally, sometimes the lack of bass at a certain frequency has little to do with a speaker, and is actually because of room modes and standing waves.
On the right hand side of the receiver you will find a few more controls. Function, Enter, and Up/Down Arrows are used to adjust the built-in AM/FM tuner. A control labeled “Record” selects what source you want output from the Tape Out RCA jacks on the rear panel. Below that is a knob for adjusting source. When flipping through the sources quickly, it’s easy to turn past the desired input because the “click” between inputs doesn’t quite lineup with the actual input change. Finally, a mute button sits right next to the motorized volume control. Yeah, the volume knob is motorized, it’s freakin’ cool.

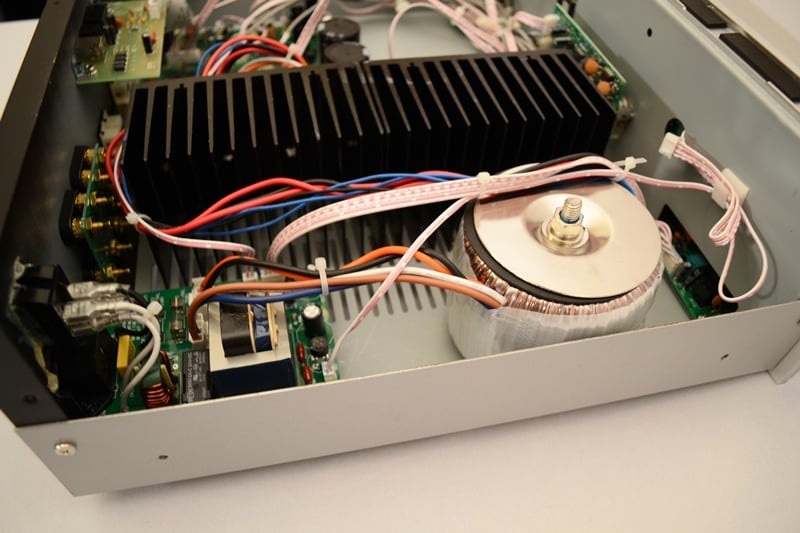

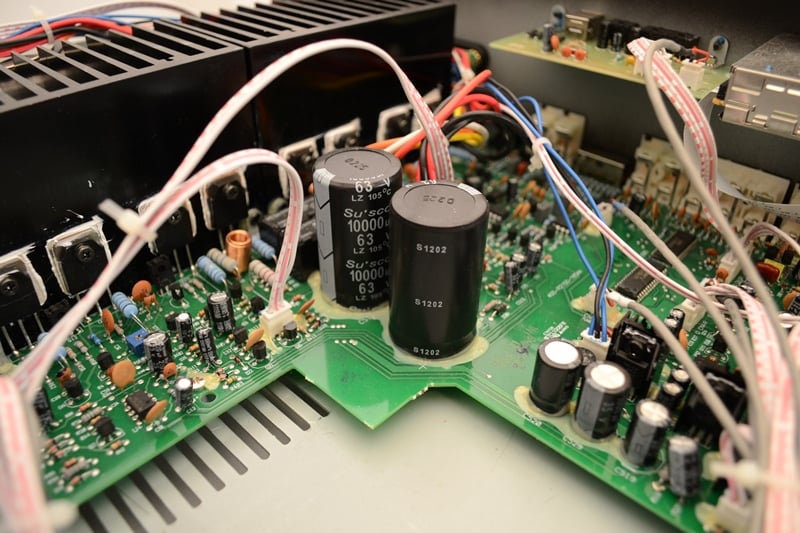

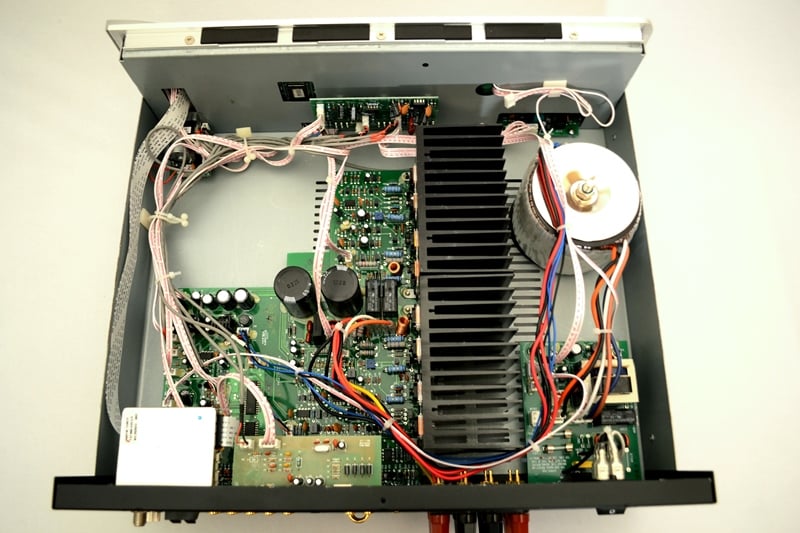

Based on looks and specs alone, the RR2150 appears to be a nice piece of gear. But what’s under the hood?
