Marantz AV7005 Networking A/V Processor Review

by Frans van Hofwegen December 03, 2010
Contributors: Gene DellaSala
  • Product Name: AV7005 Networking A/V processor
  • Manufacturer: Marantz
  • Performance Rating: StarStarStarStarStar
  • Value Rating: StarStarStarStar
  • Review Date: December 03, 2010 09:05
  • MSRP: $ 1500
  • Buy Now
  • 7.2 channel balanced pre out
  • 11.2 channel unbalanced pre out
  • Phono input
  • 6 HDMI In (one located on front panel)  / 2 HDMI Out (one with Audio Return Channel), Version 1.4a, Deep Color, Auto Lipsync and HDMI-control function
  • Anchor Bay 10-bit (ABT2015) video processing
  • Zone 2 and Zone 3

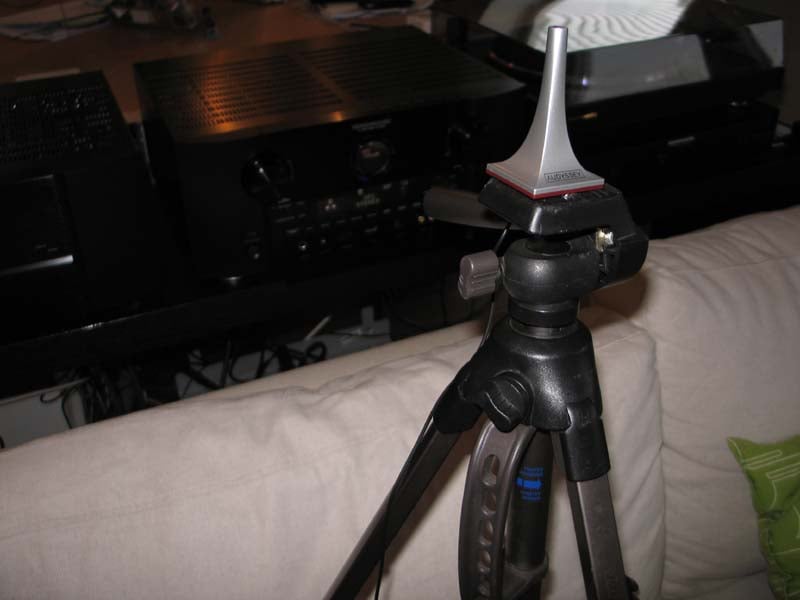

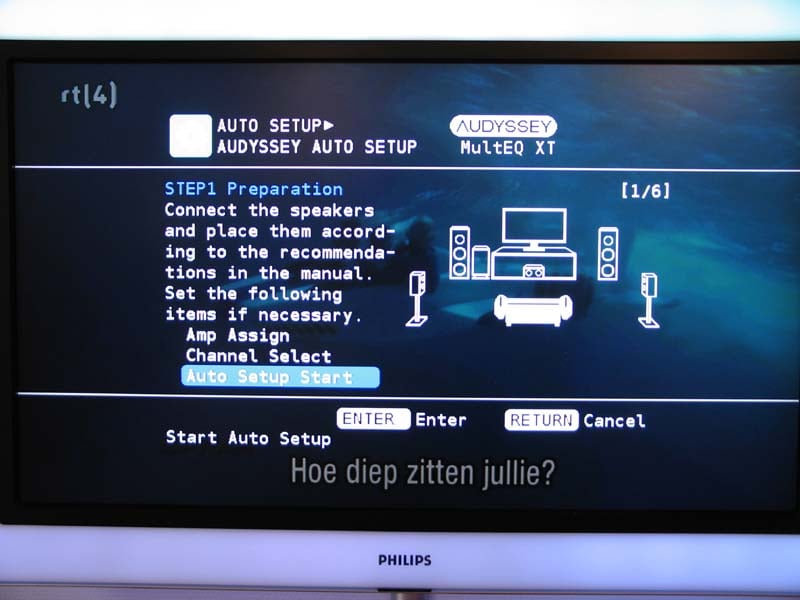

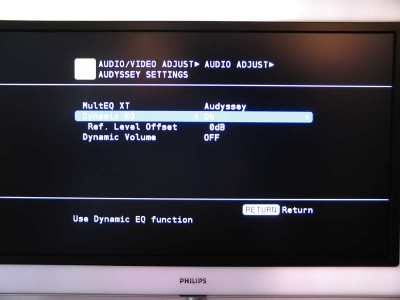

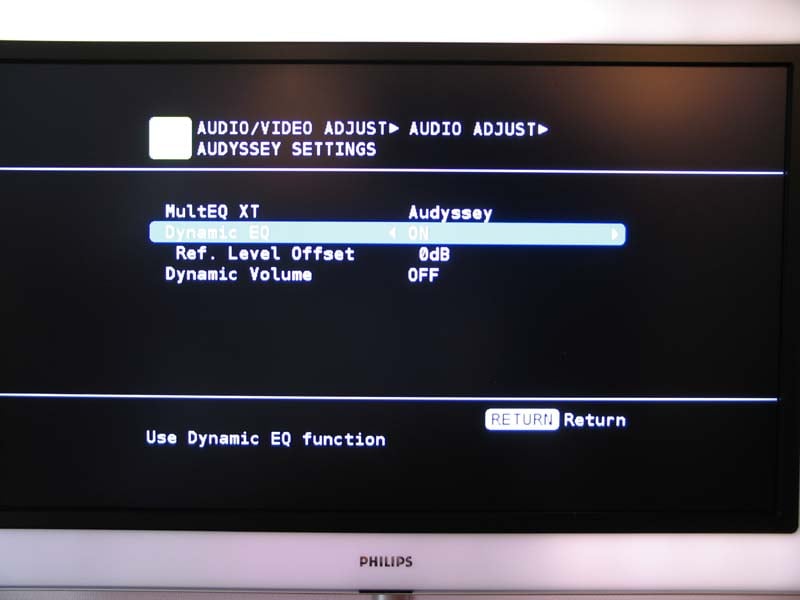

  • Audyssey MultiEQ XT Speaker calibration and Room acoustic corrections
  • Audyssey Dynamic EQ / Dynamic Volume
  • DLNA 1.5 certification and Windows 7 compliant

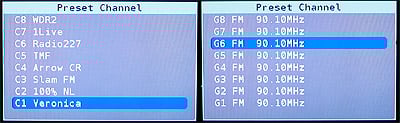

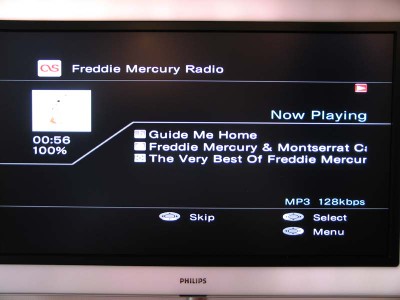

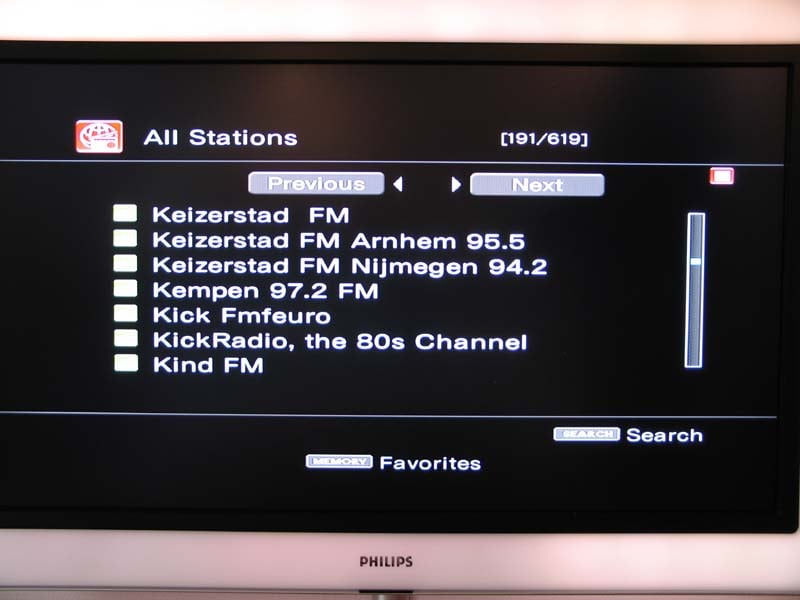

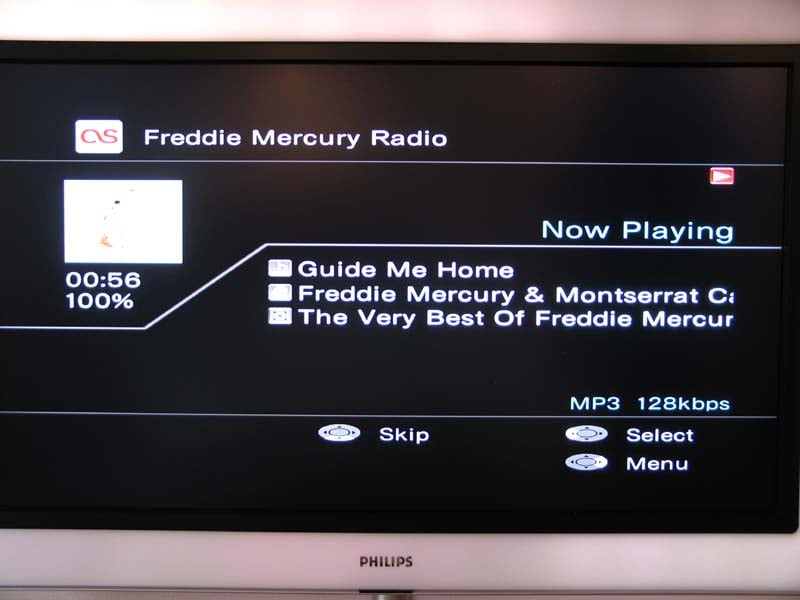

  • Internet Radio Connectivity (Last.fm, vTuner, Flickr, Napster on European models, Pandora is included on US models)
  • Signal to Noise Ratio: 105 dB (IHF–A weighted, DIRECT mode)
  • Rated output: Unbalanced pre-output: 1.2 V, Balanced pre-output: 2.4 V
  • Distortion: 0.005 % (20 Hz ~ 20 kHz) (DIRECT mode)
  • Size: 17.3” (W) x 7.36” (H) x 15.55” (D)
  • Weight: 22.5lbs
  • Warranty: 3 years

Pros

  • Great channel separation
  • 7.2 balanced output
  • MM Phono input
  • Packs a billion features: a true feature creature!

Cons

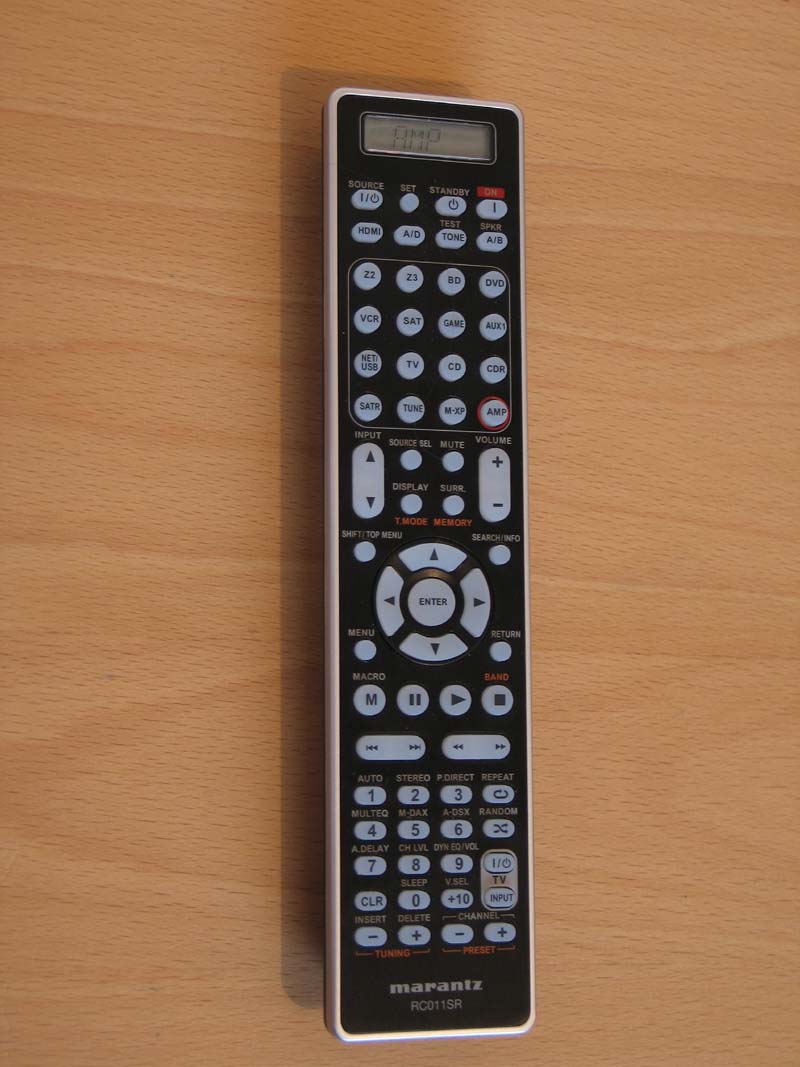

  • Cumbersome remote
  • No S-Video ins / outs
  • No Audyssey XT32



Marantz AV7005 Introduction

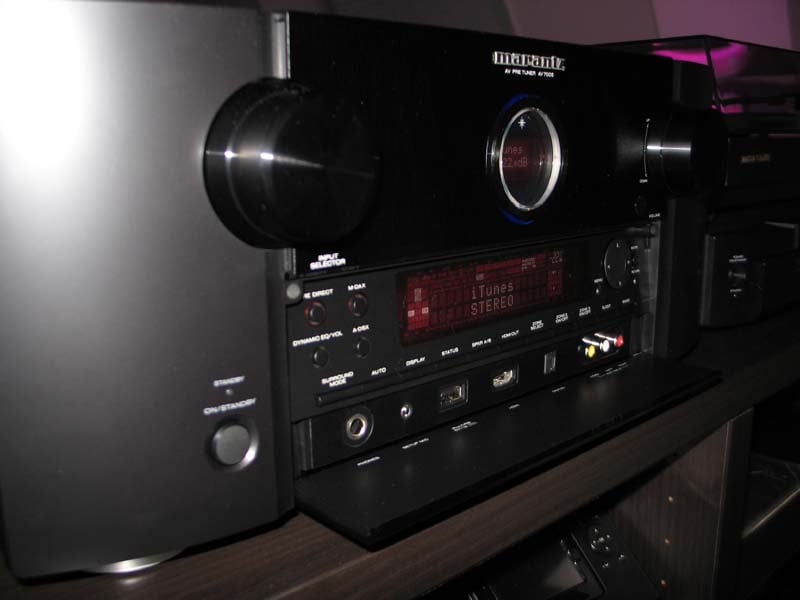

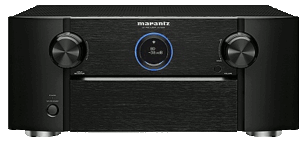

av7005.jpgA few weeks ago I joined the Audioholics forum and not much later I wrote a review for the Marantz AV7005 A/V processor, along with other some other equipment. When they approached me to rewrite my review for their website, I immediately said yes. So, here it is; my first official review! I sincerely hope you like it.

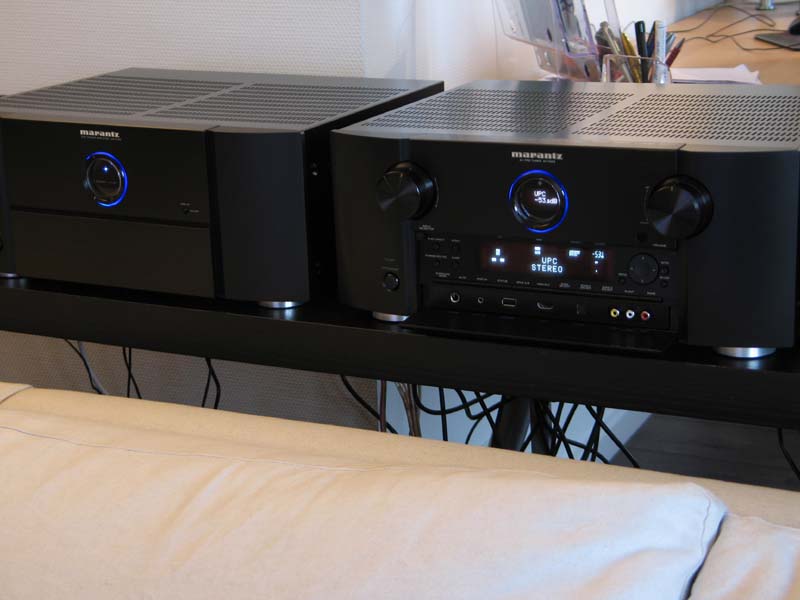

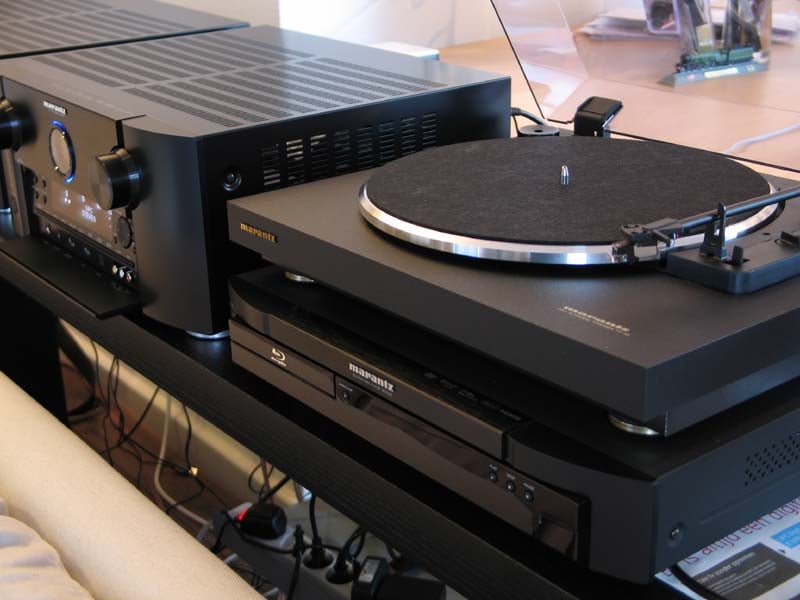

The AV7005 A/V processor and MM7055 Power Amplifier are Marantz’s new flagship products. I preordered them to replace my SR6003 AV Surround Receiver. As such, this review is focused quite a bit on comparing these units. If you already own Marantz products and are contemplating upgrading, this review is for you. I’ve also tried very hard to write this review from a consumer perspective. Trying to make up for a lack of hardware analysis frequently found in Audioholics reviews, I’ve concentrated on usability issues instead.

Every respectable home theater manufacturer seems to offer a Pre/Pro – multi channel amplifier combination nowadays. Marantz has had the AV8003 / MM8003 combination for quite some time now. Though respectable performing units, they are perhaps a bit too expensive for most of us and quite frankly, the AV8003 has become outdated.

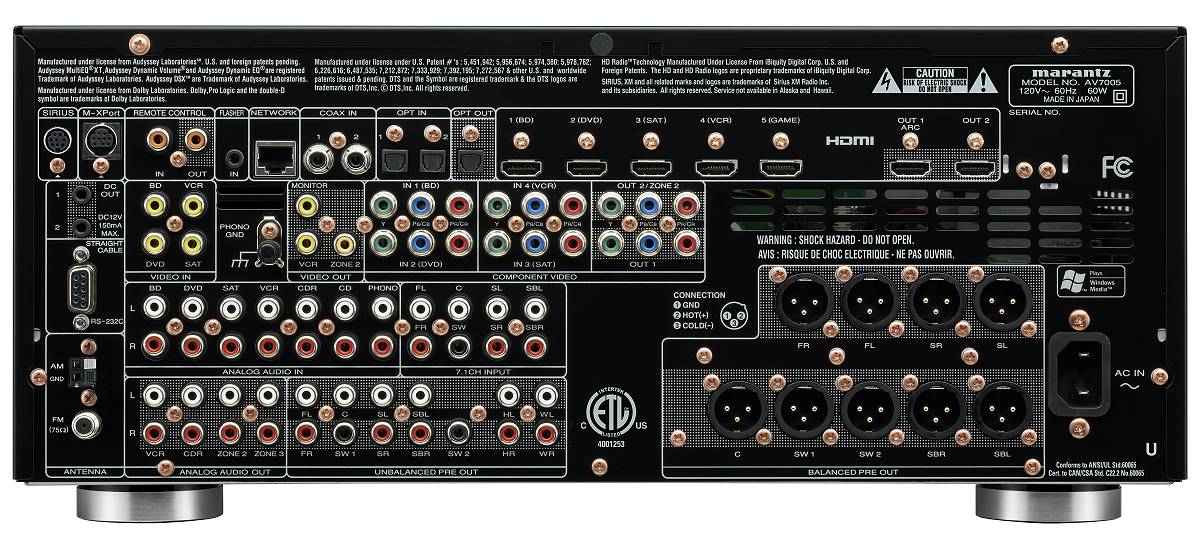

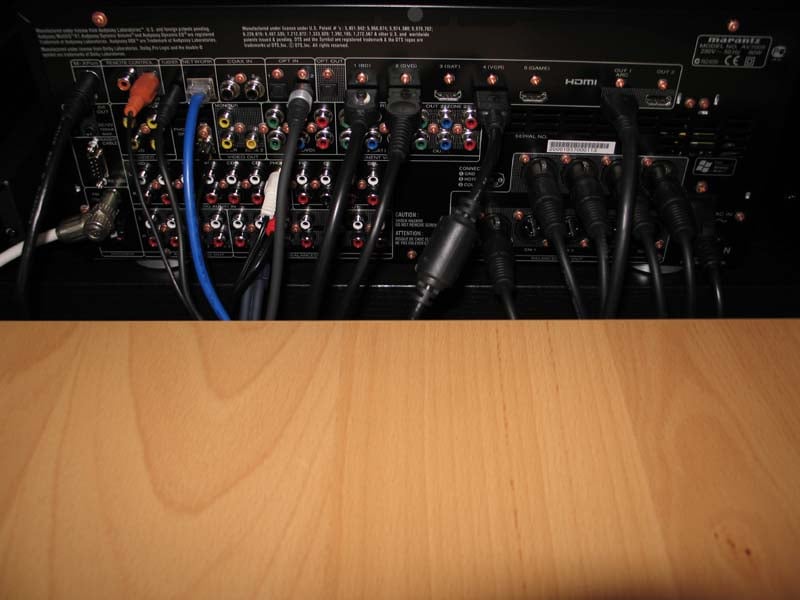

av7005back.jpgMarantz seems to head into a new direction with their new A/V processor and power amplifiers. Allow me to make a bold statement: perhaps much like Emotiva is already doing (with a lower price tag). Having a Pre/Pro and a separate power amplifier offers a lot more than just better sound quality and a higher energy bill. It allows for a modular set up of your home theater. Just add speakers and MM7055 (5 channels) or MM7025 (2 channels) amps when your budget allows for it. Keep your multi channel power amplifiers and swap out your outdated A/V processor for a new one, whenever that new HDMI 1.7BS ultra high speed Holographic projection becomes a must have. So what exactly are the main differences between the AV7005 and AV8003? At first glance the AV7005’s updated “port view” design stands out, previously found only with their Reference Series products. Also, the AV7005 is a fully packed Internet connectivity unit and offers HDMI 1.4a 3D in/outputs. The AV7005 sports HDAM (Hyper-Dynamic Amplifier Module) discrete circuits and Current Feedback technologies which wasn’t found on their more costly AV8003 predecessor. There are some similarities between these units however. The AV7005 is packed with some of the same high-grade components of the AV8003 such as the same chassis (but steel instead of copper plated), and Marantz’s proprietary power transformer.
