Pioneer SP-PK52FS 5.1 Floorstanding Speaker System Review

by February 26, 2013
  • Product Name: SP-PK52FS 5.1 Speaker System
  • Manufacturer: Pioneer
  • Performance Rating: StarStarStarStarhalf-star
  • Value Rating: StarStarStarStarStar
  • Review Date: February 26, 2013 22:00
  • MSRP: $ 549 (entire 5.1 system)
  • *For your convenience, we've included a link to Amazon.com to buy this product. As an Amazon Associate, Audioholics.com benefits from qualifying purchases.

SP-FS52 Tower (MSRP: $129/ea)

  • 2 ½ way ported speaker
  • Three 5 ¼ “ Structured Surface Woofers
  • 1” High Efficiency Soft Dome Tweeter
  • 130 Watt Power Handling with Sophisticated 8-Element Crossover
  • Frequency Response: 40Hz to 20kHz
  • Sensitivity (2.83V): 87 dB
  • Impedance: 6 ohms
  • Xover Frequencies: 250Hz & 3kHz
  • Dimensions: 35.2” H x 8.8”W x 10.6” D
  • Weight: 25.8 lbs

SP-BS22-LR Bookshelf (MSRP: $129/pr)

  • 2-way ported speaker
  • 4” Structured Surface Woofer
  • 1” High Efficiency Soft Dome Tweeter
  • Sophisticated 6-Element Crossover
  • 80 Watt Power Handling
  • Frequency Response: 55Hz to 20kHz
  • Sensitivity (2.83V): 85 dB
  • Impedance: 6 ohms
  • Xover Frequency: 3kHz
  • Dimensions: 12.6” H x 7.1”W x 8.4” D
  • Weight: 9.1 lbs

SP-C22 Center (MSRP: $99/ea)

  • 2-way ported speaker
  • Two 4” Structured Surface Woofers
  • 1” High Efficiency Soft Dome Tweeter
  • Sophisticated 6-Element Crossover
  • 90 Watt Power Handling
  • Frequency Response: 55Hz to 20kHz
  • Sensitivity (2.83V): 88 dB
  • Impedance: 6 ohms
  • Xover Frequency: 3kHz
  • Dimensions: 7.1” H x 18.1”W x 8.4” D
  • Weight: 13.4 lbs

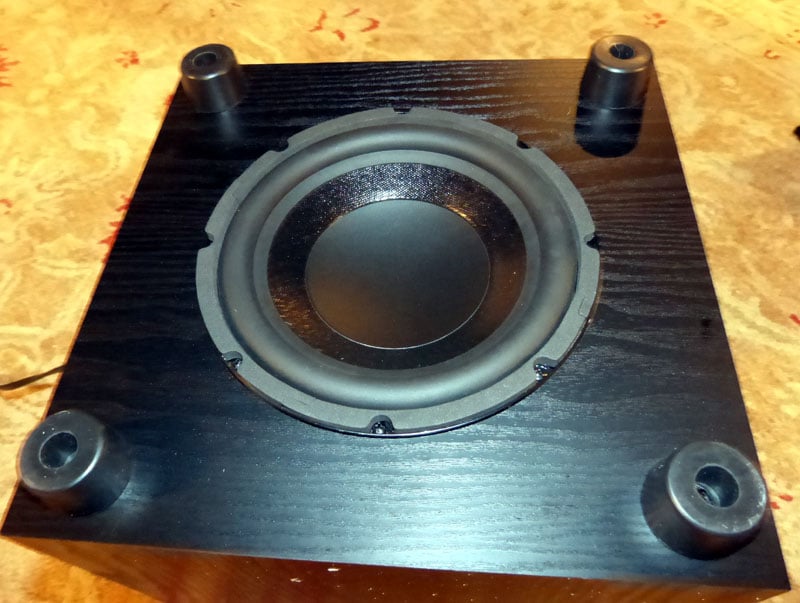

SW-8MK2 Subwoofer  (MSRP: $159)

  • 8” bass driver in ported enclosure
  • 100 watt amplifier (max power)
  • Frequency Response: 38Hz to 150Hz
  • Dimensions 14.2” H x 12.2”W x 12.2” D
  • Weight: 20.2 lbs

Pros

  • Unapproachable fidelity from competitors at this price point
  • Solid engineering and construction
  • Best bang for the buck you can get in a 5.1 system

Cons

  • Lacks high-end feel & pride of ownership factor



Pioneer SP-PK52FS Introduction

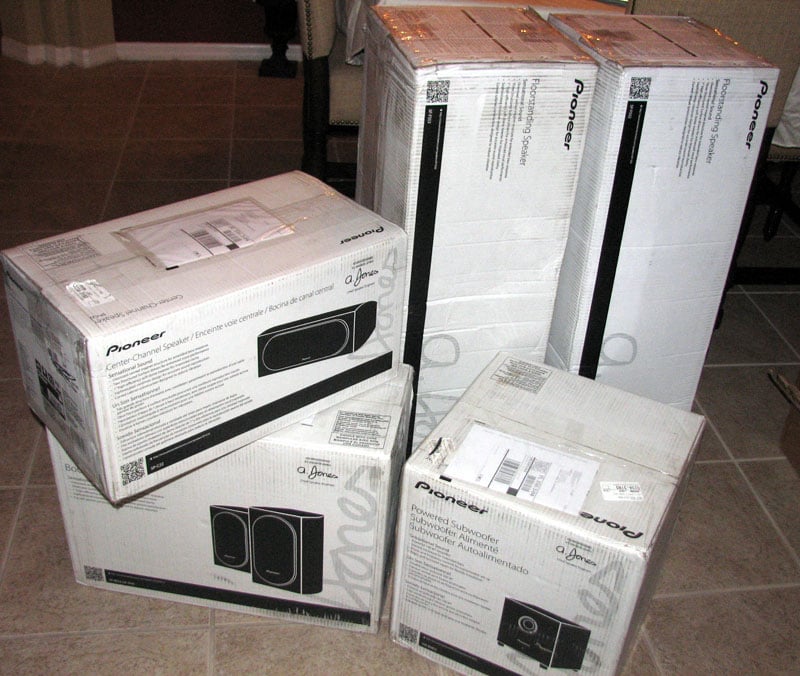

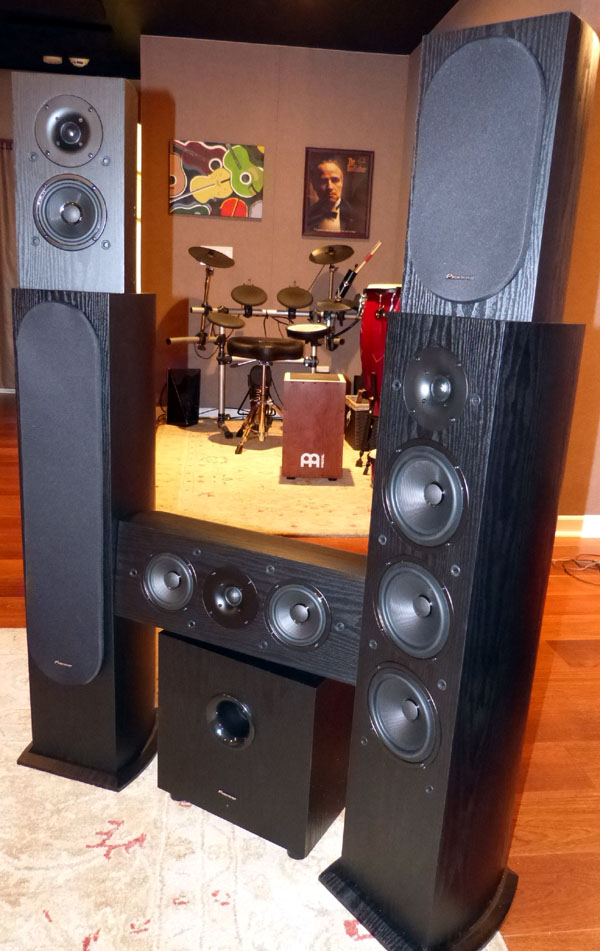

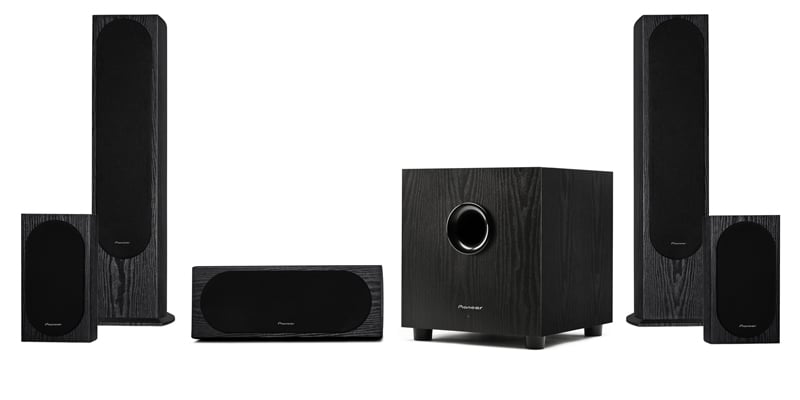

pioneer-box3001.jpgWhat would you say if we told you that a company historically known for their A/V electronics has redefined the loudspeaker market with their budget speaker line designed by industry veteran Andrew Jones?  Now take your amazement one step further when we tell you that for under $550 you get a pair of four driver 2 ½-way tower speakers (SP-FS52), a matching three driver MTM center channel (SP-C22) and pair of two-way bookshelf speakers (SP-BS22-LR) with an 8" 100-watt powered subwoofer (SW-8MK2).  While the model numbers of all of these products are a little ridiculous and difficult to remember, the performance and value certainly isn’t.  In fact the outside markings of the boxes these speakers come wrapped in more product specs, (most of which I was able to validate in my measurements), than you will find on most high end loudspeaker manufacturers websites or literature.  How is it possible that Pioneer can offer such a low cost speaker line packed with so much solid engineering and performance?  Well, you’re gonna have to read the review to find out.

About Andrew Jones

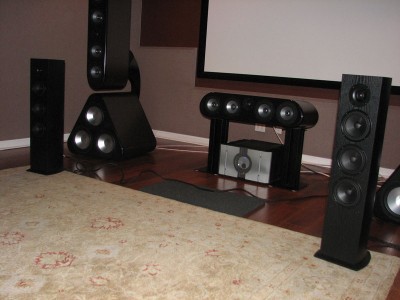

When I saw all the talk about Andrew Jones’ Pioneer speakers on our forum, I must admit I was skeptical.  I didn’t even know who this chap was, let alone why there was such a fuss about their Kmart-priced speaker system.  All of that quickly changed for me last year at CEDIA when I not only got a chance to demo the speakers first hand but also meet the very fellow that designed them.  I threw a few tech questions at Mr. Jones and was greeted not only with good humor but very accurate and well-stated responses.  I also learned that when Andrew worked for KEF he was introduced to Dr. Floyd Toole.  Through the Audio Engineering Society (AES), Andrew met an incredibly rich diversity of respected researchers that promoted great discussion and research ideas, and many of those people became good friends. Floyd was one of those, and it was Floyd that invited him to come to the USA and work at Infinity.  This guy really knows his stuff and I’m impressed enough to often solicit his peer review for our loudspeaker tech articles.  What I was even more impressed with was the demo of this very Pioneer speaker system.  Let’s take a tour to see what’s in these little gems.
