SVS PB-1000 & SB-1000 Powered Subwoofers Preview

By

Summary

  • Product Name: SB1000-PB1000 Subs
  • Manufacturer: SVS
  • Review Date: October 31, 2006 08:25
  • MSRP: $499/ea (includes shipping)
  • First Impression: Gotta Have It!
  • Buy Now

SB-1000

Frequency Response

•             24-260 Hz +/- 3 dB

Subwoofer Specs:

•             Cabinet Dimensions: 13" (H) x 13" (W) x 13"(D)

•             Overall Dimensions: 13.5" (H) x 13" (W) x 14.6"(D)(includes feet, grille, amplifier)

•             Weight: 27 pounds.

•             Premium black ash finish.

•             Black cloth grille.

•             Front-firing 12” driver.

Driver Specs:

•             SVS 12” high-performance driver

•             FEA-optimized motor technology for low distortion.

•             High-power voice coil for excellent thermal management.

•             Long-throw suspension for high output at deep frequencies.

•             Dual high-grade ferrite magnets

•             Vented pole piece for greater cooling and low noise

Amp Specs:

•             Sledge STA-300D with 300 watts RMS continuous power (700 watts peak dynamic power).

•             300 watts (700 watts peak dynamic).

•             Green standby mode with less than 0.5 watts consumption.

•             DSP control for accurate response and refined behavior under all operating conditions.

•             Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.

•             Stereo speaker level 5-way binding post input connections.

•             Continuously variable low pass filter frequency with disable/LFE setting.

•             Continuously variable volume and phase controls.

PB-1000

Frequency Response

•             19-270 Hz +/- 3 dB

Subwoofer Specs:

•             Cabinet Dimensions: 18.4" (H) x 15" (W) x 18.4"(D)

•             Overall Dimensions: 18.9" (H) x 15" (W) x 19.9"(D)(includes feet, grille, amplifier)

•             Weight: 46 pounds.

•             Premium black ash finish.

•             Black cloth grille.

•             Front-firing 10” driver.

•             Front-firing 3.5” high-flow port with inner/outer port flares.

Driver Specs:

•             SVS 10” high-performance driver.

•             FEA-optimized motor technology for low distortion.

•             High-power voice coil for excellent thermal management.

•             Long-throw suspension for high output at deep frequencies.

•             Dual high-grade ferrite magnets.

•             Vented pole piece for greater cooling and low noise.

Amp Specs:

•             Sledge STA-300D with 300 watts RMS continuous power (700 watts peak dynamic power).

•             300 watts (700 watts peak dynamic).

•             Green standby mode with less than 0.5 watts consumption.

•             Auto-On / On switch.

•             DSP control for accurate response and refined behavior under all operating conditions.

•             Stereo line-level RCA Input & 80Hz High Pass Filtered Output connections.

•             Stereo speaker level 5-way binding post input connections.

•             Continuously variable low pass filter frequency with disable/LFE setting.

•             Continuously variable volume and phase controls.

Executive Overview

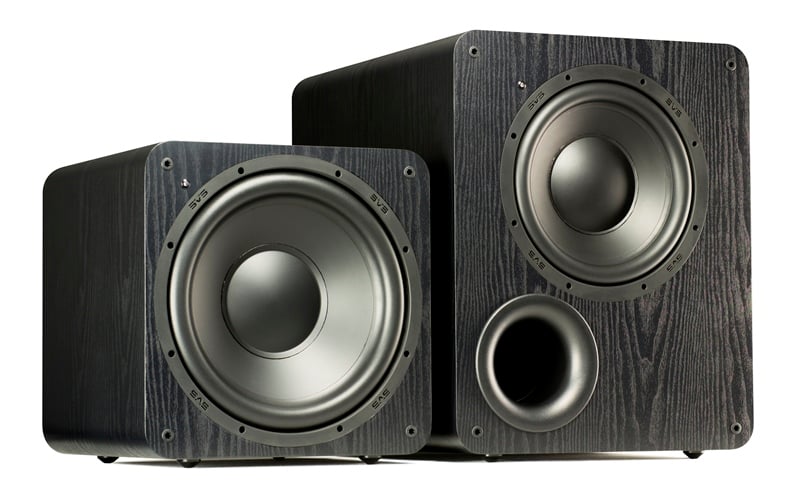

SVS is rounding out their lineup with a new pair of affordable subwoofers, the SB-1000 and PB-1000. By affordable, we mean $499 with FREE shipping, the least expensive subwoofer SVS has ever offered! The SB-1000 is a sealed 12" subwoofer and the PB-1000 is a ported design with a 10" driver. SVS's goal behind these two new subwoofers was to reach an untapped market by offering similar performance quality as their more expensive units at a price point that budget minded audiophiles can appreciate. Because both subwoofers are the same price, consumers can choose the one that will best fit their needs. What we especially love about these two units is that they hit an entry-level price point but still maintain the build quality and features that many units twice their price lack.  High build quality, superbly executed engineering, great customer support and one of the best return policies in the industry all seem to be SVS hallmarks carried over even to their most affordable products.

SB-1000

The SB-1000 offers high performance in a small package. Consider it the little brother of the SB12-NSD we reviewed. With a 13" square cabinet and overall dimensions of 13.5" (H) x 13" (W) x 14.6"(D)(includes feet, grill, amplifier), the SB-1000 is easy to hide. Unlike many other small subwoofers, it is still rated to play low, 24-260 Hz +/- 3 dB. Don't worry about fudged specs, the 24Hz rating is from a 2m ground plane measurement away from any reflections. It is only offered in one finish option, black ash. If the subwoofer is going to be hidden, then black ash is fine; otherwise, it would be nice to see a gloss or matte black option. It sports a single front-firing long-throw12" driver with vented pole piece, high-power voice coil, and  FEA-optimized motor technology for low distortion. The amp is a Sledge STA-300D with 300 watts RMS and 700 watts peak. Unlike many power ratings, these specs are on the conservative side. One of our favorite features is the DSP control, which means you shouldn't have to ever worry about pushing the subwoofer too hard. The SB-1000 sports stereo line-level and speaker level inputs and outputs, so it will hookup to any receiver. The low pass filter, volume, and phase control are all continuously variable. The control knobs are actually digital actuators for precise and noise-free adjustment. Eco-friendly consumers can also rejoice because of a .5 watt standby power consumption, RoHS compliance, and lead-free construction.

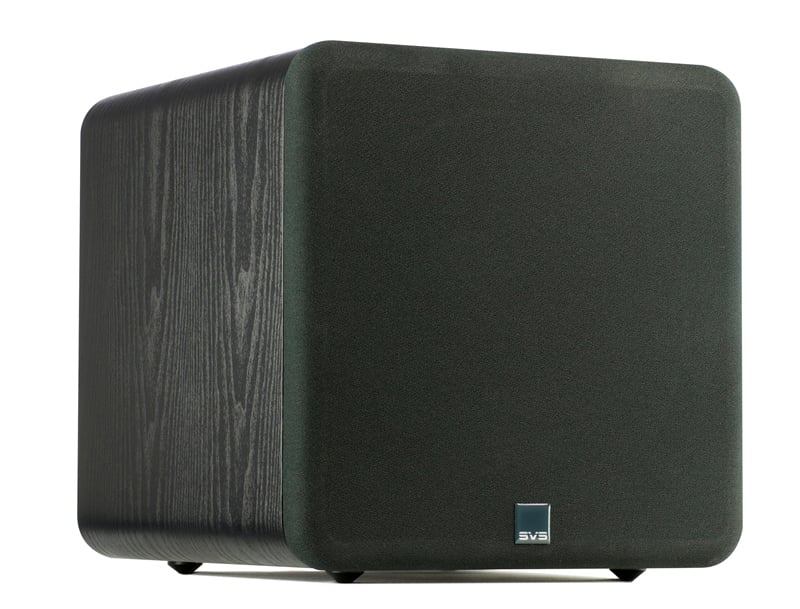

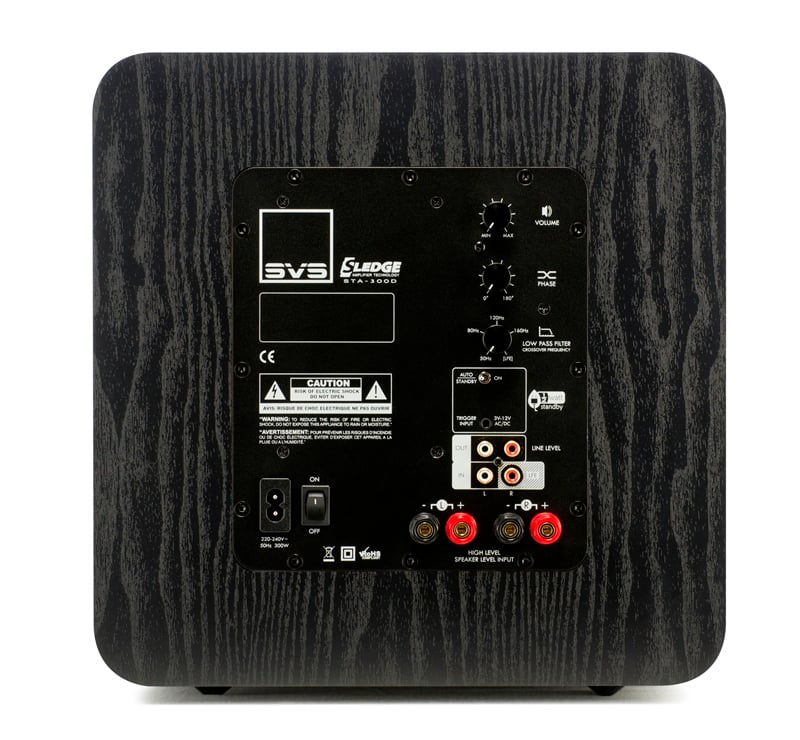

SB-1000 Rear View     SB-1000 Angle With Grill

         SB-1000 Rear View                      SB-1000 Front View With Grill

PB-1000

The PB-1000 shares a lot in common with the SB-1000. The amp, inputs/outputs, DSP control, black ash finish, $499 MSRP, etc..., are all the same. The difference is in the cabinet size, frequency response, and driver configuration. The PB-1000 has a single 10" front-firing driver and a 3.5" port with inner and outer flares. This configuration allows for a lower frequency response of 19-270 Hz +/- 3 dB compared to the 24-260 Hz +/- 3 dB response of the SB-1000. The trade off is a larger and heavier enclosure. The PB-1000 is 46lbs (compared to 27lbs) with a 18.4" (H) x 15" (W) x 18.4"(D) cabinet and overall dimensions of 18.9" (H) x 15" (W) x 19.9"(D)(includes feet, grill, amplifier). Still, the PB-1000 is by no means a huge sub. For people who want more bass and/or have larger rooms, the PB-1000 is going to be a better option than the SB-1000.

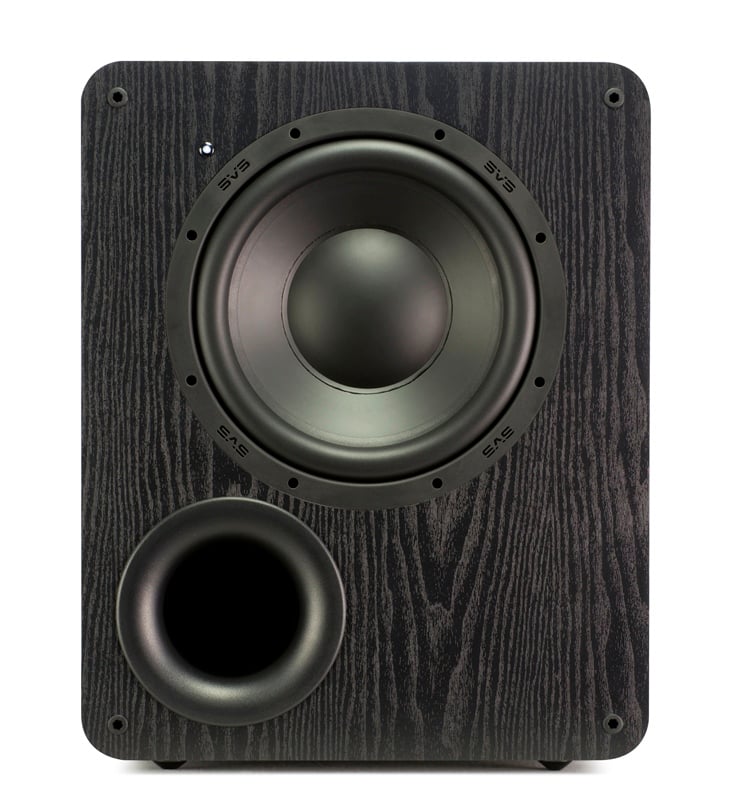

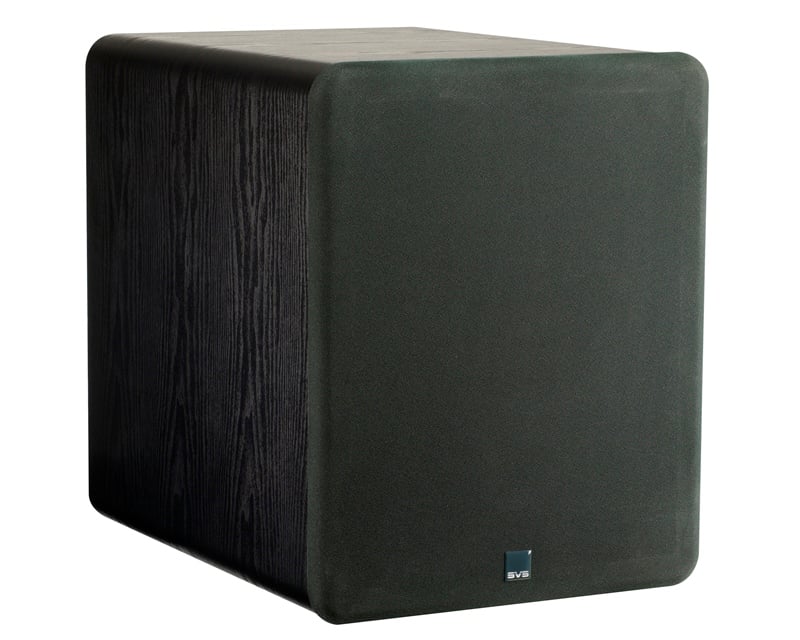

PB-1000 Front View No Grill     PB-1000 Front With Grill

PB-1000 Front View Without Grill         PB-1000 Front View With Grill

Conclusion

To be candid, we are really excited about these new subwoofers, and for good reason.  The PB-1000 and SB-1000 are roughly 2/3rd's the size of the PB12-NSD and SB-12NSD, respectively, and we'd expect the same type of quality of sound and performance on a slightly smaller scale.  These new subwoofers allow people to step into quality audio from a reputable manufacturer with industry leading customer support at the lowest price point yet. If the PB-1000 and SB-1000 offer similar performance to their bigger brothers in a smaller form factor and for less money, then the budget subwoofer market just got a lot more competitive.  Preorders begins on November 16th with orders starting to fulfill  on November 26th just in time for the holidays.

For more information, visit: the SB-1000 and PB-1000 Product Page.

About the author:

Cliff, like many of us, has always loved home theater equipment. In high school he landed a job at Best Buy that started his path towards actual high quality audio. His first surround sound was a Klipsch 5.1 system. After that he was hooked, moving from Klipsch to Polk to Definitive Technology, and so on. Eventually, Cliff ended up doing custom installation work for Best Buy and then for a "Ma & Pa" shop in Mankato, MN.

View full profile

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

Recent Forum Posts:

Jor4President posts on January 16, 2013 15:13
Hmm.. No idea what the open office door will do. I always thought that an opening to another room meant adding that to the total calculation for room size. Also I don't know what the effect of the room will be resonance wise.
3db posts on January 14, 2013 07:58
I forgot to mention that the openings are actually doors but due to either the limitation of Microsoft Visio or my lack of imagination, :o I left them out. The stairs/storage area is closed with a bi folding door. The only door that remains open would be the office door. Everything else is closed.
Jor4President posts on January 12, 2013 09:14
The standard calibration “Reference Level” (RL) is 75dB at the listening position. The goal is to ensure the system calibrated at 75dB can hit clean 105 dB peaks for each of the speaker channels and 115 dB peaks for the LFE channel.
It is much more common for A/V enthusiasts to listen between -15 to -10db from reference.
From the Audioholics Subwoofer Room Size Rating Protocol article.


I wouldn't worry about the perceived difference between highs and lows. The people mixing the source material are the ones that take that into account. It should only be an issue if you always turn up the LFE channel more after you have calibrated all channels properly. If you play with all your channels balanced and your other channels peak at 95dB, your LFE channel would need to be able to peak somewhere around 108dB.

I personally would like to know what the effect of the stairs would be concerning the pressure in your room. If the opening can be neglected (therefore making your room around 3800 ft^3) the PB-1000 will do (well) for your needs. Perhaps someone else can weigh in on this.
Marshall_Guthrie posts on January 11, 2013 16:46
3db, post: 942817
I want to know if I'm interpreting the graph correctly… if I look at the Fletcher-Munson curve .. I hear a 1KHz signal at 80db, I would have to make it 120db to perceive the same loudness at 20Hz?

Yes, which is why reference level listening (75 or 85db depending on whose number you use) requires subwoofer output in the triple digits.
3db posts on January 11, 2013 15:21
I want to know if I'm interpreting the graph correctly… if I look at the Fletcher-Munson curve .. I hear a 1KHz signal at 80db, I would have to make it 120db to perceive the same loudness at 20Hz?
