Klipsch Reference RP-1600SW 16" Subwoofer Review

by August 08, 2023
Klipsch Reference Premiere RP-1600SW Subwoofer

Klipsch Reference Premiere RP-1600SW Subwoofer

  • Product Name: Reference Premiere RP-1600SW Subwoofer
  • Manufacturer: Klipsch
  • Performance Rating: StarStarStarStarhalf-star
  • Value Rating: StarStarStarStarhalf-star
  • Review Date: August 08, 2023 08:00
  • MSRP: $ 1,800
  • Buy Now
Klipsch RP-1600SW 16" Subwoofer Review Discussion

Power output: 800W RMS / 1600W Peak

Frequency response: 14.5Hz - 175Hz +/- 3dB

Box design: Bass Reflex via Front-Firing Aerofoil Slot Port

Amplifier: Class D with Analog Preamp Stage

Woofer: 16" Ultra Long Throw Cerametallic

Inputs: Dual RCA/LFE Line In, WA-2 Wireless Port

Phase switch: 0/180 degrees

Warranty: 5-years

Size (HxWxD): 23.39" x 23.50" x 27.35"

Weight: 110.9 lbs (50.3 kg)

Pros

  • Extremely wide dynamic range
  • Very good low-frequency extension to 16Hz
  • Above-average time-domain performance
  • Good looking for a large sub
  • 5-year warranty

Cons

  • Big and heavy
  • Can get chuffy below 20Hz
  • No-frills amp



klipsch logo2It is no accident that Klipsch has been one of America’s major loudspeaker manufacturers for many decades now. They have been a consistent presence in the home audio space since the 1940s, and they have lasted so long by making stuff that people enjoy. Klipsch has been one of the few major loudspeaker companies that have made some reasonably high-performing subs for home audio instead of many of the lackluster designs from other loudspeaker manufacturers who only phone in subs as an over-priced afterthought (think any company that makes tower speakers but then only makes 8” or 10” subs for the same series; in other words, subs that wouldn’t add much bass extension to the loudspeakers they are supposed to support). For example, Klipsch was one of the first companies to offer THX-certified Ultra subs for home audio systems. We found the last sub (R-121SW) we reviewed from them to be competent although not as competitively priced as it should have been. Today, we look at a sub that few other major loudspeaker manufacturers would dare launch: a 110 lbs. ported behemoth with a 16” cone powered by an 800-watt amplifier. It’s a big sub, and Klipsch is the only loudspeaker-centric audio manufacturer that has such a beast available. Most other audio manufacturers with such huge subs are niche e-tailers or subwoofer-centric companies such as SVS, but you generally don’t see such large subs on the floors of electronics chain stores. Until now.

Klipsch RP-1600SW Appearance

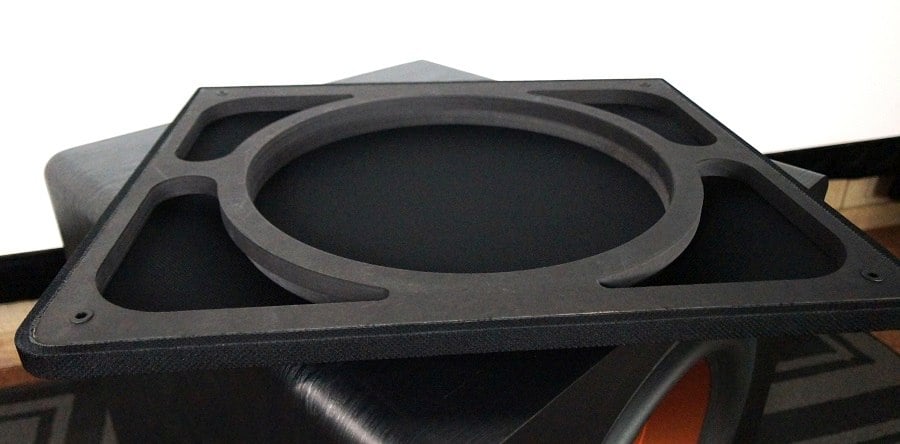

1600 grille4  1600 8

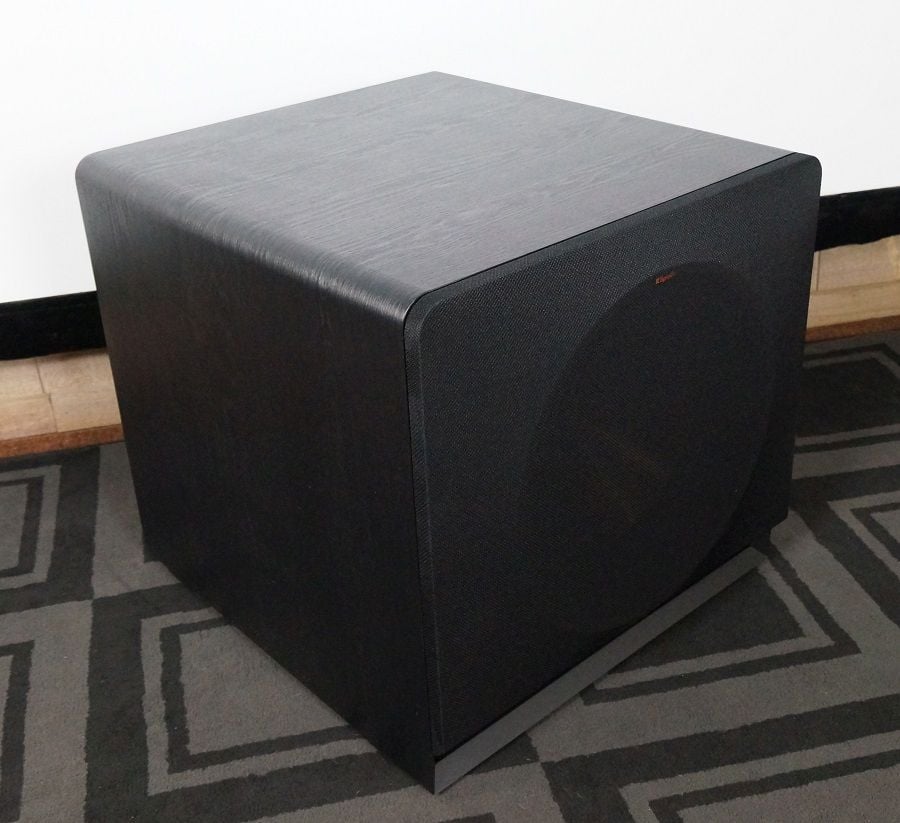

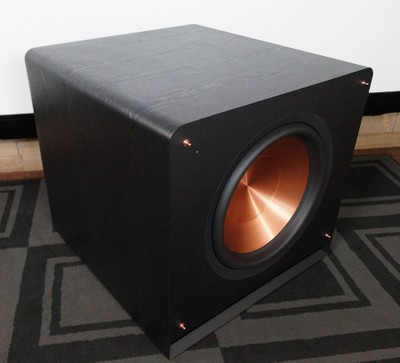

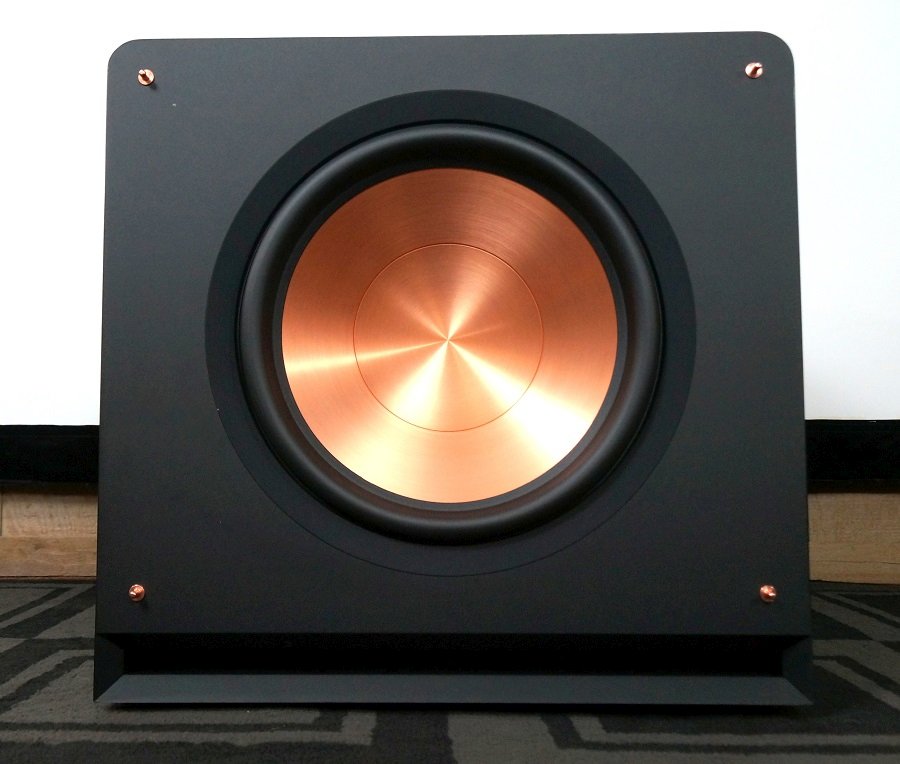

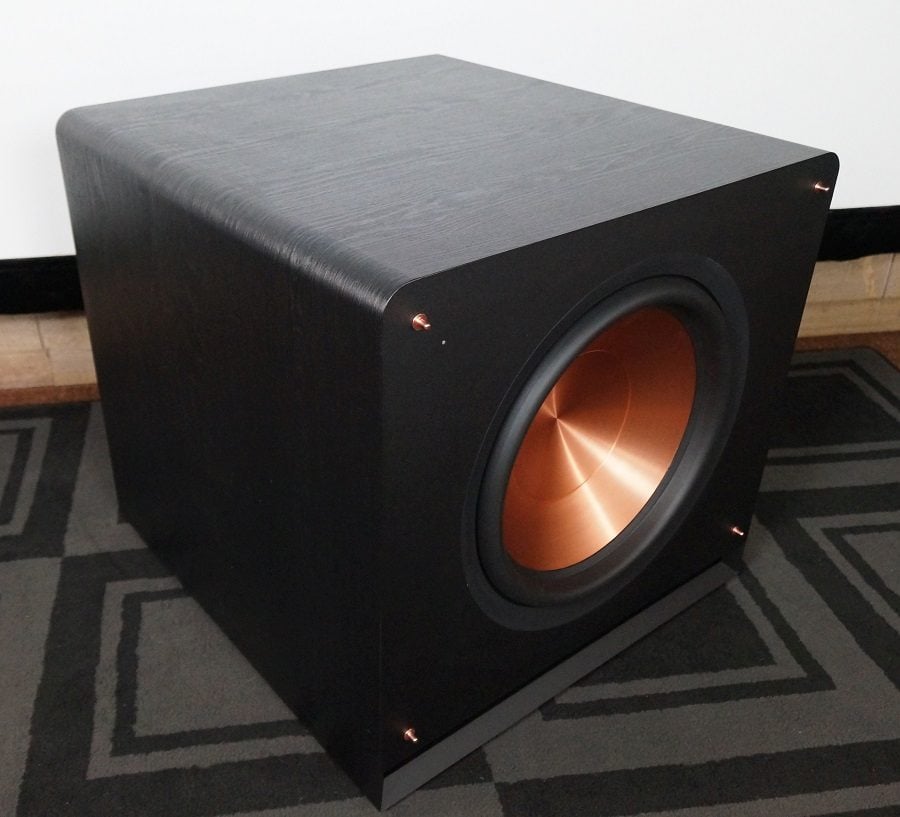

Needless to say, the RP-1600SW is a large subwoofer, and it won’t be easily hidden, so its appearance will matter. Klipsch has given it a tasteful and restrained appearance so it shouldn’t stand out too badly in a normal room despite its size. As with most other subs, it is basically a big black box. It has about a 23” height and width, but it does extend a bit more out in depth at 27”. I have dealt with larger subs, but it is still a big one. It has an ebony vinyl finish that helps it fit in with furniture, and its rounded edges go a long way toward softening its appearance. For those who want it to have a more subdued appearance, the grille hides the driver pretty well as well as giving it a bit more curvature in front. However, once the grille is removed, it becomes far more conspicuous, courtesy of Klipsch’s unique metallic copper cone. 1600 knobsKlipsch’s trademarked cone style is on full display in the RP-1600SW sans grille, and it is certainly unmissable for any visitors or household occupants. If boldly placed, it will certainly become the subject of conversation. In addition to the cone, Klipsch also uses copper-looking grille pegs (actually made from steel) on the front baffle. Usually, manufacturers try to soft-pedal grille attachment points, but Klipsch has decided to accentuate them with copper so that they complement the cone. The front baffle also has a status LED in the upper left corner that indicates the operational state of the sub. One other aesthetic aspect worth mentioning is the rear volume and low-pass filter knobs, which have a unique retro styling as though they were taken from radios from the 1940s. As far as large subs go, the RP-1600SW doesn’t look bad, and Klipsch has done a good job of allowing buyers to either mute the sub’s looks with the grille or letting its traditional Klipsch styling blaze freely for the world to see.

Klipsch RP-1600SW Design Analysis

While the RP-1600SW is largely going for brute force for its performance gains, it does take a few design paths off the beaten track to reach its destination. Let’s start the discussion of its design by talking about the driver. It uses a 16” driver, but that diameter is measured from the frame edges rather than mid-surround or cone edge. Nonetheless, it is a large driver. The cone is made from anodized aluminum that was likely dyed its particular copper shade during the anodization process. Aluminum is a light but stiff material, but Klipsch might have increased the sensitivity of the driver more by using pulp fiber, carbon fiber, or treated paper, all of which are lighter than aluminum. However, aluminum is very durable, and its extra weight can work to its advantage by lowering the driver’s resonant frequency thereby making it more efficient in deep bass. It can also act as a heatsink for the voice coil and former, thereby lessening thermal compression. The cone is attached to the frame by way of a beefy half-roll rubber surround which should allow for plenty of excursion. The basket is a thick stamped steel design that bulges out where the spider attaches to the former to give plenty of room for a large spider.

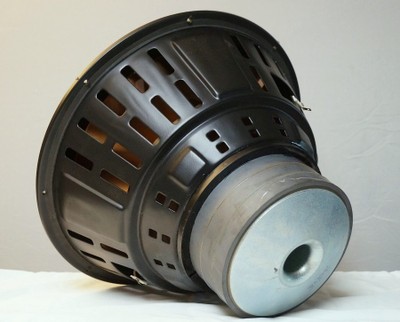

1600 driver2  1600 driver motor3

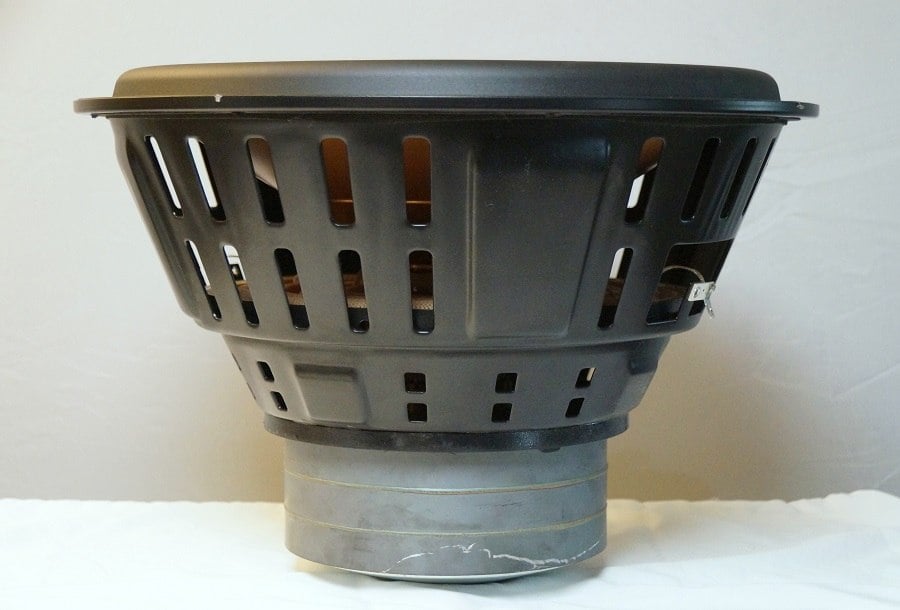

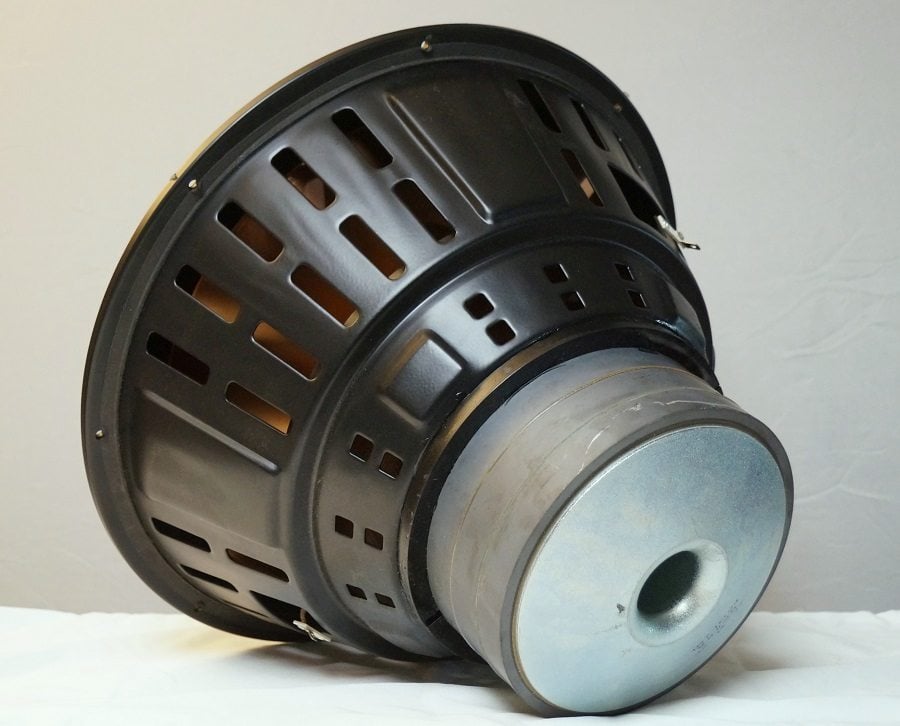

The motor is a massive one with triple-stacked magnet slugs that measure 2 1/2” tall with a 7” diameter. While that is impressive, the important value is the amount of flux that it produces within the gap which isn’t known to us, although we can safely assume it will be a lot. The motor is vented through the pole piece as well as under the spider. Klipsch uses two spiders to hold the former in place, and that will help restrict travel in one plane of motion as well as make it more difficult to knock the former out of alignment. Within the motor is a 2 3/4” diameter voice coil made from aluminum. Most coils are made from copper or copper-clad aluminum because of their extra conductivity, but solid aluminum is still very conductive while being significantly lighter than copper. If the coil were made from copper, it would end up being significantly heavier than an aluminum coil in order to handle all of the wattage that is required, and the extra weight would reduce the driver’s sensitivity.

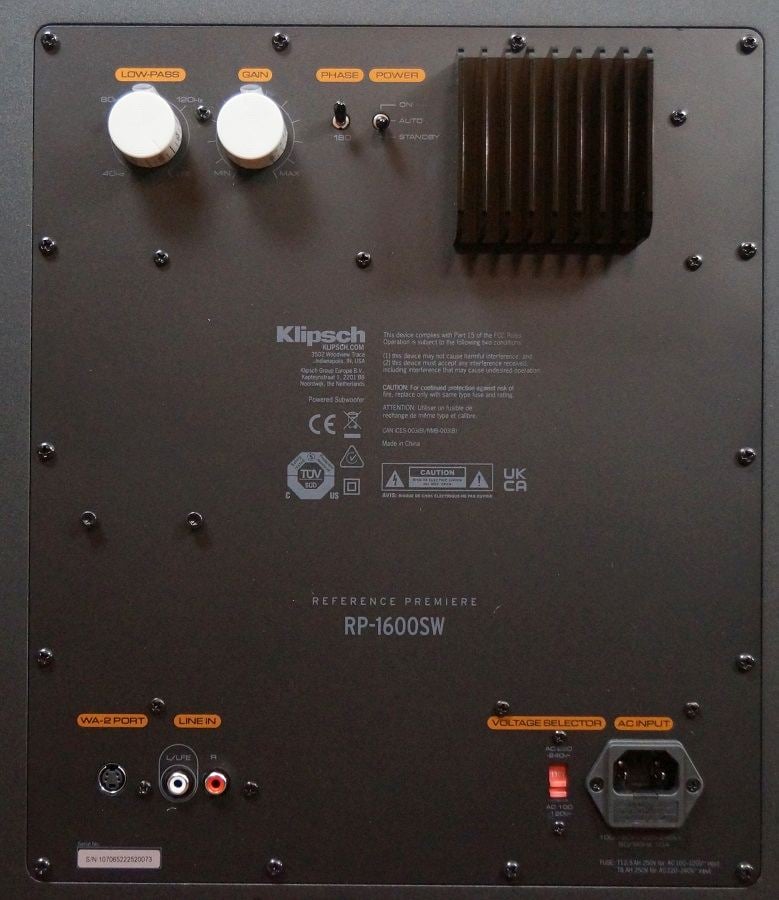

1600 amp panel  1600 amp

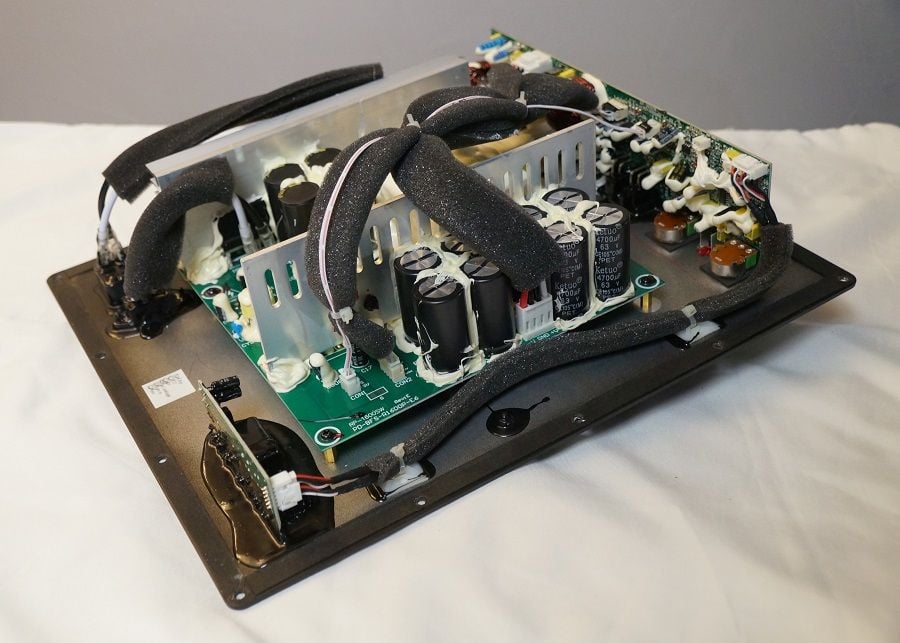

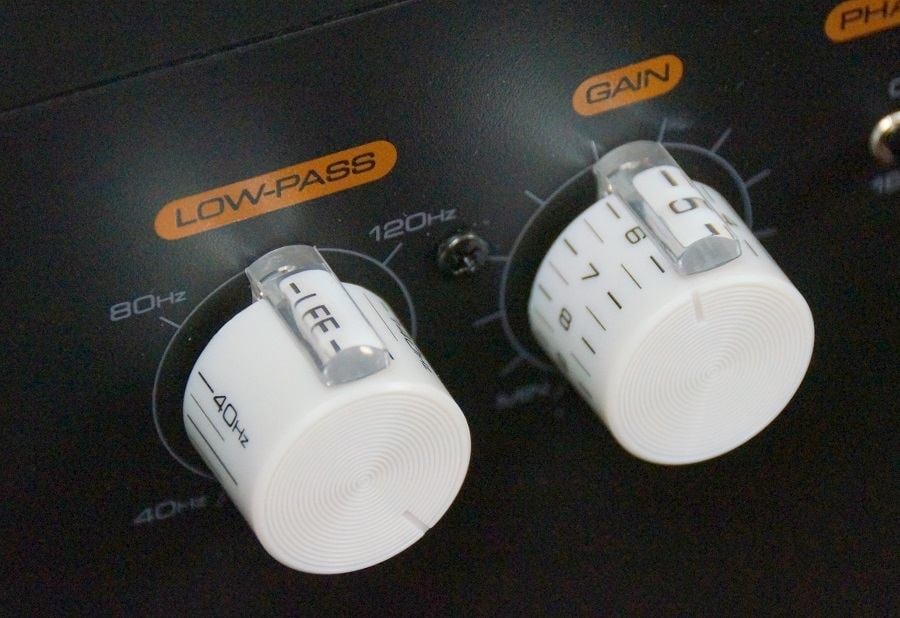

The driver is powered by an 800-watt RMS class-D amplifier which is a hefty unit with some large capacitors. There is a chunky heatsink on the backplate to help with cooling. Even though class-D is very efficient and runs cool relative to class-AB, 800-watts RMS is a lot and will still produce heat, so the heatsink will come in handy. The amp controls are fairly basic: gain knob, low-pass filter knob (40Hz to 160Hz), 0-180 degree phase switch, and an on/auto-on/off switch. Connectivity is also fairly basic with just a pair of RCA inputs (one of which is an LFE connection), although there is a port for Klipsch’s WA-2 wireless subwoofer signal kit (an optional accessory at $199).

1600 hero4   1600 interior

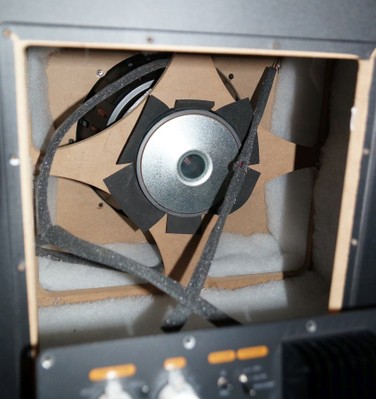

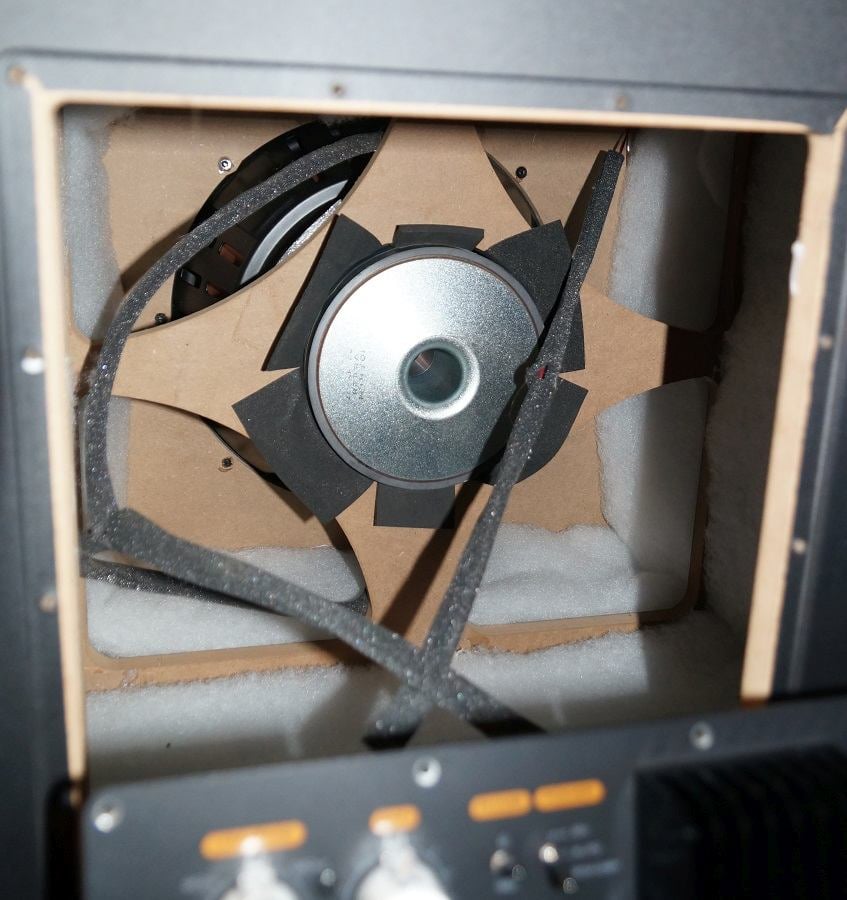

The enclosure is a hefty affair with 3/4” thick side panels and a 1 1/2” thick front baffle. There are two window-pane braces within the enclosure, and one of them is used to support the driver motor. Also helping the enclosure rigidity is the thick slot port panel that runs the width of the sub. The slot port is flared on both ends to mitigate turbulent airflow, and Klipsch calls this design the ‘Aerofoil’ slot port. There is some polyfill-type stuffing lining the interior walls of the sub, although I wouldn’t think enough to make a difference. The feet are some elongated rubber bumpers that look like they would be sufficient to damp cabinet vibrations from transmitting to the floor. They look like they would work better than the usual rubber cones, and more manufacturers should look at this type of design for heavier subwoofers. The grille that Klipsch provides for the RP-1600SW is a heavy-duty MDF piece that extruded a circular space forward in order to give the cone room to move. Typically, grilles have pegs that go into grille guides mounted on the front baffle, but Klipsch has reversed that here and uses grille guides in the grille itself with pegs on the front baffle. As was mentioned before, I think this was an aesthetic choice so that the copper grille would have other copper elements to complement it on the front baffle.

1600 grille off

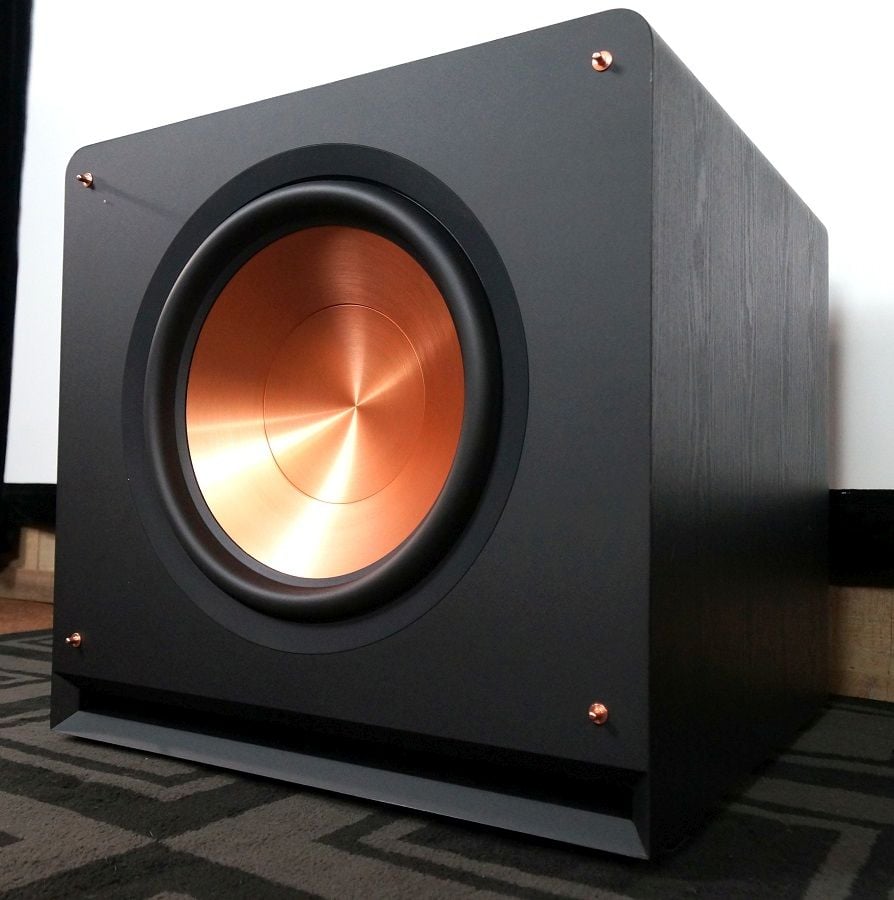

There is not a whole lot else to discuss about the design from a visual inspection since many of the important parameters such as DSP programming and T/S values can’t be seen from a glance. The most important characteristic of the RP-1600SW is how it sounds, so let’s now take it out for a spin to see what it can do…

Klipsch RP-1600SW Listening Sessions

The best placement for a single sub in my room gives me a relatively flat response for an un-EQ’d single subwoofer, with a window of +/- 4 dB from 25 Hz to 100 Hz with no broad dips in important ranges. This location trades low-end room gain for a relatively flat response, a worthwhile trade for my tastes. The receiver used was a Marantz AV7705. The crossover was set to 80Hz at the receiver and the sub’s LFE connection was used. The speakers used were some PreSonus Eris E8 XTs.

As always, I will note here that since room acoustics have a huge effect on low frequencies, the way these subwoofers sound in my room at my listening position is not necessarily going to be the way they sound anywhere else for anyone else, so readers would do well to keep that in mind, and not just for this subwoofer in this review but for any subwoofer in any review.

Music Listening

As always, I listened to a pipe organ album with significant deep bass, since the pipe organ is one of the few acoustic instruments that can produce deep bass in meaningful quantities. Towards this end, I picked “Opus Bach, Vol. 2.” I listened to Vol. 1 in my review for the JBL HDI-1200p subwoofer, and so I decided to continue on with the journey with organist Peter Kofler now that Vol. 2 has been released. These wonderful performances of Bach’s solo organ works are nothing less than a pleasure to listen to, and the Rieger Organ in the Jesuit Church of St. Micheals in Munich produces a gorgeous sound. The sound is captured by an intricate microphone array that was intended to be reproduced on a 10.1 Auro3D system, but I was only listening to a stereo master and did not have access to the Auro3D edition. Nonetheless, the version I streamed from Qobuz in high-resolution still sounded beautiful, and the bass is largely monophonic anyway, so this was more than good enough for a subwoofer review.

Most of the tracks on this album did not lay hard into heavy bass, but many of them did dive into subwoofer-band frequencies, and the RP-1600SW was able to give the sound a convincing low-frequency foundation while keeping an even keel with the main speakers. Of course, a lot of that has to do with calibration, but the subwoofer needs to have a predictable sound to make this happen. The RP-1600SW gave me no surprises which, in this case, is a good thing. There are tracks that did bring some serious bass such as BWV 598, “Pedal-Exercitium,” and the sub had no trouble relaying the size and power of the Rieger Organ for those instances. But largely, a lighter touch was called for, such as the subtle low-frequency decay of the church acoustics in the lower notes which was an audible detail not lost on the RP-1600SW. Tracks with complex strands of bass where the harmonies of multiple voices could touch lower pitches were easily discernible on the sub, an example being track 30, “Prelude.” The massive bass chords of BWV 552 were given a terrific pitch definition by the system, and the progression was made easy to track and appreciate. I wasn’t able to listen to the entire six-hour album in a single sitting, but each time I returned to continue through these tracks was a pleasure, and the RP-1600SW was a key component in making this happen.

Back Opus 2  Tenet OST

One sound mix that I remember doing some interesting things with bass was the score for the 2020 science fiction film “Tenet” by Ludwig Goransson. Goransson is a highly sought-after composer who created the scores for the “Mandalorian” TV series, the “Black Panther” film series, as well as the “Creed” film series, among others. The music from “Tenet” weaved in synthesizer bass with orchestral bass along with some bass guitar, so it was a score that kept the subwoofer busy. I decided to listen to the music on its own without the accompanying movie and its notoriously muffled dialogue.

The RP-1600SW renders textured sounds with precision.

The first track served as a fairly intense warm-up for the RP-1600SW, with some pounding kettle drums followed by a high-tempo sequence of low-pitched electronic beats, all overlaid by a distorted bass guitar. It was a lot for the sub to chew on, but the RP-1600SW did an admirable job of keeping these elements separate and distinguishable. Track 3, “Meeting Neil,” had electronic bass drums riding on top of the bassline attacks, and it culminated in an accelerating staccato. This was a good track to demonstrate the quick attack and release of the sub, and the RP-1600SW executed it commendably. Track 6, “Freeport,” opened with a hint of deep bass that I could easily see higher-tuned subs or floor-standing speakers miss entirely, but it was a well-defined presence as reproduced by the RP-1600SW. The following track, “747,” mixed a clean electronic bassline with bowed double bass playing on top of low-pitched trombones, and again, all of these layers of low-frequency sound were effortlessly sorted by the Klipsch sub. Successive tracks had similarly elaborate mixtures of low-frequency sounds, and they were all played cleanly and clearly by the RP-1600SW. Much like the movie, the “Tenet” soundtrack is an unusual and exciting work, but highly competent bass reproduction is needed to express its full potential, and the Klipsch RP-1600SW proved itself to be easily up to the task in my listening.

For something with lower-key bass, I listened to “Spheres” by Kyle Dixon and Micheal Stein. This music was also a score, and it originally accompanied a documentary made in virtual reality for the Oculus Rift. Dixon and Stein are best known for creating the memorable score for Netflix’s “Stranger Things,” but the score for “Spheres” is not at all like the synthwave-style music they are known for. Instead, “Spheres” is more like planetarium-style ambient music which is no accident since it was intended to go along with a space documentary. There is a variety of bass sounds in this album, but it is not blatant, blaring bass but rather understated. It stands as a good test of a subwoofer’s ability to deal in subtlety and nuance.

The first track, “Accretion Disk,” starts with a low-key substratal drone and then segues into a squelchy, highly textured bass that I would assume denotes the swirling chaos of superheated matter in an actual accretion disc. The RP-1600SW renders these textured sounds with precision. Track 4, “In the Dark,” dips into some glassy plunderphonics as though a set of bells had been pitch-shifted to one-tenth their normal frequency, and the sub gave them an utterly cavernous sensation. Track 7, “Cosmic Microwave Background,” uses a near-infrasonic rumble as a backdrop for foreground atmospherics, which is an appropriate choice since the all-surrounding energy of the track’s title has redshifted down to 2.7 degrees kelvin since the birth of the universe. The low-frequency rumble was reproduced with authority by the Klipsch subwoofer and imparted the cosmic scale of the music’s subject matter. Further subwoofer muscle was needed in track 11, “Black Holes Collide,” which, as would be imagined from the title, dives into deep bass with exuberance, and the RP-1600SW matches the dynamism required by the track without any hint of distress. The story is the same for the remaining tracks, with the RP-1600SW seamlessly balancing subtlety and strength, as one would hope for a sub of its price point. Listening to this album was a joy but also frustrating since it made me very curious to see the VR documentary it scores, although I don’t have the correct virtual reality gear to watch it. On the other hand, no VR headset audio could recreate the low-frequency sound as convincingly as the RP-1600SW, so at least I have that experience!

Spheres   Silk Wave

the RP-1600SW seamlessly balancing subtlety and strength.

For something that uses tons of bass unashamedly, I loaded up Koan Sound’s “Silk Wave” EP, courtesy of Qobuz. This is electronic music that banks heavily on bass, and it does so in creative rhythms in its basslines and percussion. While it is danceable music, it is not just mindless dance music, and it finds fun and interesting melodies and arrangements to be listened to for its own sake. Taken to louder levels, the heavy bass here would stand as a challenge to any subwoofer; how well would the RP-1600SW stand up to that challenge?

I had a feeling that this sub would be hitting pretty hard on this type of music, and that is what it did. The bassline from the first track onward gave my seat a palpable buzz at a high volume. Likewise, the thump of the kick drums could be felt in my chair as well as my chest, so the sub gave these tracks a physical dimension as well as an audible one. Of special note is the hard-hitting bassline of track four overlaid with the low-frequency synth stabs making it an especially rich tune for subwoofers to chew on. On the RP-1600SW, it pummeled my body and felt like it was only being held back by the volume level that I set it at. This ended up being one of those subs that found my own limits before I found the sub’s limits. I have a pet bird on the upper floor of my household that I didn’t want to scare to death, and I felt that the RP-1600SW just might have the capability to do that, so I decided not to try to reach the limits of this sub in my own home. Listening to this album on this sub showed me that anyone looking for a sub for house parties and head-banging certainly has found one here.

Movie Watching

I hadn’t yet seen “Top Gun: Maverick,” but I figured that having Klipsch’s 16” flagship sub in house would be a great time to watch this surprise success now that it has arrived on MAX’s streaming service. A movie about fighter jets should be chock full of low-frequency mayhem, and I had no doubt it would be a subwoofer-scorcher. As much bass as the action and effects would bring, the music score also promised more than its fair share of bass from being composed by artists all of which are known for their use of bass: Hans Zimmer, Harold Faltermeyer, and Lady Gaga. A musical line-up like that in a movie about jet planes should be a serious test of the dynamic range of any subwoofer.

the RP-1600SW reproduced all of the low-frequency mayhem magnificently.

The movie delivered its promise of thunderous bass, and the RP-1600SW delivered on its promise to do justice to that bass. Jet planes roared across the screen and were given a visceral feel thanks to the potent low-frequency output of the sub which seemed to have an endless reservoir of headroom. While the sonic experience doesn’t really approach that of real-life jet planes, it was a perfectly acceptable substitute seeing as close proximity to real jets would cause permanent hearing damage in short order (one of the film’s many lapses in reality is watching the characters hold conversations on a flight deck with live fighter jet engines in the background). Explosions thumped with a chest-punching force. The music score also added to the extensive use of LFE, as would be expected, with Zimmer’s resounding orchestral work that is typically heavy in kettle drums and low-pitched strings. Faltermeyer’s iconic main theme gets a rework with heavier bass than the original, and Lady Gaga’s contribution is a rock ballad that uses plenty of bass to underscore the drama of her vocals. The RP-1600SW was adept at keeping the bass from the music distinct from the low-frequency action, and there was never any blurring of the two despite the abundance of bass in both. I was never a huge fan of the original “Top Gun,” and I have to say that I enjoyed this sequel significantly more, mainly due to the increased and improved fighter jet scenes over the original. The RP-1600SW was certainly a crucial ingredient in bringing these fighter jets to sonorous life in my home theater room, and this movie greatly benefited from the high-performance bass that I had on tap.

Top Gun Maverick  Evil Dead Rise

For a very different film-going experience, I decided to watch “Evil Dead Rise,” also streaming from MAX. I have been a long-time fan of the “Evil Dead” series and had high hopes for this installment, which takes the series in a darker and more serious direction much like the brutal and terrific 2013 remake. A hardcore horror movie such as this ought to have bountiful bass, and although I hadn’t yet seen it, I guessed it would be a great opportunity for the sub to stretch its legs, so I cranked up the volume and strapped myself in for what promised to be a pretty rough ride…

“Evil Dead Rise” turned out to be exactly the kind of insanity that I was hoping for, and the RP-1600SW reproduced all of the low-frequency mayhem magnificently. We get our first taste of heavy bass when an earthquake strikes the setting, an apartment building, and cracks the foundation of the underground parking garage. The subwoofer gave the subterranean rumble of the quake a realism that increased the mounting tension. More deep bass was on display when one of the characters decide to foolishly play an old vinyl record that was packed along with a copy of the infamous “Necronomicon.” The recorded incantations started to take on a demonic quality and dropped in pitch until the recitation voice became a gutteral growl. The intensity of the scene was greatly heightened by the RP-1600SW’s wide dynamic range. Many other scenes of carnage were also made all the more convincing by the nearly unlimited low-frequency headroom it offered. The orchestral music score by Stephen McKeon was also helped by the sub when the kettle drums and bass strings kicked in, which was a frequent occurrence in a movie with this much action. “Evil Dead Rise” was a ferocious ride as movies go, and it certainly wouldn’t be to everyone’s taste. But those who enjoy this type of entertainment really ought to watch it with a sub as potent as the RP-1600SW.

Klipsch RP-1600SW Measurements & Conclusion

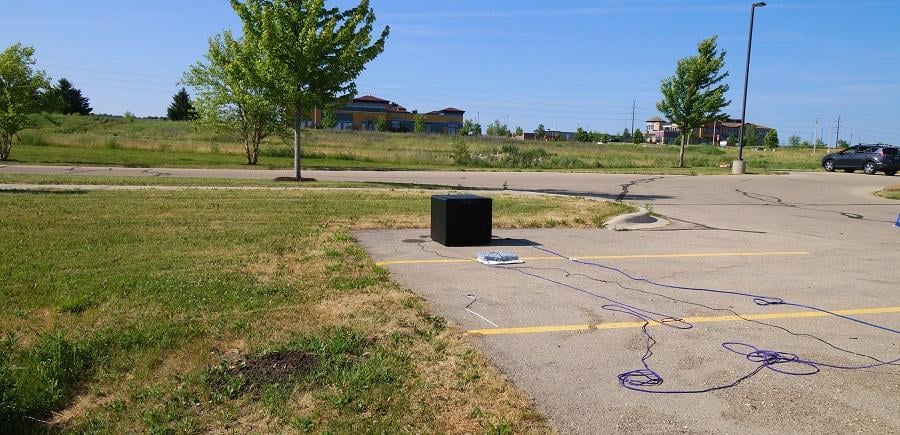

1600 outdoor testing

Testing on the Klipsch RP-1600SW was conducted with the microphone facing the woofer at a 1-meter distance with measurements scaled back to a 2-meter distance by subtracting 6dB. The temperature was recorded at 76F degrees with 23% humidity. The subwoofer’s gain was set to maximum, phase was set to zero, and the low pass filters were set to bypass.

1600 frequency response

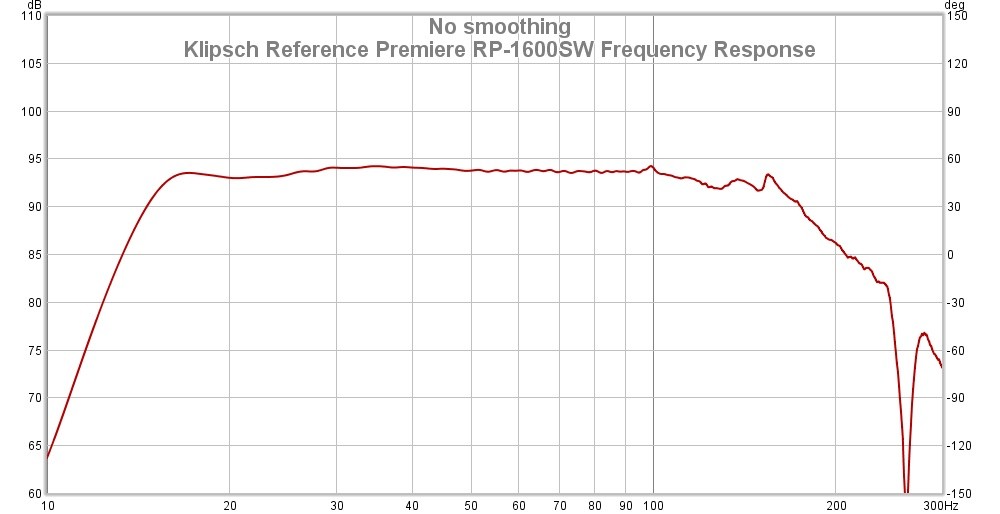

The above graph shows the measured frequency response for the RP-1600SW subwoofer. What we have here is a beautifully flat curve from 16Hz to almost 160Hz, and it’s a shame that typical room acoustics are going to badly mangle this pristine response. At least we know that the sub itself is almost completely neutral out of the box. Any tonal abnormalities that end users will hear will be a result of the room, not the sub itself. Many subs can achieve very flat anechoic responses through DSP magic, but this one is particularly flat. I like Klipsch’s target response of a 16Hz extension before any drop-off. 16Hz is the lower limit of almost any acoustic instrument, namely the fundamental of the lowest pitches of larger pipe organs (although there are a couple of organs that have huge 64’ pipes with fundamentals at 8Hz, but they are too rare to matter, and 8Hz is well below human audibility anyway). It’s also worth noting that the upper-frequency extension enables users to try higher crossover frequencies than the typical 80Hz. That can be very useful, especially in multi-subwoofer setups.

1600 CEA 2010 table2

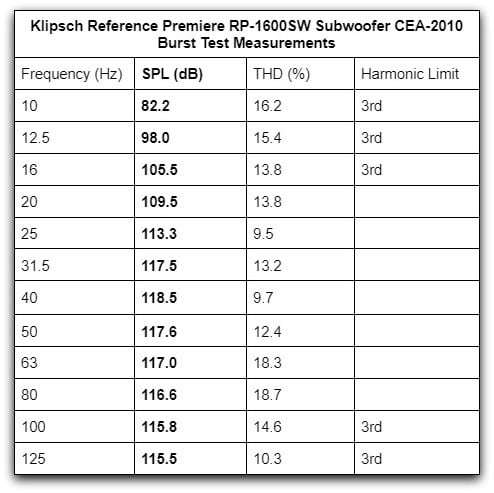

Bassaholic ExtremeThe above CEA-2010 measurements are short-term bursts that show the subwoofer’s clean peak SPL before heavy distortion sets in. Our measurements have been referenced to 2-meter RMS, which is 9dB down from the standard requirement for the measurements to be shown at 1-meter peak. However most publicly available CEA-2010 measurements are shown at 2-meter RMS, so we followed that convention.

The RP-1600SW puts up some very impressive numbers, especially in deep bass. 105.5dB at 16Hz and 109.5dB at 20Hz puts this sub in the company of some of the more powerful ported 15”s that we have dealt with in the past. 98dB at 12Hz would be impressive, but it was accompanied by a great deal of audible port chuffing noises that the test software wasn’t quite reading as typical noise, so I wouldn’t expect serious infrasonic output from this sub without a more serious port noise penalty. Mid-bass headroom is also quite good, averaging 117dB out to 80Hz. 118.5dB at 40Hz is a brutal amount of headroom considering that frequency is where the lower notes in many electronic bass music genres hover around. Needless to say, these numbers easily net the RP-1600SW a Bassaholics ‘Extreme’ Room Rating, meaning it should be able to handle a 5,000 cubic foot room with no problem.

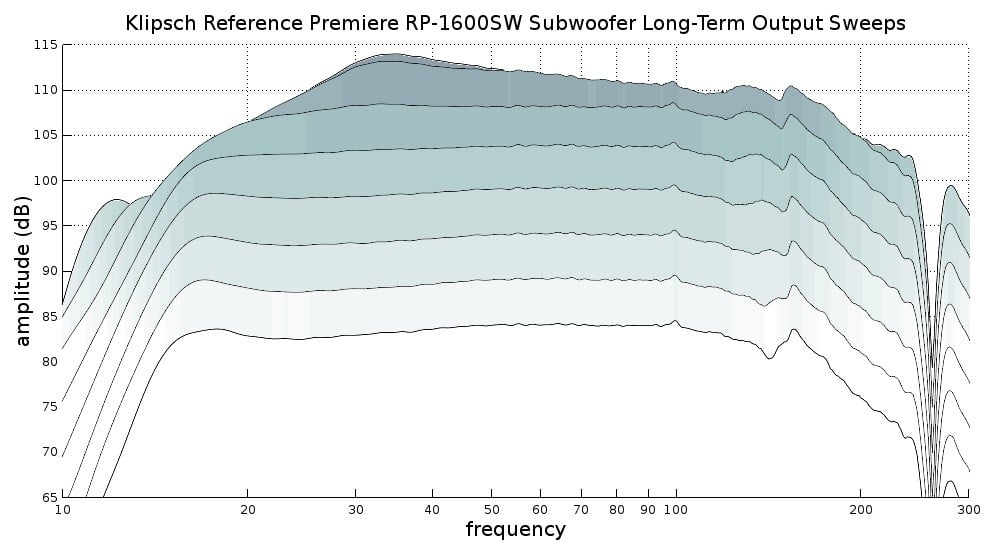

1600 compression sweeps

Testing for long-term output compression was done by first conducting a 20-second sweep tone where 50Hz hit 90 dB with the subwoofer 1 meter from the microphone (graph has been scaled to 2 meters for easy comparison with our other review measurements). We then conduct further 20-second sweeps by raising the gain by 5dB until no more output could be wrung out of the subwoofer. These tests show us the long-term continuous headroom that the RP-1600SW is capable of.

We can see that the RP-1600SW doesn’t really change its response shape until the 105dB sweep, so it retains its tonality up to very high loudness levels. Above 105dB, it does give up some deep bass, but it still has some gas in the tank around 40Hz well past 110dB. Again, that makes this a beast for loud electronic music. But it packs a lot of punch for movies too and can continuously produce over 105dB at just under 20Hz, so those after some super deep bass grunt get that in the RP-1600SW. I should say that at the higher drive levels in this testing, the port started to audibly complain around 20Hz and below, and we can see where it started compressing in this range. It can continuously output over 110dB from 25Hz to 100Hz, so it is not lacking in dynamic range. Klipsch delivers some serious dynamic range here.

1600 THD

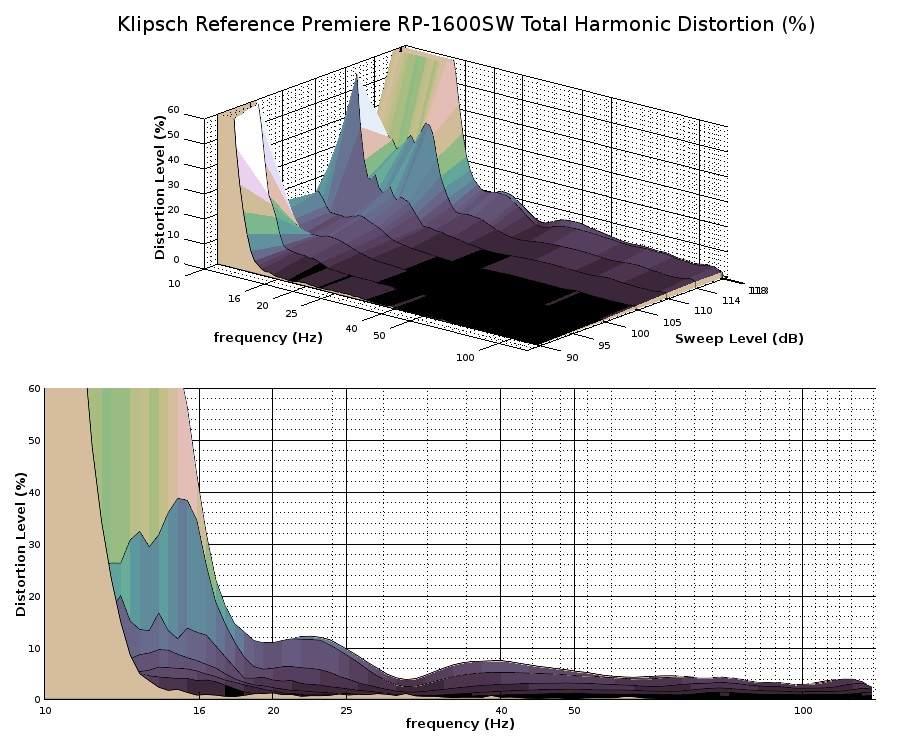

The above graphs show the corresponding total harmonic distortion to the long-term output graphs. Essentially, they depict how linear the subwoofer remains for the corresponding drive level seen in the long-term sweeps. The quantity being measured is how much of the subwoofer’s output is distortion and is shown here as a percentage.

The RP-1600SW demonstrates good performance here, without even being able to exceed 10% THD until under 25Hz. Distortion is pretty well-controlled, even at the highest output levels, until just above 16Hz, but if the sub is pushed hard at 16Hz or below, the system will complain. However, it should be kept in mind that output is plummeting rapidly below 16hz, so what distortion would be produced there would not be very loud in level. Port chuffing can become a problem below 20Hz at high enough drive levels so the RP-1600SW isn’t a great candidate for chasing after infrasonic bass (chuffing artifacts wouldn’t show up in these graphs since that is more broad-spectrum noise than precise harmonic products). However, 20hz is still very low, much lower than the tuning frequency of most ported subs, so few users will be disappointed by its deep bass performance. In listening to content, port turbulence wasn’t something I ever noticed, but in outdoor groundplane testing, the sub certainly wasn’t immune to audible turbulence at lower frequencies. At nominal levels, the RP-1600SW maintains very low distortion levels down to 16Hz, so those who do not plan to drive this sub to maximum volume have extremely clean bass to look forward to. But even those who run this hard will be met with fairly low distortion levels.

1600 2nd order harmonics   1600 3rd order harmonics

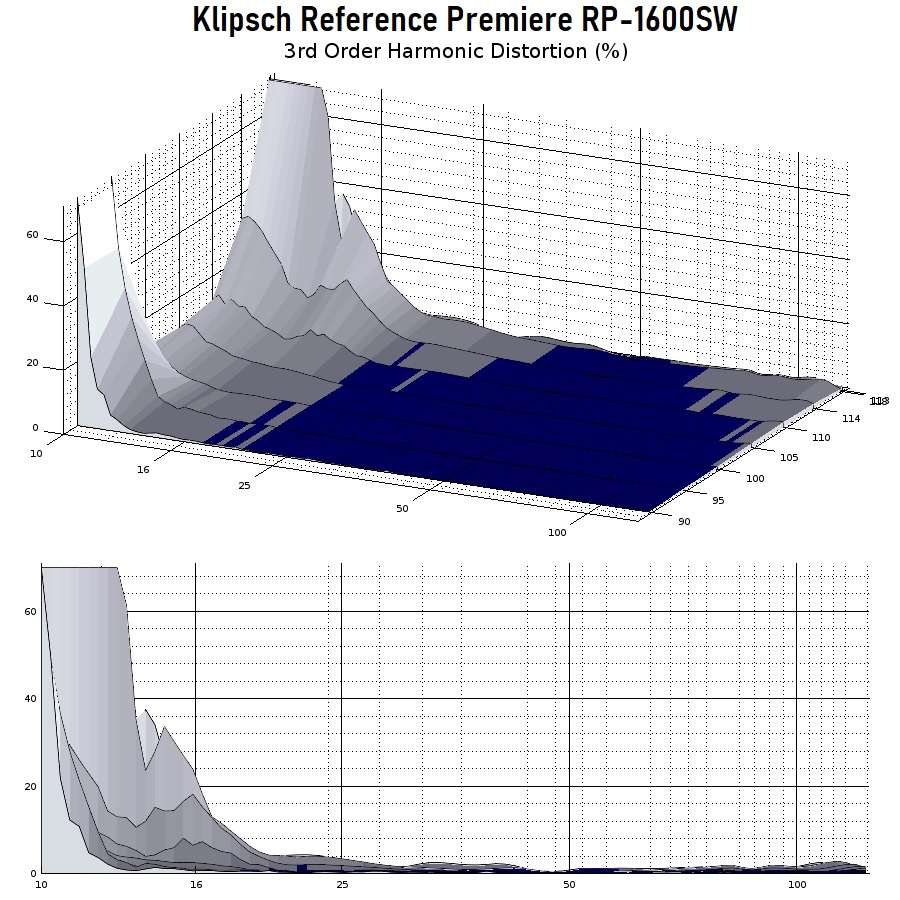

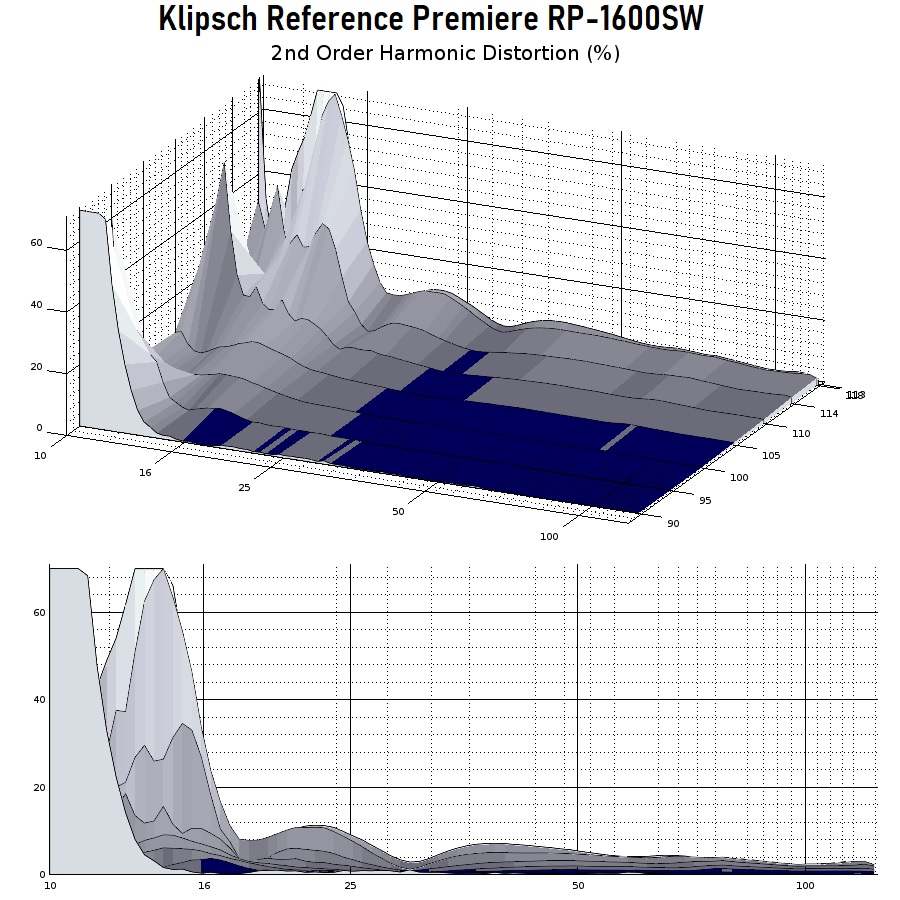

The above graphs depict measurements of the constituent harmonics from the long-term output sweeps and are what the total harmonic distortion measurements are composed of for the 2nd and 3rd harmonics. These individual harmonics can give us a clue as to what might be the cause of some quirk or non-linearity. We are only showing the 2nd and 3rd here because they more or less reflect the higher even-order and odd-order behaviors, although higher-order harmonics tend to be much further down as a percentage of distortion compared to the second and third.

Above 16Hz, we can see that the RP-1600SW’s distortion is dominated by even-order harmonics. Given the consistency of the 2nd-order rise in level with amplitude as well as the 2nd-order distortion dip at 40Hz, I would guess it stems from inductance. There is not a lot of it, so inductance seems to be fairly well-controlled on the whole. The good news is that even-order harmonics are more difficult to perceive than odd-order, so the distortion profile of this sub is rather unobjectionable. Odd-order products are essentially negligible at any drive level until we get below 20Hz. In my listening sessions, this subwoofer sounded very clean, and that is because it is clean.

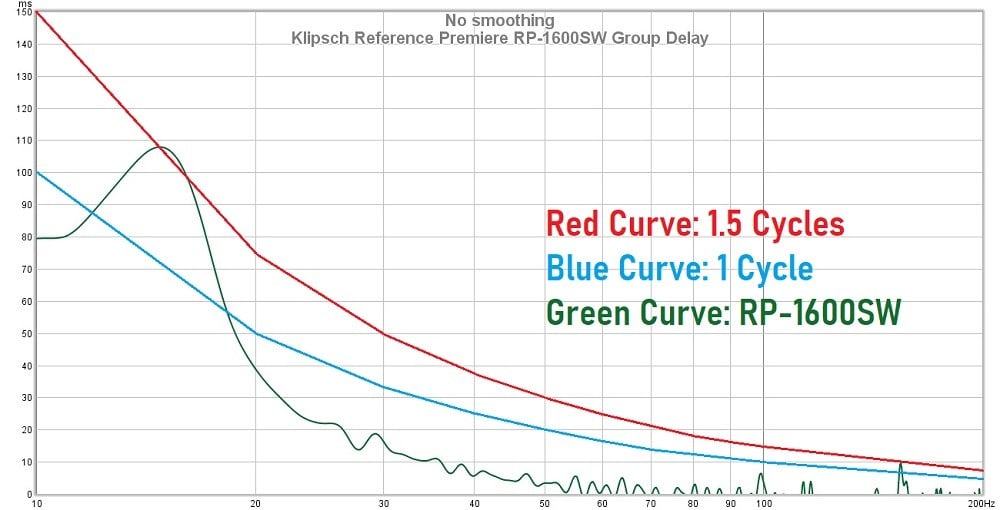

1600 group delay2

Group delay is the measurement of how much time it takes for individual frequency bands of an input signal to be produced by the speaker. It can indicate that some frequency components are developing slower than others or are taking longer to decay. It is generally thought that 1.5 sound cycles are needed for group delay to be audible at bass frequencies, although there is an argument that group delay should remain under 20ms to be completely unnoticeable, but that is likely meant for mid and upper bass frequencies.

The RP-1600SW puts up another very good showing in this metric, not even crossing our worst-case scenario of audibility until well below 30Hz where it doesn’t matter very much, owing to human difficulty in perceiving such deep frequencies. In the frequency bands that matter the most, the RP-1600SW has superbly low group delay, averaging 5ms from 50Hz to 150Hz. We can see that port tuning is 16Hz from the peak in group delay, and it does hit 1.5 cycles, but that is such a low frequency that even a 1.5-cycle delay isn’t likely to be audible. The time domain performance exhibited here is nearly textbook for a ported subwoofer. There is very little decay in music ranges, and the region where there is lag is too low in frequency to matter for human hearing.

Klipsch RP-1600SW Conclusion

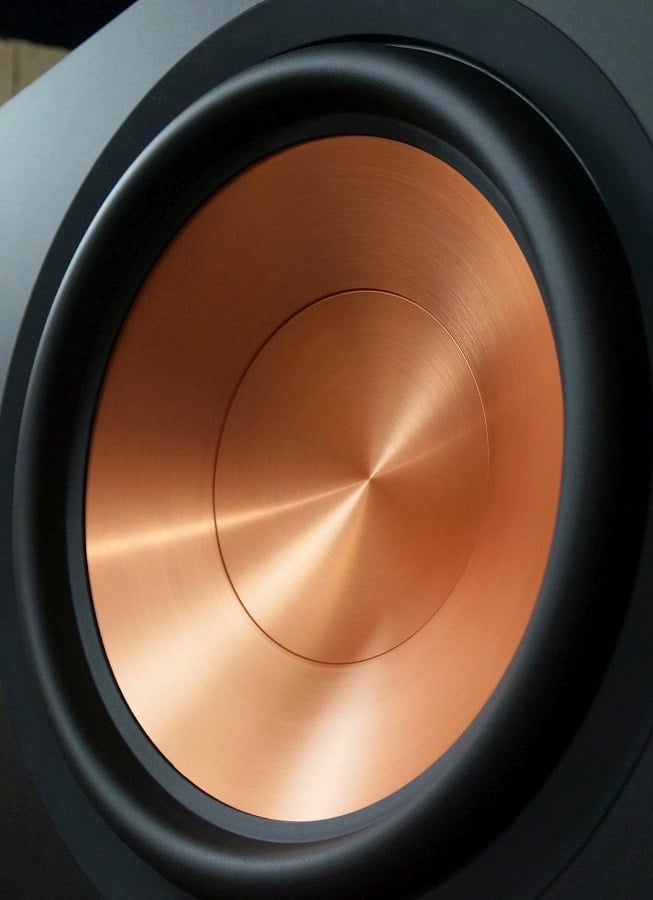

1600 cone2Before bringing this review to a close, I will briefly go over the strengths and weaknesses of the product under evaluation, and, as always, I will start with the weaknesses. Thankfully, the weaknesses of the RP-1600SW are few. However, it is not perfect. Its most significant disadvantage is obvious: it is a very large and heavy subwoofer. I have dealt with larger and heavier subs, but at 110 lbs., buyers will need to be aware that getting this thing into place is not a one-person job. And with a 23.5” width and 27.35” depth, it will have a substantial footprint. Then again, serious deep bass performance cannot be had from a small system. Large quantities of air have to be displaced for powerful deep bass performance, and a large transducer is an inherent requirement to do that. So, I am not criticizing the RP-1600SW for its size but rather advising interested buyers that they should have a realistic idea of what to expect if they are not able to see one in person before placing an order.

A minor problem that I noted was that somewhat loud drive levels under 20Hz could push the RP-1600SW into port turbulence. It needed to be pushed to make that happen, but it didn’t need to be pushed really hard. Again, I should say I didn’t hear any port chuffing in actual listening, and it was only obvious using pure test tones. However, for how much Klipsch touted their Aerofoil port system that was supposed to inhibit turbulence, the RP-1600SW was definitely not immune to chuffing. In my experience, no ported subwoofer is immune to chuffing, but the RP-1600SW can succumb to turbulence at unexpectedly low drive levels. I think the problem may be that the port is tuned just a bit too deep for the enclosure and driver combination. It should be noted that port turbulence doesn’t endanger the sub in any way; in fact, I was not able to overdrive the sub at any drive level, so the RP-1600SW is well-protected against damaging itself with any signal. Nonetheless, users who want to blast film content with high infrasonic bass may be met with fluttering noises from the subwoofer’s port, especially if the LFE level is hot.

It should be noted that the RP-1600SW doesn’t really have any bells or whistles as far as features go. This doesn’t bother me, but competing subs from the likes of SVS and others in this price range will have parametric equalizers, app controls, operating modes, additional input types, and lots of tweakability. The RP-1600SW only has the basic necessities as far as subwoofer controls go. The only extra it boasts in this sense is the ability to easily add Klipsch’s wireless adapter, but at $200, that is a relatively expensive adapter. This lack of additional features doesn’t bother me because ideally most of that stuff should be controlled from the audio processor, not the sub itself. All of those extra features do make those subs more flexible and easily usable in a wider variety of audio setups than the RP-1600SW, but the reality is the RP-1600SW will work just fine in the vast majority of systems in place without needing any extra accommodations.

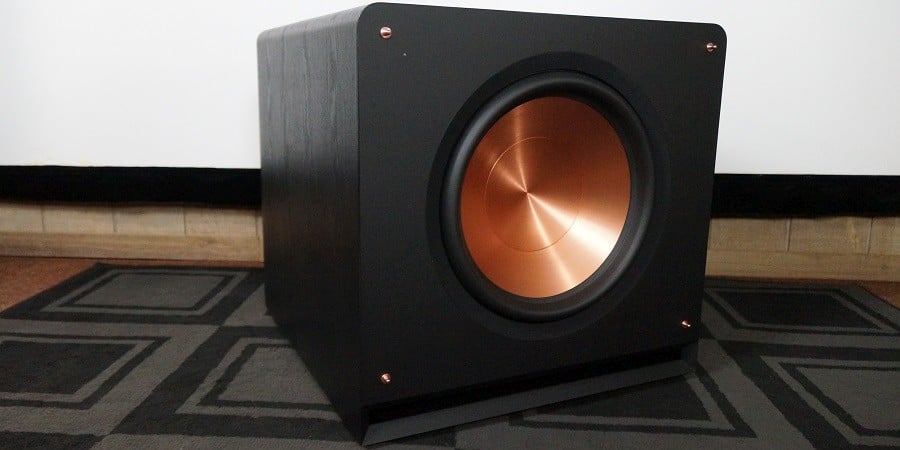

1600 hero3

There isn’t much else to complain about with the RP-1600SW, so let’s now discuss its strengths. Firstly, the overall performance is very good. It has loads of headroom and would nicely complement Klipsch’s higher dynamic range speakers such as the RP-8000F II or the RF-7 III or any other wide dynamic range speaker from other manufacturers for that matter. 117dB in bursts at 31.5Hz and above is pretty stunning to hear in person. It has deep enough low-frequency extension to increase the depth of even larger tower speaker systems that tend to be tuned to around 30Hz. The RP-1600SW adds almost an entire octave below that point. In my own music and movie listening, it had a tremendous amount of mid-bass punch as well as lots of deep bass rumble. But it would be a disservice to only compliment the dynamic range of the RP-1600SW, since its linear fidelity is also excellent as well. Its frequency response is ruler-flat, so the tonality would be perfect, at least in anechoic settings (in-room acoustics will destroy this pristine response). Its time-domain performance is very good, and it starts and stops on a dime, especially in the musically crucial range above 40Hz.

In addition to its performance, I think that the RP-1600SW has a fairly good industrial design that should go some way in making it ingratiating despite its size. It’s not a beautiful sub, but it’s not ugly at all either. With the grille on, it is innocuous, and those who like a bit more drama can run it without the grille and show off that shiny copper cone. The build quality looks good as well, although I have to wonder what could have been gained if Klipsch took the idea of acoustic stuffing seriously instead of the smattering of polyfill they glued on the interior panels. The driver itself is an absolute unit, and the amp construction looks very capable too.

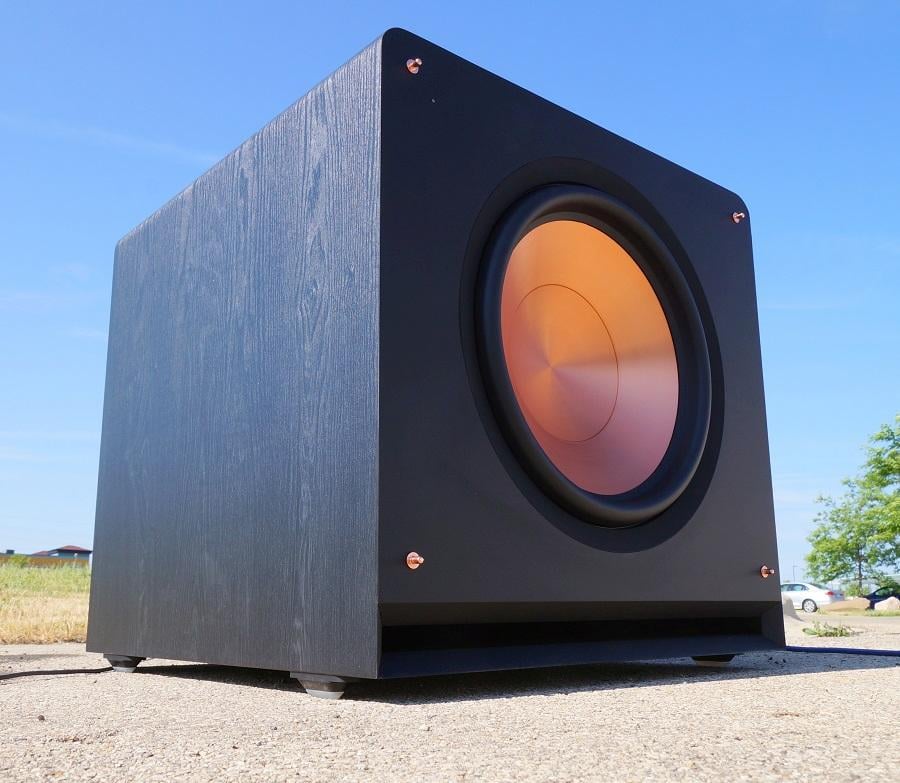

 1600 outdoors

Klipsch wanted to bring a monster subwoofer to market, and I think they did a good job with the RP-1600SW. The performance is formidable even among other large subwoofers on the market. It is good enough that it should be considered for those looking for subs for dedicated home theater rooms rather than just beefy living room systems. The sound of a single RP-1600SW is very impressive, and two or more in a multi-sub setup would doubtlessly be phenomenal. It is a strong choice in this segment, and it is abetted by a 5-year bumper-to-bumper warranty which some of its rivals cannot boast. I enjoyed my time with the RP-1600SW, and I would advise any subwoofer shopper to give it close consideration, even among products from audio manufacturers who are more subwoofer focused.

Deal Alert: Klipsch is running a promotion on Audio Advice. You can get the RP-1600SW for $1,439 shipped!

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

  • StarStarStarStarStar — Excellent
  • StarStarStarStar — Very Good
  • StarStarStar — Good
  • StarStar — Fair
  • Star — Poor
MetricRating
Bass ExtensionStarStarStarStarStar
Bass AccuracyStarStarStarStar
Build QualityStarStarStarStar
Fit and FinishStarStarStarStar
Ergonomics & UsabilityStarStarStarStar
FeaturesStarStarStar
Dynamic RangeStarStarStarStar
PerformanceStarStarStarStarhalf-star
ValueStarStarStarStarhalf-star
