Audio Amplifier Classes (A, A/B, D, G, and H): What are the Differences?

by September 14, 2018
Contributors:
Alphabet soup of amplifier classes

Alphabet soup of amplifier classes

originally published: April 20, 2014

If you’ve ever glanced at the specifications sheet for an amplifier, one of the things you may have noticed is the amplifier’s class. Typically denoted by a letter or two, the most common amplifier classes used in consumer home audio today are Class A, A/B, D, G, and H. These classes aren’t simple grading systems, but descriptions of the amplifier’s topology, i.e. how they function at a core level. While each amplifier class comes with its own set of strengths and weaknesses, their job (and how end performance is judged) remains the same: to amplify the waveform sent to it by a preamplifier without introducing distortion, or at least as little as possible distortion. So what does our alphabet soup of amplifier classes mean? Keep reading to find out but first watch our recently added YouTube video discussion!

Amplifier Classes YouTube Discussion

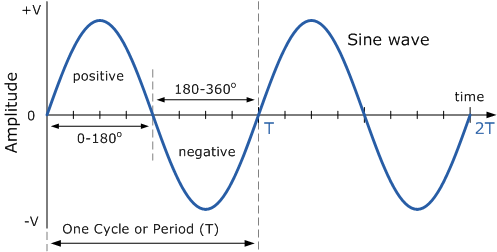

We are going to be discussing how amplifiers conduct through waveforms, so a basic diagram of a sinewave is shown below.

Sinewave

Sinewave - a full wavelength represents 360 degrees

Class A

As compared with the other amplifier classes we’ll cover, Class A amps are relatively simple devices. The defining principle of Class A operation is that all of an amplifier’s output devices must be conducting through the full 360 degree cycle of a waveform. Class A can also be broken down into single ended and push/pull amplifiers. Push/pull diverges from the basic explanation above by utilizing output devices in pairs. While both devices are conducting through the full 360 degree cycle, one device will shoulder more of the load during the positive portion of the cycle, while the other handles more of the negative cycle; the primary advantage of this arrangement is reduced distortion relative to single ended designs, as even order harmonics are cancelled out. In addition, push/pull Class A designs are less susceptible to hum; single ended designs tend to require special attention to the power supply to mitigate this issue.

 Class A CircuitPass Labs XS150

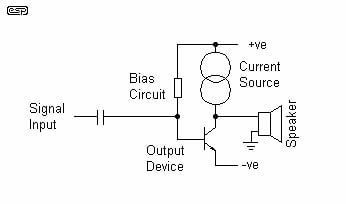

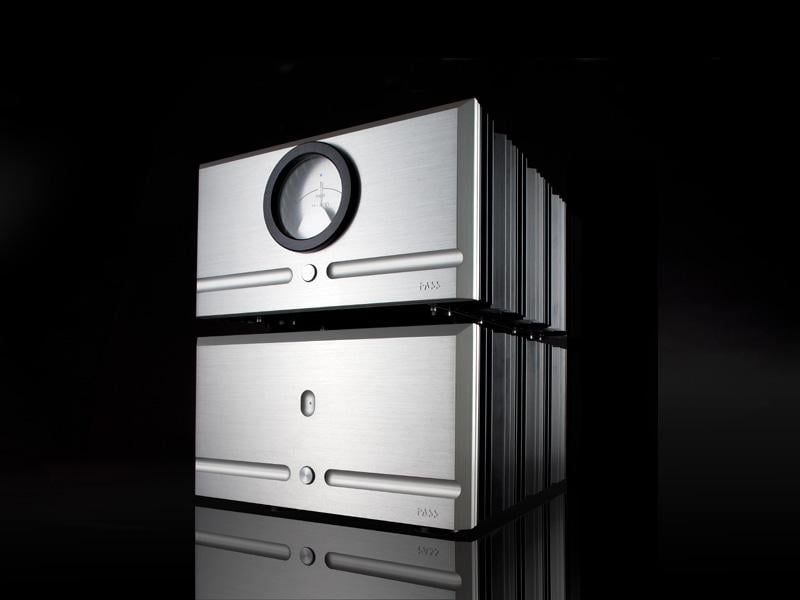

A simple Class A diagram (left; courtesy of sound.westhost.com) and a high powered Class A amplifier, the Pass Labs XS150 (right).

Because of the positive attributes associated with Class A operation, it is considered the gold standard for audio quality in many audiophile circles. However, there is one important drawback to these designs: efficiency. The requirement of Class A designs to have all output devices conducting at all times results in significant amounts of wasted power, which is ultimately converted to heat. This is further exacerbated by the fact that Class A designs require relatively high levels of quiescent current, which is the amount of current flowing through the output devices when the amplifier is producing zero output. Real world efficiency rates can be on the order of 15-35%, with the potential to drop into the single digits using highly dynamic source material.

Class B

While all of the output devices in a Class A amplifier are conducting 100% of the time, Class B amplifiers utilize a push/pull arrangement in such a way that only half the output devices are conducting at any given time: one half covers the +180 degree portion of the waveform, while the other covers the -180 degree section. As a consequence, Class B amplifiers are substantially more efficient than their Class A counterparts, with a theoretical maximum of 78.5%. Given the relatively high efficiency, Class B was used in some professional sound reinforcement amplifiers as well as some home audio tube amps.

In spite of their obvious strength, the odds are good you won’t see too many pure Class B amplifiers floating around. The reason for this is known as crossover distortion.

 Crossover Distortion

Crossover distortion affecting a simple sine wave; image courtesy of sound.westhost.com.

As seen in the image above, crossover distortion is a problem/delay in the handoff between the devices handling the positive and negative portions of the waveform. Needless to say, such distortion in sufficient amounts is audible, and while some Class B designs were better than others in this respect, Class B didn’t receive much love from audiophiles.

Class A/B

Class A/B, as one might deduce, combines the best of Class A and Class B in order to create an amplifier without the drawbacks of either. Thanks to this combination of strengths, Class A/B amplifiers largely dominate the consumer market. So how did they do it? The solution is actually fairly simple in concept: where Class B utilizes a push/pull arrangement with each half of the output stage conducting for 180 degrees, Class A/B amplifiers bump that up to ~181-200 degrees. By doing this, there is far less potential for a “gap” in the cycle to occur, and consequently, crossover distortion is pushed down to the point where it’s of no consequence.

So what about that little matter of efficiency? Suffice it to say, Class A/B delivers on its promise, easily trumping the efficiency of pure Class A designs with rates on the order of ~50-70% being achieved in the real world. Actual levels do of course depend on how the amplifier is biased and the program material among other factors. It’s also worth noting that some Class A/B designs take things a step further in their quest to banish crossover distortion, operating in pure Class A mode for up to a few watts of power. This does give up some efficiency when operating at low levels, but still ensures that the amplifier doesn’t turn into a furnace when delivering large amounts of power.

 Class A/B CircuitEmotiva XPA-1L

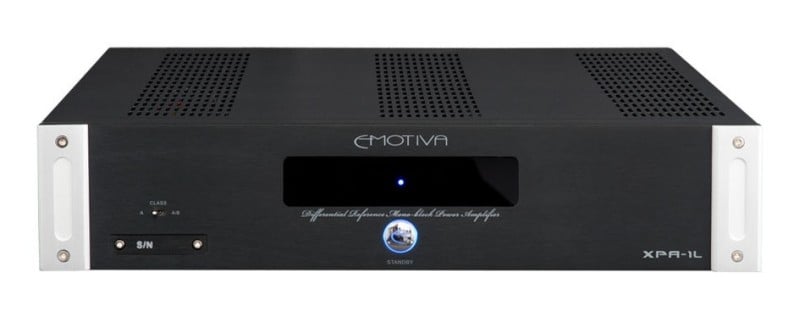

An example of a Class A/B circuit (left; sourced from Wikipedia) and the Emotiva XPA-1L Class A/B amplifier that operates in pure Class A mode up to the first 35W (right).

Class G & H

Another pair of designs engineered with an eye towards improved efficiency, technically speaking neither Class G nor Class H amplifiers are officially recognized. Instead, they are variations upon the theme of Class A/B, utilizing voltage rail switching and rail modulation respectively. In either case, under low demand conditions, the system utilizes a lower rail voltage than a comparably rated Class A/B amplifier, significantly reducing power consumption; as high power conditions arise, the system dynamically increases rail voltage (i.e. switches to the high voltage rail) to handle high amplitude transients.

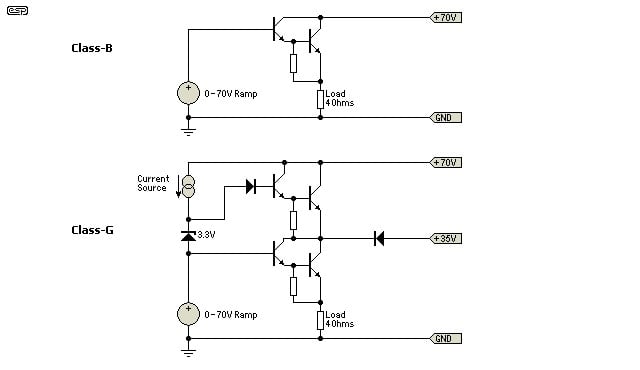

 Class B vs Class GOutlaw Model 2200

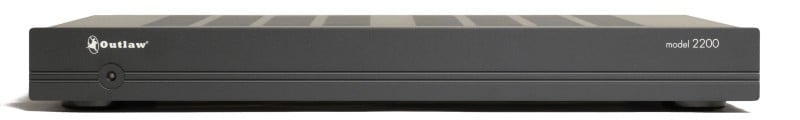

A comparison of Class B and Class G topologies (left; image sourced from sound.westhost.com) and the Outlaw Model 2200, a compact, cool running 200W Class G amplifier (right).

So what’s the drawback here? In a word: cost. Original rail switching designs utilized bipolar transistors to control the output rails, increasing complexity and cost. These days, that is often reduced to an extent with the use of high current MOSFETs to select / vary the rails. Not only does the use of MOSFETs further improve efficiency and reduce heat, but fewer parts are required (usually one device per rail). In addition to the cost of rail switching / rail modulation itself, it’s also worth noting that some Class G amplifiers utilize more output devices than a typical Class A/B design. One pair of devices will act in typical A/B fashion, fed by the low voltage rails; meanwhile another pair is held in reserve to act as a voltage booster, only activated as the situation demands. At the end of the day, because of these additional costs you’ll usually only see Class G and H associated with high powered amplifiers where the increased efficiency makes it worthwhile.  Compact designs may also leverage Class G / H topologies as opposed to Class A/B given that the ability to switch to a low power mode means they can get by with a slightly smaller heatsink.

Class D

Often erroneously referred to as “digital amplification”, Class D amplifiers represent the zenith of amplifier efficiency, with rates in excess of 90% being achieved in the real world. First things first: why is it referred to Class D if "digital amplification" is a misnomer? It was simply the next letter in the alphabet, with Class C being utilized in non-audio applications. More importantly, how is 90%+ efficiency possible? While all the amplifier classes previously mentioned have one or more output devices active all the time, even when the amplifier is effectively idle, Class D amplifiers rapidly switch the output devices between the off and on state; as an example, Class T designs, which are an implementation of Class D designed by Tripath as opposed to a formal class, utilize switching rates on the order of 50MHz. The output devices are typically controlled by pulse width modulation: square waves of varying widths are produced by a modulator, which represents the analog signal to be reproduced. By tightly controlling the output devices in this way, efficiency of 100% is theoretically possible (although obviously not achievable in the real world).

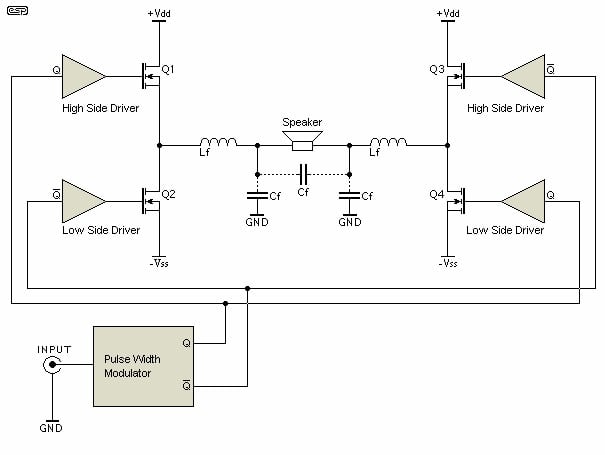

Class D Topology IQ M300 Amplifier

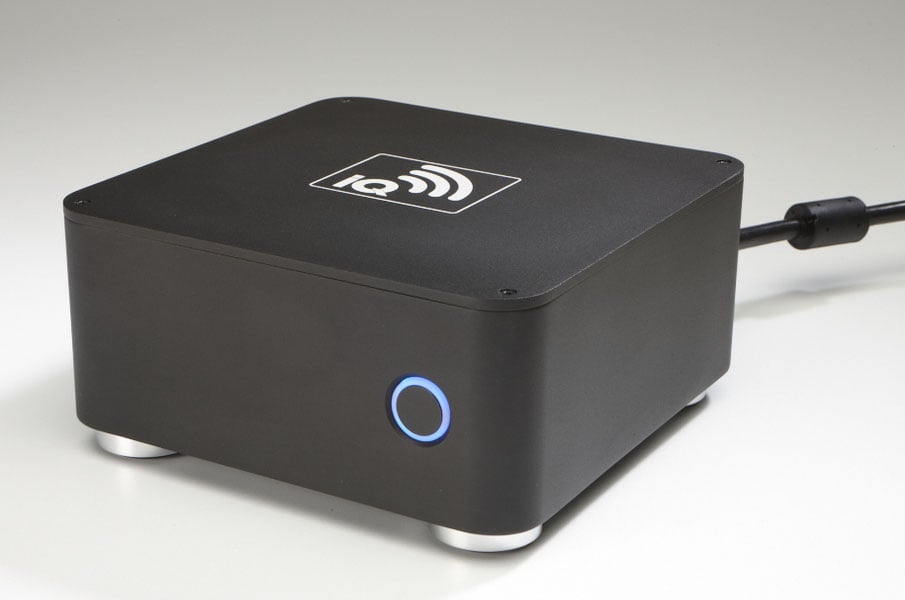

Example of a full bridge Class D circuit (left; sourced from sound.westhost.com), and the IQ M300 Class D amplifier, a pint sized 300W wonder (right).

Delving deeper into the world of Class D you’ll also find mention of analog and digital controlled amplifiers. Analog-controlled Class D amplifiers have an analog input signal and an analog control system, usually with some degree of feedback error correction present. On the other hand, digitally controlled Class D amplifiers utilize digitally generated control that switches a power stage with no error control (those that do have an error control can be shown to be topologically equivalent to an analog-controlled class D with a DAC in front). Overall, it’s worth noting that analog controlled Class D tends to have a performance advantage over its digital counterpart, as they generally offer lower output impedance and an improved distortion profile.

Next, there is the (not so) small matter of the output filter: this is generally an L-C circuit (inductor & capacitor) placed between the amplifier and the speakers in order to mitigate the noise associated with Class D operation. The filter is of considerable importance: shoddy design can compromise efficiency, reliability, and audio quality. In addition, feedback after the output filter has benefits. While designs that do not utilize feedback at this stage can have their response tuned to a particular impedance, when such amplifiers are presented with a complex load (i.e. a real world loudspeaker as opposed to a resistor), frequency response can vary considerably depending on the loudspeaker load it sees. Feedback stabilizes this issue, ensuring a smooth response into complex loads.

Ultimately, the complexity of Class D has its rewards: efficiency, and as a good consequence, less weight. As relatively little energy is wasted as heat, much less heat sinking is required. Ratcheting that up a notch, many Class D amplifiers are used in conjunction with switch mode power supplies (SMPS). Like the output stage, the power supply itself can be rapidly switched on and off to regulate voltage, leading to further gains in efficiency and the ability to shed weight relatively to traditional analog / linear power supplies. Taken together, it’s possible for even high powered Class D amplifiers to weigh only a few pounds.  The disadvantage of SMPS power supplies over traditional linear supplies is the former typically don't have much dynamic headroom.  Our limited testing of Class D amps with linear supplies vs SMPS supplies have shown this to be true where two comparably rated  power amps both delivered rated power, but the one with the linear supply was able to produce higher dynamic power levels.  Still SMPS designs are becoming more commonplace now, and you can expect to see more high powered, next generation Class D amplifiers employing them.

Class AB and Class D Efficiency Compared

Just how efficient is a typical Class D amplifier relative to a run of the mill Class A/B design?

In a word: extremely. While a Class A/B amplifier's efficiency improves as it approaches maximum output, Class D designs maintain a high efficiency rating over the majority of their operating range; as a result, real world efficiency tilts further in their favor. Image courtesy of sound.westhost.com.

One Amplifier to Rule Them All?

With proper implementation, any of the above outside of pure Class B can form the basis of a high fidelity amplifier. Not good enough for you? Then let’s look at the relative strengths and weaknesses of each design:

Amplifier Class
Typical Efficiency
Pros
Cons
 A ~15-35% No possibility of crossover distortion.
Inefficiency = heat
Single ended designs prone to hum and higher levels of distortion.
 B ~70% Relatively high efficiency.
Potential for significant amounts of crossover distortion and compromised fidelity
 A/B ~50-70% More efficient than Class A.
Relatively Inexpensive.
Crossover distortion can be rendered moot.
Efficiency is good, but not great.
 G & H
~50-70% Improved efficiency over Class A/B.
Costlier than Class A/B but higher power levels are achievable in a smaller form factor.
 D >90% Best possible efficiency
Light weight.
Pulse width modulators operating at relatively low frequencies can compromise high frequency audio reproduction.
Some designs produce varying sound quality depending on speaker load.



Outside of potential performance pitfalls (which are primarily a consequence of design decisions as opposed to being inherent to a class), the choice of amplifier class is in large part a question of cost versus efficiency. In today’s market, Class A/B dominates the scene, and for good reason: they perform very well, are relatively cheap, and their efficiency is perfectly adequate for low powered applications (>200W). Of course, as amplifier manufacturers try to push the envelope of power delivery with amplifiers like the 1,000 watt Emotiva XPR-1 Mono-Block, they turn to Class G/H and Class D designs to avoid having their amplifiers double as space heaters. Meanwhile, on the other end of the market are Class A aficionados who can forgive a lack of efficiency in the hopes of purer sound.

Summary

In the end, amplifier classes aren’t necessarily as important as some people might ascribe. Yes, there are important differences, particularly when it comes to cost, amplifier efficiency, and consequently weight. Certainly a 500W Class A amplifier is a bad idea, unless the idea of using your amplifier as an oven appeals to you. On the other hand, the differences among the classes don’t inherently define sound quality. In the end, that comes down to engineering and implementation; at Audioholics, we’ve been lucky to hear (and measure) great examples of all classes of amplifiers. Have a favorite? Make sure to voice your opinion on our forums.



Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!



About the author:

Steve Munz is a “different” addition to Audioholics’ stable of contributors in that he is neither an engineer like Gene, nor has he worked in the industry like Cliff. In fact, Steve’s day job is network administration and accounting.

View full profile

Recent Forum Posts:

Verdinut posts on September 19, 2018 20:20
One example of successful Class A/B and Class A/B/H amplifiers using a SMPS is the DCA series of amps which QSC Audio have been manufacturing since 1998. These have proven that a well designed amplifier can use a switching power supply and do the job as well if not better than the conventional linear supply:

https://www.qsc.com/cinema/products/power-amplifiers/dca-series/

I am using three DCA 1222s and one DCA 1824 in my HT system.
Matthew J Poes posts on September 19, 2018 19:28
I won’t say I have a favorite, I too have heard great examples of all types. However, as both a reviewer and tweaker who constantly is moving amplifiers around, I can confidently say I love Class D amps with SMPS supplies. They are just easier to manage.

I used to DIY amps quite a bit, building from either pre hilt modules, kits, or even of my own designs. I’ve built numerous linear power supplies including capacitance multipliers and CLC supplies with inductors the size of 1kva toroidal transformers. I measured their behavior along with a lot of computer modeling.

There is a quality to SMPS that I think deserves both mention and discussion. They need a little love.

An SMPS supply is inherently regulated. This means the voltage doesn’t drop with load. Instead it regulates the voltage until it hits its limit. This is good for maintaining output under varying load conditions and under highly dynamic conditions. It also ensures the amp distortion and noise doesn’t suddenly rise at the limits. Linear supplies without regulation can’t do this and thus need to either be very large with huge capacitance or use a complex CLC method like i did, which is really expensive and really heavy.

The limitation with SMPS is that you can’t treat their maximum current delivery rating or wattage rating the same as linear. If you consider it like an amplifier, linear soft clips where SMPS hard clips. When a linear supply approaches its limit it just gradually drops the voltage as current increases (which is actually fine for low impedance loads) until it hits a limit. The ripple increases as well, so a lot of capacitance is handy to avoid that. An SMPS won’t reduce voltage, it just hits its limit and a current limiter kicks in. It leads less headroom. I built a 300 watt per channel amplifier (Class A/B) and included a 1200 watt SMPS supply designed for audio use. It couldn’t even reach 300 watts rms before the limiter kicked in. Yet a 1.2kva toroidal transformer and 40,000uf of capacitance would have been plenty with a linear supply to exceed that rating. Instead the amp needed twice the power supply to reach its expected output. In other words, an SMPS doesn’t have to make an amplifier less dynamic, manufacturers just need to start including much larger ones. Like twice as big.

Another nice attribute of the SMPS is that their ripple voltage is on par with the very best linear supplies possible with advanced filtering. No basic RC linear supply can even compare. While many might point to switching noise in SMPS, fact is, in modern well designed Audio grade SMPS, there is no meaningful switching noise on the output. They do have high RFI radiation, but that is easily filtered out. In the end, I think we all need SMPS in all amps.
ski2xblack posts on December 28, 2017 13:04
JRoss, post: 1226221, member: 84460
Hello Steve this probably is a odd question for you guys because it being 12volt. Amplifier class A , AB etc. Have you ever heard of a class A/G ? Can it exists? I have in my collection guessing from mid to late 80s with A/G circuit stenciled on it. Can not find any thing on it. So the question, can it be? Let me know. Thx
This could be interpreted as TLS' favorite topology, the Quad current dumpers. Class A amp paired rather cleverly with class B. Not sure if it was ever implemented in mobile audio. Or it could be as Steve stated.

Anywho, I have class a/b and g (h?) amps, as well as a couple SE tube jobs, which don't amplify particularly well but they sure deliver the chocolaty mids.
Verdinut posts on December 28, 2017 11:20
QSC Audio's most powerful amps operate in Class AB at lower output levels then switch to a higher voltage rail for Class H operation.
Steve81 posts on December 28, 2017 10:31
JRoss, post: 1226221, member: 84460
So the question, can it be? Let me know. Thx

It can. Best guess is that it's probably an A/B amp that operates in Class A up to a certain level, and then leverages the additional efficiency of A/B + rail switching (G) for higher output levels.
