Audioholics Subwoofer Measurement Standard Part I

by March 05, 2008

When it comes time to size up a subwoofer's performance, the proof is in the measurement! Audioholics takes a hard look at the science of subwoofer measurements in a two-part series covering a broad spectrum of measurement methods, useful to both pro and enthusiast alike. Let the science begin!"

This article began life as an ongoing series of conversations, carried out over the past couple of years with Gene. He recognized Audioholics’ need to bring a degree of organization to its own in-house subwoofer measurement procedures. I was tasked with that challenge and present here Part I.

Part II, to be published later, will cover other topics such as linear & nonlinear distortion measurement, mechanical noise floor measurement, amplifier measurement and so forth. Part II will also include a collection of worked examples and conclude with a table summarizing all results.

Projects of this size are seldom a solo effort and this was no exception. To that end, a huge debt gratitude
is owed to Charlie Hughes, Jeff Szymanski, Siegfried Linkwitz, Don Keele, Neville Thiele and many others who contributed their time and expertise in helping me knock this manuscript into shape. Thank you, gentlemen! And of course, a big thanks to Gene as well for his almost supernatural patience as he waited for me to bring this to completion. Thanks, Gene!


The purpose of both documents is to present a set of measurement guidelines by which a comprehensive objective assessment of a subwoofer’s performance can be developed. Included within this document’s definition of a subwoofer are: single & multiple driver subwoofer systems; powered and passive systems; systems featuring vented or totally enclosed cabinets; along with less common items such as dipole subwoofers.

Though industry professionals can (and do) make use of the methods or approaches presented here, this document is intentionally structured and organized to make it particularly useful to the audio enthusiast. Given the particular type and/or characteristics of a sub you may be interested in measuring you may find it unnecessary to apply all the measurement procedures covered in Parts I & II. In any event, with the variety of software-based measurement tools currently available, it is now possible for the audio enthusiast to work up a collection of accurate measurements at very little expense. Certainly much less expensive than what it would have cost 20 or 30 years ago!

If you’ve spent any time at all contributing to the development of any sort of industrial standard, you’ll know the process tends to be evolutionary in nature. Similar in character to the more formal standards (AES, IEC, etc) from which parts of this work are drawn, nothing here is written in stone. As new research and/or measurement technologies/techniques appear on the horizon they will be included, whenever/wherever appropriate and/or applicable. This is a living document that will evolve over time and improve with age.

1a. System Impedance: Magnitude & Phase

Graphic 1.gif

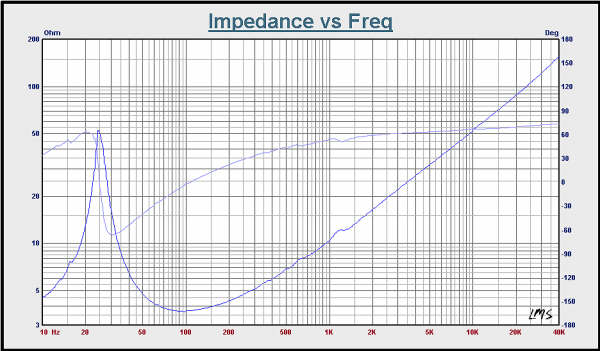

Figure 1: System Impedance

Purpose: To determine: (1) the characteristics of the impedance load placed on a power amplifier by the system
across a defined frequency spectrum segment; (2) various system parameters; and (3) the identification of
any anomalies/pathologies that are reflected back to the electrical domain.

Value: Impedance curves provide an assessment of the impedance the system presents to the driving amplifier. When
presented with phase data it provides further insight into the ease or difficulty a given amp may face in driving
the system. Impedance curves also are useful in indicating system parameters such as resonance frequencies,
system rated or nominal impedance and so forth. In some cases, they can also provide evidence of a variety of
system anomalies/pathologies, such as pronounced standing-wave resonances arising within the air enclosed by the cabinet.

Method of Measurement: Measure the driver’s Revc and the system’s impedance (with driver still in cabinet & any
internal power amp and/or processors disconnected from the driver), then remove the driver from the cabinet and proceed to Section 2, Driver Impedance, Magnitude & Phase. Except where it is noted otherwise or simply not applicable, the suggested frequency spectrum is
10 Hz to 320 Hz.

finger.jpgFor maximum accuracy, remove test lead and/or amp-to-sub cable impedance from all measured driver/system impedance curves. One method of accomplishing this is by measuring each beforehand and subtracting them from the driver/system measured impedance curve. Also, impedance measurements should be done in an environment as noise & vibration free as possible. Prior to making any acoustical or electrical measurements of the system, be sure to inspect all fittings, fixtures, hardware, etc to be certain that all are bolted down securely: leaks, loose hardware and so forth can and will effect measurement data.

Signal Used: Constant voltage (preferred) or constant current, downward swept sine wave, MLS or impulse signal. Regarding the
swept sine wave, unless otherwise required, use as low a test signal drive level as possible that can
repeatedly produce clean data.

Metric Specification: Nominal or rated impedance (Znom): should be stated such that the minimum impedance is no
less than 80% of the stated nominal or rated impedance.

finger.jpgAs per IEC 60268-5 standard practice, the value of Znom is specified based on the minimum value of the system’s modulus of impedance (Zmin) such that Znom is no more than 1.25*Zmin. In practical terms this means a system with a Zmin value as low as 6.4 Ω could be considered an 8Ω system, systems with a Zmin value as low as 12.8Ω could be considered a 16Ω system, and systems with a Zmin as low as 3.2Ω could be considered a 4Ω systems.

Nominal System Impedance, (10 – 320 Hz): A.A Ohms
Local minimum(s): X.X Ohms (Mag. & Phase) @ Y.Y Hz
Local maximum(s): W.W Ohms (Mag. & Phase) @ Z.Z Hz

1b. Driver Impedance: Magnitude & Phase

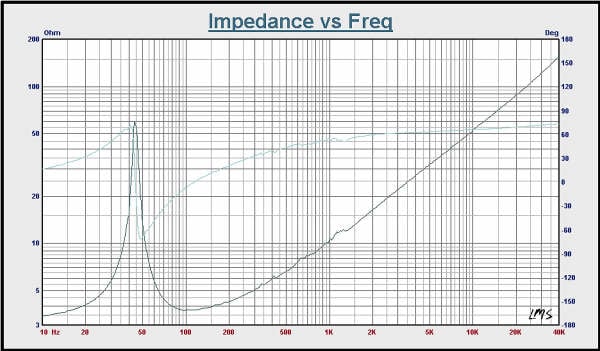

Graphic 2.gif

Figure 2: Driver Impedance

Purpose: To determine: (1) various driver/system parameters, and (2) the identification of any driver anomalies/pathologies reflected back to the electrical domain.

Value: Driver impedance curves provide for a great deal of useful information, in addition to an assessment of the
impedance presented by the system’s raw driver. Driver impedance curves are useful for deriving Thiele-Small
parameters. In some cases, they can also provide evidence, as already mentioned of driver anomalies/pathologies or other noteworthy characteristics.

Method of Measurement: Measure the driver’s Revc and the diameter of the driver, including 1/3rd to ½ the surround.
With the driver out of the cabinet and secured in place or otherwise restrained from any possible movement, remeasure the impedance. This is the driver free-air impedance. Then using either the delta-mass (i.e., added-mass) or delta-compliance (i.e., added compliance) perturbation technique, remeasure the driver’s impedance. From this and the previously taken free-air impedance curve, derive the Thiele-Small parameter values. The change in mass or compliance should be large enough so that the driver’s resonance frequency is altered by at least 30%.

finger.jpgAs with the system impedance measurements outlined above, for maximum accuracy, remove test lead and amp-to-sub cable impedance (where applicable) from all measured driver impedance curves. Do this by measuring each beforehand and subtracting them from the driver’s measured impedance curve. Also, unless otherwise required, set the test voltage or current value to the lowest possible that still provides clean, repeatable measurement data.

Signal Used: Constant voltage (preferred) or constant current, downward swept sine wave, MLS or impulse signal. Unless otherwise required, use as low a test signal drive level as possible that can repeatedly produce clean
data. Driver impedance measurements are measurement signal-level dependent and the driver parameters derived from impedance measurements done at different test signal levels will show differences.

Metric Specification: Driver T/S Parameter Table (See below).

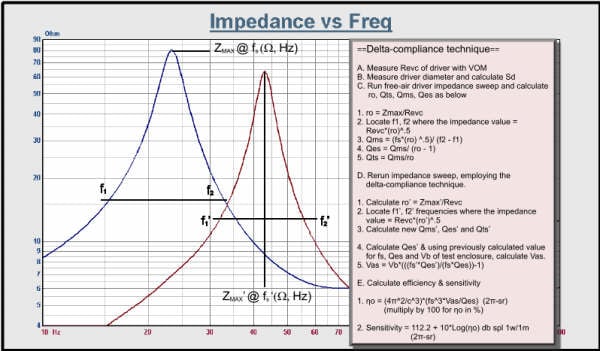

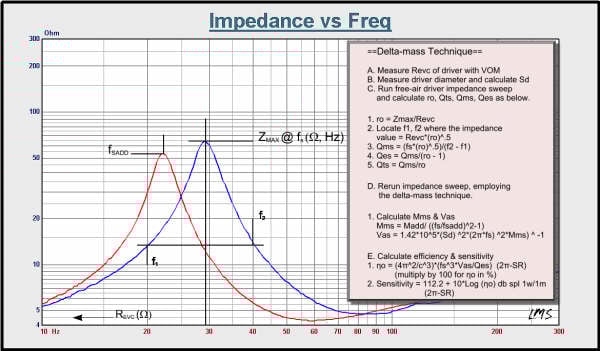

audioholics.jpgΣngineers Note #1 Determining Raw Driver Thiele/Small Parameters
From Measured Impedance Curves

As expertly demonstrated by Thiele, Small, Benson, Novak and others, a great deal of useful information can be derived from a driver’s impedance curve. Collectively, the information gleaned from the raw data are formulated as defined parameters, a subset of which is commonly known as the “Thiele/Small” (T/S) parameters. Working up a small table populated with various T/S parameter values helps to round out the objective portion of a subwoofer assessment and provide a check against other measurements to ensure all around accuracy.

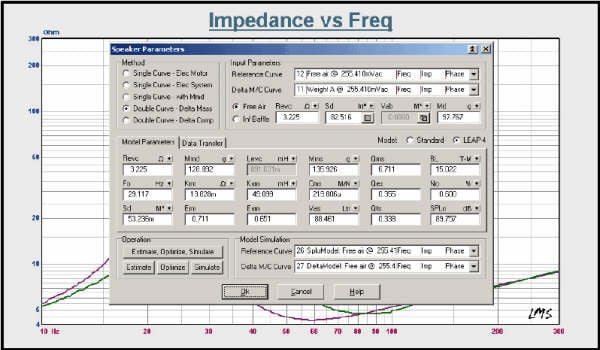

At left is an example of a commercially available speaker parameter utility at work. Two further graphics are presented each illustrating how to mathematically derive an estimate of a driver’s parameters from impedance data if you don’t have access to a program such as that shown at left. (See Bibliography ref. #38 in Part II for an in-depth discussion of both techniques)

Graphic 3.gif Graphic 4.gif Graphic 5.gif

Revc (Ω) 3.225
fs (Hz) 29.11
Qts (-) 0.338
Vas (l) 88.46
Efficiency (%) .600
Sensitivity (dB/1W/1m)
To illustrate the utility of the parameter chart, we could now, for xample, check both the measured midband sensitivity of the system or work up an estimate of the system’s half-space max dB spl, at a given distance, given a particular wattage amplifier using the formula:

dB spl = dBW + Sensitivity (dB) – 20* Log(D2/1m)
Where dBW = 10 * Log(amplifier electric Watts out)
D2 = measurement distance, meters

Complex, On-axis Frequency Response


2. Axial, Polar & Power Frequency Response; Sensitivity; Efficiency; Group Delay; Effective Frequency Bandwidth; Power Compression; and Maximum System Sound Pressure Level

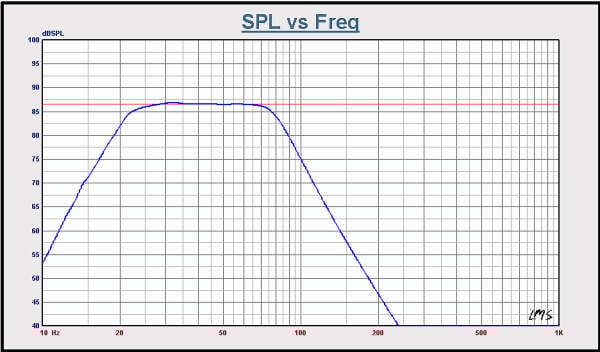

Graphic 6.gif

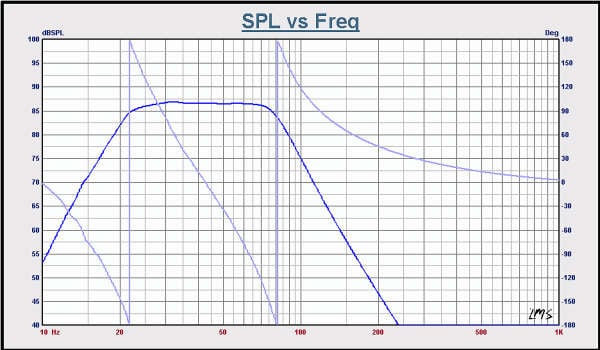

Figure 3: dB-SPL Plot



2a. Complex, On-axis frequency response.

Purpose: To determine the amplitude & phase response of the direct sound output of the subwoofer, across the frequency spectrum segment of interest.

Value: This gives us the actual amplitude & phase response of the subwoofer, free from the influence of the room. It’s a baseline that gives us a clear picture of the system’s actual performance.

finger.jpgFor all measurements, use a calibrated microphone. Do not use sound level meters or an uncalibrated microphone. All other gear used in the test-signal chain should be calibrated as well or at the very least possess a known, constant amplitude response within +/- .5 dB in the relevant frequency range. All gear should present negligible non-linear distortion under normal test conditions.

Method of Measurement:

Near-field (Indoors): The measurement microphone should be placed such that it is centered on and normal to the dustcap. It should be positioned as close as possible to the surface of the dustcap, at its center point. This places the microphone at a reference point that is defined by the intersection of the reference axis and the reference plane. The axial amplitude-response measurement data produced by the microphone at this position is such that to all other frequency and directional-response amplitude response measurements are referred to it.

Keeping in mind the large displacements subwoofer driver diaphragms are capable of, the maximum excursion attainable should be determined beforehand, so as to prevent damage to either the driver or the microphone.

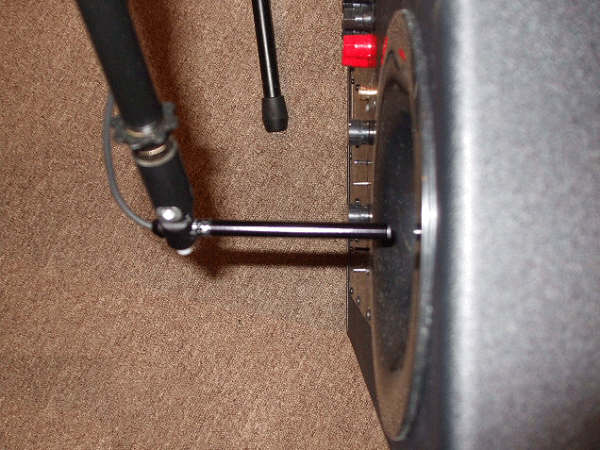

Figure 4a & b: Mic\Driver Disposition for NF Measurement. 4c: Mic\Port Disposition

finger.jpgGraphic 10.gifNearfield measurement can easily result in sound pressure levels in excess of that for which a particular measurement microphone might be rated. Prior to actual measurement, a series of test runs, using incrementally increasing drive levels, can be useful in establishing both driver excursion (as mentioned
above) & system sound pressure levels and how they relate to the measurement microphone’s rated SPL maximum. Overlaying a plot of the mic’s rated SPL maximum (red curve, above) prior to making any preliminary test measurements makes evaluation quick & easy. If measuring a ported system, establish maximum mic-safe system SPLs by measuring the port output first. And wear appropriate hearing protection!


Σngineers Note #2 Nearfield Measurement: accuracy & limits;

Helpful hints & Tips

1. Keeping the measurement distance, r < 0.11a, where a = effective diameter of the driver being measured, keeps measurement errors to less than 1 dB of the true nearfield dB spl.


2. The theoretical upper frequency (soft) limit for nearfield measurements is given by:
(“soft” as in various authorities quote either ka = 1 or ½; it can only be defined loosely.)


ka = 1
Where: k = wave number
a = effective driver radius

For radius, a, given in meters, the upper frequency limit is given by:

For radius given in cm, the upper frequency limit is given by:

And for radius, a, given in inches:


If the subwoofer features a vented cabinet, the output of the duct(s) must be measured as well. As with the NF driver spl measurements, the measurement microphone should be placed such that it is centered on and normal to the center point of the duct’s external vent (Figure 4c). The individual amplitude response curves of all ducts are then scaled and vector summed with that of the driver(s) and the resulting system curve is then scaled to 1 meter. If the system curve data are scaled to a distance other than 1m, that should noted.

finger.jpgNearfield measurement typically obscures or minimizes any contribution made by the cabinet’s panels to the system’s total acoustic output. Ultimately, the relevance of any such acoustical contributions actually made by the panels depends on the degree to which they are audible.

Multiple Drivers and/or Ports

In the case where the system features multiple drivers and/or ports, the Near-field approach can be used. In this case, the complex (magnitude & phase) response of the driver(s) and/or port(s) should be measured individually, then vector summed to give the overall Near-field system response, using the following formula:

HNF(f) = System near-field response, dB spl
HD(f) = Driver near-field measured response, dB spl
SP = Total effective radiating surface area of the port(s), m2
SD = Total effective radiating surface area of the driver(s), m2
HP(f) = Port near-field measured response, dB spl

Method of Measurement:

Ground Plane (Outdoors): The subwoofer is placed on a solid, smooth surface in a position located well away from any other reflective boundaries. To ensure minimal acoustic interference (< 1dB contribution to total pressure) from objects large enough to be reflective at the wavelength of interest, the subwoofer should be located at a distance from said object or boundary that is no less than 5x the mic-to-cabinet measurement distance. The cabinet panel containing the driver(s) is then pointed at the microphone, positioned flush with the ground and located 2 meters along an imaginary axis, drawn from the center of the driver (for single driver systems) or center of the panel (for multiple-driver systems).




finger.jpgOwing to mutual coupling between source & image and a virtual doubling of the size of the front panel of the subwoofer there can arise slight differences between ground plane measurements and true free field, anechoic measurements. Raising the sub off the ground, while maintaining correct orientation and distance from the mic as well as keeping the mic flush with the ground can minimize or altogether eliminate this problem.

Figure 5: Ground Plane Measurement

In this arrangement, the microphone is measuring the combined amplitude response of the actual sub and a virtual or mirror image of the sub. In effect, the microphone is measuring the output of two identical sources, vibrating in phase and equal in strength - in a free field. With the mic sitting on the axis bisecting the sources, the on-axis pressure is doubled, the power generated has doubled, intensity has quadrupled and the sound pressure level is 6 dB up, compared to a sub measured free-field at the same distance.

If the system is driven with a 2.828 Vrms signal and measured at 2m using the ground plane approach, the resulting amplitude response plot will be virtually equivalent to that generated by the sub, at 1m, under free-field conditions, such as that obtaining at the top of a 100’ tower. System sensitivity can be determined from this plot and no magnitude scaling is required.

finger.jpgBe aware of the effects temperature, humidity and so forth can have on your measurements. Doing so can alter the actual performance of the sub as well as that of the measurement microphone. If background noise of a random nature affects the measurement process, make several measurements and use complex averaging to minimize the effect of the noise as well as increase the signal-to-noise ratio. For further insight regarding appropriate measurement conditions please see ANSI S12.18.

Suggested Nearfield & Groundplane Test Signal: Swept sine wave (320 Hz to 10 Hz), capturing sufficient data points to ensure post-processing accuracy, displayed on a semi-log plot, charting both magnitude and phase. The test signal is delivered at a pre-determined voltage, typically 2.828Vrms or calculated using 1W = V^2/Znom. For nearfield measurements, scaling the amplitude response plots to 1m, the sensitivity of the system can then be determined.

finger.jpgTo avoid ambiguity or the possibility of data misinterpretation, the dB – SPL specification should be written out in its entirety. Essentially, it should provide enough information to allow the measurement sequence to be reproduced by anyone wishing to do so.

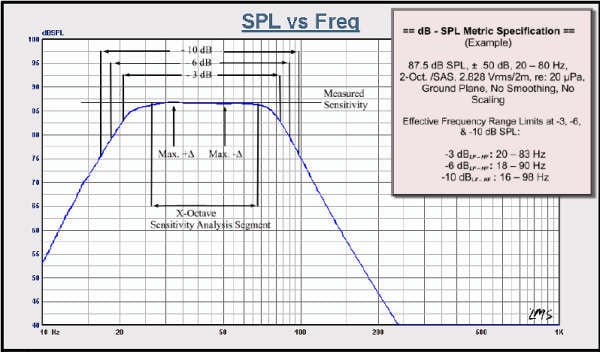

Graphic 12.gifSample complete dB – SPL Metric specification, without Sensitivity Analysis Segment (SAS).

87.5 dB SPL, ± .5 dB, 10 Hz to 320 Hz, 2.828Vrms/1m, re: 20 μPa, Near-field, On-axis, Scaled to 1m, No Smoothing, Swept Sine wave

-3dB lf/hf points: 20 – 83 Hz
-6dB lf/hf points: 18 – 90 Hz
-10dB lf/hf points: 16 – 98 Hz

Max. deviation within -3 dB lf/hf points: +x, -y dB

== or ==

Complete dB – SPL Metric specification (with SAS)

87.5 dB SPL, ± .50 dB, 20 – 80 Hz, 2.828Vrms/1m,
re: 20 μPa, Near-field, On-axis, Scaled to 1m,
No Smoothing, Swept Sine Wave
(3-Oct. /S.A.S)

-3 dBLF HF : 20 – 83 Hz
-6 dBLF HF : 18 – 90 Hz
-10 dBLF HF : 16 – 98 Hz

Max. deviation within -3 dB lf/hf points: +x, -y dB

finger.jpgWhichever dB – SPL metric specification is used, if sensitivity is measured using a drive voltage calculated by taking into account the nominal or rated impedance of the system (and is stated as such), substitute 1W (power sensitivity) for 2.828 Vrms (voltage sensitivity). Common practice, however, is to use voltage sensitivity.

audioholics.jpgΣngineers Note #3 The far field: Where is it? How do I know when my Mic is in it?
Key to any discussion concerning the ground plane technique is the “far field” concept and how it applies to microphone placement when measuring a subwoofer’s amplitude response.

In the far field of a subwoofer system, the subwoofer appears as a point source and sound pressure level varies inversely with distance, decreasing by 6 dB with each doubling of distance, or conversely, increasing by 6dB with each halving of distance.

Keeping this all this in mind, an expedient way to determine when a microphone has been placed in the far field is to simply run a series of amplitude response measurements, doubling the distance between the measurement mic and driver’s acoustic center (or other convenient reference point) and noting when the magnitude difference between plots, mid-band, reaches 6dB.

An old rule of thumb for estimating the far field boundary distance is to multiply the largest dimension of the source by 3. Note that with ground plane measurement, the “source” includes both actual and virtual sub.

2b. Polar response, Beamwidth, Directivity & Q.

Graphic 13.gif

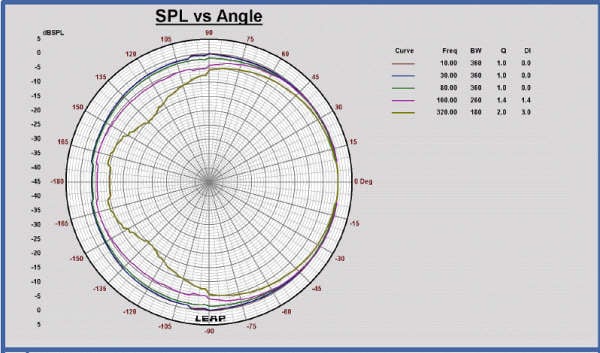

Figure 6: Polar response

Purpose: To determine the amplitude response of the subwoofer at various angles along a common plane, referenced to the on-axis amplitude response and measurement position.

Value: In addition to providing a wealth of information regarding the off-axis amplitude response characteristics of the subwoofer a variety of other performance specifications can be derived from the measurement data, such as beam width (BW), Q, directivity index (DI) and power response. Note that Q for directivity bears no relation to the quality factors Qms, Qes, and Qts. mentioned in Section 1b.

Method of Measurement: Ground-plane measurement lends itself particularly well to collecting polar response data as it requires only a bare minimum of hardware resources. Essentially, the sub is set up as for a standard on-axis measurement session. The reference point is established (the point of intersection between the reference axis with the reference plane) and the on-axis measurement is made. (If it is practical to raise the sub above the ground any response plot discrepancies owing to mutual coupling or baffle-size increase owing to actual-virtual system interaction can be minimized, however minimal they may be). The sub is then rotated, in angular increments, typically on the order of 5°, 10° or 15°. Below left shows a collection of such plots, in this case the measurements were made at 15° increments.

Once all the measurements have been collected, the curves are then normalized to the 0°on-axis curve by dividing each curve into the 0°on-axis curve. In doing so, the resulting plotted response at each point along the measurement path is relative to the on-axis response. Below right shows the result of normalizing the data plots at left. Though the data curves presented below right are normalized polar amplitude response curves, they are not usually presented in Cartesian format. Rather, they are more commonly seen as presented above in Figure 6.

Graphic 14.gif Graphic 15.gif

finger.jpgRegardless of how or where you locate your reference measurement point, for polar response measurement purposes, the reference point and the point of rotation must be one and the same. As such, it is essential to keep the distance from the reference or rotation point to the measurement microphone identical at each angular position used during the measurement sequence. Keep in mind, too, that holding the sub in one position and moving the microphone from measurement point to point produces results just as valid as rotating the sub and holding the measurement mic in one position. Marking the rotation point and drawing radii of equivalent length from it to each angular measurement position with a piece of chalk is a dirt-cheap way to set up for the polar amplitude response measurement sequence. Once your artwork is complete all you need do is place the sub so that the reference measurement point intersects an imaginary axis (shown in blue in the graphic below), normal to the ground, and drawn through the previously marked point of rotation. You’re now ready to measure! (If your initial measurement set was taken in the horizontal plane, vertical plane measurements can be subsequently be taken by tipping the sub on its side and repeating the sequence.

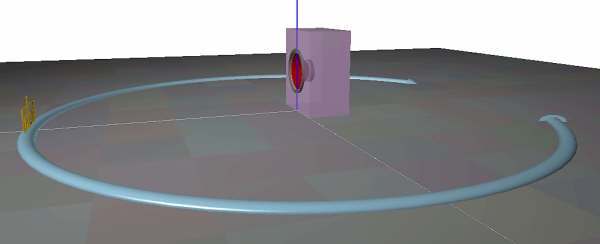

Graphic 16.gif

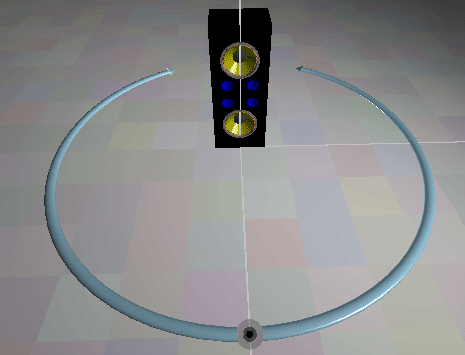

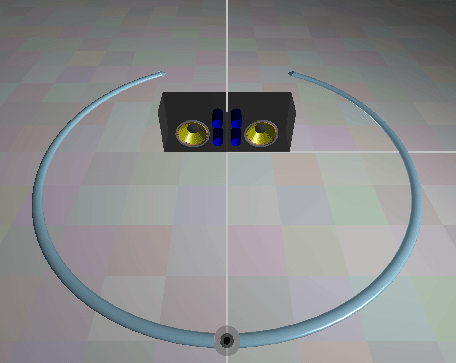

Figure 7: Horizontal plane polar response plot measurement layout

2b.II: Beam width (BW), Q, Directivity index (DI) and Power Response

Referring now to Figure 6, Beamwidth (also referred to as “coverage angle”) is that angle formed by drawing 2 radii, located either side of the reference axis, where the amplitude response, for a given frequency has decreased by 6dB, with respect to the 0° on-axis reference value. In Figure 6, the BW at 320 Hz is 180°.

Q is the numerical expression of the directionality of a system’s response. Strictly speaking, directivity is the ratio of axial intensity of the actual source to the intensity that would be produced by a point source emitting an equivalent amount of power. A source with equal output at a given frequency in every direction would have a Q = 1. With increasing directionality the Q value increases. A quick, first-order approximation of Q at a particular frequency (assuming axial symmetry) can be had by the following formula:

Q = 360°/BW°
where BW is specified in degrees.

The Directivity Index is simply the Q value specified above, expressed in dB. Specifically:

DI = 10 * Log (Q) (dB)

finger.jpgJust as with on-axis measurements, polar response data should be presented with information such as drive level, measurement distance, etc, providing sufficient detail depth & breadth to allow the measurement sequence to be reproduced by anyone wishing to do so.

2c. Power response.

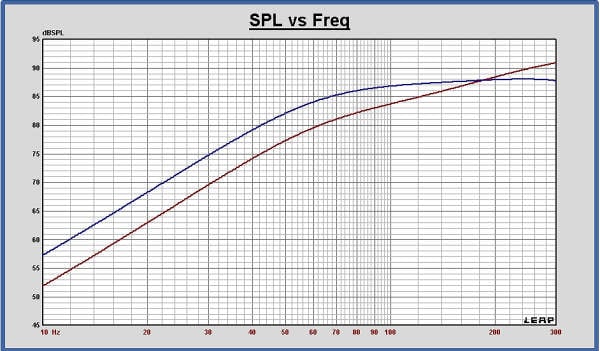

Graphic 17.gif

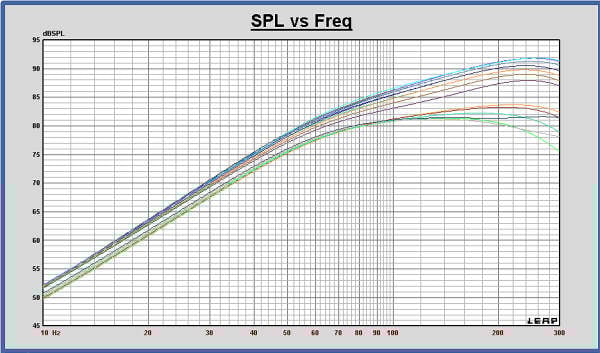

Figure 8: Red curve: system on-axis response; blue curve: system power response

Purpose: To determine a subwoofer’s power response, expressed in dB spl.

Value: The axial amplitude response measurement, illustrated in Section 2a, has traditionally been a mainstay of the objective assessment process. However, as important as it is, it does not provide -in and of itself - sufficient information to convey as complete a picture as is needed in working up an objective assessment of a subwoofer. Where the axial amplitude response measurement resents a view of the sub’s direct sound response characteristics as measured at a single point in space, the power response gives an overall view of the amplitude response characteristics of the sound field generated by the sub, as measured at several points in space.

Method of Measurement: The approach here is similar to that for capturing polar response data (see section 2b). And just as with polar response measurement, groundplane measurement lends itself nicely to the power response measurement process.

Common practice is to take measurements at 15° intervals, in both the horizontal (below, left) and vertical plane (below, right). (A common alternate is 15° intervals in the forward hemisphere, 30° intervals for the rear hemisphere; various factors may dictate less or more widely spaced intervals and measurement at intermediate angles). The resultant plots are then averaged to produce a good approximation of what is commonly referred to as the power response of the system.

Graphic 18.gif Graphic 19.gif

finger.jpgJust as with on-axis & and polar amplitude vs. angle measurements power response data should be presented with information such as drive level, measurement distance,etc, providing sufficient detail depth & breadth to allow the measurement sequence to be reproduced by anyone wishing to do so.

2d. Sensitivity

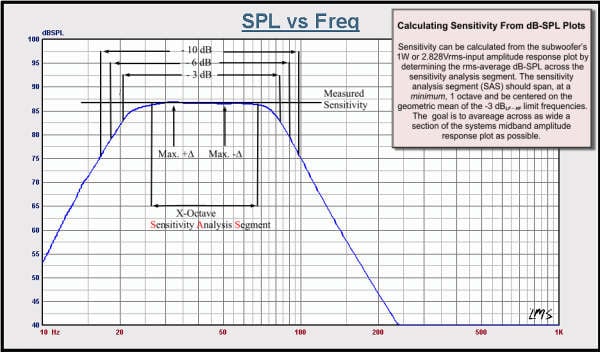

Graphic 20.gif

Figure 2: Sensitivity

Purpose: To determine the sound pressure level produced at 1m, on-axis, when 1 watt (power sensitivity) or 2.828 Vrms (voltage sensitivity) is applied to the subwoofer.

Value: Indicates the actual acoustical output, in terms of sound pressure level, that will be produced by a subwoofer, given an electrical input signal of a specified voltage or wattage, the latter determined by the nominal system impedance value (1W = V^2/Znom). Knowing a system’s sensitivity assists in matching multiple systems. Also, dB-SPL acoustical output can be calculated given a known amplifier wattage.Graphic 21.gif

Approach: Sensitivity can be either measured or calculated (See Engineers Note #1 for the latter or graphic at right).

Signal Used: Swept sine wave (320 Hz to 10 Hz), capturing sufficient data points to ensure post-processing accuracy, displayed on a semi-log plot, charting both magnitude and phase. The test signal is delivered at a pre-determined voltage, typically 2.828Vrms or calculated using 1W = V^2/Znom. Subsequently scaling the amplitude response plots to 1m, the sensitivity of the system can then be determined.

Metric specification: XY dB spl, X-Oct averaged SAS, 1W or 2.828 Vrms/1m/4π/Znom

Σngineers Note #4…
How do I calculate the mid-band acoustic output of a sub if I know the sensitivity of the unit, given a known electrical input, in Watts?

dB-SPL Out = Sensitivity + 10*Log(W)


dB-SPL Out = Mid-band, On-axis, acoustical output at 1m (dB-SPL)
Sensitivity = Measured or calculated sensitivity of the device (dB-SPL)
W = Input electrical power (Watts)

Worked Example

The 1m, on-axis, sensitivity of a subwoofer is 87 dB - spl. The sub is a powered system and features an amplifier rated at 300 Watts. What is the mid-band, on-axis dB-SPL this sub can theoretically produce at 1m when fed an input at 300W?

dB-SPL Out = 87.50 dB-spl + 10 * Log(300.0)
dB-SPL Out = 112.1 dB-SPL, at 1m, On-axis, 2 –π SR

finger.jpgWhen calculating efficiency, sensitivity and so forth, indicate if the values calculated are for a 2 or 4π-SR environment. “SR” stands for “steradian”, the mathematical expression for a solid angle. 4π or 2π -SR is thus the mathematical expression for full or half-space, respectively. 4π or 2π –SR is also sometimes expressed as simply “4π” or “2π”.

2e. Efficiency

Purpose: To determine the ratio of the acoustic power radiated by a subwoofer, PA, to the applied electrical power, PE.

Value: Electroacoustical efficiency indicates how much of the electrical power fed in to a subwoofer is converted into acoustical power radiated out. Usually expressed in % or dB, this metric is valid for the piston-band segment of the system’s pass band. It is a function of various T/S parameters and relates to sensitivity:

SP = 112.1 + 10*Log(η0) (dB SPL)

Approach : The subwoofers midband efficiency can calculated directly from the T/S parameters derived from the impedance measurements presented earlier. This equation assumes a radiation load of 2π-SR, free-field.

η0 = 100*(4π2/c2 * fs3Vas/Qes) (%)
η0 = 10*Log(4π2/c2 * fs3Vas/Qes) (dB)

finger.jpgIf the T/S parameters of the driver are based on free-air vs. Infinite baffle measurement, this equation will generate results slightly in error, typically a small fraction of a decibel.

Metric specification: Efficiency (Half-space) = X.Y% or XX.Y dB

2f. Group Delay

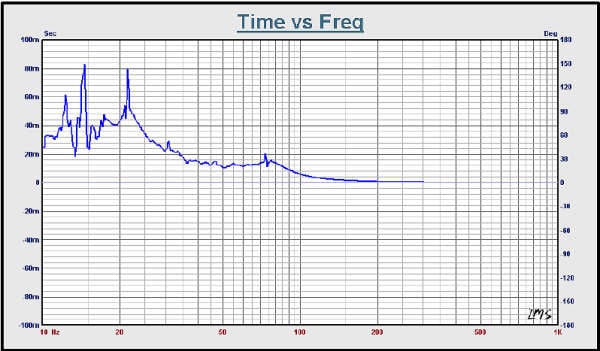

Graphic 22.gif

Figure 3: Group Delay

Purpose: To determine frequency-specific delay magnitude in terms of time for a given acoustic frequency band of interest.

Value: Group delay is the rate of change of the total phase shift with respect to angular frequency (the negative derivative of the phase function). Mathematically, it is expressed as:

In order that signal waveform fidelity may be preserved as it transits a given system, phase must change linearly with frequency response. Where phase nonlinearity exists, group delay exists.

Conversely, in a system where all frequencies transit in the same amount of time (or alternatively, transit with equal delay) no group delay exists. Time vs frequency Group delay plots indicate the degree of signal delay at any particular frequency.

Method of Measurement: Group delay is mathematically derived from the sub’s phase response by taking the negative derivative of the sub’s phase response with respect to frequency.

2g. Effective Frequency Bandwidth

Purpose: To determine the lower & upper frequency -3, -6, & -10 dB points, referenced to the subwoofers passband average dB SPL levels obtaining in the device’s maximum sensitivity zone.

Value: The EFB is useful for determining the passband of a device. The -3dB limits are given for comparative purposes, consistent with other published reviews. The -6dB limits are given to indicate the half-power points. The -10dB limits are chosen as they represent thedrop in dB spl levels sufficient to cause a perceived halving of the system’s output.

Approach: -3 dBLF HF , -6 dBLF HF , -10 dBLF HF points are located with reference to the mid-band sensitivity level determined earlier. They are found at those frequency points at or external to the system’s passband. (See side graphics in Section 2a or 2b).

Metric specification: -3 dBLF HF : AA – BB Hz, re: mid-band sensitivity, XY dB
-6 dBLF HF : CC – DD Hz “ “

-10 dBLF HF : EE – FF Hz “ “

[Presentation: -3 dBLF HF, -6 dBLF HF, -10 dBLF HF == or == -3dBlf/hf, -6dBlf/hf, -10dBlf/hf]

2h. Power Compression

Graphic 23.gif

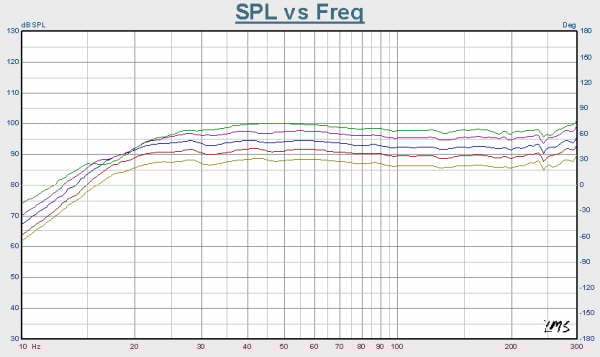

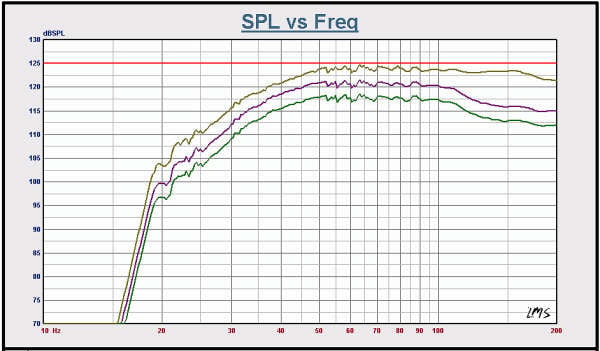

Figure 4: Power Compression

Purpose: To determine the degree to which a subwoofer’s otherwise linear input-output fundamental amplitude transfer characteristic becomes non-linear at increasing drive levels.

Value: Thermal effects (voice coil heating and a concomitant increase in voice coil resistance) along with various other driver nonlinearities seen arising in Bl(x), Le(x) and Cms(x) (force factor, inductance and compliance, respectively) and, of course, mechanical limitations all contrive to limit the acoustic output in such a way that it does not grow linearly with an increase in electrical input. Bl(x), Le(x) and Cms(x) are parameters treated, not as constants as when they are treated as small signal parameters but as quantities that vary with the excursion (x) of the voice coil from its rest position.

Power compression measurements give an assessment of the degree to which this nonlinearity presents itself, given a particular drive level. It also gives an indication of how well a subwoofer will accurately reproduce dynamic source material. Note: powered subwoofer systems often have limiter/compressor functions built into their processor algorithms to protect the driver(s) from possible damage. The effects of these limiter/compressor functions can appear similar in measurement to the results seen with a driver being driven hard enough for various nonlinearities to appear.

Approach: Near-field Approach (Indoors) or Ground Plane Approach (Outdoors)

Suggested Test Signal: Swept sine wave (320 Hz to 10 Hz), capturing sufficient data points to ensure post-processing accuracy, displayed on a semi-log plot and charting amplitude response. Beginning with a voltage drive level of 2.828 Vrms (or that calculated using 1W = V^2/Znom) the reference dB Spl curve is produced. The sweep is repeated, each time the input drive voltage is stepped in 1, 3, or 10 dB increments. Increase the drive voltage until 3dB worth of compression is noted. The resulting data can be displayed as either discrete curves (Figure 4) or if desired the curves can be normalized and scaled to the reference curve (Figure 5). Note: the slower the sweep the more noticeable will be thermal effects. An alternate signal useful for such testing is shaped pink noise as per IEC 268-1.

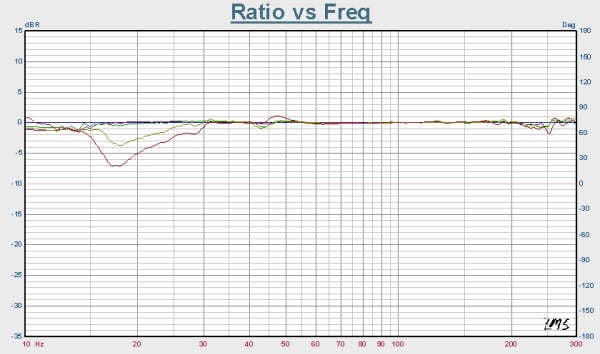

Graphic 24.gif

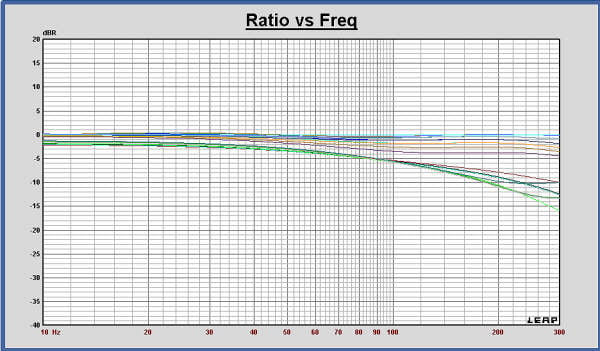

Figure 5: Power compression, curves normalized to the reference curve.

finger.jpgPower compression testing makes use of high input drive level voltages; minimize the risk of damaging the subwoofer by running a few test curves, slowly increasing voltage drive levels at each run to check driver excursion (and the measurement microphone’s max.dB SPL) limits are not exceeded. See the “Engineers Notes” Below for a handy device useful in gauging displacement amplitudes. Above all, do not exceed the subwoofers rated input capacity for whichever electrical test signal is used. This is not testing to failure.

Metric Specification: 6 dB compression at ABC db-SPL amplitude magnitude, re: XYZ db drive voltage /1m/4π/Znom, XX Hz to YY Hz

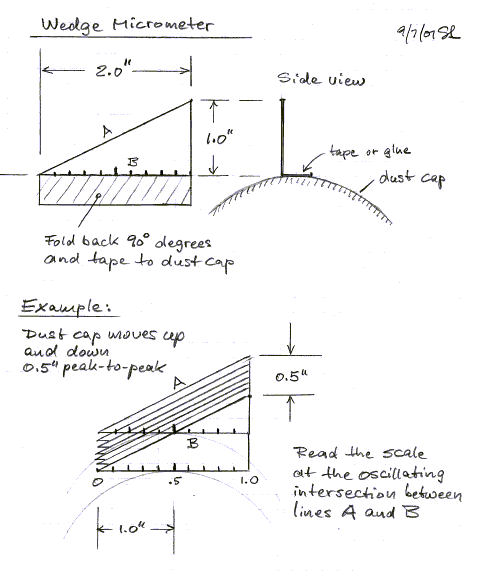

audioholics.jpgΣngineers Note #5 Homemade Wedge Micrometer

If you don’t want to rely on your powers of estimation to size up maximum driver diaphragm displacement, a quick means to determine maximum excursion is by use of a wedge micrometer.


2i. Maximum Sound Pressure Level

Purpose: To determine the maximum dB spl levels for which the device is capable, given power handling capabilities and system sensitivity. A calculated datum approximation that does not take into account power compression. Because it is based on the average passband sensitivity of the device, maximum dB spl is also an average value. For a measurement-based approach see CEA 2010 “ Standard Method of Measurement for Powered Subwoofers.”

Value: Useful for determining upper system output performance limits.

Approach: Given power capacity and average system sensitivity, maximum sound pressure can be

dB-SPL Out = Sensitivity + 10*Log(W) (dB-SPL)

Metric specification: dB-SPLMAX @ Rated Capacity (W or Vrms), 1m/Xπ-SR

Conclusion for Part I

Here in Part I of the Audioholics Subwoofer Measurement Protocol we’ve looked at a variety of measurements that, taken together, provide a good deal of insight regarding the performance characteristics of a subwoofer. Though the various topics presented illustrate a significant portion of the typical measurements approaches used today, the picture, nevertheless, remains incomplete. More information is needed to form an opinion of what any particular subwoofer will sound like than can be gleaned from the information presented by the various measurements illustrated in Part I.

In Part II we’ll take a look at things such as linear distortion, nonlinear distortion, mechanical noise, power amp performance characteristics (where applicable) and so forth. Ideally, with the objective data provided by the various measurement outlined in both Part I & 2, a reasonably accurate opinion of the subjective sonic qualities of the subwoofer can be formed.

Audioholics Subwoofer Measurement Protocol Bibliography


1. Ahnert, Wolfgang, et. al.: “The Significance of Phase Data for the Acoustic Prediction of Combinations

of Sound Sources”, Audio Engineering Society Convention paper, 119th AES

Convention, Oct. 2005

2. Al-Ali, Khalid, Mohammad: “Loudspeakers: Modeling and Control”, UC Berkeley, Doctoral Dissertation,


3. Allison, R. F. and Berkovitz, R.: “The Sound Field in Home Listening Rooms” Journal of the

Audio Engineering Society, Vol. 20, July/Aug. 1972

4. Aude, Arlo J.: “Audio Quality Measurement Primer” Application Note AN9789 Harris Semiconductor,

February 1998


5. Benson, J E., “Theory & Design of Loudspeaker Enclosures”, Howard W. Sams & Co.,

Indianapolis, IN, 1996

6. Beranek, L. L.: “Acoustics”, McGraw-Hill, New York, N.Y., pg. 208, 1954.

7. J.M. Berman, J. M. et al.: “The Application of Digital Techniques to the Measurement

of Loudspeakers,” J. Audio Eng. Soc., Vol. 25, June 1977

8. Brüel & Kjær: “Basic Concepts of Sound”, Brüel & Kjær Lecture Note, English BA-7666-11, 1998

9. Brüel & Kjær: “Sound Intensity”, English BR 0476 – 14 Brüel & Kjær, Nærum, Denmark, Sept. 1993

10. Brüel & Kjær: “Basic Frequency Analysis of Sound”, Brüel & Kjær Lecture Note, English BA-7669-11, 1998

11. Brüel & Kjær: “Measuring Microphones”, Brüel & Kjær Lecture Note, English BA-7216-15,

Brüel & Kjær, Nærum, Denmark, May 1999

12. Brüel & Kjær: “Measurement Microphones, 2nd Edition”, English BR 0567 – 12

Brüel & Kjær, Nærum, Denmark, Aug. 1994

13. Brüel & Kjær: “Measuring Sound”, Brüel & Kjær, Nærum, Denmark, 198

14. Brüel & Kjær: “Microphone Handbook, Vol. 1: Theory”, Brüel & Kjær, English BE-1447 – 11

Nærum, Denmark, July 1996

15. Butler, Nathan: “Processor Setting Fundamentals”, Eastern Acoustic Works (EAW), Whitinsville, MA,

USA, Aug. 2001

16. Button, Douglas, J.: “A Loudspeaker Motor Structure for Very High Power Handling and High

Linear Excursion”, Audio Engineering Society, Preprint 2553, 83rd

Convention 1987

17. Button, Douglas, J.: “Heat Dissipation and Power Compression in Loudspeakers”, J. Audio

Eng. Soc., Audio Engineering Society, New York, N.Y., vol. 40, no. 1-2, Jan/Feb 1992


18. Cable, C. R.: “Acoustics and the Active Enclosure,” J. Audio Eng Soc., Audio Engineering Society,

New York, N.Y., vol. 20, no. 10, 1972.

19. Cabot, Richard C.: “Fundamentals of Modern Audio Measurement”, J. Audio Eng Soc., Audio

Engineering Society, New York, N.Y., vol. 47, no. 9, 1999.

20. Cabot, Richard C., et. al.: “Time Domain Audio Measurements”,

21. Chau, K. H.-L., et. al.: “Measurement, Instrumentation and Sensors Handbook, Ch. 26: Pressure

and Sound Measurement”, CRC Press LLC, 2000


22. Davis, Don: “Acoustic Attenuation With Increasing Distance”, Technical Letter # 218,

Altec Engineering News, Altec, Anaheim, CA

23. D’appolito, Dr. Joe: “Testing Loudspeakers” Audio Amateur Press, NH, USA, 1998


24. Elko, Gary W., et. al.: “Room impulse response variation due to temperature fluctuations and its impact on

acoustic echo cancellation,” Avaya Labs, 2003

25. Engebretson, M. E.: “Directional Radiation Characteristics of Articulating Line Array

Loudspeaker Systems,” Audio Engineering Society Convention paper,

New York, November 2001,


26. Farina, Angelo.: “Simultaeneous Measurement of Impulse Response and Distortion with a

Swept-Sine Technique”, Audio Engineering Society,Pre-print # 5093, AES 108th

Convention presentation, Feb. 2000

27. Fincham, L.R.: “Refinements in the Impulse Testing of Loudspeakers,” J. Audio Eng. Soc.,

Vol. 33, Mar. 1985


28. Gander, M.: “Ground-Plane Acoustic Measurement of Loudspeaker Systems”, J. Audio Eng Soc., Audio

Engineering Society, New York, N.Y., vol. 30, no. 10, 1982.

29. Geddes, Earl R., “On Sound Radiation from Ported Enclosures”, Journal of the Audio Engineering

Society, Vol. 49, #3, March 2001

30. Griesinger, David: “Beyond MLS - Occupied hall measurement with FFT techniques”,

Lexicon, Waltham, MA, 1999

31. Gunness, D. W., et al.: “EAW Polar Measurements”, Eastern Acoustic Works (EAW), Whitinsville,

MA, USA, Sep. 2003


32. Harris, Dr Steven, et. al.: “Personal Computer Audio Quality Measurements”, v. 1.00, Cirrus Logic

33. Henrickson, Clifford A.: “Directivity Response Of Single Direct-Radiator Loudspeakers In Enclosures”,

Technical Letter # 237, Altec Lansing Engineering Notes, Altec Lansing

Corporation, Anaheim, CA 1986

34. Henricksen, Clkifford A.: “Heat Transfer Mechanisms in Loudspeakers; Analysis, Measurement and Design.”

Audio Engineering Society, Preprint 2343, 80th AES Convention, 1986


35. IEC: “Sound System Equipment Part 5: Loudspeakers”, 60268-5, International Electrotechnical

Commission, Geneva, Switzerland, 2001

36. IEC: “Sound System Equipment – Electroacoustical Transducers – Measurement of Large Signal

Parameters”, IEC – 100- 999, International Electrotechnical Commission, Geneva, Switzerland, 2005

37. IEC: “Electroacoustics – Sound level meters – Part 1: Specifications”, IEC 61672-1, International

Electrotechnical Commission, Geneva, Switzerland, 2002

38. IEC: “Sound System Equipment - Electroacoustical Transducers - Measurement of Large Signal

Parameters”, IEC 62458, International Electrotechnical Commission, Geneva, Switzerland

39. IEC: “Household high-fidelity audio equipment and systems – Methods of measuring and specifying

the performance – Part 5: Loudspeakers”, IEC 61305-5, International Electrotechnical

Commission, Geneva, Switzerland

40. IEC: “Electroacoustics – Sound level meters – Part 1: Specifications”, IEC 61672-1,

International Electrotechnical Commission, Geneva, Switzerland, 2002


41. JBL, “Cinema Sound System Manual”, JBL Professional, Northridge, California, 2003


42. Keele, D. B., “Development of Test Signals for the EIA-426-B Loudspeaker Power Rating Compact Disk”,

Audio Engineering Society Convention paper, 111th AES Convention, New York, Nov. 2001

43. Keele, D. B., “Anechoic Chamber Walls: Should They Be Resistive or Reactive at Low Frequencies”,

Journal of the Audio Engineering Society, Vol. 42, #6, June 1994

44. Keele, D.B.: “Low-Frequency Loudspeaker Assessment by Near-field Sound Pressure Measurement”

J. Audio Eng Soc., Audio Engineering Society, New York, N.Y., vol. 22, no. 4, 1974.

45. Keele, D.B.: “Maximum Efficiency of Direct-Radiator Loudspeakers” Pre-print 3193

Audio Engineering Society Convention paper, 91st AES Convention, New York, Oct. 1991.

46. Keele, D.B.: “A New Set of Sixth-Order Vented-Box Loudspeaker System Alignments” Pre-print 3193

J. Audio Eng Soc., Audio Engineering Society, New York, N.Y., vol. 23, no. 5, Jun., 1975

47. Keele, D.B.: “Time-Frequency Display of Electro-Acoustic Data Using Cycle-Octave Wavelet Transforms”

Pre-print 4136, Audio Engineering Society Convention paper, 99th AES Convention,

New York, Oct. 1995

48. Kelloniemi, Antti et al.: “Detection of subwoofer depending on crossover frequency and spatial

angle between subwoofer and main speaker” Convention paper 6431,

Audio Engineering Society Convention paper, 118th AES Convention,

Barcelona, Spain May 2005

49. Khenkin, Alex.: "How Earthworks Measures Microphones", Earthworks, No Date Given

50. Klapman, S. J., “Interaction Impedance of a System of Circular Pistons”, Journal of the Audio Society

of America, January 1940

51. Klippel, Wolfgang: “Assessment of Voice Coil Peak Displacement Xmax”, Audio Engineering Society

Convention paper, 112th AES Convention, München, May 2002

52. Klippel, Wolfgang: “Loudspeaker Nonlinearities – Causes, Parameters, Symptoms”,

Audio Engineering Society Convention paper, 110th AES Convention, Amsterdam,

May 2002


53. Li, Aijun, et. al.: “The Problem of Offset in Measurements Made Using Acoustic Pulse Reflectometry”,

Acta Acustica United With Acustica, Vol. 91 S. Hirzel Verlag (2005)


54. Mateljan, Ivo, et. al.: “The Comparison of Room Impulse Response Measuring Systems”, University of

Split, Croatia, 2003

55. McGregor, Chuck, “Community Data Measurements”, Community Professional Loudspeakers,

Chester, Pennsylvania, USA

56. Mayr, H.: “Theory of Vented Loudspeaker Enclosures,” J. Audio Eng Soc., Audio Engineering

Society, New York, N.Y., vol. 53, no. 2, pg. 91, 1984.

57. McKnight, J., Woodgate, J.M., et. al.: “AES project report for articles on professional audio and for

equipment specifications — Notations for expressing levels”,

AES R2-2004, Audio Engineering Society, New York 2004

58. Miller, Robert E. et al.: “Physiological and content considerations for a second low frequency channel

for bass management, subwoofers, and LFE” Audio Engineering Society

Convention paper 6628, 119th AES Convention, NY, NY, USA, October 2005

59. Mowry, Steve: “Loudspeakers and Magnets et al”, SM Audio Engineering Consulting, September 2004

60. Mowry, Steve: “Transducer Design Using 2D FEA & BEM”, SM Audio Engineering Consulting, 2003

61. Muller, Sven and Massarani, Paolo: ”Transfer-Function Measurement with Sweeps: Director’s Cut Including

Previously Unreleased Material”


62. National Instruments: “Measurement Encyclopedia: Acoustics, Measurements”, National Instruments,


63. National Instruments: “Measurement Encyclopedia: Hardware, Acoustic Test Chambers and

Environments”, National Instruments, 2005

64. Newman, R. J.: “A. N. Thiel, Sage of Vented Speakers,” Audio, August 1975.

65. Noselli, Guido: “Parametri sintetici per la valutazione d'un impianto audio professionale per il rinforzo

del suono”. 1a parte, (Concise Parameters For Assessing A Pro Audio System For Sound

Reinforcement Use, Part 1), Sound & Lite, January 2001

66. Noselli, Guido: “Parametri sintetici per la valutazione d'un impianto audio professionale per il rinforzo

del suono”. 2a parte, (Concise Parameters For Assessing A Pro Audio System For Sound

Reinforcement Use, Part 2), Sound & Lite, March 2001

67. Noselli, Guido: “Parametri sintetici per la valutazione d'un impianto audio professionale per il rinforzo

del suono”. 3a parte, (Concise Parameters For Assessing A Pro Audio System For Sound

Reinforcement Use, Part 3), Sound & Lite, May 2001


68. Ole-Herman, Bjor: “Measurement of Extremely Low Sound Pressure Levels”, Norsonic Application

Note, Norsonic AS, Lierskargen, Norway, 1999

69. Olson, H. F.: Elements of Acoustical Engineering, Van Nostrand, Princeton, N.J., pg. 148., 1957.

70. Olson, H. F.: “Direct Radiator Loudspeaker Enclosures,” J. Audio Eng Soc., Audio Engineering

Society, New York, N.Y., vol. 17, no. 1, pg. 22, 1969.


71. Penkov, G., et al.: “Closed-Box Loudspeaker Systems Equalization and Power Requirements,” J.

Audio Eng Soc., Audio Engineering Society, New York, N.Y., vol. 33, no. 6, pg. 447, 1985.

72. Phillips, Alan S.: “Measuring the True Acoustical Response of Loudspeakers” SAE Technical Paper,

2004-01-1694, SAE, Warrendale, PA, USA, 2004



73. Rasmussen, Per: “Measurement, Instrumentation and Sensors Handbook, Ch. 27:

Acoustic Measurement”, CRC Press LLC, 2000

74. Russell, David A., et al.: “Acoustic monopoles, dipoles, and quadrupoles: An experiment revisited”

American Journal of Physics, August 1999


75. Sakamoto, N.: “Loudspeaker and Loudspeaker System”s, Nikkan Kogyo Shinbunshya, pg. 101,

1967 (in Japanese).

76. Shust, Michael, R., et. al: “Electronic Removal of Outdoor Microphone Wind Noise”,

Acoustical Society of America, Paper 2pSPb3, presented 136th

ASA meeting, October 1998

77. Simmons, Dan: “Uncertainty due to boundary reflections” National Physical Laboratory,

Middlesex, UK, 2004

78. Small, R. H.: “Direct-Radiator Loudspeaker System Analysis”, J. Audio Eng Soc., Audio Engineering

Society, New York, N.Y., vol. 20, June, 1972.

79. Small, R. H.: “Closed-Box Loudspeaker Systems, Part 1: Analysis”, J. Audio Eng Soc., Audio Engineering

Society, New York, N.Y., vol. 20, no. 10, 1972.

80. Small, R. H.: “Vented-Box Loudspeaker Systems, Part 1: Small-signal Analysis”, J. Audio Eng Soc., Audio

Engineering Society, New York, N.Y., vol. 21, no. 6, 1973.

81. Staffeldt, Henrik: “Acoustic Center or Time Origin ?”, Department of Applied Electronics, Technical

University of Denmark, Lyngby, Denmark, 1998

82. Starobin, Brad: “CEA-2010: Standard Method of Measurement for Powered Subwoofers”,

Consumer Electronics Association, Jan. 2006

83. Struck, Christopher J., Temme, Steve F.: “A Comparison Of Techniques For Evaluation Of Loudspeaker

Performance at Low Frequencies”, Brüel & Kjær, Nærum,


84. Struck, Christopher J., Temme, Steve F.: “Simulated Free Field Measurements”, Audio

Engineering Society, Pre-print # 3397, AES 93rd

Convention presentation, Oct. 1992


85. Temme, Steve F., “Are you Shipping Defective Loudspeakers to Your Customers ?”, Listen, Inc.,

Boston, MA, USA

86. Thiele, A. N., “Loudspeakers in Vented Boxes”, Journal of the Audio Engineering Society, Vol. 19,

May 1971

87. Thiele, A. N., “Estimating the Loudspeaker Response when the Vent Output is Delayed”,

Journal of the Audio Engineering Society, Vol. 50, #3, May 2002



88. Various Authors, “AES Recommended Practice Specification of Loudspeaker Components Used

in Professional Audio and Sound Reinforcement”, Audio Engineering

Society, AES2-1984 (r2003), New York, 2003

89. Various Authors, “System Specification Standard”, Eastern Acoustic Works (EAW), RD0069, Rev 008,

Sept. 2003

90. Various Authors, “Specification Sheet Details”, Eastern Acoustic Works (EAW), Whitinsville, MA,

USA, Sept. 2003

91. Various Authors, “Home THX Audio System Room Equalization Manual”, Rev. 1.5, Lucasfilm, Ltd.,


92. Various Authors, “Notations for expressing levels”, AES Project Report, AES R2-2004,

Audio Engineering Society, NY, NY, USA, 2004

93. Various Authors, “Useful Equations For The Sound Contractor”, Technical Letter #166

Altec Lansing Engineering Notes, Anaheim, CA

94. Various Authors, “Decibels”, Technical Letter #212A

Altec Lansing Engineering News, Anaheim, CA

95. Vassilis, Tsakiris et al.: “Optimum Loudspeaker System with Subwoofer and Digital Equalization”

Audio Engineering Society Convention paper, 117th AES Convention,

San Francisco, CA, USA, October 2004

96. Voishvillo, Alex: “Assessment of Loudspeaker Large Signal Performance – Comparison of

Different Testing Methods”, Audio Engineering Society Convention paper,

111th AES Convention, New York, November 2001


97. Wagner, Randall, et al.: “Determination of acoustic center correction values for type LS2aP

microphones at normal incidence”, Journal of the Acoustical Society

of America, Jul. 1998

98. Woolf, Chris, “How to reduce wind noise and vibration”, Rycote Microphone Windshields Ltd, 2002





About the author:

Mark's audio career, began in 1981 when he designed his first loudspeaker system for a client who had grown disenchanted with the off-the-shelf products then populating local audio emporiums. Since then, he has designed over 100 systems, now found in homes, studios, theaters and dance clubs in north America & Asia. Mark has done detailed analysis and reviews and tech articles related to loudspeakers and subwoofers for Audioholics.

View full profile
