Anything But HDMI Please

by June 10, 2008
PLEASE! Anything but HDMI!

PLEASE! Anything but HDMI!

First of all, don't get us wrong about our views on HDMI. It's a great concept. A single digital cable connecting audio and video from one component to another. It's just that it's been a bit of a roller coaster for custom installers and consumers alike. In fact, a very large percentage of custom installers - you know, the guys doing million dollar plus installs - won't touch HDMI with a 10-foot snake. Why? Because it sucks for a myriad of reasons:

  • It's Slow as Molasses
    HDMI, compared to analogue signal technology like component video (YPbPr) is extremely slow. Every connection has to be "negotiated" thanks to HDCP copy protection and the general paranoia of the movie studios who put it there.
  • The Cable and Connector Geometry Sucks
    The makeup of a robust HDMI cable is such that it features a thick 24 gauge (or thicker) cable with a tiny little connector on the end. As a result the cable tends to pull out of the socket, or worse - break the receiving connector. Add to this the proliferation of cheap Chinese connectors floating around the world and you have a real problem.
  • Digital RapidRunYou Can't Terminate It in the Field
    Despite advances like Impact Acoustics' Digital RapidRun cable technology, for those installers using regular HDMI cables, you cannot simply cut to length and terminate the cable in the field. HDMI is too complex. The added negative to this id you lose all ability to make nice, neat, exact-length cables - having to instead settle for the nearest equivalent length you can find. Typical break points are 1m, 3m, 5m, 10m, 12m, etc... Want a 6 foot cable? Better find a manufacturer that supplies that length.
  • HDMI Is Expensive to Run
    HDMI is terribly expensive to run when compared to simple coax or Cat5e/Cat6 cable. Just try to buy 1000 feet of HDMI. No matter how you slice it, you're going to have about a 1000% price increase over an equivalent bulk roll of coax. HDMI is overly complex and very expensive to manufacture.
  • They Change the Rules Whenever They Want
    OK, so you figured everything out and ran the cabling for your client. You're all set - at least until HDMI Licensing, LLC decides to put out HDMI v1.4 which promises to double potential bandwidths by introducing 120Hz signal transfer. WHAT?!?! Yes, now your 3.4Gbps speed-rated cables are next to useless and you'll need to update with new cable EQ electronics (if you're lucky) to compensate for the new required supported speeds. Think this is exaggeration? Talk to the early adopters who went for HDMI back when it was v1.1 (1.65Gbps). When HDMI pulled out v1.3 and upped the ante to 3.4Gbps cables had to be replaced. Cables that were embedded into drywall. Nice.

So, what's going on now? Well, HDMI 1.3 has finally allowed integrated cable EQ to help source devices and sinks (displays) to better deal with the insertion loss generated by longer HDMI cable runs ("longer" = anything over 4 meters for the most part.) Unfortunately, this doesn't do much to alleviate all the other negatives associated with HDMI. As a result, we are now noticing a huge push in the marketplace to replace HDMI.

With anything.

Anything. Anything but HDMI.

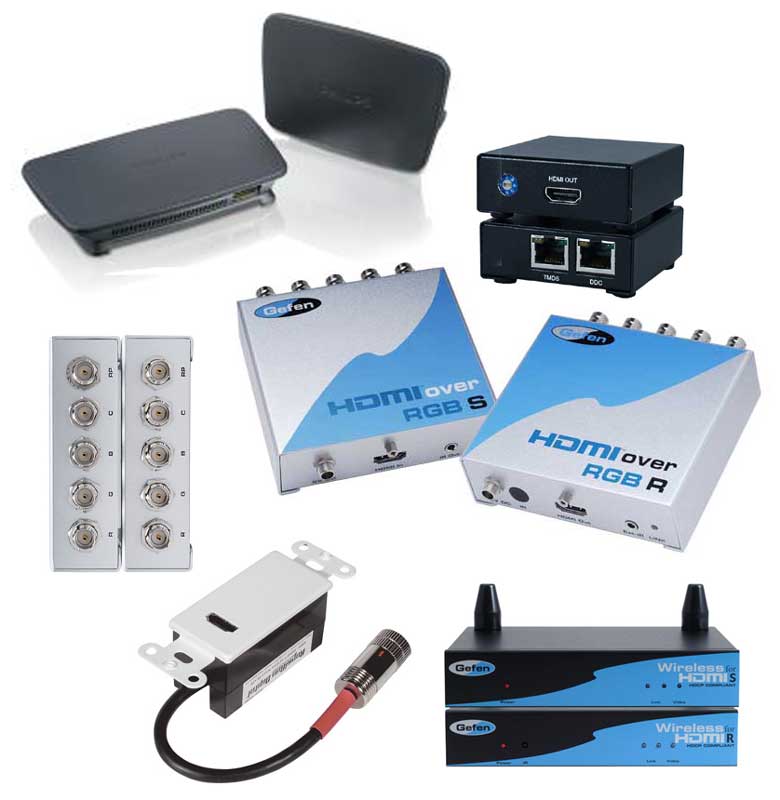

Cases in point: Everyone is coming up with ways to transmit, send or otherwise distribute HDMI... without actually using HDMI. Here are just some of the products we're seeing all over the place:

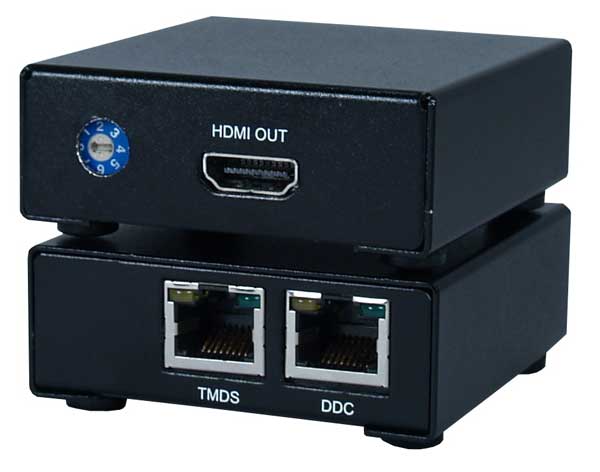

  • HDMI over Cat5Baluns (HDMI over Cat5)
    We've got companies like Atlona putting out active HDMI-to-Cat5e solutions ($329) which will run up to 130 feet of 1080p HDMI (at 1.65Gbps speeds). While that sounds expensive, the equivalent fiber solutions (another alternative to copper HDMI cables) will run you around $1000 or more. Other companies providing these types of Cat5e products include Gefen ($499), Honeywell, Intelix, Brando ($59!)
  • RapidRun (Active & Passive HDMI over Copper)
    This one stands on its own, but Impact Acoustics has an innovative method for running and pulling HDMI throughout a home. And with their active solutions you can plug in a 5V power supply at the source and get up to 100 feet of distance.
  • Wireless HDMIUWB and Wireless HDMI (3.1 - 4.6 GHz)
    At present, several companies are announcing Wireless HDMI transmission at varying lengths, but only a couple are actually shipping - most likely due to the complications introduced by HDMI 1.3 - which all but obsoleted many products which were in development. Wireless HDMI technology is chiefly for single "point-to-point" transmission rather than a solution for whole-home audio/video distribution at present. Gefen has a shipping unit ($699) that will do either 1080i/60 or 1080p/30 at 10 meters. Philips demoed a unit ($299) at the 2007 CES last year that seemed to work very well but has yet to actually hit the market. This one's a bit overkill, but Belkin's FlyWire system ($500+) adds video switching so that you can receive multiple sources and send them to an HDMI-enabled display (it even performs A-to-D conversion for analogue sources). Belkin is expecting to release it by the end of this year. Another player is AMIMON, however they are working with manufacturers to integrate their WHDI-based chipsets and modules into consumer electronics.
  • HDMI over Cat5eHDMI over Coax

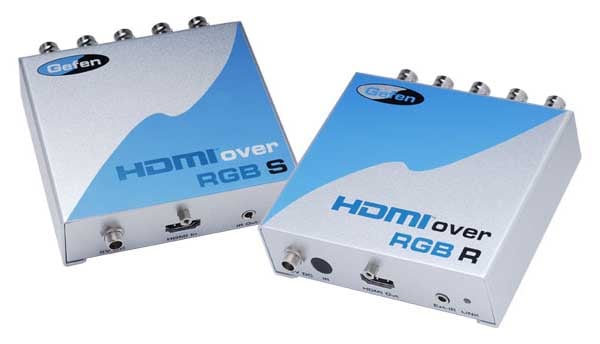

    Yeah, baby, bring it on home. HDMI over coax is the "holy grail" of HDMI signal transmission. First of all, coax is cheap and it can go for long distances without failing or degrading - especially when coupled with an active transmitter and/or receiver. Gefen currently has a unit available for preorder that will transmit 3.4GHz HDMI 1.3 over 330 feet (100m) of coax. The unit takes either 5 coax cables (without outboard active amplification) or 4 coax cables with a 5VDC power supply. The device is retailing for $499 and should revolutionize the affordability of running HDMI over longer distances. Gefen indicated to us at CES this year that they are also working on a single-coax solution as well, though they haven't yet guaranteed the level of expected performance (it may not be able to handle Deep Color like their 4/5 cable solution). Still, we're hoping everyone is working on this solution. I;d love nothing more than to see AV manufacturers everywhere dump HDMI in favor of fully-compatible active BNC coax connections.

So there you have it. HDMI is pretty much stirring up innovation simply by being so poorly designed. It's not brain surgery, yet the powers-that-be let this failure-of-a-connection-method come to market with all of its faults. It's not that we don't appreciate the technology or all that is involved, but we've never seen an industry so bent on finding alternatives to such a miserable, yet mandatory, format.

Here's to hoping the future continues to look bright... and perhaps even wireless!



About the author:
author portrait

Clint Deboer was terminated from Audioholics for misconduct on April 4th, 2014. He no longer represents Audioholics in any fashion.

View full profile

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

Recent Forum Posts:

lew9e posts on June 19, 2008 23:49
product for HDMI loose connection

I've been reading a lot of posts complaining (rightfully so) about HDMI, and one of the big ones is the connector coming loose all the time.

My company, bleeeep, has been working on a product for quite some time now, that we have a patent pending on, which is a universal HDMI locking system called hd EZ lock(TM). The main adaptor clamps over the cable, and “clicks” over a locking arm that either screws into the fixing screw on the input, or adheres to the chassis if there is no fixing screw.

It works with most cables and components. It works with various size cable diameters, various fixing screw locations, and various depths of cable heads.

It would be great to know your thoughts on our product. We will have them available in August 2008, under $20.00 for two adaptors.

If you're interested in knowing more, you can enter your email address at bleeeeeep.com and we'll keep you updated.

please contact our admin about advertisement on audioholics
http://forums.audioholics.com/forums/member.php?u=4299
- mike c
allargon posts on June 16, 2008 08:25
jotham, post: 422099
Can anyone explain why DisplayPort is trying to get involved in this snafu DVI-A, DVI-D, HD-15, HDMI is bad enough, I don't want more!

Couldn't they just tweak DVI?

They already tweaked DVI. They added audio to it and gave us HDMI. DVI with its lack of ability to do long cable runs passed that “feature” to HDMI.

http://en.wikipedia.org/wiki/Hdmi
Drag0nFly posts on June 11, 2008 15:58
obscbyclouds, post: 422127
While it may stink and make us all angry, many of us don't even have a choice. Another instance of DRM gone mad.

If you have more than one uncompressed audio source, you're all but out of luck if you don't use HDMI. Not many recievers have more than one analog multi-channel input. Even if they did, who the heck wants to run 18+ RCA cables just for audio????

Try getting a PS3 (or many other BR players for that matter) to play a DTS-HD MA track without HDMI.

While I do see your point, my 8 year old Denon receiver sports both 8 ch. + 6 ch. external inputs; one of which is currently used with impressive results to transmit SACD & DVD-Audio from a player with very decent D/A converters.

And I am _glad_ I am not forced to replace that component just to enjoy high-def audio formats… (I'll gladly run eight more RCAs from a future BD that decodes DTS-HD Master Audio internally.)
e-paladin posts on June 11, 2008 14:19
I think the frustration here (and what we mostly all agree upon) is that we need an industry standard that will stick.

While I'm sure that those who have adopted HDMI have carefully figured out it's compatibility with thier respective systems and it works fine. The danger in a constantly changing standard is what happens when you decide to change (upgrade) a component or try to integrate a newer technology into it?

There is no doubt the benefits of digital technology in current and future HT setups but constantly patching a flawed delivery system (HDMI 1.0,1.1 …) is just an indication of a system doomed to eventual failure and obsolecence.

What needs to be looked at is what a resonable bandwith requirement for home theater data (audio, video, …whatever)is and what is the cheapest most flexible and robust way to implement it.

Oh, and I'm sick of people in the industry trying to profit from the creation of this type of standard, its like people trying to take credit and profit for the design of the 2 (or 3) prong power plug.

(I'm of the opinion that coax might be the way to go unless some type of more flexible fiber optic way could be invented)
Midcow2 posts on June 11, 2008 13:55
Glad Blue Jeans Cables is on the "best' end

KurtBJC, post: 422078
…. If you're not the best or the cheapest, it's hard to sell cable unless you have some other advantage (e.g., retail placement in big-box stores). Without these things–which most of our old competitors did not mirror–we would be losing our grip fast, but as it is, business is still healthy and growing.

Kurt
Blue Jeans Cable

Hey Kurt, I for one am glad that Blue Jeans Cables is on the “best” end of the sales rather than the “cheapest”. And also glad your business is healty and growing!
