JBL HDI-3800 Measurements and Conclusion

By

HDI outside testing.jpg

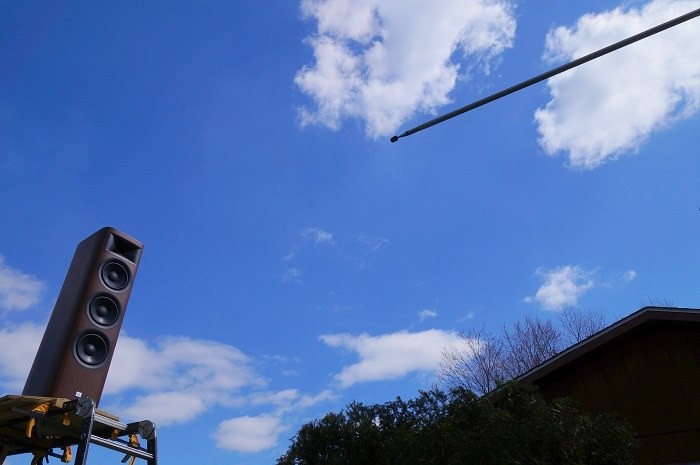

The JBL HDI-3800s speakers were measured in free-air at a height of 4 feet at a 2-meter distance from the microphone, with the microphone raised to a 7.5’ elevation that was level with and aimed at the tweeter center. The measurements were gated at 9-milliseconds. In this time window, some resolution is lost below 400 Hz and accuracy is completely lost below 200 Hz. Measurements have been smoothed at a 1/12 octave resolution.

HDI waterfall response 3D.jpg

HDI waterfall response 2D.jpg

HDI 3800 on axis FR.jpg

There is a whole lot to like about the measurements seen in the above graphs...

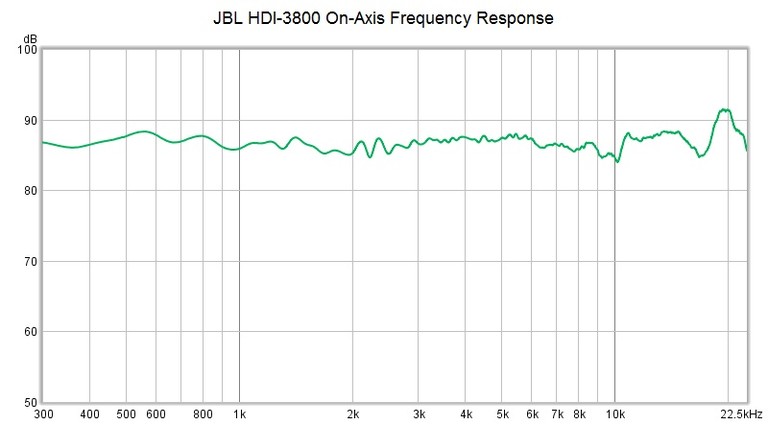

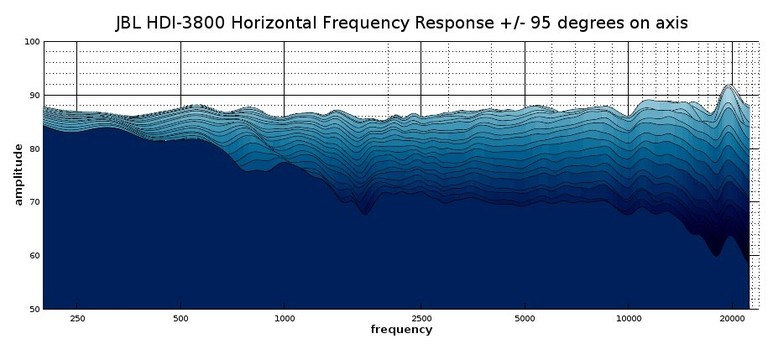

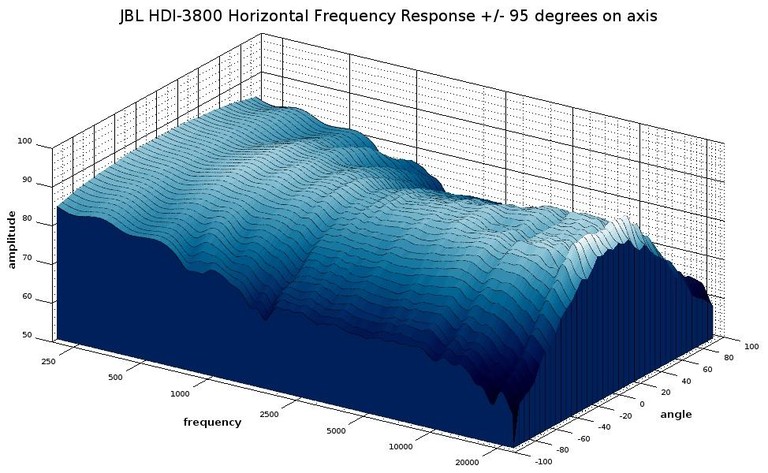

The above graphs depict the JBL HDI-3800’s on-axis and horizontal dispersion out to a 95-degree angle in five-degree increments. Information on how to interpret these graphs can be read in our article Understanding Loudspeaker Review Measurements Part II. There is a whole lot to like about the measurements seen in the above graphs, and pretty much nothing to complain about. This is a beautifully neutral showing both on and off-axis. You could listen to these speakers over a broad angle in front of them and get the same tonality, and it would be an accurate sound. The good news about that is not just that you could listen at an off-axis angle for the same experience, but that all the acoustic reflections in-room will have the same tonality as whatever the direct sound is hitting the listener. You really don’t need acoustic treatments with that kind of performance. This is terrific performance, and it is befitting the kind of expectations that one would have for a modern high-end speaker from JBL.

HDI Polar Map.jpg

This is terrific performance, and it is befitting the kind of expectations that one would have for a modern high-end speaker from JBL.

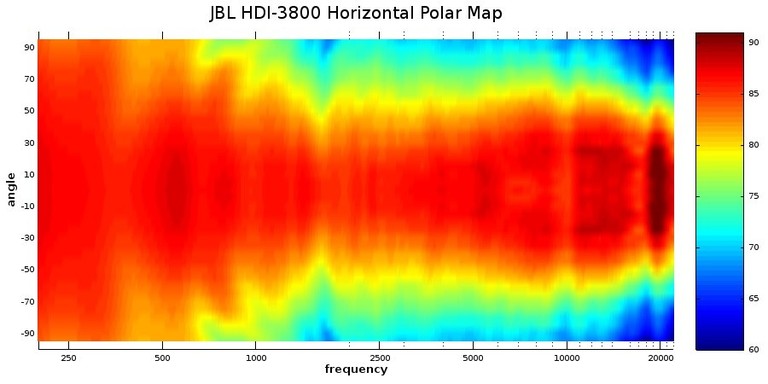

The above polar map shows the same information in the preceding graphs but depicts it in a way that can offer new insight regarding these speakers’ behavior. Instead of using individual raised lines to illustrate amplitude, polar maps use color to portray amplitude, and this allows the use of a purely angle/frequency axis perspective. The advantage of these graphs is they can let us see broader trends of the speaker’s dispersion behavior more easily. More information about interpreting this graph can be read in our article- Understanding Loudspeaker Review Measurements Part II.

What we see here from the HDI-3800s is beautifully controlled directivity. JBL’s waveguide technology is no joke and is really paying off here. The beamwidth, which is defined as the off-axis angle at which the amplitude is down by 6 dB, is impressively flat at around the 50-degree angle. There is no doubt that this is one of the best waveguides out there. This is not exactly a wide dispersion pattern nor is it a very narrow dispersion. As the graphs above it demonstrate, we see it offers uniform coverage over a wide area, and so long as the listener isn’t seated way off-axis, there isn’t a bad seat in the house.

HDI Low Frequency Response.jpg

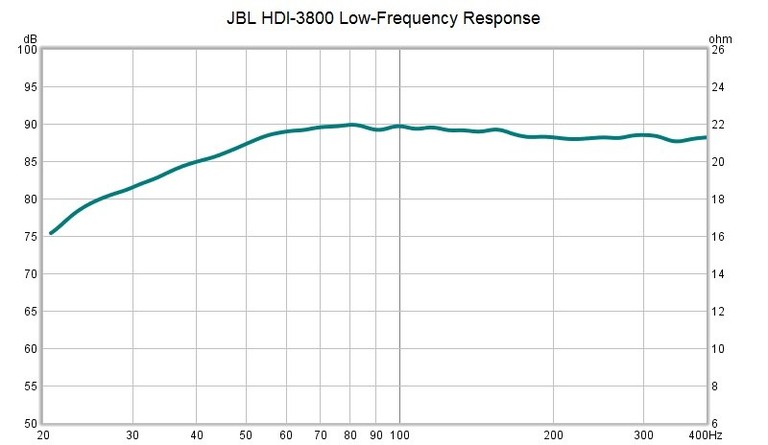

The above graph shows the HDI-3800’s low-frequency response captured using groundplane measurements (where the speaker and microphone are on the ground at a 2-meter distance in a wide-open area). Here we again see a nicely linear response that accounts for how sharp the HDI-3800’s bass sound is. There is a gradual roll-off in deep bass below 50 Hz, and the port tuning looks to be quite deep, perhaps below 30 Hz if I had to guess from this measurement. That explains how this tower speaker was able to handle deep bass so well. That being said, I wouldn’t want to throw high levels of infrasonic bass at this speaker, meaning stuff at or below 20 Hz. Below port tuning frequencies, the drivers are not protected by compressed air within the cabinet and can be more easily over-driven. If your listening tastes are geared for movies with deep bass, the addition of subs may still be worthwhile.

HDI impedance.jpg

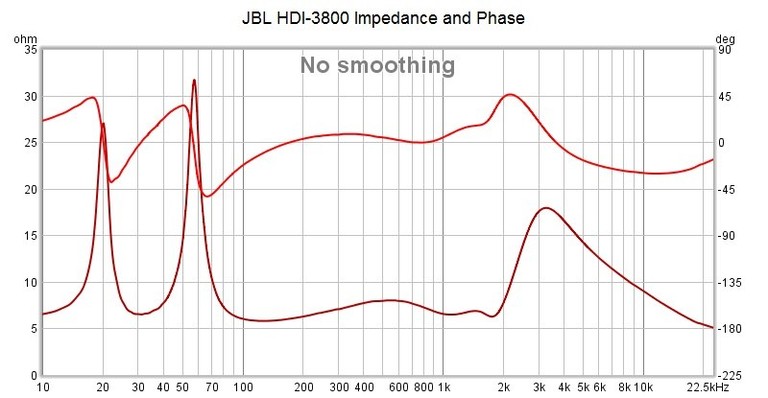

The above graph shows the electrical behavior of the HDI-3800. JBL specifies these as a 4-ohm speaker, and that is a conservative rating according to our measurement. If they called it a 6-ohm nominal speaker, I wouldn’t argue. The minima is 5.8 ohms at 127 Hz, but that happens with an agreeable phase angle of 11 degrees. Overall, this is not a difficult electrical load for any competently-engineered amplifier. I think even budget AVRs could cope with this, although I doubt anyone who buys these speakers will pair them up with a budget AVR. I measured the sensitivity at 90.4 dB at 1 meter for 2.83v. JBL specs them at 92 dB for 1 meter at 2.83v, and that isn’t a big difference when variability in the way sensitivity measurements are done is considered. That is above-average sensitivity for a floor-standing speaker, but perhaps not one as large as the HDI-3800. Given the low-frequency extension of the HDI-3800, it is expected that the sensitivity wouldn’t be huge, but they can still go a long way with just a few watts.

Conclusion

I really enjoyed my time JBL logo.jpgwith the JBL HDI-3800 speakers. They do so much right, but, given their cost and size, they don’t really have any excuse not to be good. When larger sizes are permitted and manufacturers are not overly constrained by budget, it opens up a lot of possibilities for impressive loudspeaker designs. JBL has certainly leveraged these advantages to produce a truly good loudspeaker. If they have any drawbacks apart from the size or price, I might say that the bass could be a bit much for some listeners. However, the quality and quantity of bass will be determined in large part by room acoustics. These speakers aren’t meant for small rooms. The kind of displacement they are capable of ensures that they can pressurize a large space with a strong bass sound. With that being said, the fundamental performance is so good that you could probably use them in a smaller room although you might want to temper the bass output with a tone control in that situation or plugging the ports.

Let’s briefly go over their high points before bringing this review to a close. First and foremost, they sound great. They are tonally balanced with an accurate sound on and off-axis. They have excellent bass extension for a tower speaker with powerful bass to below 30 Hz. They have a superb dynamic range and can easily tackle a large room. Thanks to their above-average sensitivity, they don’t need a monster amp to get loud either. As was said before, their good sensitivity, bass extension, and dynamic range is something that can only be done in a large enclosure; you can’t have all of these attributes in a smaller enclosure (per Hoffman’s Iron Law). These speakers are very easy to listen to, and I could listen for hours without fatigue (indeed, just yesterday I watched both Stephen King ‘It’ movies in a row and didn’t feel burned out despite having to hear the movies’ characters scream for five hours).

HDI outside.jpgApart from their sound quality, they do look very nice. They are largish, but they are tastefully designed so that they won’t draw as much attention as something their size might have otherwise. In other words, their subdued aesthetics help to mitigate their size. The build quality is very good, and these are solid, sturdy loudspeakers that are built to last. If you take care of them, they will endure for decades without problems. In addition to their looks and build quality is their electrical load which wouldn’t present a challenge to all but the weakest amplifiers. You can run the HDI-3800s on nearly any amplifier and not have to worry. Of course, they can handle a great deal of power, so if you want to get the most out of them, don’t starve them of wattage, but then again that all depends on your preferred listening levels.

As I said before, the HDI-3800s are not inexpensive, but they are a lot of speaker for the money, and I would say you definitely get your money’s worth. They sound terrific, they look great, they have the acoustic characteristics that make them a good fit in many different rooms and the electrical characteristics that allow them to run on many different amps, and they offer subwoofer-like bass so they are very much a full-range loudspeaker. The HDI-3800s might not be cheap, but for the overall package, I would say they are a bargain. It pains me to send these back to JBL, but if I didn’t have so many other speakers to review, they may well have been keepers for me. Highly Recommended!

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

  • StarStarStarStarStar — Excellent
  • StarStarStarStar — Very Good
  • StarStarStar — Good
  • StarStar — Fair
  • Star — Poor
MetricRating
Build QualityStarStarStarStar
AppearanceStarStarStarStar
Treble ExtensionStarStarStarStar
Treble SmoothnessStarStarStarStarStar
Midrange AccuracyStarStarStarStarStar
Bass ExtensionStarStarStarStarStar
Bass AccuracyStarStarStarStarStar
ImagingStarStarStarStarStar
Dynamic RangeStarStarStarStarStar
Fit and FinishStarStarStarStar
PerformanceStarStarStarStarStar
ValueStarStarStarStarStar
