Onkyo HT-RC260 7.2 Channel Home Theater Receiver Preview

By
Onkyo HT-RC260 Receiver

Onkyo HT-RC260 Receiver

Summary

  • Product Name: HT-RC260 AV Receiver
  • Manufacturer: Onkyo USA
  • Review Date: October 12, 2010 00:05
  • MSRP: $499
  • First Impression: Pretty Cool
  • Buy Now

Amplifier


     # Channels    7.2
     Power (8ohms 20-20kHz 0.08%) /Ch    100W
     Continuous 6ohms Rated
     All Discrete Circuitry
     3-Stage Inverted Darlington Circuitry
     Bi-amp Capability For Front

Processing


     DOLBY Decoder    True HD, DD Plus, PLIIz
     DTS Decoder    DTS-HD Master Audio
     Dolby PLIIz
     ONKYO GAME Surround Modes
     Audyssey Dynamic EQ
     Audyssey Dynamic Volume
     Direct Mode
     Music Optimizer
     192K/24 Bit DACs      (Burr-Brown)

Connectivity


     Audio I/O    7 / 2
     Digital Audio IN (OPT/COAX)    2 / 2
     Composite I/O    5 / 1
     Component Video I/O    2 / 1
     Front-Panel A/V    L / R / V
     Front-Panel Portable input (stereo mini jack)
     HDMI I/O    6 (5+1)/ 1
     HDMI Version    V1.4a supporting 3D video and audio return channel
     Analog To HDMI UpConversion
     1080i Upscaling      (DCDi Cinema)
     1080p Upscaling      (DCDi Cinema)
     Analog Pre-Outs    Sub
     Powered Zone2
     Zone 2 Line Out
     U-Port
     iPod Ready      (optional UP-A1)
     HD Radio Ready      (optional UP-HT1)

Integration Access


     ONKYO-RI System Control

Miscellaneous


     Pre-Programmed remote

     Color-Coded Speaker Terminals
     Auto Speaker Calibration W/Mic.      (Audyssey 2EQ)
     OSD Out      (advanced "Home" GUI)
     Solid Aluminum Front
     Warranty    2 years

Executive Overview

Large electronics manufacturers, and Onkyo is no exception, have to deal with a lot of different types of consumers. If they want to be successful, it is all about making sure they are at the very least meeting the expectations of the consumers at each price point. Take the HT-RC260 Receiver, for example. If they really want to be successful, they'll exceed those expectations. The hard part is knowing what people expect at each level. At the high end, it's fairly easy - They want everything and they want it in a pretty (usually very heavy) chassis. They want form and function, features and power, easy of use and the ability to fine to and tweak to their heart's content. Most of all, however, they are willing to pay for it.

Most of us, however, are not in that boat.

Most consumers have their pet needs. They have the options they have to have, the ones they'd like to have, and the ones they would take if you threw them in but they certainly wouldn't pay for them and probably won't use them. They've also, hopefully, got this thing called a budget. The onus is on the manufacturers to figure out what those needs and wants are and shove them in a product at a price point just a little lower than the consumer thought they were going to pay. If you can do that, you'll make a mint.

Onkyo's two newest receivers are only one model number apart, but $350 separates them. That's a pretty large jump for a receiver manufacturer. What that usually means is that the higher priced model has a lot more features and is probably a good bang for the buck. In this case, the HT-RC270 is a very nice receiver if you are in to networking and streaming and you think you'll use the Zone 2 and/or height or width channels. If all of that falls into your "would be nice but I'm not paying for it" column, then you'll want to take a hard look at the HT-RC260.

The Onkyo HT-RC260 shares a lot of features with its bigger and more expensive brother. It has the same amp section (100 watts per channel into seven channels with Onkyo's proprietary WRAT (Wide Range Amplifier Technology) amplifiers with new three-stage inverted Darlington circuitry for high dynamics and low distortion). It has Burr-Brown 192kHz/24-bit DACs on all channels. It has the same number of HDMI inputs (five on the back, one on the front all HDMI 1.4a with 3D and Audio Return Channel) with and on screen display over HDMI. It even has Faroudja DCDI Cinema video processing to upscale video to full 1080p output regardless of the source resolution. But of course, some features are missing - most notably the Ethernet port and all the network and streaming features.

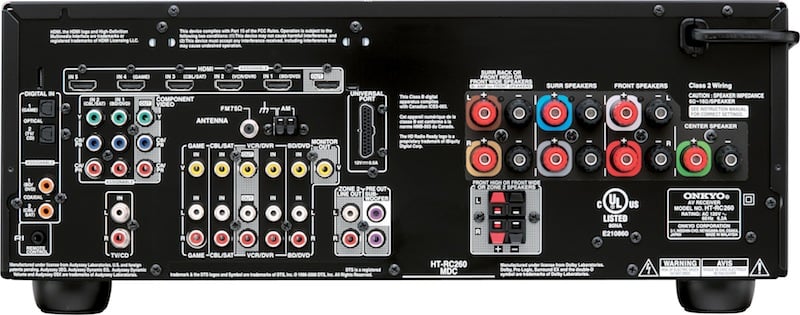

htrc260_rear

The Onkyo HT-RC260 has Audyssey 2EQ (which is a step down from the offering in the HT-RC270) though it maintains the Audyssey Dynamic EQ and Volume features as well as the height channels from Dolby ProLogic IIz. It features all the latest processing including Dolby TrueHD and DTS HD Master Audio. It doesn't have the THX certification of the 270 so you won't have access to any of the THX specific modes but then again, the certification price hasn't been tacked on to the receiver either.

The "Universal" port is still available as are two component video and two coaxial digital audio inputs. There are two optical digital audio inputs (one less than the 270). Most notably lacking are the 7.1 channel analogue inputs for integrating legacy gear or 7.2 channel outputs for adding and amp. The HT-RC260 does have analogue outputs for Zone 2 as well as dual subwoofer outputs. Most notably lacking are the extra five-way binding posts that would make switching between Zone 2 and one of the height/width channels that Dolby PLIIz/Audyssey DSX provides. Instead, you have five-way binding posts for seven channels with two pairs of spring-type binding posts for switching. Not nearly as convenient as the bigger brother's 11 pairs of five-way binding posts.

Conclusion

For $500 (a full $350 less than the HT-RC270), the Onkyo HT-RC260 packs in a lot of features. What are you missing are a few speaker connection points to make switching configurations easier, an input or two, analogue pre-ins and pre-outs, THX certification, and all of the network features. What you get is virtually the same amp section, Faroudja DCDI Cinema video processing, a ton of HDMI 1.4a inputs, dual subwoofer outputs, and all the latest audio processing. If you aren't that interested in networking and streaming, you can save a cool $350 by going with the HT-RC260 over the 270. Hey, that's like two pairs of shutter glasses and a 3D Blu-ray player! For some that is money well saved.

For more information, please visit www.us.onkyo.com.
