Lyngdorf TDAI-3400 Streaming Integrated Amplifier Review

The Lyngdorf TDAI-3400 isn’t just another integrated amp with room correction added as a feature checkbox. Its fully digital amplification platform, highly effective proprietary RoomPerfect™ correction, advanced bass management, PEQ tools, customizable room curves, and flexible DSP make it one of the most powerful hi-fi solutions available for serious two-channel enthusiasts. Add robust streaming support, an excellent web interface and app control, plus modular hardware upgrades, and you’ve got a future-ready audiophile centerpiece focused as much on precision system integration as pure sound quality.

At $8,500 fully configured, it’s certainly not inexpensive, but does its feature set and performance make it the ultimate configurable two-channel streaming integrated amp? I intend to answer that question in this review.

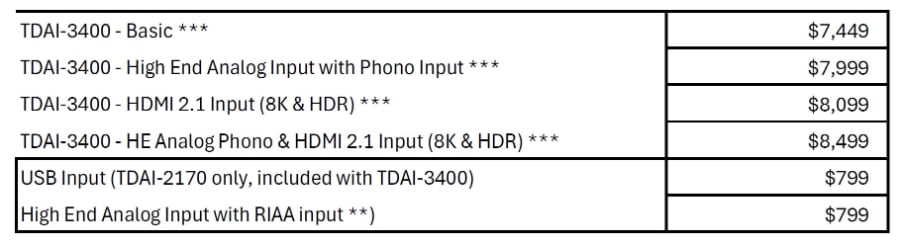

Lyngdorf TDAI-3400 Configuration Options & Prices

Lyngdorf Fully Digital Switching Amplifier Overview

The TDAI-3400 uses Lyngdorf’s Equibit architecture, which keeps the audio signal in the digital domain much deeper into the amplification chain than most conventional designs. Instead of converting digital audio to analog early in the signal path, processing, volume control, and signal management remain in the digital domain until the final power conversion stage. Lyngdorf refers to this as a “fully digital” amplifier topology.

From an engineering perspective, this approach is best understood as a fully digital switching amplifier that directly converts PCM data into a high-frequency switching signal to drive the output stage. While this differs from conventional analog-input switching amplifiers that rely on a DAC and subsequent analog modulation stage, the final output stage still performs power conversion to an analog waveform at the speaker terminals.

This architecture offers several advantages compared to traditional analog-input Class D designs:

Pros

• Eliminates separate DAC and analog gain stages, reducing cumulative noise and distortion contributions
• Maintains precise digital volume control with perfect channel matching
• Enables tight integration between DSP processing and output stage modulation

Cons

• Analog inputs are digitized internally; no pure analog bypass mode
• Output behavior remains dependent on speaker load interaction at the filter stage
• Switching output stage can complicate conventional measurement interpretation

The TDAI-3400 also uses fully digital volume control that operates prior to the output stage rather than a traditional analog potentiometer or analog-domain attenuation. This enables precise 0.1 dB volume steps, perfect channel balance, lower noise at low listening levels, and improved resolution during quiet playback.

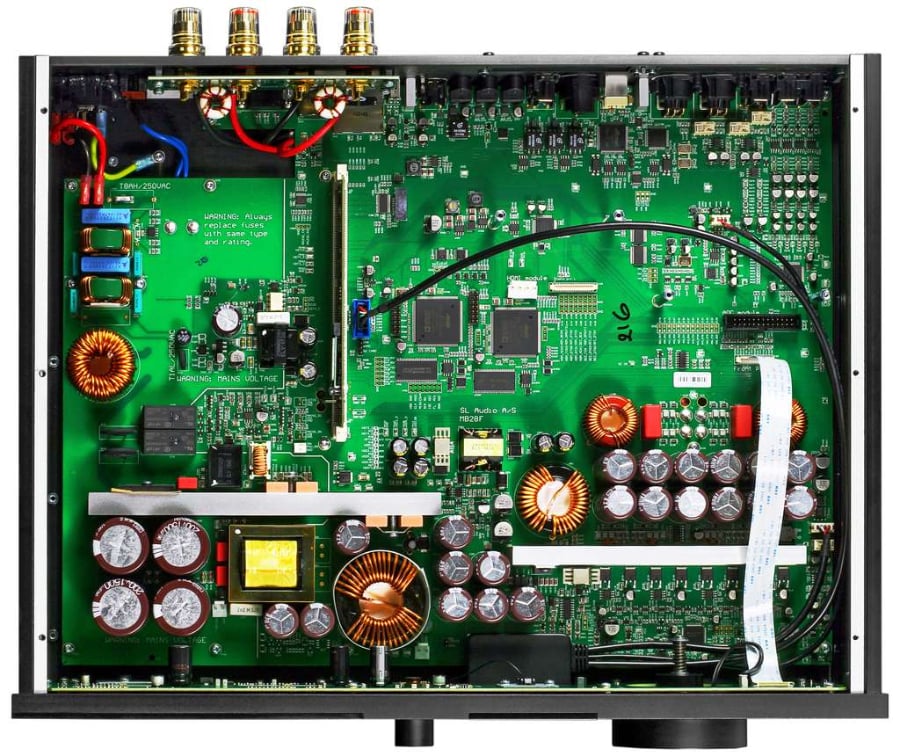

Lyngdorf TDAI-3400 2CH Amplifier Top View

The Lyngdorf TDAI-3400 is laid out very neatly as you can see in the top view image. There is a decent amount of heatsinking on the power devices but I will do a 5 min FTC power test to determine if the unit can deliver it’s rated power without shutting down or melting, just don’t try this at home!

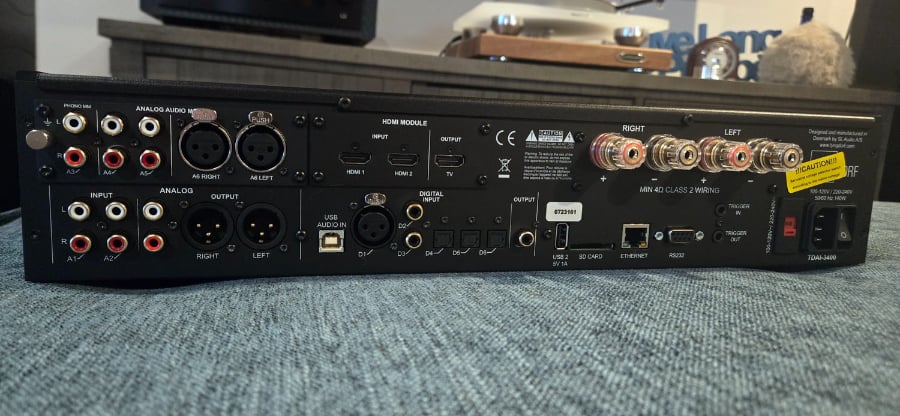

Lyngdorf TDAI-3400 Integrated Amplifier Back View

My TDAI-3400 review unit came fully loaded with the analog (including phono) and HDMI 2.1 8K/HDR 40Gbs modules. The TDAI-3400 is one of the rare few consumer products I’ve encountered with both unbalanced and balanced digital inputs, full bass management capabilities and advanced routing options, and dual subwoofer outputs. It’s a shame there is only one set of speaker output terminals but understandable to maintain its low profile height that gives the product a sleek elegant appearance.

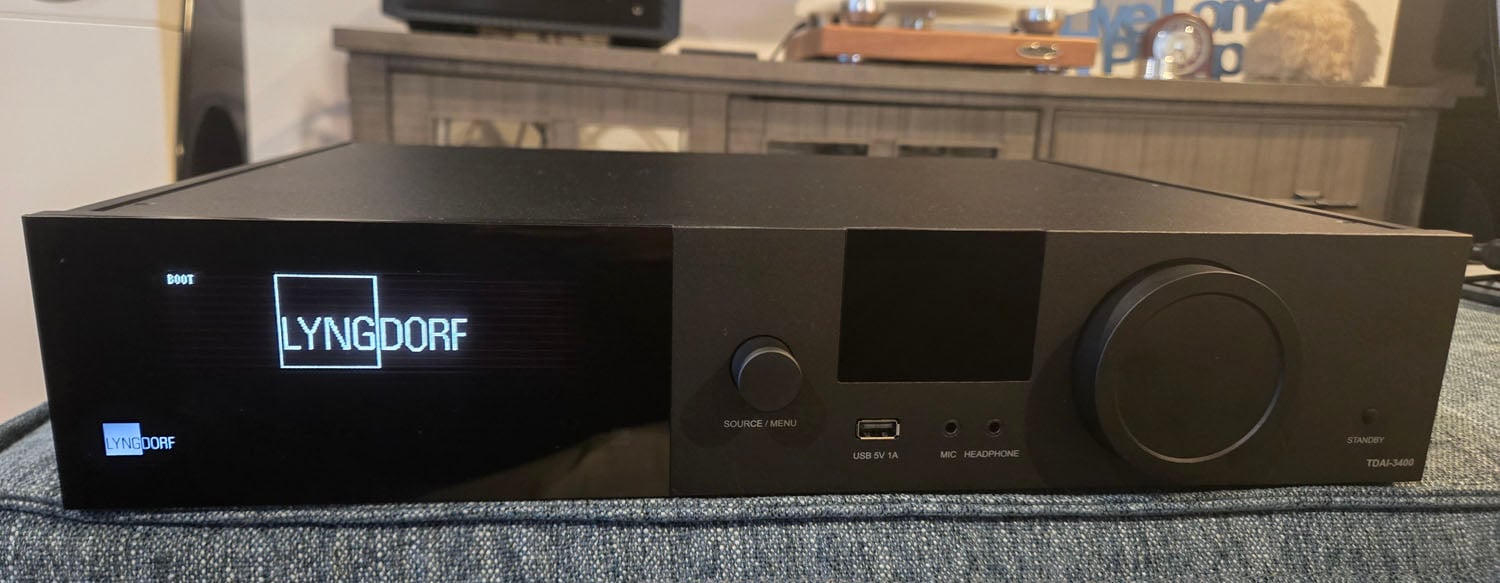

Lyngdorf TDAI-3400 Set Up

The Lyngdorf TDAI-3400 hands down is the most sophisticated product in its category I’ve ever had the pleasure of reviewing. It’s very rare to come across a 2CH hi-fi product with such a comprehensive GUI both via web interface and App control and virtually none have this level of configurability for bass management. We are talking flagship style AV processor configurability in a two-channel product!

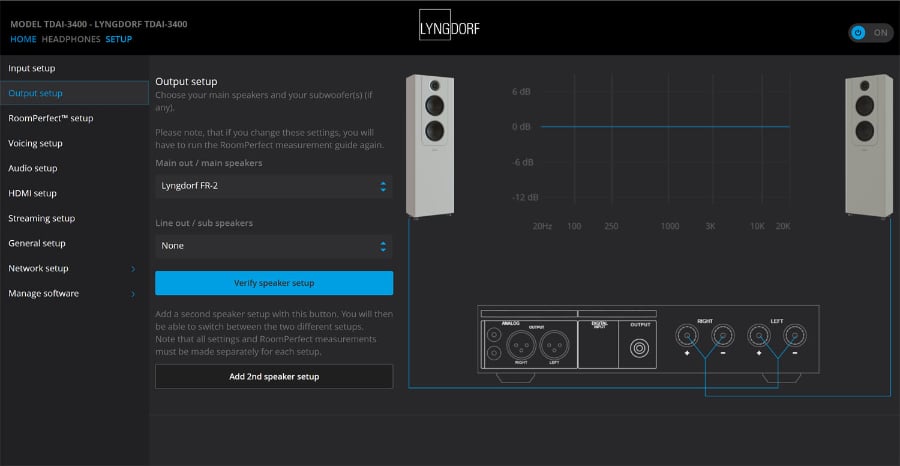

The web interface is accessible by typing “tdai3400.local” into a browser on a laptop on the same network as the TDAI-3400 (or clicking the link within the MyLyngdorf app). I recommend watching my YouTube video which gives you a comprehensive overview of the web interface including a tour of the various settings to help optimize the performance of your system.

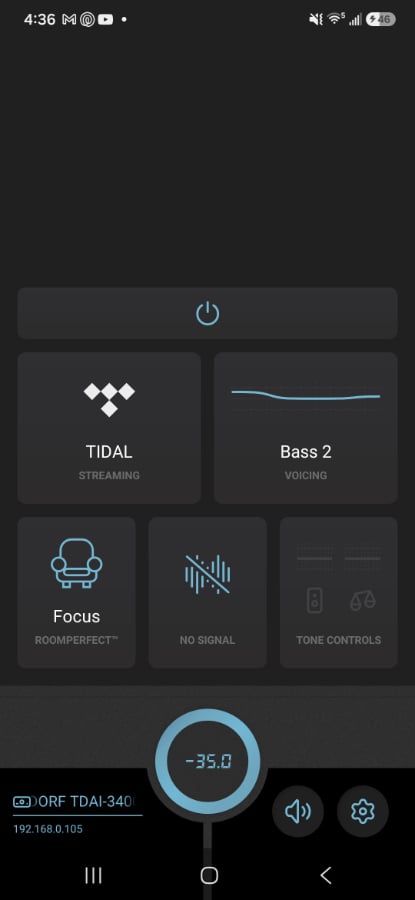

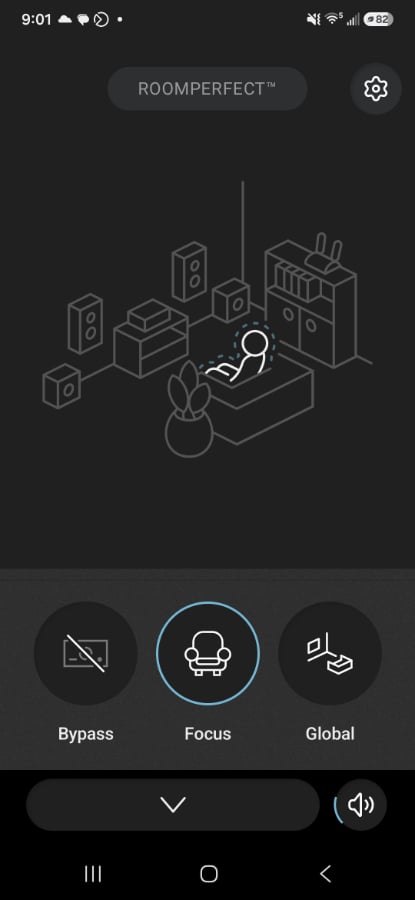

Lyngdorf Android App

The App is intuitive to use and an absolute breeze to toggle RoomPerfect on or off, and adjust and compare the various voicings. I wish more hi-fi products offered flexible PEQ and shelving filter adjustments instead of ordinary tone controls. Oh, the TDAI-3400 also has tone controls too and best of all, you can adjust the turnover frequency on them and even change the polarity of your speakers as pairs or left/right individually. Absolutely awesome tuneability for this product and the sky is literally the limit!

When streaming Tidal on the TDAI-3400, I found it easiest to just use Tidal connect directly through the Tidal App on my phone and it worked without incident.

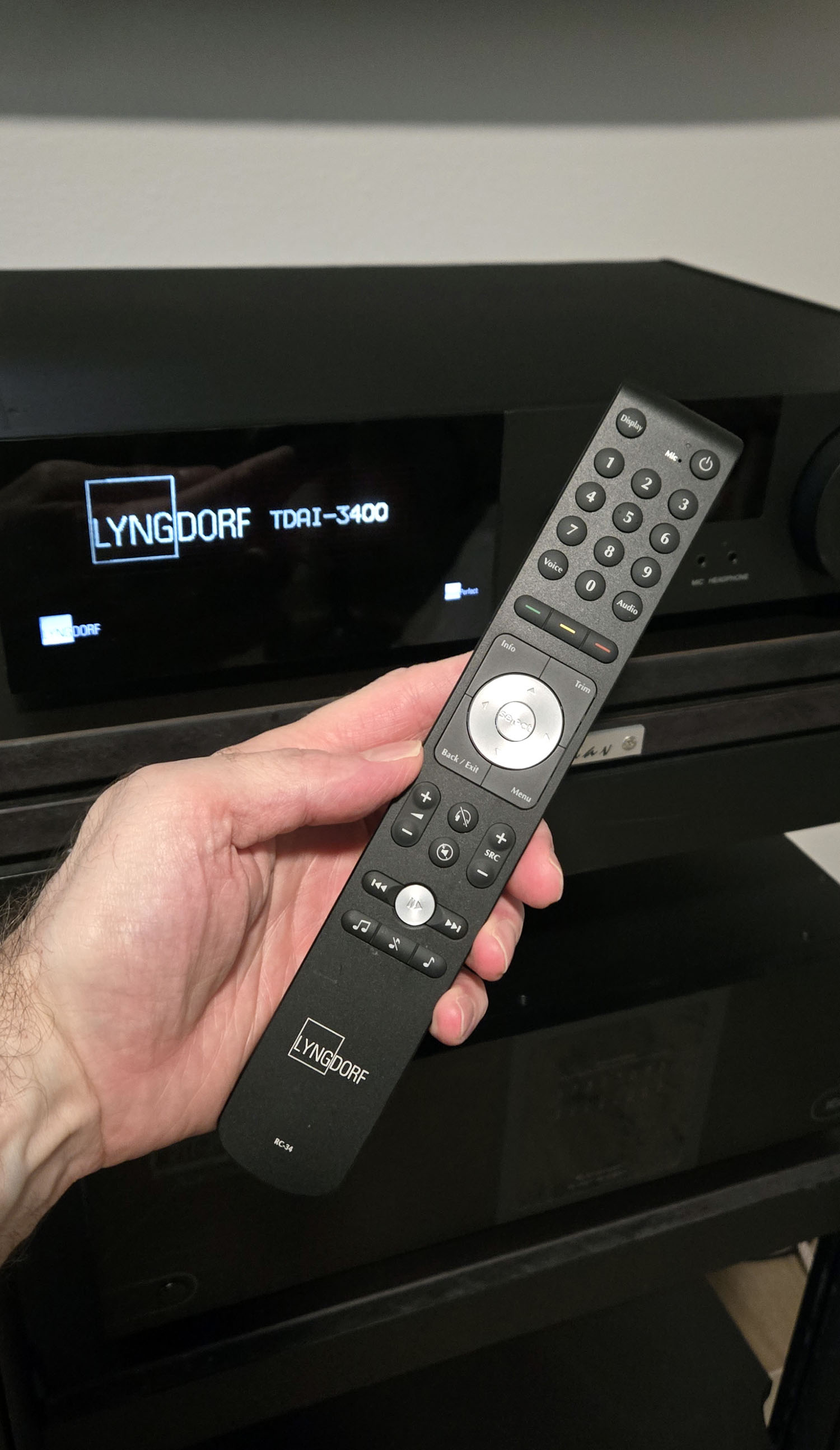

I found the remote control intuitive to use, with a clean layout that made navigating inputs, volume, and RoomPerfect settings effortless. It’s compact enough to comfortably operate with one hand, which is a must for me, while still feeling responsive and refined like a proper high-end component remote should.

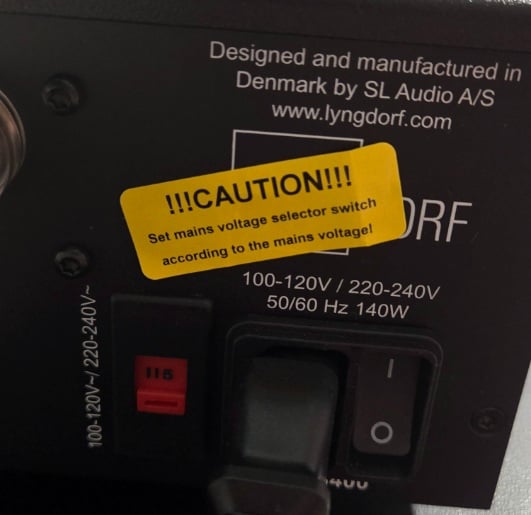

Editorial Note About Voltage Selector Switch – IMPORTANT -

During initial power testing of the Lyngdorf TDAI-3400, the amplifier clipped at around 31Vrms instead of the expected 40Vrms, limiting output to roughly 120 watts per channel into 8 ohms rather than its rated 200 watts per channel. The issue was later traced to the rear-panel voltage selector being inadvertently set to 220VAC instead of 120VAC, underscoring the importance of verifying the voltage setting for your region before powering up the amplifier. While many modern SMPS-based designs (including Lyngdorf’s own TDAI-1120 and 2210 models) offer automatic line-voltage sensing, Lyngdorf instead relies on a manual voltage selector. A sticker near the power inlet serves as a reminder for users to verify the amplifier is configured for the correct operating voltage before powering it on.



This GUI Makes Most Hi-Fi Gear Feel Outdated | Lyngdorf TDAI-3400

RoomPerfect Set Up & Measurements

Lyngdorf Audio’s RoomPerfect is a proprietary room correction system that, according to Lyngdorf, is designed to reduce the room’s acoustic influence while preserving the loudspeaker’s native voicing and spatial presentation. RoomPerfect uses proprietary multi-tone measurement signals that Lyngdorf claims are more resistant to ambient noise and better able to distinguish the speaker’s direct sound from room-induced anomalies using measurements taken throughout the listening space, allowing calibration to remain accurate even when the room isn’t perfectly silent.

I personally witnessed a successful RoomPerfect calibration at a Steinway Lyngdorf listening event at Crowne Audio we covered while people were actively socializing in the room, so its resilience in this regard was genuinely impressive. But how did it perform in my music room when paired with Arendal Sound 1528 Tower 8 speakers? Let’s find out.

RoomPefect Calibration Best Practices

• Use a stable microphone stand such as the one Lyngdorf supplies with the TDAI-3400.

• Position the microphone at ear height at the Main Listening Position (MLP) for the first “Focus” measurement, aiming the mic toward the main left/right speakers.

• For the remaining 5–6 measurements, vary microphone height and position randomly throughout the listening area to provide RoomPerfect with additional room data.Keep a clear line of sight between the speakers and microphone with no large obstacles blocking the direct sound path.

• Maintain a quiet room during calibration by turning off fans, HVAC noise, TVs, and minimizing conversation or movement.

• Aim for at least 90% Room knowledge before finalizing calibration for the best overall performance.

• Listen to the various voicing options with real program material to determine which sounds best to you.

• Advanced users: Tweak you preferred voicing preset by applying shelving filters or PEQ (as needed) with independent measurements using Room EQ Wizard

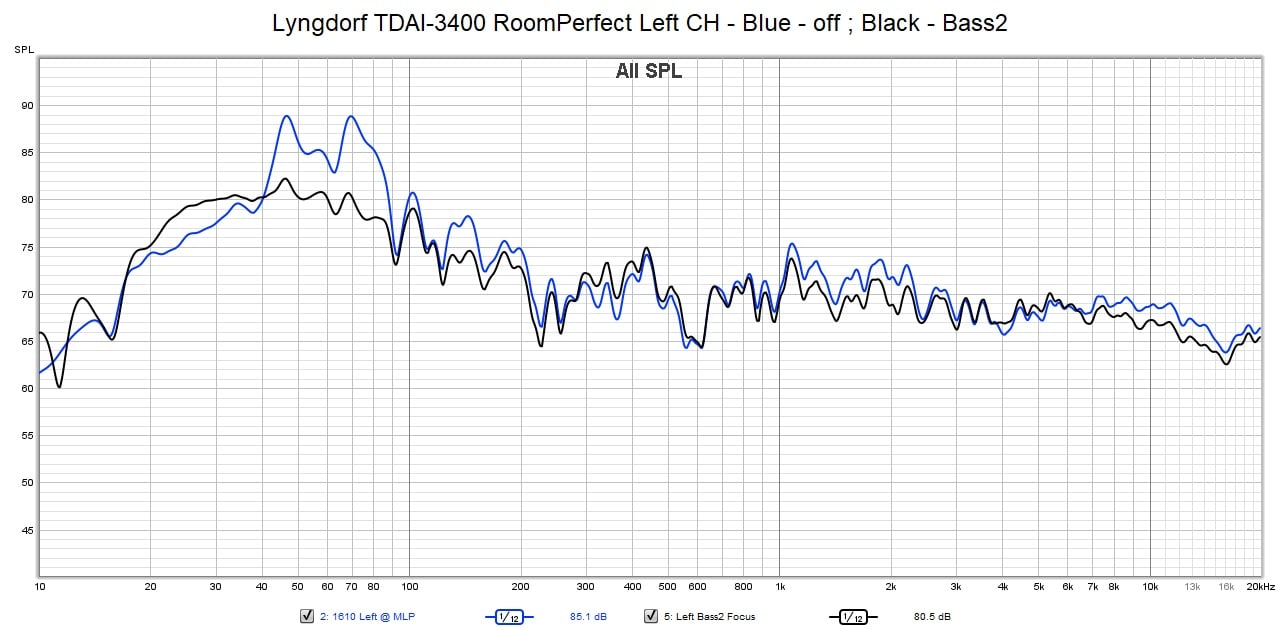

RoomPerfect In-Room Measurements at MLP for Left vs Right Arendal 1610 Tower 8

In my downstairs music room, the listening chair is close to the back wall which is a maximum pressure area and thus lots of bass build up which can sound boomy or too energetic if a loudspeaker system is has enough piston area to excite the room modes with authority. The Arendal 1610 Tower 8s triple 8” woofers are up to the task and with RoomPerfect disengaged, the bass can be overwhelming on heavy bass tracks. RoomPerfect did an excellent job at flattening out the bass peaks for both speakers while also extending the bass extension with some boost when employing “bass 2” voicing. Treble titled slightly down, but I felt “bass 2” was the best sounding voicing preset out of the various options offered.

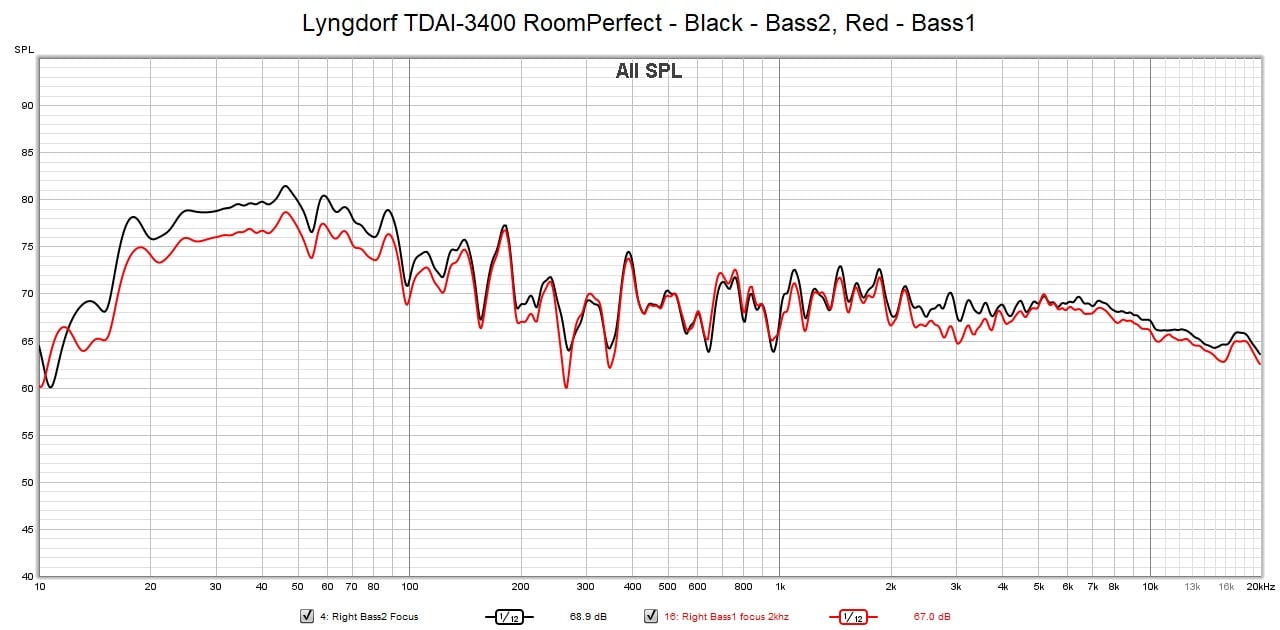

RoomPerfect In-Room Measurements at MLP Bass 2 vs Bass 1 Voicing - Right Arendal 1610 Tower 8

Bass 1 voicing resulted in the bass sounding too lean and it also introduced the 2kHz BBC dip which created an unnecessary notch in the response from 2kHz-4kHz which undermines the excellent engineering of the Arendal speakers that have excellent mid/tweeter driver integration and directivity control.

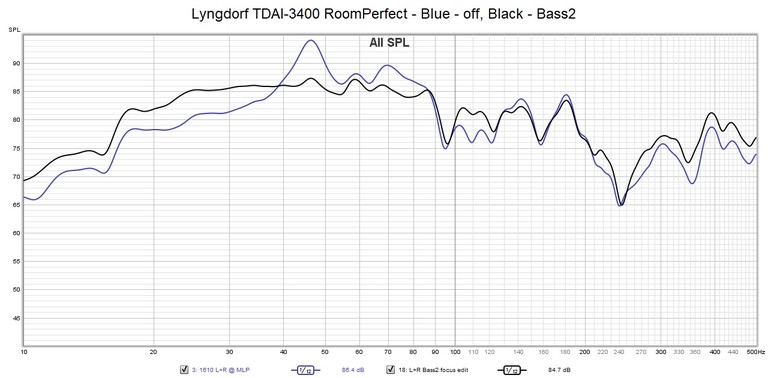

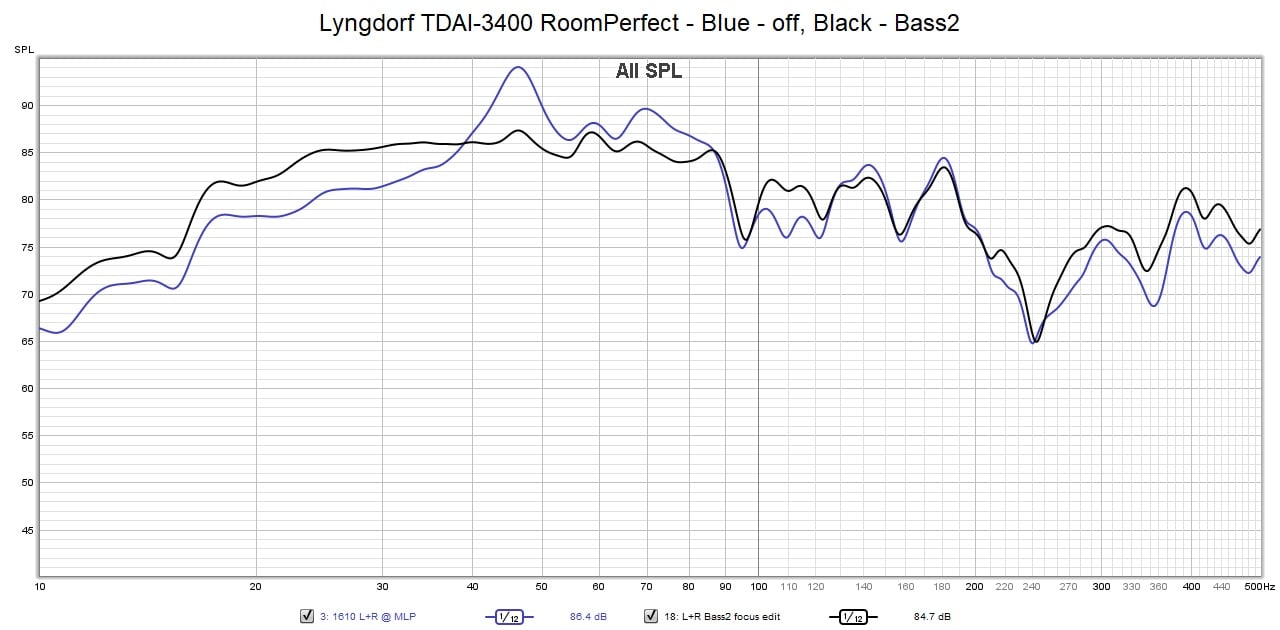

RoomPerfect In-Room Measurements at MLP for Left + Right Arendal 1610 Tower 8

With both speakers playing, you can see a much more linear response with RoomPerfect engaged and it even provided a little boost to a bass null in the 100-120Hz range that was perceived as much needed upper bass punch. With RoomPerfect engaged, I measured +-5dB from 15Hz to 200Hz around MLP which is the best response I’ve been able to achieve in this room with just a pair of speakers and no powered subs strategically placed as supplementation.

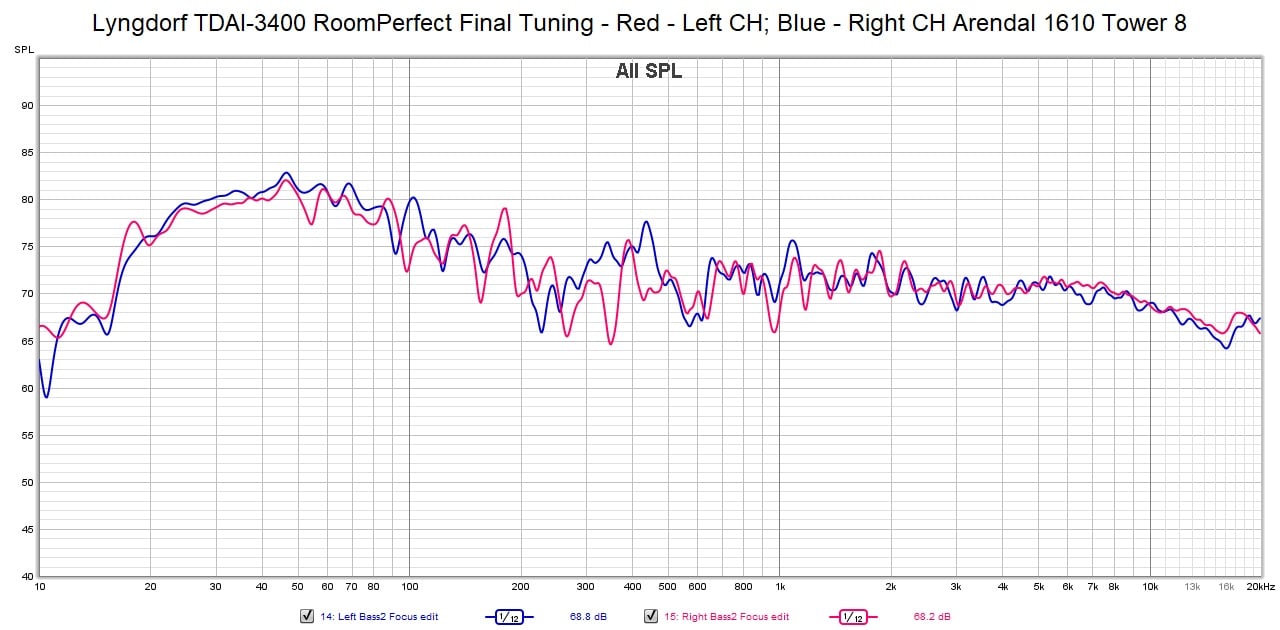

RoomPerfect In-Room Measurements at MLP Custom Voicing - Left vs Right Arendal 1610 Tower 8

I customized the Bass2 voicing by employing a couple of shelving filters at low and high frequencies and through trial and error landed on these curves which sounded right in my listening set up. There is about a +5dB tilt up in bass response below 100Hz and a very flat response from 600Hz to about 8kHz with a natural tapering off of high frequencies above.

After dialing in the EQ, I went back and compared Focus vs Global modes of RoomPerfect.

• Focus Mode: Prioritizes a single listening position, optimizing imaging precision, tonal accuracy, and bass integration for the main seat (or stored “focus” seats).

• Global Mode: Averages correction across multiple measurement positions to deliver more consistent overall room coverage, with smoother response across a wider listening area but slightly less pinpoint seat-specific precision.

There were times when I preferred the “Global” mode in my setup, especially if I wasn’t sitting dead center at the MLP. However, if you can find that sweet spot, I believe “Focus” mode is the better choice. We observed this at a Lyngdorf listening event at Crowne Audio. In the front row, “Global” sounded best to my ears and to Lyngdorf rep Lee Rambler, but behind the MLP, “Focus” mode actually sounded more dialed in. This is subjective and something you’ll need to experiment with using real program material, such as your favorite demo tracks, as it can’t be fully evaluated using test tones and acoustic measurements alone.

Lyngdorf TDAI-3400 Listening Tests

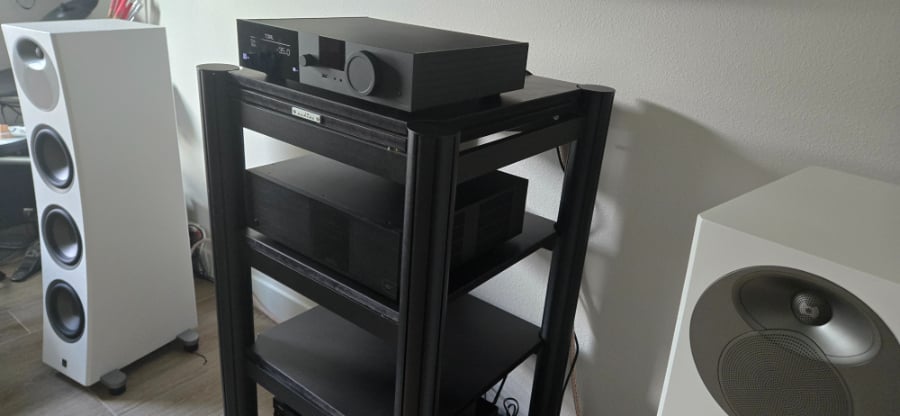

I set up the Lyngdorf TDAI-3400 in our downstairs music room featuring a pair of Arendal Sound 1610 Tower 8 speakers I currently have in for review. For source devices, I used the streaming features of the TDAI-3400 via Tidal connect with a 1Gbps ethernet connection along with my Denon DCD-A110 SACD player. The system was wired with Kimber Kable 12TC speaker cable and Bluejeans cable 1694 interconnects.

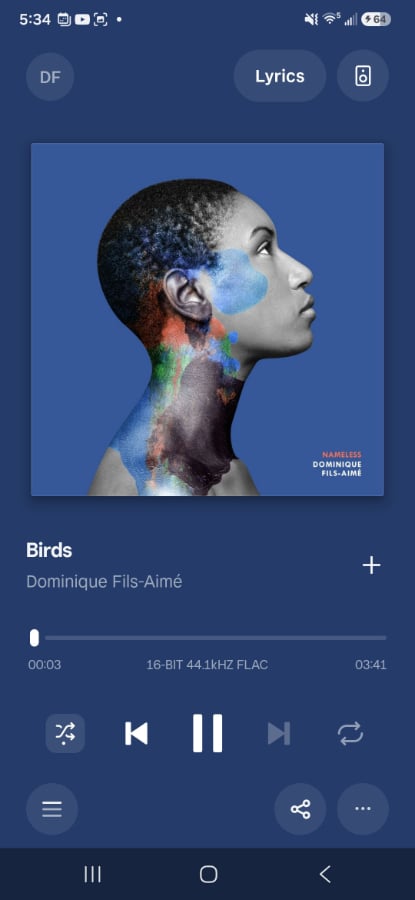

Tidal Connect

I started my listening session with Dominique Fils-Aime “Birds”. The vocal clarity of this track was excellently portrayed on the Arendal Sound 1610 Tower 8 speakers powered by the Lyngdorf TDAI-3400. With no RoomPerfect engaged, I did feel the tonal balance was a bit more laid back compared to my reference Denon PMA-A110 integrated amplifier. With RoomPerfect engaged “bass2” voicing and my added tweaks, spaciousness was improved and the bass tightened up with slightly more extension.

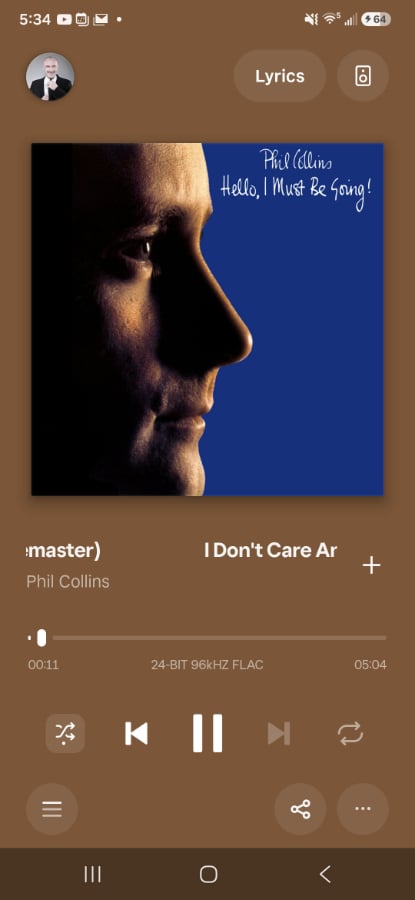

One of my favorite tracks, Phil Collins’ “I Don’t Care Anymore,” sounds surprisingly good streamed on Tidal. RoomPerfect brought out all of the subtle details in the ghost notes of Phil’s drumming, while the kick drum hit hard yet remained well damped, with none of the boominess I heard when RoomPerfect was disengaged.

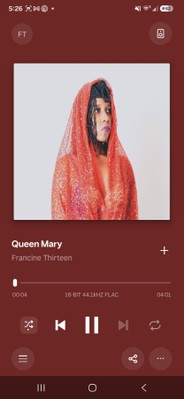

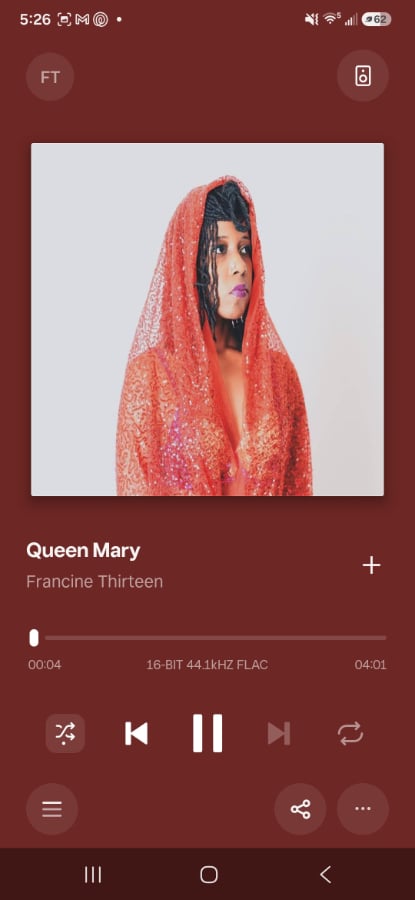

Francine Thirteen’s “Queen Mary” is a track that should be on everyone’s demo list when auditioning speakers or amplifiers. This song will quickly reveal weaknesses in bass response, and I’m happy to report that neither the Lyngdorf TDAI-3400 nor the Arendal 1610 Tower 8 speakers exhibited any such shortcomings. In fact, I was quite amazed at how effortlessly the TDAI-3400 drove the 4-ohm Arendal 1610 towers, even at listening levels louder than I’d care to sustain for more than a short period of time.

There’s a lot of decorrelated information in this track that creates a convincing “surround effect” from just a pair of speakers. The panning between the synthetic hi-hat and various sound effects was rendered with greater depth and soundstage precision when RoomPerfect was engaged, while the bass also sounded tighter and more controlled. The bass drop at the 0:26 mark put a smile on my face and persuaded me to turn the volume up just a little more.

SACD

I ran through some of my SACD collection using the fabulous Denon DCD-A110 SACD player as the source. I spent some time listening to some of my favorite SACDs such as Patricia Barber – Modern Cool and Chlara – In a Different Light.



Listening to Patricia Barber’s Modern Cool (SACD), particularly the track “Touch of Trash,” was an experience that was both felt and heard throughout the room on the Arendal 1610 Tower 8 speakers. With RoomPerfect disabled, the bass exhibited a bit too much overhang, but once engaged, it became noticeably tighter and better damped, lending a more natural and cohesive presentation to the entire track that transported me into the ambiance of a small jazz club.

Patricia Barber’s vocals were locked dead center with excellent clarity, while the Lyngdorf TDAI-3400 extracted an impressive level of detail from the recording — from the shimmering cymbal crashes to the trumpet, which sounded eerily present in the room. I particularly enjoyed the synergy between the Lyngdorf electronics with RoomPerfect engaged and the Arendal 1610 Tower 8 speakers.

The plucking of the acoustic guitars in Chlara’s Adele cover of “Hello” sounded intoxicating on this system. The track exhibited excellent spaciousness, which seemed to expand even further with RoomPerfect enabled. I switched back and forth between the “Focused” and “Global” modes and occasionally found myself preferring the latter, particularly when listening slightly off-axis from the main listening position.

Crowne Audio Listening Event

My listening tests at Crowne Audio with the TDAI-3400 set up with a pair of Lyngdorf FR-2s revealed consistent results with RoomPerfect even when calibrated in a noisy environment. “Point Break” by Hotel Pools sounded very dreamy with deep articulate bass that had a nice thump considering the speakers only had a pair of dual 6.5” drivers. Moving around the seating area between first and second row revealed my preference for “Focused” in the 2^nd row middle vs “Global” for the other seated positions. In all scenarios, I did prefer RoomPerfect engaged as did the other participants in the room when asked.

I Finally Heard Steinway Lyngdorf... And Didn't Expect This

Measurements & Analysis of TDAI-3400

In my bench test report of the Lyngdorf TDAI-3400, I examined how its true digital amplification topology compares on the bench to more conventional analog-input Class D designs from ICE, Hypex, and Pascal. Unlike those architectures, the TDAI-3400 converts PCM directly into a switching output with digital-domain volume control, eliminating a traditional DAC and analog gain stages, while still delivering a rated 200W into 8Ω and 400W into 4Ω with strong real-world load stability. Using my Audio Precision APx585, I was able to accurately capture power output and frequency response, but distortion measurements proved more challenging. Without the AUX0025 pre-conditioning filter, measured THD+N was artificially inflated due to the amp’s comparatively lower switching frequency, which places more out-of-band noise closer to the analyzer’s bandwidth. This resulted in slew-induced distortion that effectively overloaded the APx585 inputs, highlighting the importance of proper filtering when evaluating digitally modulated switching amplifiers.

For more information about how we measure power amplifiers, please see:

Basic Amplifier Measurement Techniques

TDAI-3400 Analog Preamp Output

Frequency Response

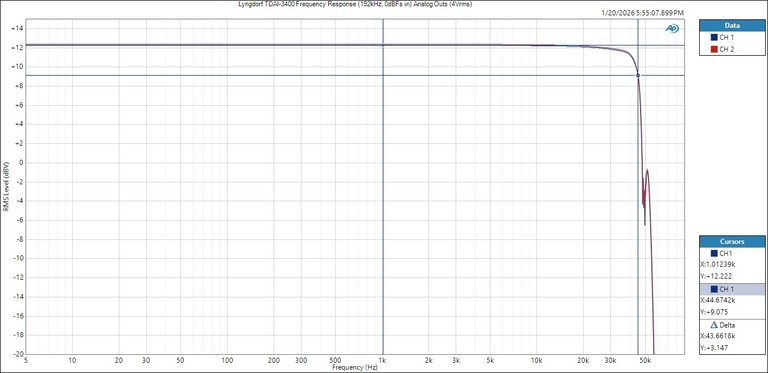

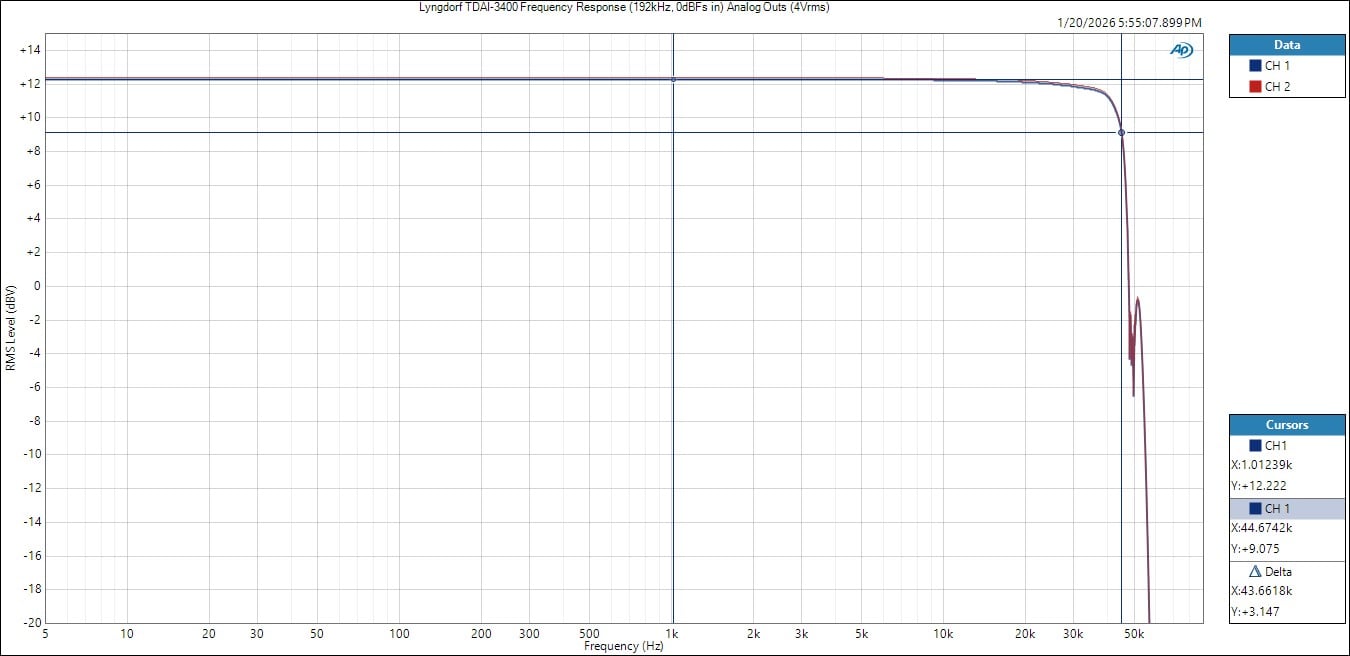

Lyngdorf TDAI-3400 Frequency XLR  Outputs

I measured the Lyngdorf TDAI-3400 frequency response from the XLR analog outputs using a 0dBFS 192kHz/24 bit test signal via AED-EBU digital input and observed a ruler flat frequency response all the way to ½ Nyquist which in this case is 48kHz since the TDAI-3400 downsamples to 96kHz. Channel-Channel deviation was +-0.085dB from 5Hz to 20kHz which is excellent.

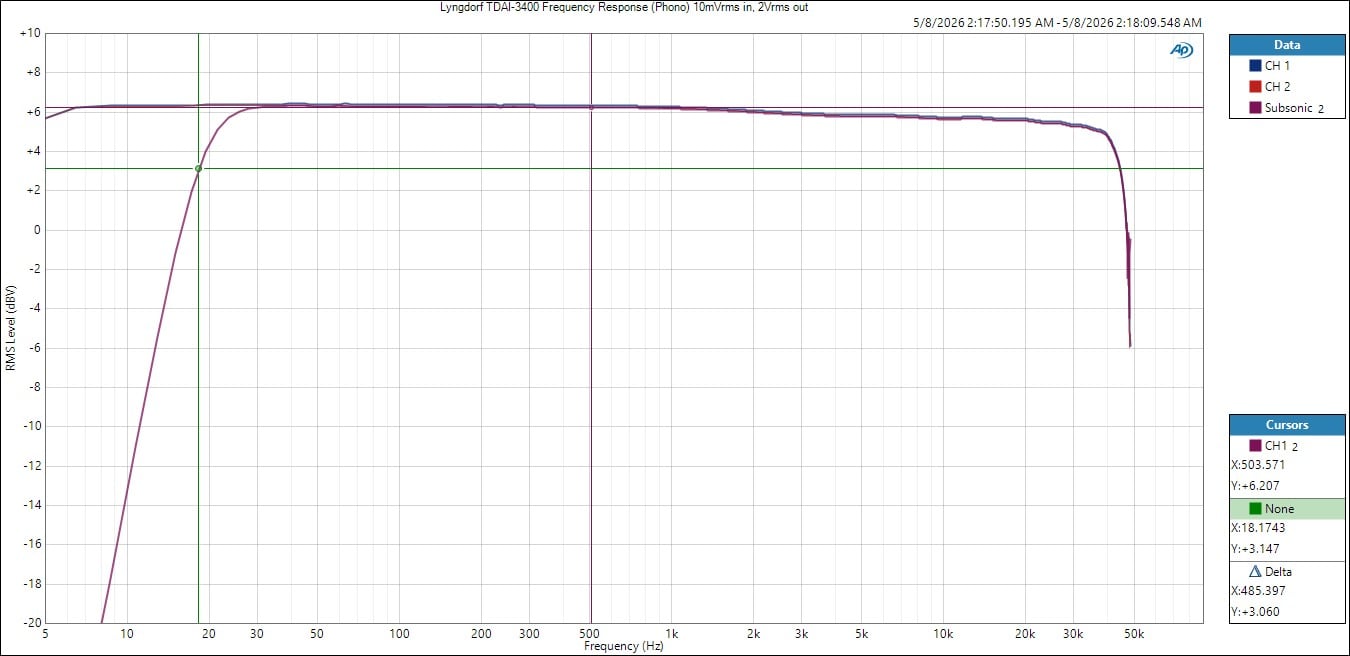

Lyngdorf TDAI-3400 Frequency Phono Output

The Lyngdorf TDAI-3400 has a Moving Magnet (MM) phono preamp but no Moving Coil (MC) which is a bit disappointing at this price but what they give you for MM is nothing short of stellar. Using the original 3-time constant RIAA curve, I EQ’ed the APx585 source to get the expected flat response of the phono preamp. The source was driven from 1mVrms up to 20mVrms to determine frequency response, distortion and linearity. The typical MM cartridge voltage is anywhere from 2.5mVrms  to 5mVrms so the fact that the Lyngdorf was able to handle up to 20mVrms input cleanly is excellent. The defeatable subsonic filter works as expected at with a -3dB of 18Hz and slope of 24dB/oct.

FFT Distortion Analysis

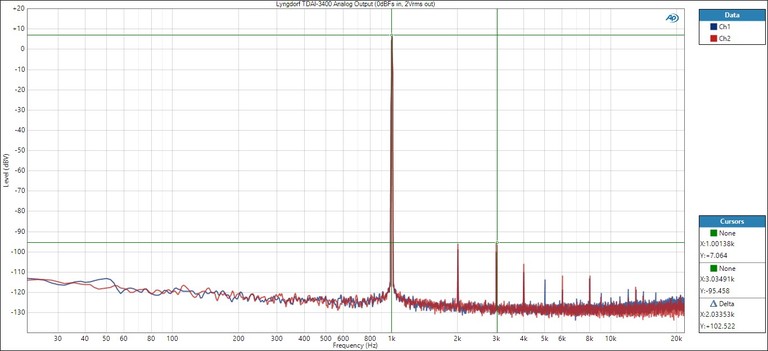

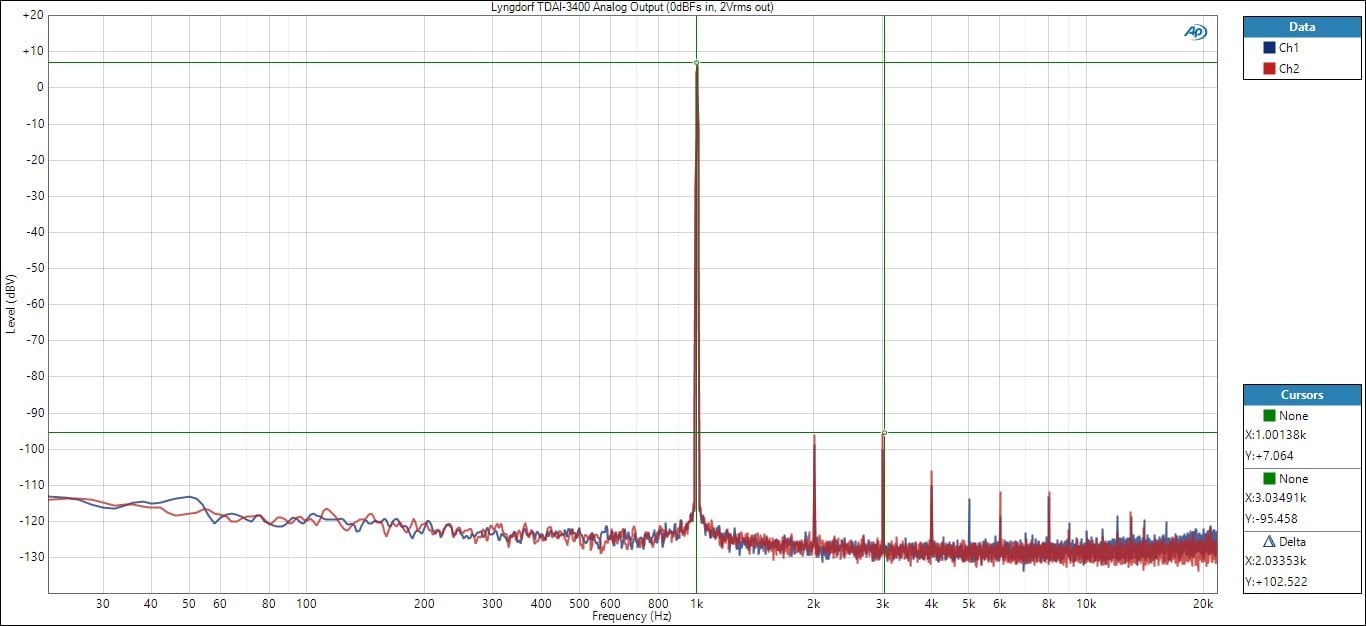

Lyngdorf TDAI-3400 1 kHz FFT @ 2Vrms (XLR output)

The Lyngdorf TDAI-3400 produced an excellently low distortion profile driven with 0dBFs input and 2Vrms output with the 3^rd harmonic being 102.5dB below the 1kHz fundamental.

SNR & Crosstalk



Lyngdorf TDAI-3400 XLR Preout (4Vrms) – Signal to Noise  Test (1kHz 44.1kHz/16, A-wt)

With a 0dBFS 44.1kHz/16bit test signal, the TDAI-3400 measured 95.6dB SNR at 4Vrms which is close to theoretical perfection of 96dB or right on spec if you round to two significant figures.

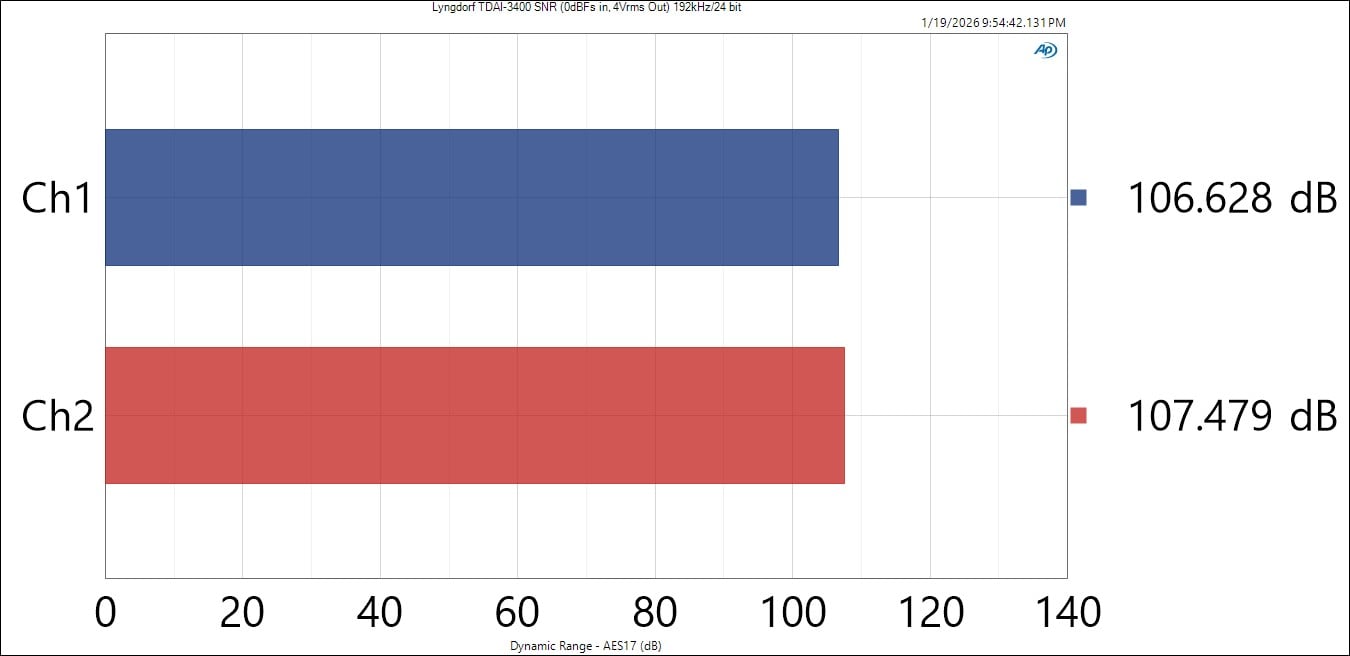

Lyngdorf TDAI-3400 XLR Preout (4Vrms) – Signal to Noise  Test (1kHz 192kHz/24, A-wt)

With a 0dBFS 192kHz/16bit test signal, the TDAI-3400 measured 106 SNR at 4Vrms or about 18 bit resolution which isn’t quite up to the best I’ve measured (116dB or 19 bit) from other products in this category under similar test conditions, but still not a bad measurement and a marked improvement over standard 16 bit Red Book.

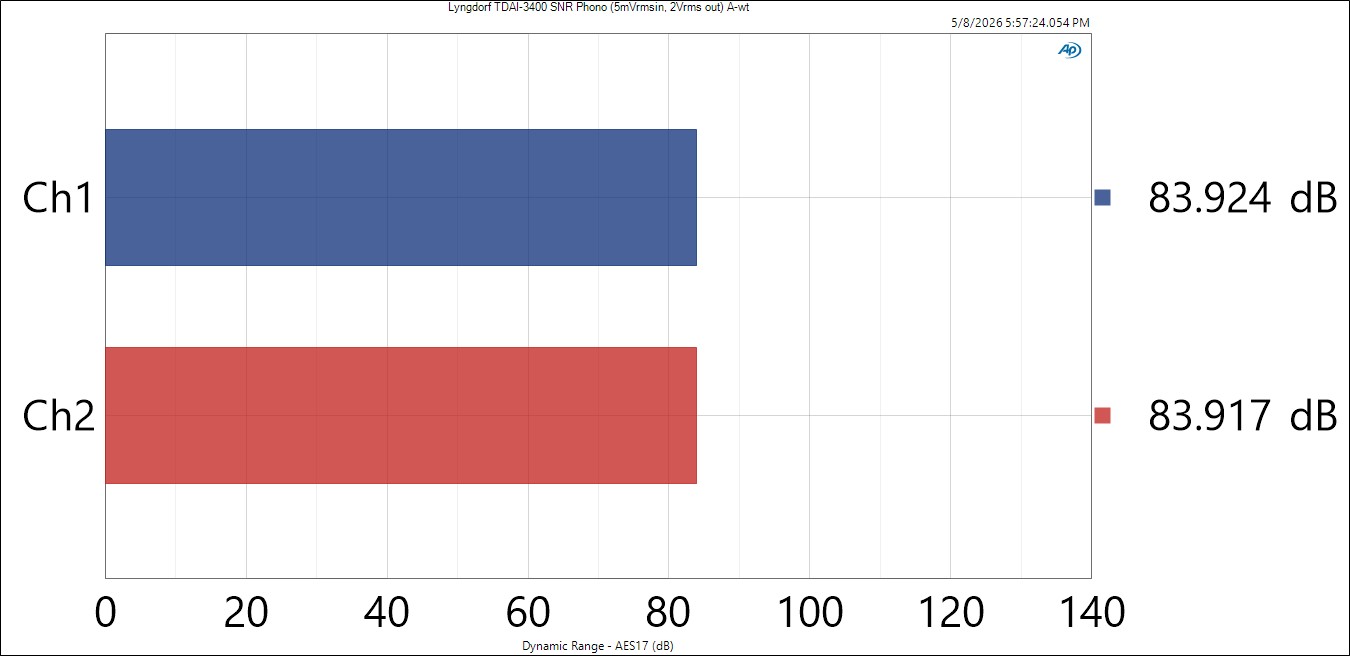

Lyngdorf TDAI-3400 Phono Out  (2Vrms) – Signal to Noise  Test (A-wt)

With a 5mVrms input signal to simulate the voltage level typical of a MM cartridge, I measured 84dB SNR (A-wt) at 2Vrms unbalanced and balanced which is excellent. Between the linearity, high input drive capabilities and linearity, Lyngdorf offers up a very high quality MM phono stage in their analog module and well worth it for vinyl lovers.

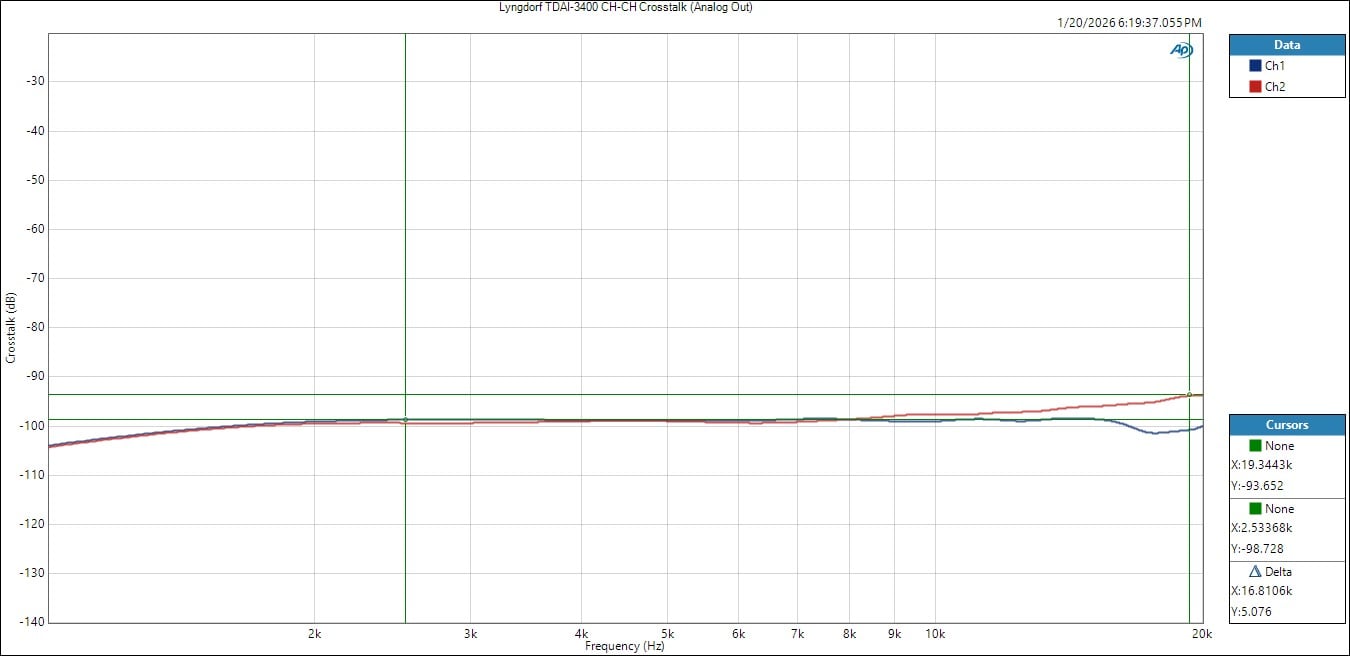

Lyngdorf TDAI-3400 CH-CH Crosstalk (1CH, Undriven) Analog Out (2Vrms)

The channel-channel crosstalk from the analog XLR outputs is excellent > 95dB  at 20kHz.

Bass Management

The Lyngdorf TDAI-3400 has the most advanced bass management options I’ve ever seen in a two-channel integrated amplifier. It’s flexibility is akin to a top notch multi-channel AV processor and it’s a welcome feature set I’d like to see other companies follow suite in this category of product. The TDAI-3400 accommodates dual independent subwoofer outputs which can be configured as stereo or mono and the bass management allows full crossover and filter slope adjustability and filter type (ie. Linkwitz-Riley, Butterworth, etc) for both HPF and LPF functions.

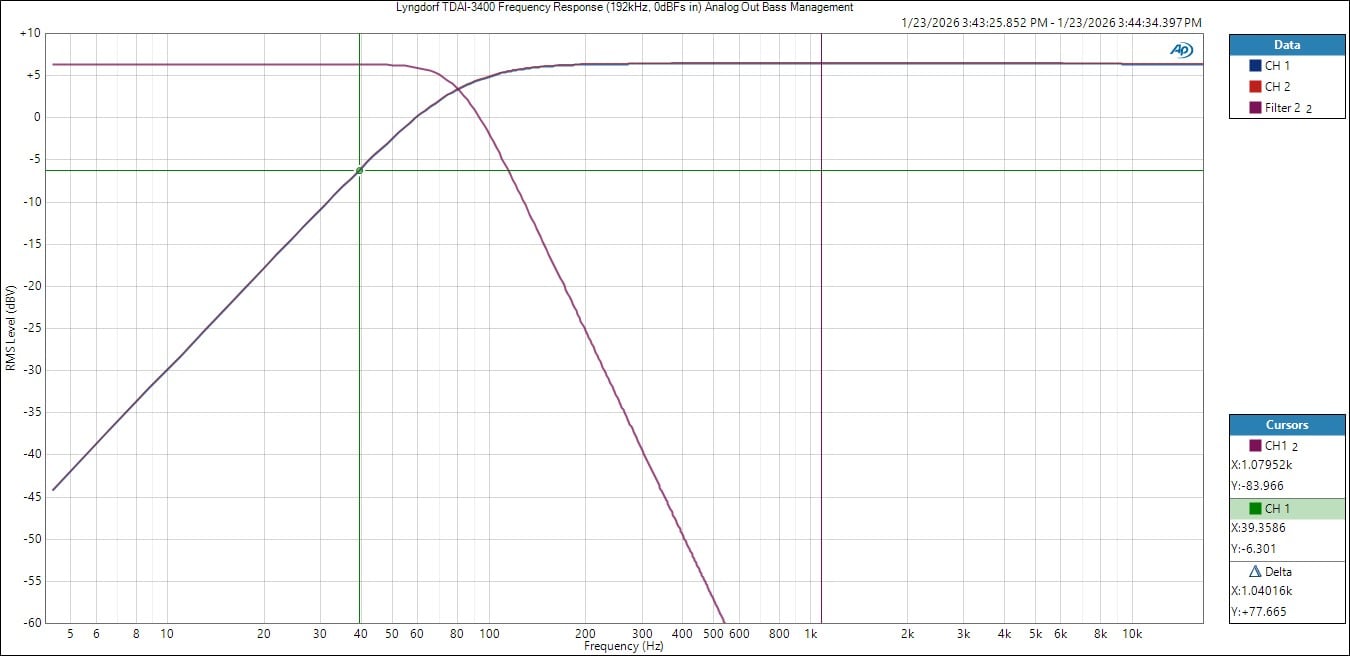

Lyngdorf TDAI-3400 Bass Management Measurements

Setting the crossovers to the standard THX 80Hz with 12dB/oct for the speakers and 24dB/oct for the sub out, I measured textbook roll-offs and perfect summation. I verified various crossover points and slopes and everything measured as expected.

TDAI-3400 Power Amplifier Measurements

Using our Audio Precision APx585 8-channel HDMI analyzer, we conducted a full barrage of multi-channel amplifier tests on the Lyngdorf TDAI-3400 per our Amplifier Measurement Protocol. We tested power using three methods all of which were taken at < 0.1% THD + N:

• Continuous Full Power Bandwidth (CFP-BW) from 20Hz to 20kHz into 8 and 4-ohm loads (up to two-channels)

• 1kHz Power Sweep vs. Distortion (1kHz PSweep) - popularized by the print magazines, this is an instantaneous power vs. distortion test at 1kHz. The problem with this test is it often masks slew-related and/or frequency response problems some amplifiers exhibit at the frequency extremes, and thus inflates the measured power results. It does provide an instant gratification number for consumers to argue over on the forums, so we are now incorporating this test to please the masses.

• Dynamic PWR - 1kHz CEA-2006 Burst Method testing. This is a dynamic power measurement adopted from the car industry similar to IHF method only a bit more difficult for an amplifier and more representative of real musical content.

Keep in mind most review publications don't do continuous power measurements and they usually publish power measurements into clipping at 1% THD + N. Our measurements are very conservative as we use a dedicated 20A line with no Variac to regulate line voltage.  We constantly monitor the line to ensure it never drops more than 2Vrms from nominal, which in our case was 120Vrms.

For more info on amplifier measurements, see:  The All Channels Driven (ACD) Test

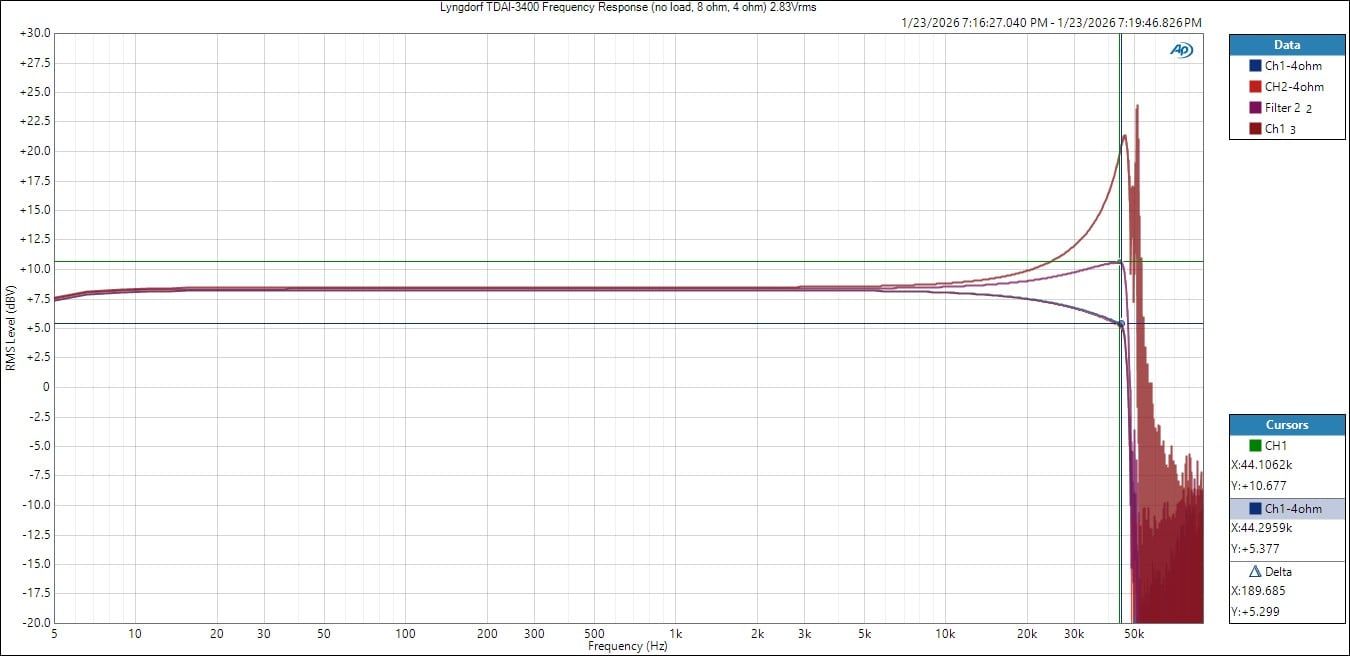

Lyngdorf TDAI-3400 Frequency Response 1 watt (8 ohm, 4 ohm, no-load) conditions

Sweeping the Lyngdorf TDAI-3400 at 2.83Vrms, I wanted to observe its frequency response variations under 8-ohm, 4-ohm, and no-load conditions. The best linear and Class D amplifiers are typically load invariant, meaning their frequency response remains virtually identical regardless of load. The TDAI-3400 is at a disadvantage here, as the response varies by as much as 15dB above 40kHz between the 4-ohm and no-load conditions, though thankfully that deviation is reduced to about 3dB at 20kHz. This means that, unlike a truly load-invariant amplifier, the TDAI-3400’s sonic performance may vary more noticeably depending on the loudspeaker’s impedance characteristics. This becomes less noticeable when using RoomPerfect to optimize the system response, especially given its ability to tailor the sound via the shelving filters and parametric EQ functions built into the Lyngdorf TDAI-3400.

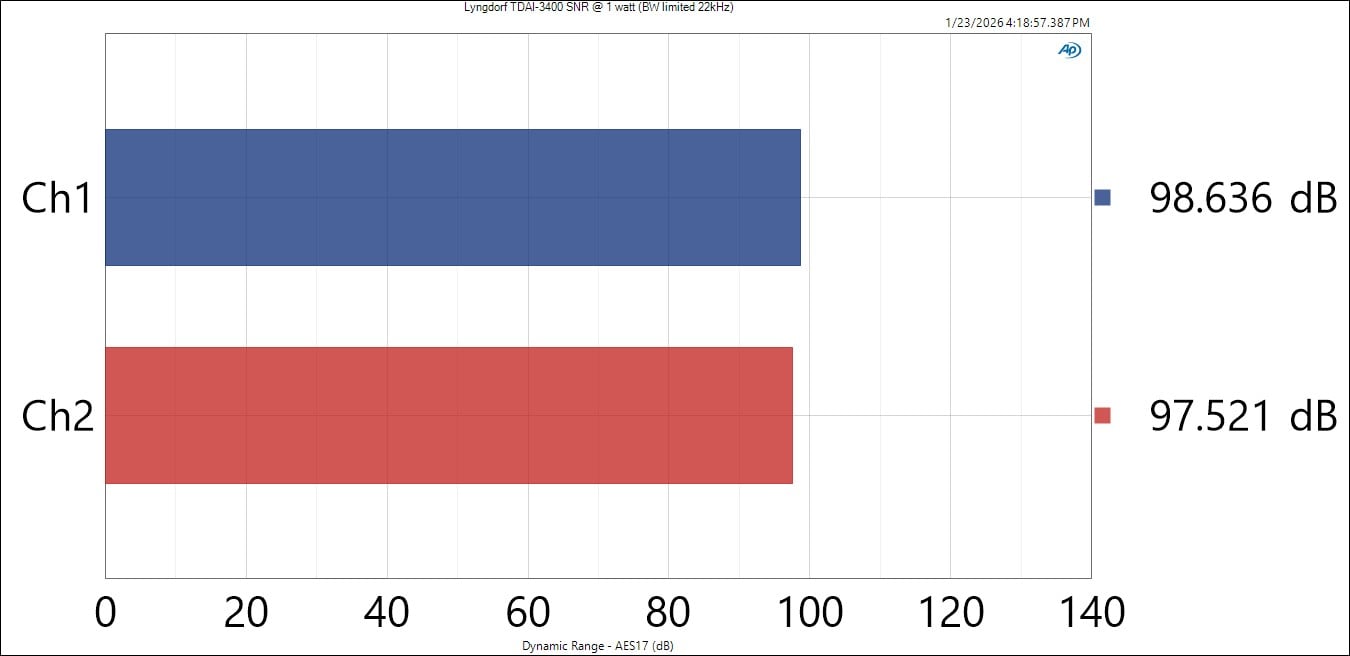

Lyngdorf TDAI-3400 SNR @ 1 watt (bw limited 22kHz)

I always measure amplifiers at 1 watt so that apples-to-apples comparisons can be made between products with different maximum output capabilities. If you want to determine the SNR at rated power, you simply take the 1-watt SNR measurement and add:

where is power in watts and is the load impedance. In this case:

resulting in approximately 120dB SNR (22kHz bandwidth limited).

Editorial Note about SNR Testing of Lyngdorf TDAI-3400

Because the Lyngdorf TDAI-3400 exhibits substantial ultrasonic switching noise, a 22kHz bandwidth-limited measurement yields a better SNR result than A-weighting alone, since the bandwidth filter more effectively removes out-of-band switching artifacts.

Because the Lyngdorf TDAI-3400 was measured using a 22kHz bandwidth limit rather than A-weighting, its SNR results cannot be directly compared to A-weighted measurements of amplifiers that do not exhibit similar out-of-band noise characteristics.

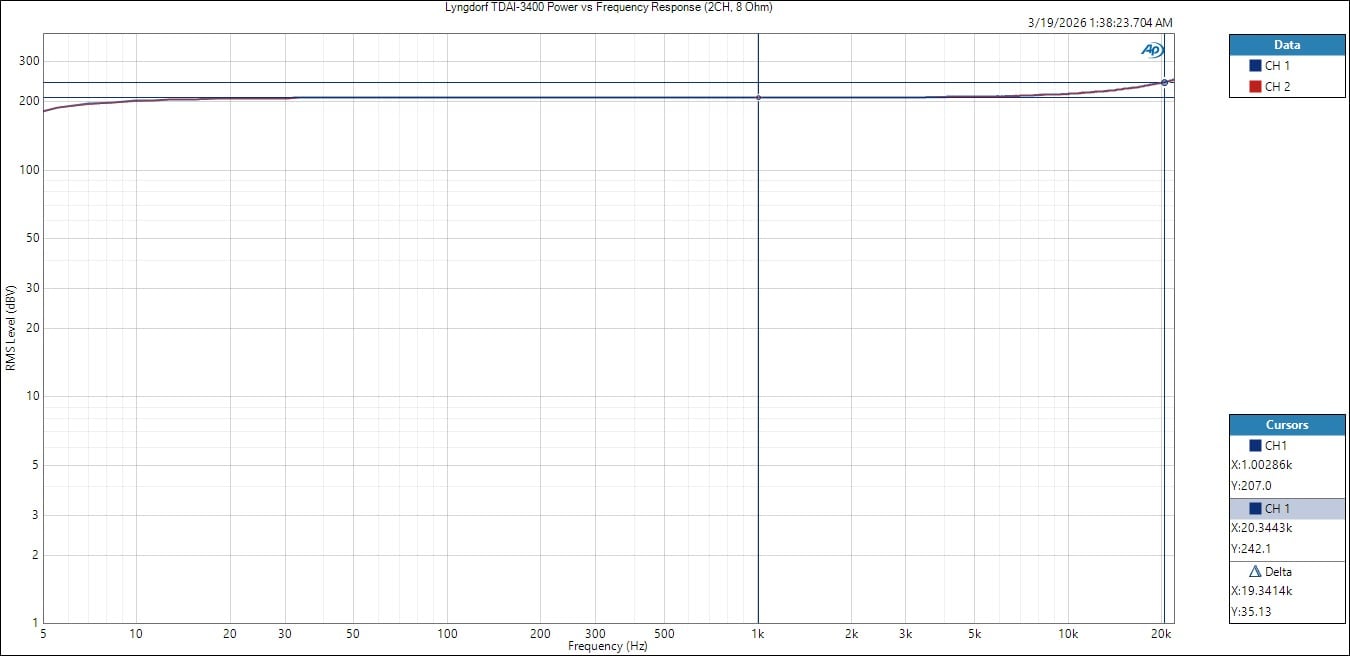

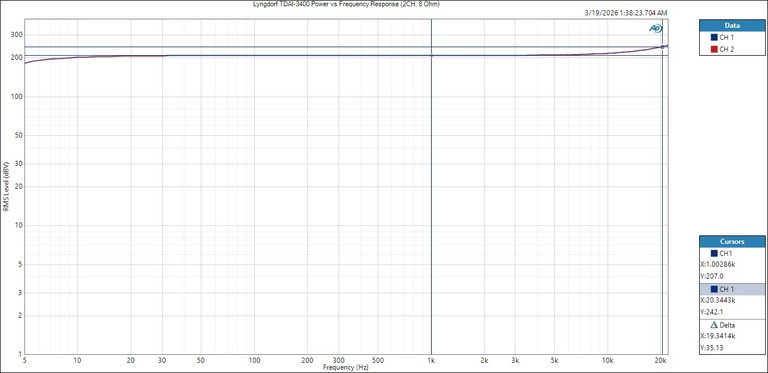

Lyngdorf TDAI-3400 Frequency Response @ Full Rated Power (2CH driven, 8 ohms)

The Lyngdorf TDAI-3400 hit its 200 watts/ch spec unclipped from 5Hz to 20kHz for long sweeps with 2CH driven, 8 ohms. The slight rise in frequency response at 20kHz illustrates its load variant behavior.

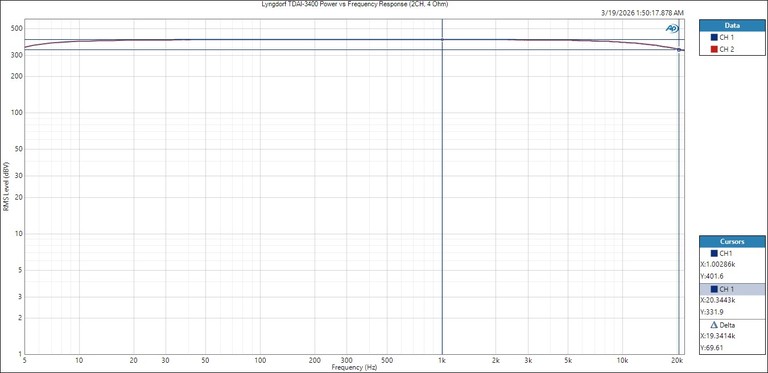

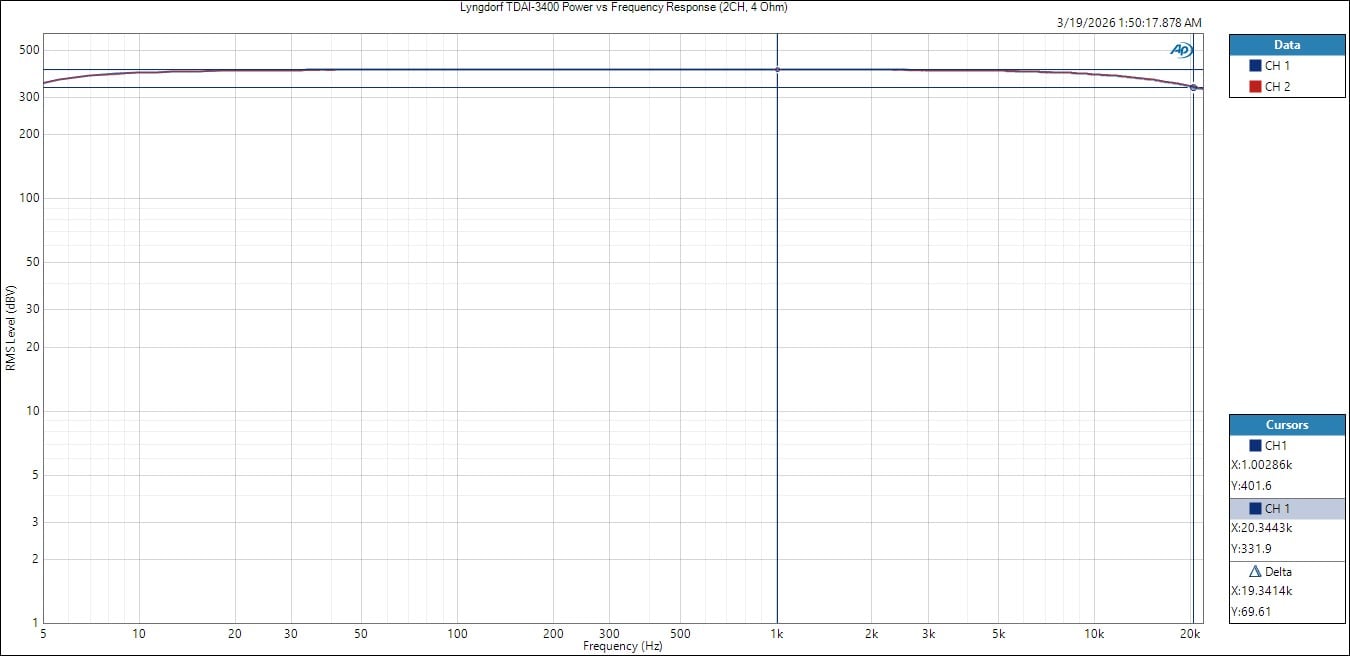

Lyngdorf TDAI-3400 Frequency Response @ Full Rated Power (2CH driven, 4 ohms)

The Lyngdorf TDAI-3400 hit its 400 watts/ch spec unclipped from 5Hz to 20kHz for long sweeps with 2CH driven, 4 ohms. The slight fall in frequency response at 20kHz illustrates its load variant behavior. This amp is able to easily double down power with halving load impedance and sustain it continuously with both channels driven is a testament to its robust design and impressive for an integrated amplifier you can carry with just one arm.

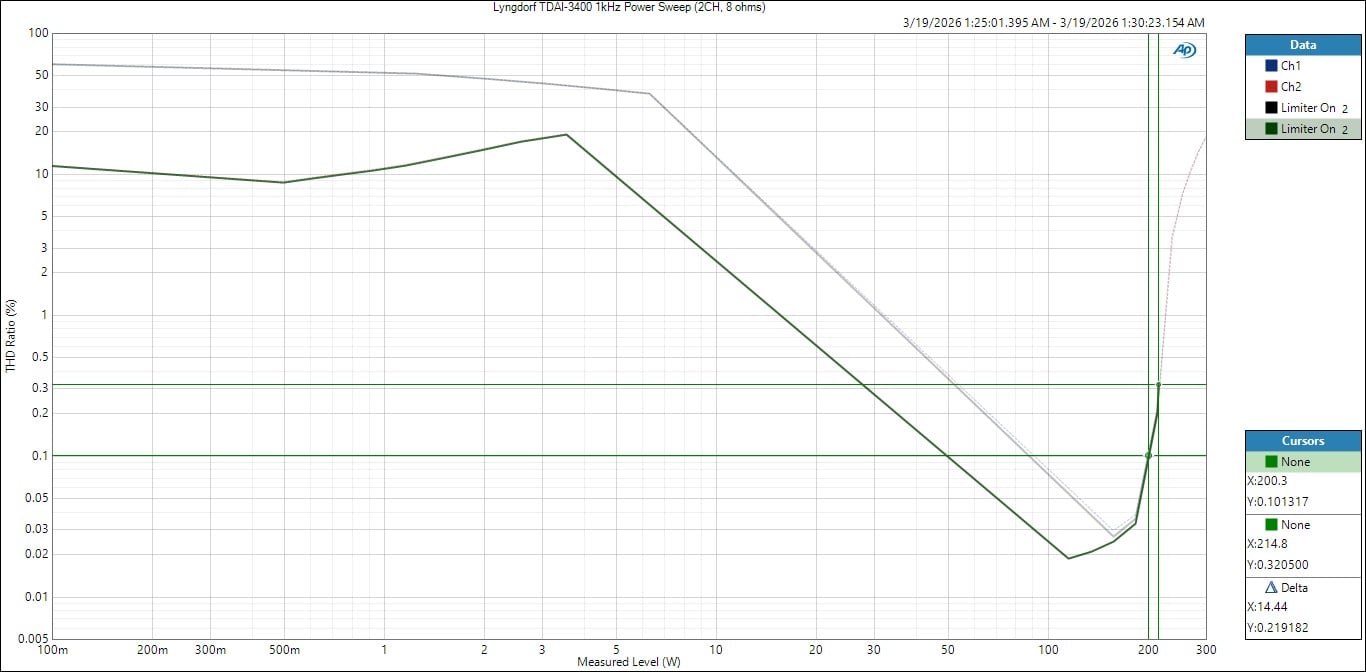

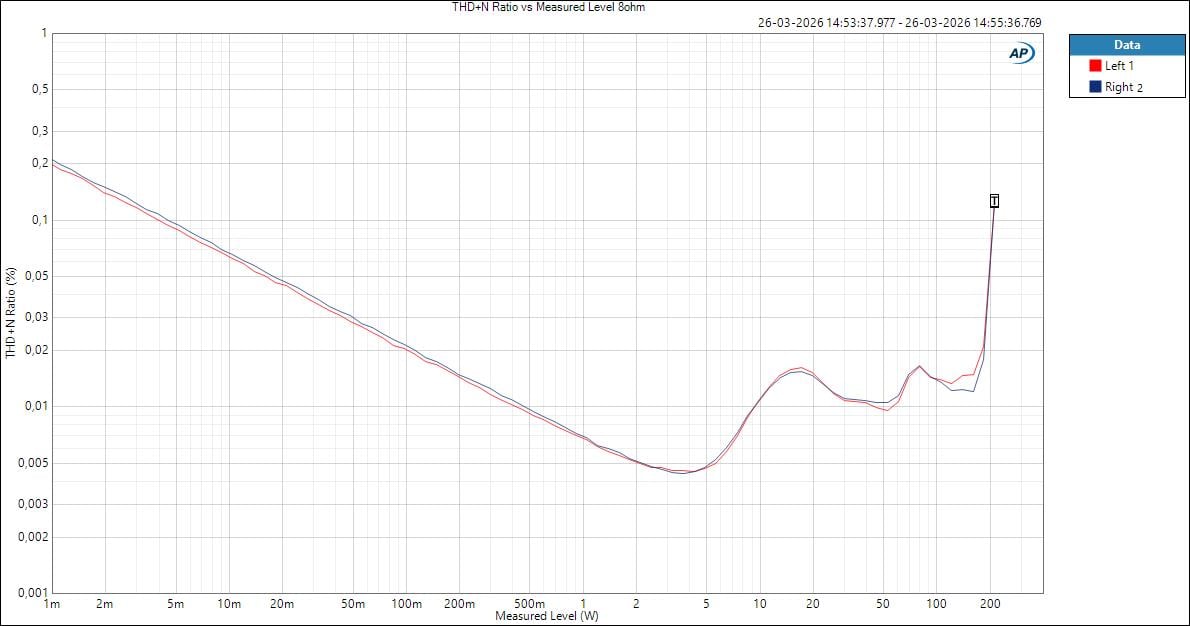

Lyngdorf TDAI-3400 1kHz PSweep (2CH) - 8 ohms

The Lyngdorf TDAI-3400 produced 200 watts/ch at 0.1% THD+N and 214 watts/ch at 1% with both channels driven into 8 ohms. The limiter circuit prevents the amp from going into hard clipping beyond its rated power as you can see in the bold traces where power vs distortion stops above 0.3%% THD+N.

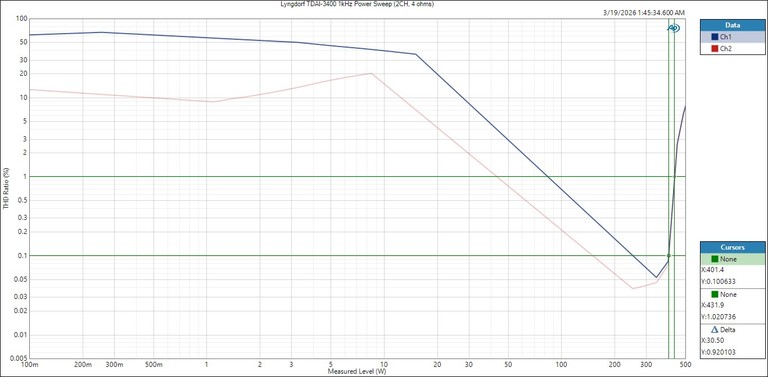

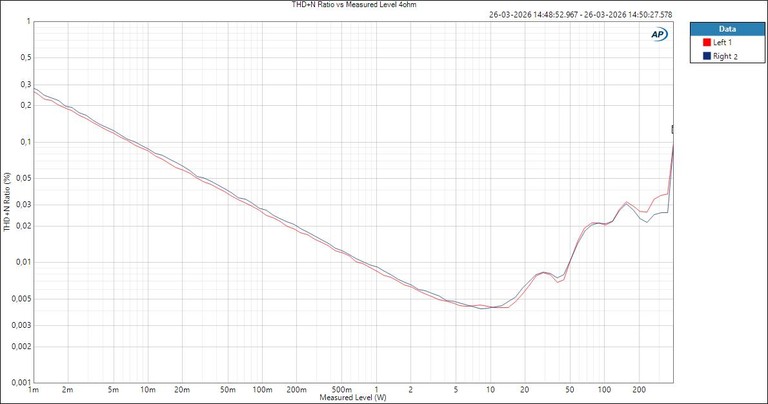

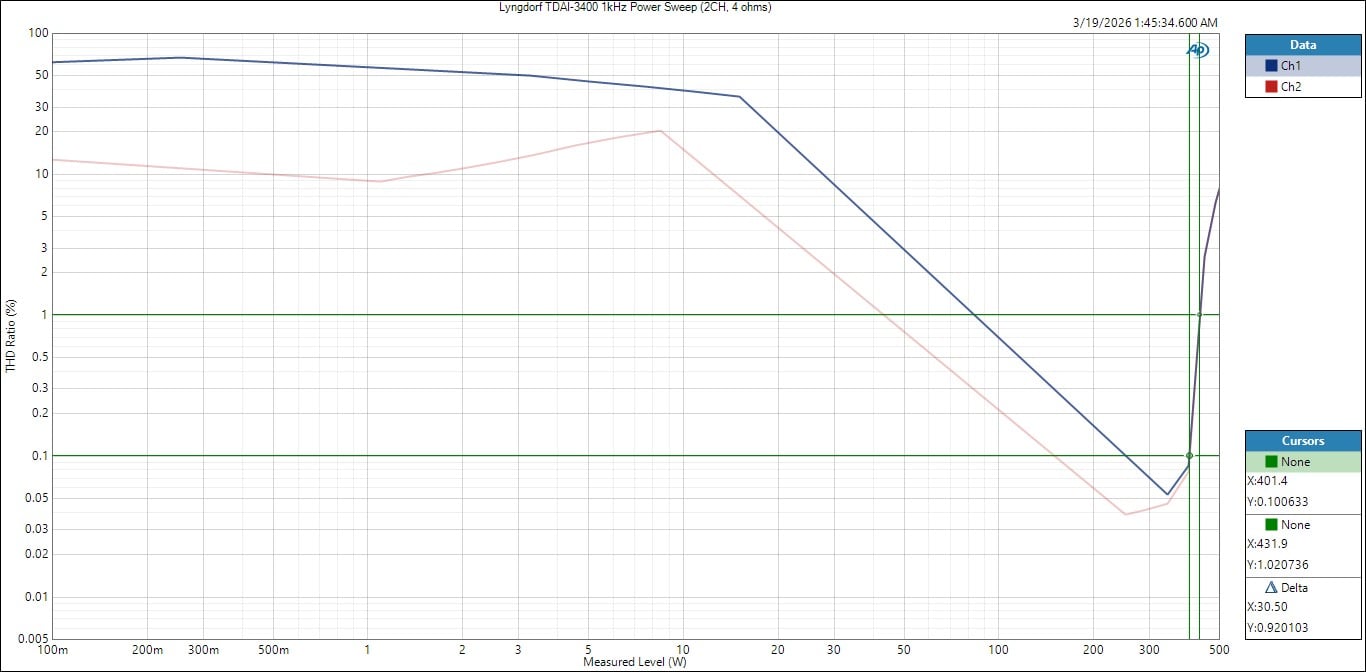

Lyngdorf TDAI-3400 1kHz PSweep (2CH) - 4 ohms

When driving 4 ohm loads, the Lyngdorf TDAI-3400 was able to produce 401 watts/ch at 0.1% THD+N and 432 watts/ch at 1% THD+N with both channels driven right in line with Lyngdorf’s specifications.

Editorial Note About Distortion Testing on the Lyngdorf TDAI-3400

The Lyngdorf TDAI-3400’s substantial ultrasonic switching noise can overload or contaminate the Audio Precision analyzer input and produce artificial distortion artifacts in the absence of the Audio Precision AUX-0025, making the resulting THD measurements unreliable for meaningful comparison. That is why I have also included the manufacturer’s test results, which are taken using the AUX-0025 filter, to provide a more accurate representation of the amplifier’s true distortion performance.

Lyngdorf Measurements of TDAI-3400 1kHz PSweep (2CH) - 8 ohms

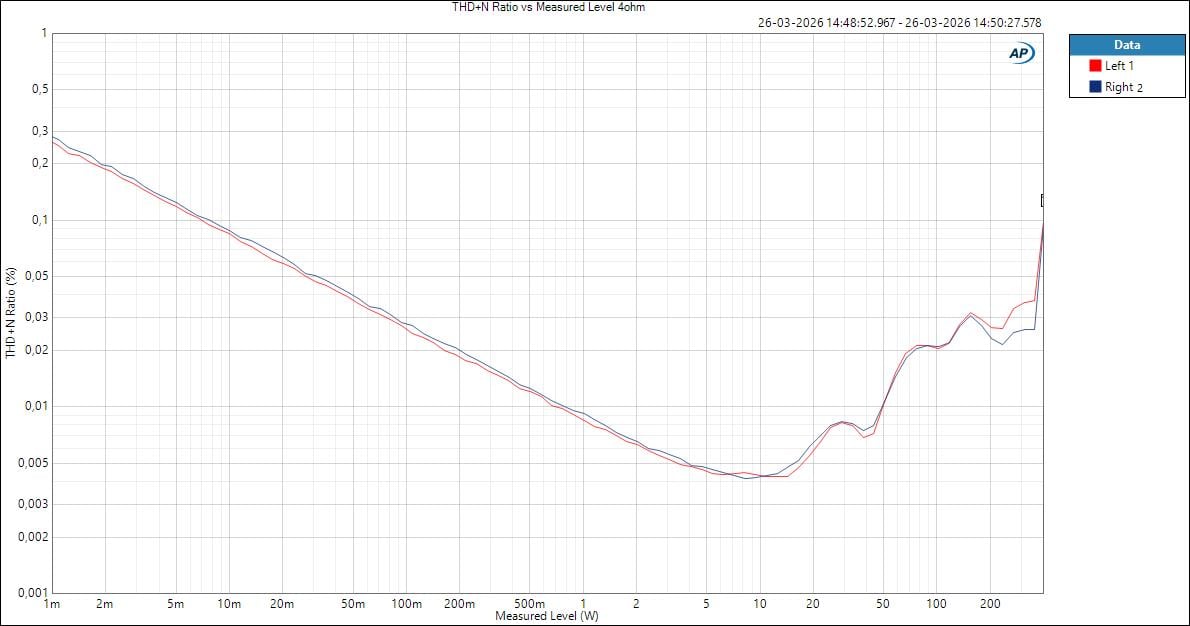

Lyngdorf Measurements of TDAI-3400 1kHz PSweep (2CH) - 4 ohms

As you can see with the AUX-0025 precondition filter in place, the Lyngdorf TDAI-3400 THD + N measurements are much more inline with what we’d expect. SINAD is about 88dB at 5 watts which is very good but not as stellar as some of the newer Class D amps from competitors.

Editorial Note About Dynamic Burst Test (CEA-2006)

As with most Class D amplifiers utilizing regulated SMPS power supplies, CEA-2006 burst testing rarely produces significantly higher power figures than steady-state sweeps because the supply rails remain tightly regulated under dynamic conditions. Regulated SMPS designs offer major advantages in efficiency, size, and sustained power delivery compared to traditional linear supplies, though the tradeoff is typically reduced dynamic headroom during burst testing. When properly designed, however, the amplifier can approach ideal voltage-source behavior by nearly doubling power as load impedance halves, up to the current limits of the power supply and output devices, like we observed with the Lyngdorf TDAI-3400 power test results.

Editorial Note about FTC Rule Amplifier Testing

The final Amplifier Ruling of August 2024 (16 CFR Part 432) requires that, after the input signal has been continuously applied at full rated power for at least five minutes, the amplifier must remain capable of operating at any output level from 250 mW up to its rated power across all frequencies within the 20 Hz–20 kHz bandwidth at 8 ohms, without exceeding 1.0% THD+N. I’m happy to report that the Lyngdorf TDAI-3400 had no issues sustaining 200 WPC into 8 ohms for far longer than five minutes, as I discovered with great confidence when I forgot to turn off the function generator on my Audio Precision while filming a YouTube Short and my room started to smell like a barbecue after about 20 minutes. The Lyngdorf TDAI-3400 still functioned like a champ, but the copper plating on the heatsink of my 8-ohm loads became bubbly and is now permanently deformed ☹

# of CH	Test Type	Power	Load	THD + N
2	CFP-BW	200 watts	8-ohms	0.1%
2	CFP-BW	400 watts	4-ohms	0.1%
2	1kHz Psweep	214 watts	8-ohms	1%
2	1kHz Psweep	200 watts	8-ohms	0.1%
2	1kHz Psweep	432 watts	4-ohms	1%
2	1kHz Psweep	401 watts	4-ohms	0.1%

LYNGDORF TDAI-3400 Power Measurement Table

Lyngdorf TDAI-3400 vs Competition

Brand / Model	Approx. Price	Rated Power Output	Amplifier Topology	Room Correction	Streaming Platform	Best For	Key Advantage vs Lyngdorf TDAI-3400
Lyngdorf TDAI-3400	$7,500–8,500	200W x 2 (8 ohms)	Fully Digital / Class D	RoomPerfect	Built-in Streaming / Roon Ready	Difficult rooms, subwoofer integration, reference-level DSP	Exceptional RoomPerfect implementation and flexible bass management
NAD Masters M33 V2	$7,000–7,500	200W x 2 (8 ohms)	Purifi Eigentakt Class D	Dirac Live Bass Control	BluOS Streaming Platform	Modern all-in-one audiophile systems	Closest direct competitor with excellent streaming ecosystem and advanced room correction
Hegel H400	$7,000–8,000	250W x 2 (8 ohms)	Class AB	None	Network Streaming	Demanding speakers and pure 2-channel listening	Outstanding current delivery and damping factor for difficult speaker loads
McIntosh MA5300	~$7,000	100W x 2 (8 ohms)	Solid-State / Class AB	None	Minimal Streaming Features	Traditional high-end audiophile systems	Classic McIntosh sound and premium long-term ownership appeal

Really the closest competitor I see to the Lyngdorf TDAI-3400 in terms of similar feature set would be the NAD M33 V2. The NAD has the advantage of Purifi amplification which measures superior to the Lyngdorf and it also has a better front panel display with full color album art as opposed to just text scrolling on the Lyngdorf. However, I believe the Lyngdorf offers greater configurability options and RoomPerfect is much easier to get great sound from with less fuss than Dirac in my experience. You really can’t go wrong with either option. The Hegel and McIntosh are based on less efficient linear amplifier designs and are more for the purists that don’t offer any room correction facilities and the McIntosh has the least powerful amplifier of the four.

Lyngdorf TDAI-3400 Streaming Integrated Amplifier Conclusion

This was my first time reviewing a Lyngdorf product, and I came away genuinely impressed by the capabilities of the TDAI-3400 streaming integrated amplifier. In many ways, it feels like a high-end multi-channel AV processor distilled into a sophisticated two-channel audiophile amplifier component, offering a level of configurability and DSP flexibility that many competitors should take note of.

While the front-panel display is somewhat understated, I appreciate the minimalist industrial design. The silky-smooth digital volume control feels exceptionally premium, and the unit exudes quality despite its compact and surprisingly lightweight chassis. Although the amplifier section didn’t produce class-leading bench test results compared to some of the latest Class D competitors, those measurements never detracted from the actual listening experience. There’s something refreshing about an amplifier that can comfortably double its power into 4 ohms while still being light enough to carry downstairs with one arm.

Most importantly, RoomPerfect proved to be one of the best room correction systems I’ve used in a hi-fi product. Like Anthem ARC Genesis, it’s easy to set up, requires minimal post-calibration tweaking, and most importantly, it sounds natural and musically convincing. Combined with the outstanding web interface and app control, the TDAI-3400 becomes an incredibly flexible platform for system integration and sound customization. Streaming via TIDAL Connect worked flawlessly, and the amplifier delivered excellent sonics with both digital and analog sources. It drove the 4-ohm Arendal Sound 1610 Tower 8 speakers effortlessly, while RoomPerfect expertly balanced the sound in my room to my liking.

If you can get past the sticker shock, the Lyngdorf TDAI-3400 offers a compelling blend of cutting-edge DSP, elegant usability, and genuinely engaging sound quality. For the modern audiophile seeking a future-ready integrated amplifier that prioritizes both sonic precision and user experience, the TDAI-3400 is an easy product to recommend.
