RBH Sound Inwall Speakers

by — September 09, 2005
Filed under: Loudspeakers

RBH Sound may be best known for their inwall and custom products. They have built a legendary reputation over the last 25+ years designing no nonsense products to fit just about every conceivable installation. At CEDIA they debuted two new inwall products, the MC-6DB and MC-83.

Technical Specifications

MC-6DB

• Bi-polar/Di-polar switchable tweeters

• -3dB/0dB/+3dB adjustable tweeter level

• -3dB/0dB/+3dB adjustable woofer level

Frequency Response:

50Hz - 20kHz±3dB

Sensitivity:

88dB (2.83V @ 1 meter)

Power Handling:

120 Watts

Drive Units:

(1) 6½" Aluminum Woofer


(2) ¾" Aluminum Dome Tweeters

Swivel Tweeter(s):

Yes (2)

Tweeter Protection:

Yes

Crossover Frequency:

3000 Hz

Crossover:

12dB/Octave

System Impedance:

8 Ohms

Color:

White Paintable Frame and Grille

Finished Dimensions:

8¾" W x 12" H

Cutout Dimensions:

7½" W x 11" H

Weight:

5½ Lbs. (each)

MSRP:

$649/pair
[rbh11]

The MC-6DB (bottom speaker pictured above) is the di/bi-polar in-wall with 6 inch aluminum woofer and tweeters.

MC-83

• Currently RBH's only 3-way in-wall loudspeaker

• -3dB/0dB/+3dB adjustable tweeter level

• -3dB/0dB/+3dB adjustable midrange level

Frequency Response:

45Hz - 20kHz±3dB

Sensitivity:

88dB (2.83V @ 1 meter)

Power Handling:

170 Watts

Drive Units:

(1) 8" Aluminum Woofer


(1) 2½" Aluminum Cone Midrange


(1) 1" Aluminum Dome Tweeter

Swivel Tweeter(s):

Yes

Tweeter Protection:

Yes

Crossover Frequency:

2500 Hz, 10kHz

Crossover:

12dB/Octave

System Impedance:

8 Ohms

Color:

White Paintable Frame and Grille

Finished Dimensions:

10¼" W x 14¼" H

Cutout Dimensions:

9" W x 12¾" H

Weight:

5½ Lbs. (each)

MSRP:

$649/pair

[rbh2]

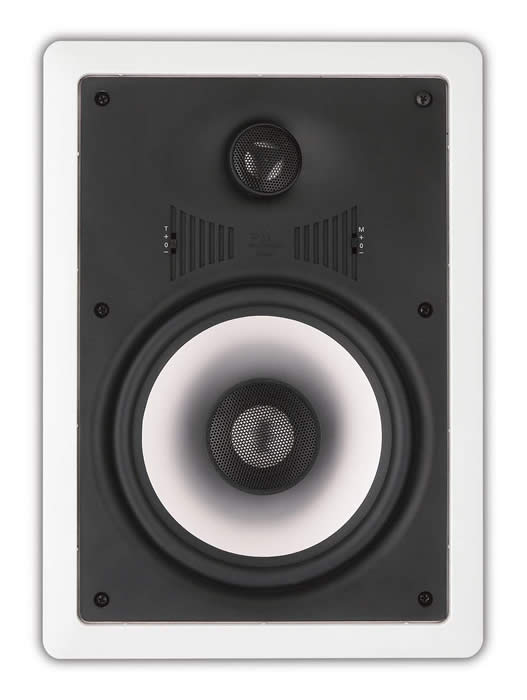

The MC-83 (pictured above) is a full range 3 way in-wall loudspeaker featuring an 8 inch aluminum cone woofer and one aluminum midrange and tweeter.

Pictured below are some shots of their newly released W M24 onwall speakers and MM series miniature box speakers. These are hot items to keep on your radar screen if you are looking for high performance, high value, unabtrusive loudspeakers to cosmetically appease the spouse, your golden ears and/or wallet.

[rbh4] [rbh3]

For more information, visit RBH Sound
