Westlake Audio BBSM-10VNF

By
Westlake Audio BBSM-10VNF

Westlake Audio BBSM-10VNF

Summary

  • Product Name: BBSM-10VNF
  • Manufacturer: Westlake Audio
  • Review Date: January 06, 2009 22:00
  • MSRP: $16,990/pair
  • First Impression: Mildly Interesting

MODEL NUMBER: BBSM-10VNF WITH ADJUSTABLE ISOLATION BASE

TYPE: 3 WAY FLOOR STANDING SYSTEM

ENCLOSURE TYPE: BASS-REFLEX

DRIVERS: DUAL 10* WOOFERS & 6 1/2* MIDRANGE & 1 1/4* DOME TWEETER

TECHNICAL FEATURES: EXTENSIVE DYNAMIC ELECTRO-MECHANICAL-ACOUSTICAL DAMPENING, INTEGRATED ULTRA LOW DISTORTION, 109 PART PRECISION HIGH LEVEL PASSIVE CROSSOVER FOR SINGLE OR BI AMP OPERATION, HI & LOW FREQUENCY *P.E.* BUS

INPUTS: HEAVY DUTY TERMINAL STRIP

USER FEATURES: BI-WIRE OR PASSIVE BI-AMP CAPABILITY

ACCESSORIES SUPPLIED: INTEGRAL *MID & WOOFER MUFFS*

ACCESSORIES AVAILABLE AT ADDITIONAL COST: SPEAKER MUFFS, SUPERFLEX LOW *P.E. DISTORTION** SPEAKER CABLES

SPECIFICATIONS:

  • POWER HANDLING: 120W
  • FREQUENCY RESPONSE: 40-18K
  • IMPEDANCE: 4 OHMS NOMINAL 2 OHMS MINIMUM
  • SENSITIVITY: 95 DB @ 1M FOR 2.83V INPUT
  • COSMETIC FINISH: SATIN WALNUT VENEER
  • WARRANTY: 5 YEAR
  • DIMENSIONS: 46 X 14 1/2 X 19 1/2
  • WEIGHT: 198 LBS.

Executive Overview

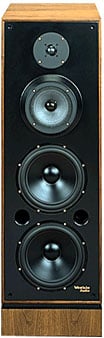

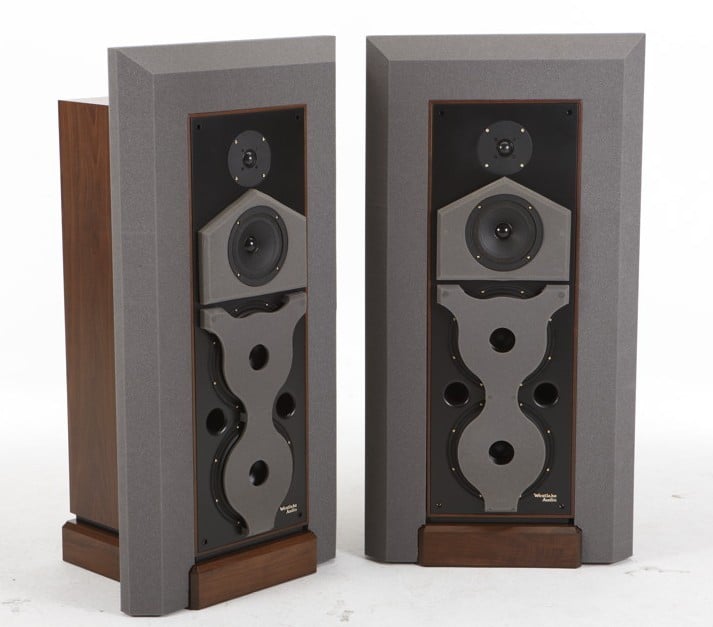

foamlessThe Westlake Audio BBSM-10VNF is a floor standing version of the classic BBSM-10 monitor. The 3-way system uses dual 10" woofers, a 6 1/2" cone midrange and 1 1/4" soft dome tweeter in a ported enclosure. The frequency response is spec'ed at 40-18K which is surprisingly honest for a speaker at this price point. For that alone Westlake Audio has piqued our interest. Of course, all the foam stuff turned us off. Fortunately, it is optional. The North American Walnut cabinet features extensive internal bracing with proprietary sound dampening materials that virtually eliminate any cabinet distortions. All crossover components including hand wound coils; capacitors and resistors are matched within a 1% tolerance to ensure balanced response.

BBSM-10VNF Specs

  • 3-WAY Floor Standing System
  • Dual 10* Woofers, 6.5* Midrange, 1.25* Tweeter
  • Isolation Base with Integral Top Adjust Isolation (Preferred) or Spike Feet
  • Integral Woofer and Mid Muffs
  • Compact Speaker Muff
  • ISO Crossover Assembly with Integral Isolated L.F. & H.F. *P.E.* Buses
  • New Tweeter Mounting with Low *P.E.* Wiring
  • Low *P.E.* Distortion Driver Units

For more information, please visit www.westlakeaudio.com.

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

About the author:

As Associate Editor at Audioholics, Tom promises to the best of his ability to give each review the same amount of attention, consideration, and thoughtfulness as possible and keep his writings free from undue bias and preconceptions. Any indication, either internally or from another, that bias has entered into his review will be immediately investigated. Substantiation of mistakes or bias will be immediately corrected regardless of personal stake, feelings, or ego.

View full profile

Recent Forum Posts:

irishtom posts on January 07, 2009 11:12
We talked about the foam over at the Lansing Heritage forum and some of us thought it was for dispersion control, some foams can act as a lens.

Back in the 70s and 80s EV used a foam lens that covered a large dome tweeter (Superdome) leaving a small hole in the center, it looked like a foam bagel. The lower frequencies from the dome passed through the foam but they higher frequencies came only through the small hole thus making for wider dispersion than a dome that size would normally have. This device allowed EV to use a larger than normal dome (and thus get higher output and a lower crossover than most domes) and still have wide dispersion.

The working of the lens is explained in this sheet from the EV archives.

http://archives.telex.com/archives/EV/Speakers/EDS/Interface%20C%20EDS.pdf
