Monitor Audio PL500 II Tower Speakers Preview

By
Monitor Audio PL 500 II Speakers

Monitor Audio PL 500 II Speakers

Summary

  • Product Name: PL 500 II
  • Manufacturer: Monitor Audio
  • Review Date: May 08, 2016 08:00
  • MSRP: $30k/pair
  • First Impression: Gotta Have It!
  • Buy Now
  • Frequency Response: 22Hz - 100kHz
  • Sensitivity ([email protected]): 91dB
  • Maximum S.P.L.: 120dBA (pair)
  • Nominal Impedance: 4Ω (4.2Ω min. @ 120Hz)
  • Power Handling (RMS): 400W
  • Recommended Amplifier Requirements (RMS): 150 - 400W
  • Cabinet Design: Four HiVe®II ports, Sealed mid-range TLE enclosure
  • Drive Unit Compliment:
    • 4 x 8" RDT®II long-throw bass drivers
    • 2 x 4" RDT II mid-range driver
    • 1 x MPD high frequency transducer
  • Crossover Frequency:
    • MF/HF: 3.6kHz
    • LF/MF: 460Hz
  • External Dimensions (Inc. plinth) (H x W x D): 71" x 19 13/16" x 24 5/8”
  • External Dimensions (Inc. feet & spikes) (H x W x D): 72 3/4" x 19 13/16" x 24 5/8”
  • Weight (each): 218lb



Executive Overview

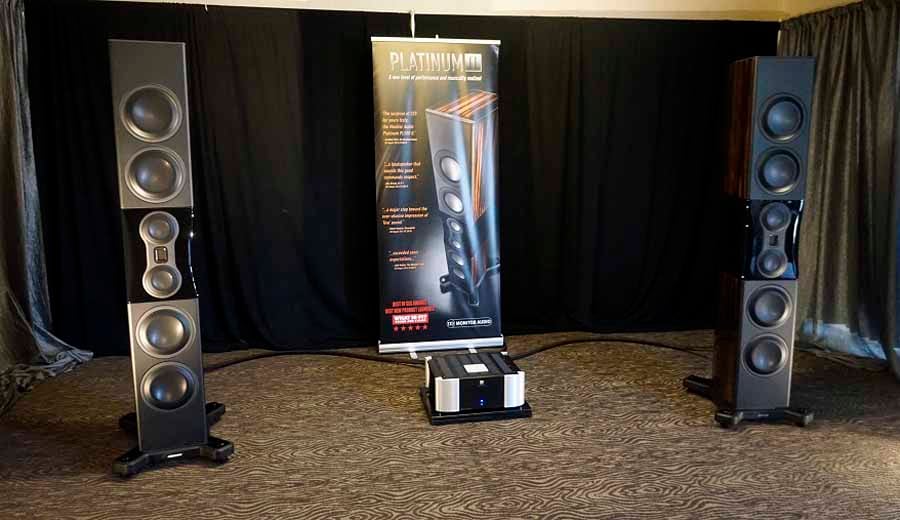

Audiophiles at AXPONA would have been remiss not to be present when one of the decades-long leaders of the British manufacturing industry brought in their new flagship speaker. The stately Monitor Audio Platinum Series PL500 II looks to be the loudspeaker equivalent of a Bentley automobile, with its Santos Rosewood veneer coated with 11 layers of gloss piano lacquer and a front baffle upholstered with high-quality Inglestone leather. Its 6 foot height and 220 lbs weight makes it a formidable visual presence in any room; a monumental, opulent monolith which is almost intimidating, and perfect for the delivery of those high-brow symphonic recordings for discerning listeners. Of course, we were using them to rock out to Daft Punk.

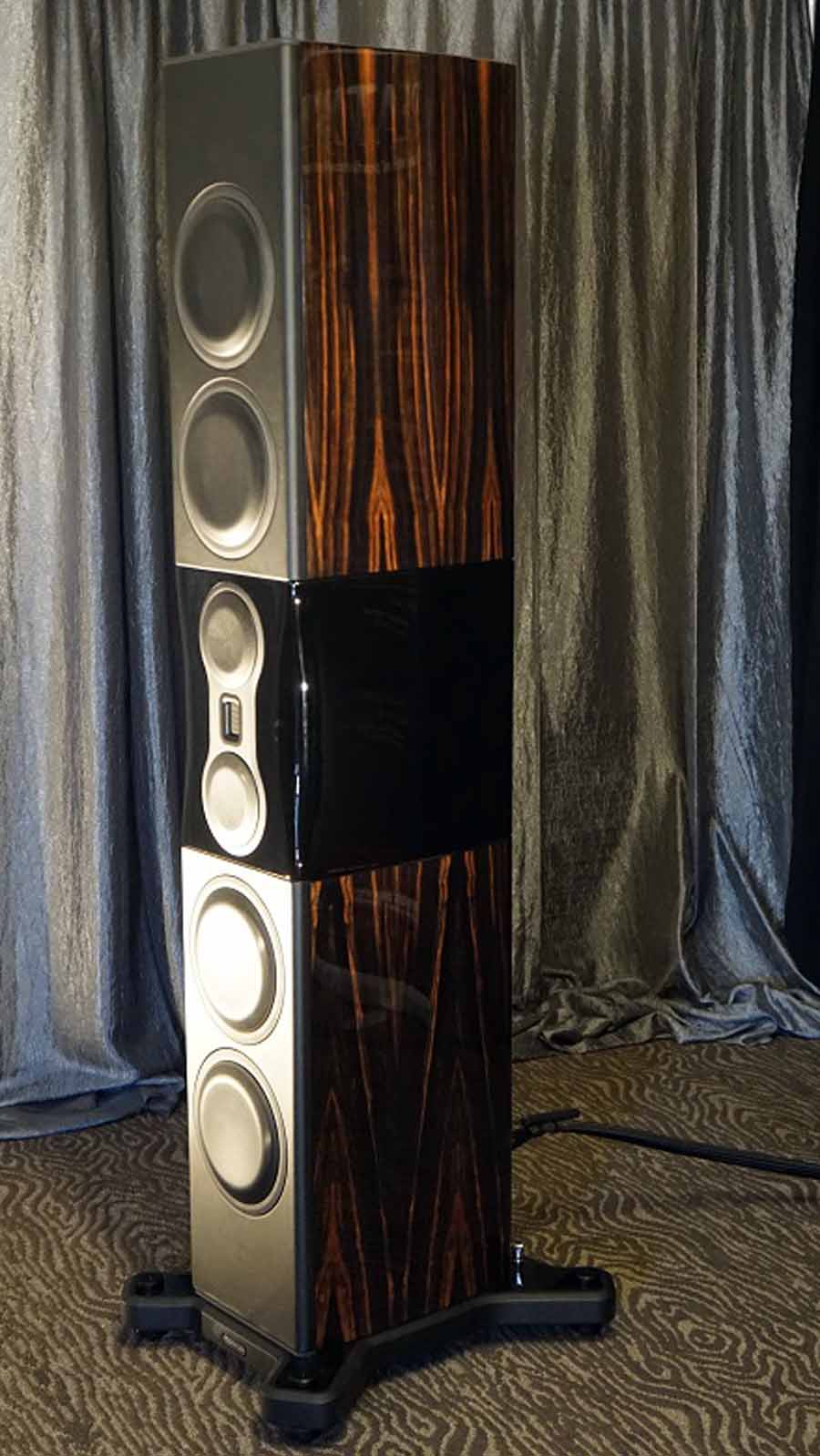

Monitor Audio Platinum PL 500 II Speaker

The Monitor Audio Platinum PL 500 II Tower Speaker

Luxurious appearance is nice and all, but it isn’t worth much if the speaker can not perform. To say the PL500 II can perform is an tremendous understatement. Four eight inch bass drivers, two four inch midwoofers, and MPD tweeter (Micro Pleated Diaphragm, similar to an AMT driver) give the PL500 II’s enormous capability. The drivers themselves are built from a spare-no-expense, state-of-the-art design design philosophy, much like the rest of the speaker. The cone of the woofers are a new composite design of extremely thin, low mass skins which are very rigid, and which Monitor Audio claims reduces distortion over 300 Hz by over 8 dB. Precise cone geometry, high performance suspension, thermal optimization, and a new type of coupling of the voice coil to cone are just a few of the other innovations in the bass drivers and midwoofers. In addition, the rear chamber of the midwoofers are sealed within the driver structure itself in a tapered line enclosure, in an effort to optimally damp standing waves from creating unwanted resonances in the cabinet. Monitor Audio calls their tweeter a MPD high frequency transducer, and it is based on the AMT tweeter. Monitor have increased the number of pleats and decreased the height from traditional AMT tweeters, and this has enabled them to achieve a flat response out to 100 kHz.

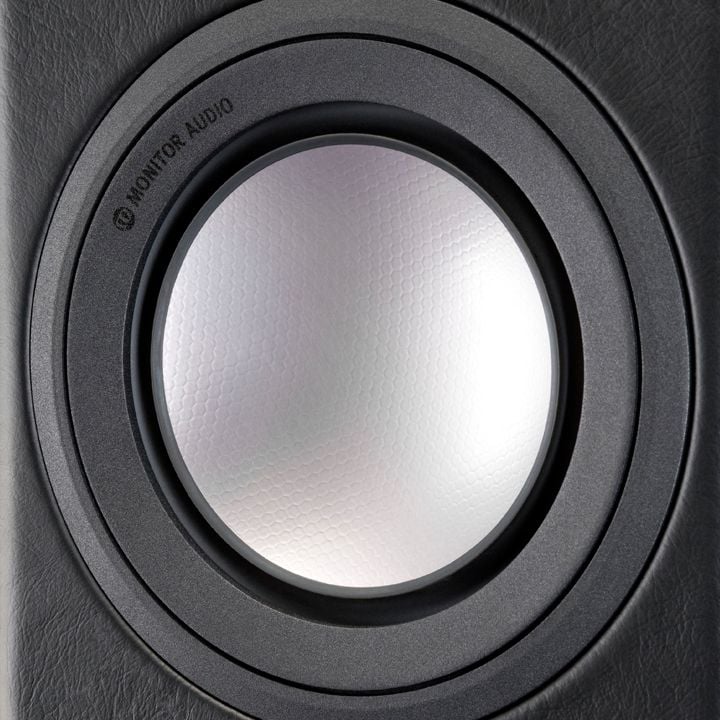

Monitor PL 500 DriverJust look at the bullet list of specs for the PL 500 II's and you will understand how serious of a speaker it is:

  • 4 x 8" RDT®II long throw bass drivers
  • 2 x 4" RDT II mid-range drivers
  • MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
  • 4 x HiVe®II ports
  • New patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
  • Bespoke speaker terminals and footings
  • Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
  • Bolt through drivers: clearer sound and cleaner aesthetics
  • Anti-Resonance Composite (ARC) mid-range housings and baffle components: reduced cabinet vibration, purer sound quality
  • TLE (Tapered Line Enclosure) sealed internal enclosure for mid-range drivers: greater sound accuracy and reduced cabinet vibration
  • Hand-upholstered front baffle: the very highest quality Inglestone leather supplied by Andrew Muirhead
  • Individual driver grilles
  • Finish options: Santos Rosewood or Ebony natural wood veneers with clear gloss piano lacquer, or Piano black gloss lacquer

The Devil is in the Details

The curvature of the cabinet isn’t just for aesthetics; curved surfaces have more strength than flat surfaces and do more to suppress the resonances of standing acoustic waves within the enclosure. Baffle components and the midrange housing is constructed from a special polymer which helps to damp vibrations which, along with the heavy internal bracing, creates an extremely inert cabinet. The drivers are mounted using a long bolt which is tightened from the back of the cabinet. This gives the drivers equal clamping force around their edges and acts as additional bracing in the cabinet. It also gives the front a cleaner appearance from the lack of any visible screw heads. The PL500 II is not at all cheap, but is not as expensive as one would expect being the flagship product from a major speaker manufacturer: $30k for a pair seems pretty reasonable given this level of engineering and materials excellence. They may be the Bentley of speakers, but they only cost as much as a Toyota, and their phenomenal sound may be able to transport you to places no automobile could ever go.
