AV Receiver Bass Management Basics – Settings Made Simple

by June 26, 2015
Contributors:

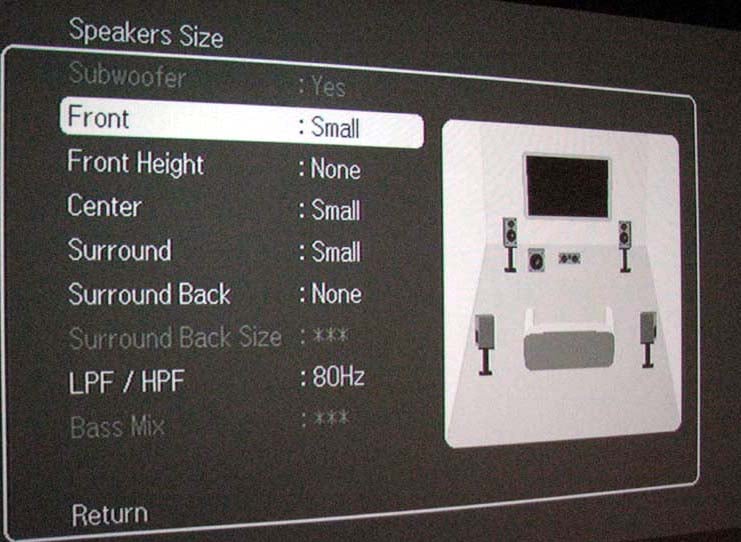

OSD Bass Management

OSD Bass Management

originally published: 4/10/10

Setting the Right Crossover and Size for Your Home Theater Speakers and Subwoofer

This guide is designed to address the numerous questions we receive from new home theater owners who purchase a new system component and don’t quite understand the How’s and Why’s of bass management. More advanced home theater folks may wish to peruse our more in-depth guides available on the site that give a more thorough explanation of this complex and often misunderstood topic.

Before we begin we’d like to define some terms that we’ll be using throughout this article:

  • Bass management: Setting speaker size and the crossover point to best match your home theater system.
  • Crossover Point (aka. Filter): The point which low frequency information on any speakers set to ‘Small’ will get routed to the subwoofer and the high frequency information to the speakers.
  • LFE - Low Frequency Effect - this is the dedicated 0.1 channel in 5.1/7.1 discrete surround systems.  This channel contains low frequency bass info not found on any of the other channels.
  • Large speakers: Loudspeakers that can reproduce flat full range (approx. 20Hz – 20kHz) undistorted frequencies at meaningful output levels.
  • Small speakers: Loudspeakers that cannot accurately reproduce bass frequencies (approx. 20Hz – 80Hz) frequencies and which would need a subwoofer to compliment lower frequency response.

Properly configuring bass management, or the way your receiver handles low frequency information, is necessary for obtaining the best possible sound for your home theater system. There are several types of bass management systems that can exist.

Here are a few:

  • Fixed: These systems merely ask you whether your speakers are Large or Small and do not offer the option to change the frequency of the crossover point. There is a crossover frequency (usually 80 or 90Hz), but is it not changeable by the user.
  • Variable Crossover: These systems offer you the ability to set your speakers to Large or Small, but also allow the user to alter the crossover for more optimal subwoofer and loudspeaker integration. This type of crossover system is found on most modern receivers and preprocessors.
  • Multiple Variable Crossover: There exist a few companies that offer the ability to set a different crossover frequency for multiple speakers (front, center, and rear, for instance. Products utilizing Cirrus chipsets come to mind.) This system is more complex by nature, though not necessarily better (but often worse if care is not taken for proper setup.)

 How to Set Bass Management in Your AV Receiver

What Is So Important About Bass Management?

Let’s say you bought a receiver and a speaker system. Bass management allows you to set them up in the most optimized way. Without it, you may not even hear the entire soundtrack to movies and music – it’s that important. In addition, speakers that are set incorrectly can often sound muddy or distorted because they are simply being sent too much frequency information that they cannot handle or process. Bass management is one of the most important setup procedures you can learn to tweak your system and make what you have sound even better – and for no cost!

In today's modern 5.1/7.1 home theaters, it is necessary to use at least one subwoofer to properly reproduce the LFE channel and to also reproduce the bass from all speakers set to "small".  Using a subwoofer can provide deeper and more consistent bass than running your main speakers "large". It also frees up your speakers to produce the frequencies they were designed to, thus allowing you to play them louder with less distortion.

What is a Crossover Frequency, Anyway?

Before you can understand bass management it’s important to comprehend the terminology and the nomenclature behind the things we’ll be discussing. The crossover frequency is the point at which bass management kicks in, sending low frequency information to the subwoofer, and allowing the information above this frequency to continue to play out of the loudspeakers (more on this in our next section.) In effect, you are attempting to set this frequency to the lowest point at which your smallest speakers can play with authority (+/-3dB). If you have small satellite speakers with 4 or 5” woofers this will likely be around 100-120Hz. If you are using bookshelf speakers, this could be from 60-100Hz. For floorstanding speakers utilizing multiple woofers, this could be anywhere from 40Hz-80Hz, though we’ll give you some suggestions later that may have you setting this to 80Hz for all but satellite systems.

If you have a mixed speaker system where all the speakers are not the same (like most of us) here are some tips for setting the crossover:

  • Set the crossover about 1/2 octave higher than the lowest frequency the smallest loudspeaker in the system can effectively reproduce. For example, if your main speakers are rated flat down to 60Hz, then set the crossover to 80-90Hz for those channels.  If you have a drastic difference (for instance, floorstanding mains and cube speaker surrounds) then you may need to sacrifice some of the bass information in order to more effectively balance the system.  In those cases, an AV receiver with multi-crossover settings can be advantageous so you can set the XOVER of the main speakers to 60Hz while the other smaller speakers get a higher setting like 80Hz.
  • If your receiver has a separate LFE crossover setting, set that to 120Hz.  This is the highest frequency that the LFE (0.1) channel supports.
  • Be sure to run setup test tones and recheck all of the speaker levels (preferably with an SPL meter) when you make any changes. Changing the Crossover or a speaker Size setting can affect the levels coming from the loudspeaker.
  • If you are completely lost or don’t know the frequency response of your speakers, don’t fret it – use the guidelines above and experiment until you achieve sound that you’re pleased with.

We’re making some generalizations here, so your mileage may vary, but if you understand the general concept you’ll enjoy a much better multi-channel home theater experience. If this frequency is set too high or small, then the next section will not function correctly, rendering your soundtracks a bit muddy and adding potential distortion to your system.

A couple things to note:

  • THX suggests a crossover setting of 80Hz with all speakers set to “Small” – much research on their part went into developing this recommendation and we also believe this is a great starting point for most systems.
  • Most home theater-in-a-box systems with very small 3” – 4” driver-equipped speakers will probably need to have the crossover set at 100Hz or 120Hz.
  • Follow these guidelines as a starting point and experiment.

Large, Small – Am I Ordering Food or What?

In addition to setting the correct crossover frequency, determining whether your speakers are LARGE or SMALL is likely the most critical aspect to getting the best sound reproduction in your system. The majority of home theater novices we’ve met have their speakers set to all LARGE (if this is you please read on.) This great “mystery” is actually quite easy to understand if you know what’s happening behind the scenes. When you set a loudspeaker to LARGE, you are in effect telling the bass management to bypass that speaker and send it the full range of that channel’s information. Let’s slow down and think about this for a minute because I’ve actually met people that argue with me that their bookshelf speakers sound better set to LARGE.

If a bookshelf loudspeaker has an effective frequency response of 50Hz – 20kHz +/-3dB that means that information below 50Hz isn’t well produced by the speaker. In fact, it only serves to provide distortion and compression in the form of signal sent to the driver that it simply cannot reproduce. It’s like giving toffee to a person with no teeth! Let’s picture this in a practical example of an underwater explosion on screen. In this scene there is a large (read: loud) amount of 25-40Hz content and all of it gets sent to the bookshelf speaker. What happens? The speaker struggles with the information and plays back what it can, all the while being somewhat negatively affected by fact that it is also receiving content it simply cannot handle. Where is that 25-40Hz content being heard? Nowhere. It doesn’t get sent to the subwoofer, and it cannot be reproduced by the speaker.

Now, what happens when we set that same speaker to SMALL? Well, assuming we set the crossover frequency to, say, 80Hz, that bookshelf is absolutely loving life since it is now using all of its supplied amplifier power to deliver a relatively easy workload of frequency information. Reduced signal 80Hz is being sent to the speaker making it less stressed and resulting in less overall distortion.

Where Does All That Missing Sound Go?

OK, so we set the bookshelf or satellite speakers to SMALL – what happened to that content? Good question – easy answer. It got routed to the subwoofer channel where it belongs. There are several reasons why this is a very good thing:

  • Subwoofers are meant to handle low frequency information, so why let your other loudspeakers do it?
  • As most subs are powered these days, rerouting the power-hungry low frequency information there simply frees up your speakers to use the receiver or amplifier’s power for the rest of the soundtrack, resulting in better dynamics, greater headroom and less distortion.
  • Low frequency information below 120Hz is, for the most part, non-directional, meaning that even if the info is “crossing over” from a surround channel, you won’t know it. The effect will still sound like its coming from the surround, thanks to the principles of psycho-acoustics.
  • Better bass management allows you to avoid phasing issues associated with having multiple sources producing bass frequencies located at different distances between the listener and center channel speaker. In essence you are almost guaranteed better system bass integration with one subwoofer and all speakers set “Small” than using a subwoofer and all full range speakers set “Large”.
  • Sending all of the bass information to multiple subs properly positioned usually provides much more even sounding bass from seat to seat.  Remember the ideal locations for your speakers are usually NOT the ideal locations to place bass sources in your room.

OK, I Get It But My Speakers Really Are LARGE!

For some, your main speakers may actually extend down to 30Hz or lower, especially if they include 10” or 12” side-firing low frequency drivers. The temptation will be to set these speakers to LARGE. The setting is there so there must be a place for its use, right? Actually, we usually recommend setting almost all speakers to SMALL, even if they are physically large floorstanding speakers. Here’s why: Even though those floorstanders have a low extension, they won’t necessarily go down to the lowest range of your subwoofer as linearly and free of compression (unless your main speakers have more piston area and box volume than your sub – but we won’t address that here) The problem with the LARGE setting is: the ultra low frequency information will not be heard if the speaker cannot reproduce it. Well if by some chance you were able to get your main speakers bass extension flat down to 20Hz, then adding the subwoofer on top of that would yield too much (up to 6dB) of bass output at the frequencies both are producing. Hence integration between the loudspeakers and subwoofer will be poor and the bass may be overpowering, sloppy and/or boomy.

As a practical example, my reference system has a pair of RBH Sound 1266-LSEs which extend down to 32Hz. I have them set to SMALL and I set my crossover frequency to 60Hz. Because of this, the subwoofer handles everything up to 60Hz that would otherwise go to my front speakers. The front speakers are now freed up to concentrate on only 60Hz and up. The result is no lost information, less distortion, more headroom and a better overall sound.

Alternatively, you can bi-amp your large tower speakers where the mid/tweet section gets connected to the receiver front main speaker level outputs which will be set to SMALL and you can connect the bass drivers to a separate powered amplifier to the sub output of your AV receiver.  This will allow you to effectively treat them as powered subs which are now bass managed with your other powered subs in the system.  However, this type of setup is more complex and you really need measurement tools and know-how to properly setup a multi-sub system to get the benefits that these type of systems offer.

For more information, see:  Multi-Subwoofer Connection Guide

That’s It, Go Tweak!

There’s a whole lot more to this topic, however we’ve fielded so many questions related to the basics that it seemed like a good idea to write a Bass Management Primer of sorts to really drive home how important these settings are to a system. Now that you know a little more about it we hope you’ll go to your receiver and re-check your settings to optimize your speakers and system to operate at its optimal potential.  We highly recommend beginners making their lives a lot easier by setting ALL of their speakers to SMALL and using their AV receivers bass management (80Hz crossover) to route the bass info to a powered subwoofer.  This will almost always give you the best results without having to resort to pulling out a measurement system, or a slide rule to optimize the performance.

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!



About the author:

Gene manages this organization, establishes relations with manufacturers and keeps Audioholics a well oiled machine. His goal is to educate about home theater and develop more standards in the industry to eliminate consumer confusion clouded by industry snake oil.

View full profile

Recent Forum Posts:

Diesel57 posts on August 21, 2016 01:00
lovinthehd, post: 1150346, member: 61636
Try this http://www.audioholics.com/loudspeaker-design/understanding-loudspeaker-frequency-response
Great article…THANK YOU
pewternhrata posts on August 20, 2016 21:33
iMak, post: 1111007, member: 77510
I am using Jamo C109 as my front right and left floorstanding speakers, the Frequency Response rated (Hz, +/-3dB) 30Hz - 27kHz. If I set them to small, what crossover frequency should I set to, 80Hz? Thanks


+/-3dB 30Hz - 27kHz, ratings like those, what does it mean, I'm definitely a noob and tried searching but can't find answers. I know and understand the hz and xovers, but the dB I get lost at, as well as when octaves are thrown in the mix.
R. Laureano posts on August 09, 2016 12:22
Thank you for writing this article. I agree with the recommendation that setting the crossover of the main speakers (front, center, surround) to 80Hz or above for better acoustics. All sound below 80Hz will go to the subwoofer when the AV receiver has the main speakers set to SMALL and the subwoofer set to LFE. However, what I don't quite agree on is setting the subwoofer crossover automatically to 120Hz. The reason why people experience muddy sound is likely due to BOTH main speakers and subwoofer having OVERLAPPING SOUND between 80Hz and 120Hz! From a technical perspective and from my experience, I find the bass to be more seamless when setting the AVR to have BOTH main speaker crossover set to 100Hz AND the subwoofer crossover set to 100Hz! This is also with the speakers set to LARGE and the subwoofer set to LFE+Main on the AVR (more on this later).

Even though my main speakers can go down to 60Hz (as determined by Audyssey, and the frequency range of my speakers) doesn't mean I should automatically set the crossover to 60Hz or even 80Hz. Looking at the frequency graphs of my speakers show that the DB sound level starts to taper down starting at 100Hz! If I were set the crossover below 100Hz, the main speakers would struggle to produce volume between 60Hz to 100Hz. Since my subwoofer volume is flat across the 150Hz down to 20Hz frequency range, it makes more sense to have the subwoofer produce sound from 100Hz and below since it can produce more consistent volume levels at that range.

So why set the speakers to LARGE (vs. SMALL) and the subwoofer to LFE+Main (vs. just LFE)? The reason for this is so that ALL frequencies are sent to the main speakers ABOVE the crossover point. Also, any LFE signal PLUS bass frequencies intended for the main speakers would go to the subwoofer. The sound produced with this setup gives the impression of much larger main speakers compared to when the speakers are just set to SMALL and the subwoofer set to LFE on the AVR. When set to SMALL + LFE only, the AVR sends ONLY the LFE signal to the subwoofer WITHOUT sending the bass intended for the main speakers due to DSP circuits removing frequencies it doesn't believe small speakers can handle.
Shazam posts on July 31, 2016 18:50
Is it odd that I lose a lot of detail in the sound when I set my ELAC B6 Debuts at 80Hz crossover? I found that 90Hz is the sweet spot for them. 70Hz lost significant mids, while 100Hz sounded muddy. Is there an explanation for this? Right now I have F: 90Hz, S: 80Hz, C: 80Hz Sub: 120Hz. I'm just baffled by why that is happening with my ELACs. Would love your input if you ever have time. Thanks! Great videos as always.

EDIT: I'm back to 80Hz on all channels.. I don't know.. I guess I'm giving it some time. It sounds ok. Btw, system is a NR636.. yes, an ONKYO lol. Hope I won't get ridiculed for mentioning that. It was a deal I couldn't refuse. But I'm just trying to get the bottom of those ELACs, I know they can do 44Hz so why should I be cutting them at 80Hz? That's what I'm trying to understand. Because I lose a lot of meat when I go lower than 70 or higher than 90.
