RSL C34E In-Ceiling Speaker Preview
- Magnetic Grill with Edgeless design
- Dual 4 1/2” polypropylene woofers and a 7/8” silk-dome tweeter
- Pivoting tweeter
- Lateral driver alignment
- Low-profile 4" height
- 8 ohm nominal impedance
Here at Audioholics, we’ve become very impressed with RSL’s loudspeaker and subwoofer lineup. How much so? Well, we awarded the RSL CG24 5.1 Surround System our Top Pick in our 2015 AV Gear Guide for the compact systems category.
Nowadays, with the thrust towards Dolby Atmos, DTS:X, and Auro-3D immersive audio setups, traditional surround systems seem to be, well, a bit outdated. So when RSL’s owners, Howard and Joe Rogers, announced to us that they were launching new in-ceiling loudspeakers, we certainly wanted to take a closer look.
RLS’s C34E line of in-ceiling speakers are designed to be a perfect complement for immersive audio setups or stand-alone architectural speaker systems. In fact, RSL is marketing the new in-ceiling speakers for Dolby Atmos and DTS:X installations, home theater, and stereo applications.
Realizing that prospective customers will need install the C34Es in both new construction and retrofit them in existing structures, RSL designed the speakers so that they are only 4” deep and weigh in at 4 1/4lbs. In fact, they only require a total depth of 4 3/4” (including ceiling thickness), making them ideal for several tight-fitting installations. The C34Es will require a 10” mounting hole and take up a total diameter of 11 5/8”.

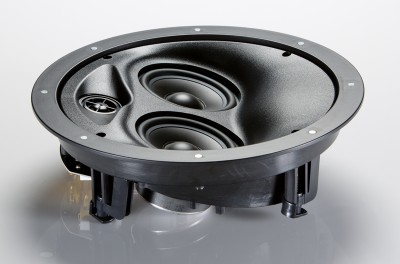

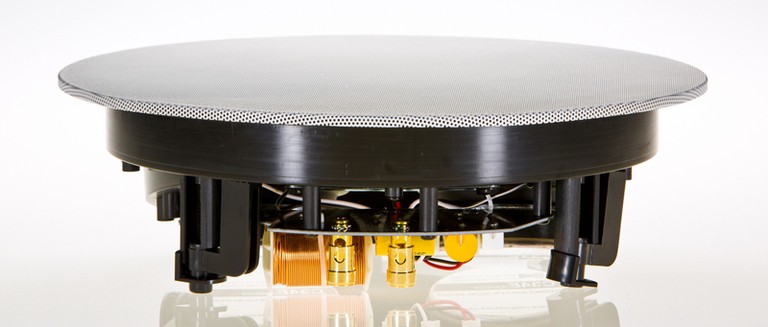

Angled profile view of the C34E
One of the things that has really impressed us about RSL during our hands-on review of their products is that their speakers are built with high quality parts. Not only that, but RSL products tend to feature elements that you typically find in much more expensive speakers. The same holds true of the C34E.
The C34E is comprised of dual 4 1/2” polypropylene woofers and a 7/8” silk-dome tweeter. The tweeter can swivel, making it easy to fine-tune and direct the tweeter’s frequencies post-installation. A pivoting tweeter likewise makes the C34E’s highly flexible in a number of installation scenarios and allows the C34Es to be used as side and rear surrounds.
Because the C34E is a backless design, the frequency response you’ll get out of these speakers will vary on the nature of the cavity they are installed into. However, as with all of RSL’s speaker offerings, they want you to support the low-end frequencies with their stellar-performing Speedwoofer 10 subwoofer. Therefore, in the typical installation, you’ll likely get a realistic in-room response somewhere down to the 60Hz range out of the C34E speakers making them an easy speaker to blend with a subwoofer.

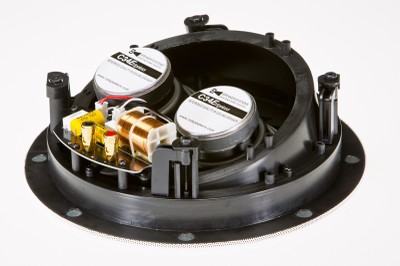

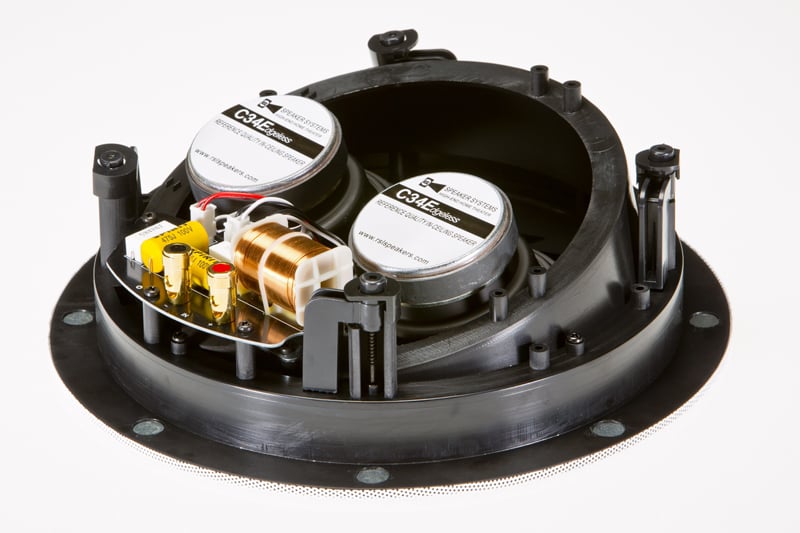

RSL C34E rear
When I spoke with Howard a bit about the design of the C34Es, he told me that the crossover on the speaker is a hybrid. It is 12db on the woofers and 6db on the tweeter. Howard also told me that the C34E uses a quality air core inductor (no ferrite cores) and only polypropylene caps (no electrolytics). As you’d expect, push terminals are gold-plated.
Many in-ceiling speakers mount the tweeter in the middle. To do so, they normally need to mount the tweeter with a bracket in front of the woofer. For Howard and Joe Rogers, they couldn’t tolerate such a design. Howard told me, “It causes an erratic frequency response as some of the sound bounces off the back of the tweeter (and in some speakers the bracket it’s mounted on) and reflects back into the woofer causing cancellation at various frequencies.”
Instead, RSL used a lateral alignment in the C34E where the tweeter is alongside the woofers. In addition, Howard told me that the baffle plate is molded so that the speakers are time aligned for phase coherency. Also, the baffle plate is slightly angled allowing the user to aim the speaker as well as swiveling the tweeter.
Just like their traditional speaker counterparts, the speaker grille is magnetic. It also sports an edgeless construction that doesn’t require a trim plate.

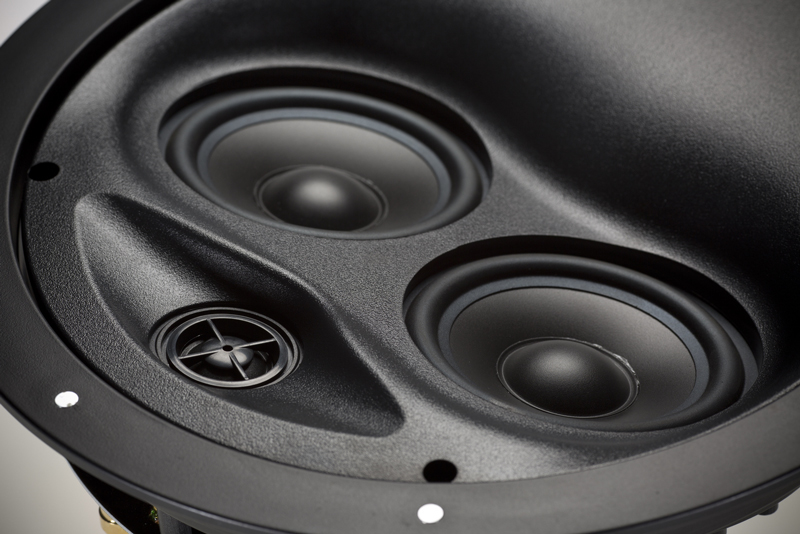

The slik-dome tweeter can pivot
The C34E costs only $125 each (including shipping!). Just like their traditional speaker counterparts, C34E’s have all the typical RSL hallmarks to indicate that these may very well be another high-performance, incredible value.

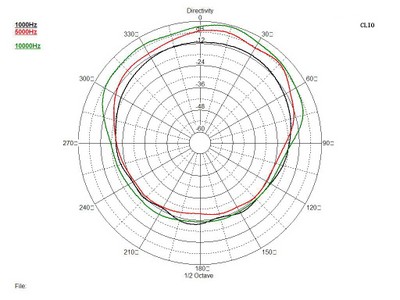

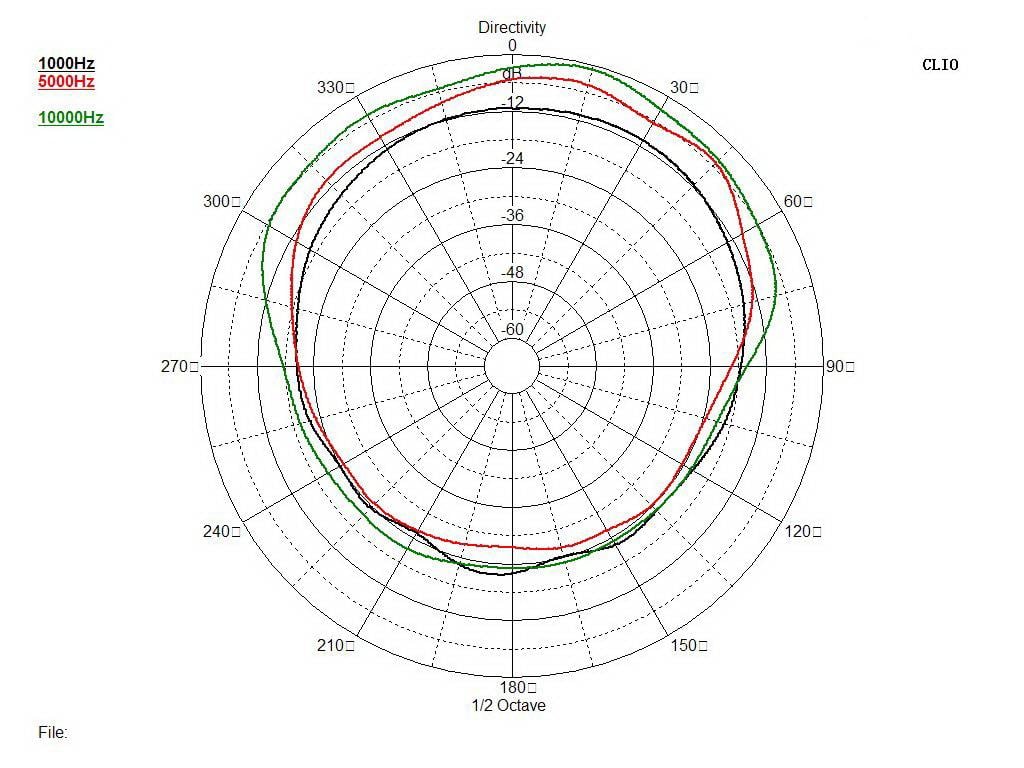

RSL C-34E Polar Frequency Response
RSL doesn't supply detailed frequency response data on their in-wall speakers because they feel it is highly dependent on the space behind the speaker. However, I did manage to get them to send us a polar response plot which shows this speaker has pretty broad dispersion making it quite suitable to be used for immersive audio formats as a height channel.
But here’s a real kicker about the C34Es. RSL is so confident that you’ll love these speakers that they come with a 100% satisfaction guarantee. You can install and try them in your home for 30 days and can ship them back if your not satisfied! Return shipping is free and there are no hidden restocking fees. Seriously, how many companies are willing put forth that kind of no-risk guarantee on architectural speakers?
If our experience with RSL’s CG24 setup is any indication, the C34E should be another winner both for RSL and us home theater enthusiasts. If you’re looking to jump into the immersive audio gig in a major way or if you’re in the market for an architectural speaker solution these C34Es likely deserve a serious look. If we can find a place to poke some more holes in our ceilings, we want to take the C34Es for a serious spin.
