3 Slick Monitor Audio In-Wall WSS Speakers Offer Thin Profile, Big Sound



  • Product Name: WSS130, WSS230 and WSS430 Super Slim In-Wall Speaker
  • Manufacturer: Monitor Audio
  • Review Date: May 04, 2018 00:00
  • MSRP: $350/ea WSS130; $420/ea WSS230; $650/ea WSS430
  • First Impression: Pretty Cool
  • Buy Now
  • Frequency Response (-6 dB):     WSS130 & WSS230 - 75 Hz – 30 kHz

                                                    WSS430 - 70 Hz - 50 HkHz

  • Maximum SPL:     105.6 dBA
  • Sensitivity (1W@1M):    87 dB
  • Power Handling (RMS):   WSS130 & WSS230 -  60 W Full range (100 W with crossover set to 100 Hz @ 12 dB/Octave)

                                        WSS430 - 75 W Full range (120 W with crossover set to 100 Hz @ 12 dB/Octave)

  • Drive Unit Complement:

                            WSS130:   3 x 3" MMP II cone bass-mid drivers and 1 x 25 mm (1") C-CAM Gold Dome tweeter

                            WSS230:   3 x 3” C-CAM cone bass-mid drivers and 1 x 25 mm (1”) C-CAM Gold Dome tweeter

                            WSS430:   3 x 3" dished C-CAM cone bass-mid drivers and 1 x MPD High frequency transducer

  • Overall Depth (Including Grille):    2 1/8”
  • Overall Dimensions:    15 x 5 1/2”

Executive Overview

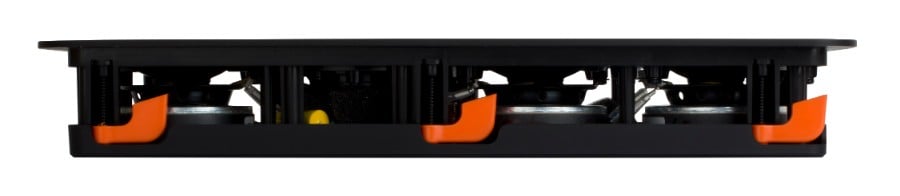

Speaker manufacturer Monitor Audio new super slim line up of in-wall speakers appears thin in profile but BIG on sound. Dubbed the WSS speakers, Monitor Audio has given the consumer a choice of three models all which share the same footprint and pre-construction bracket.  The WSS speaker range features a three-driver layout that helps keep the frontal profile slender, yet according to Monito Audio “Provides a similar surface area and performance to a typical 6 1/2" driver”. At just 2" deep it does open up a wide variety of installation scenarios helping to provide huge flexibility when it comes to placement of the speakers.


The WSS lineup features three models considered at 'good, better, and best' performance levels. All three models employ three, 3” bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones. The entire lineup also features gold-plated sprung push terminals and patented Tri-Grip Dog leg fixings for a solid, robust, and quick install.

WSS130 - $350 each

The entry-point WSS130 features 3" MMP II cone drivers, augmented by a 1" Gold Dome tweeter. This MPP cone technology allows for a simple crossover design and should provide a smooth overall sound character.

WSS230 - $420 each

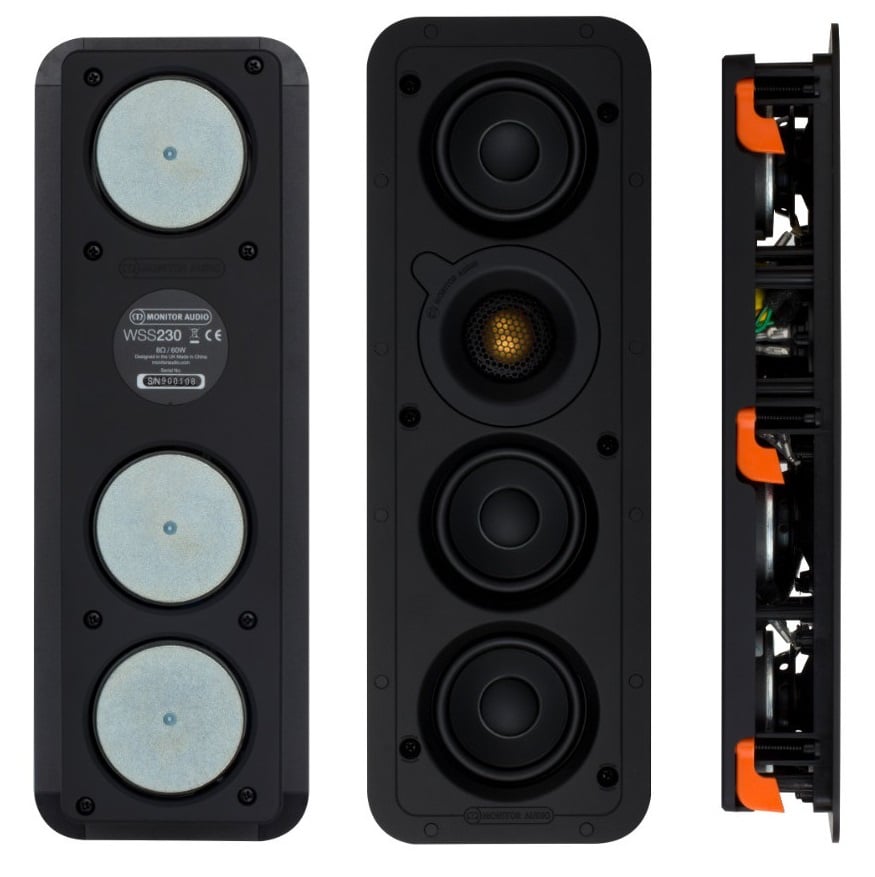

The mid-point WSS230 features Monitor Audio's C-CAM metal cone drivers and is good for set-ups where even more critical music reproduction is required. It offers a step-up in performance in increased precision and detailed sonic characteristics when compared to the WSS130.

WSS430 - $650 each

The WSS430 offers what Monitor Audio considers to be ‘supreme audio performance’. Drawing on design principles and materials from Monitor Audio's flagship Platinum speakers and employing dished C-CAM cones, the WSS430 design should ensure a high diaphragm rigidity and control when driven hard. High strength Neo magnets and larger voice coils help to provide a strong driving force and a slim profile. The MPD high frequency transducer technology, also from Monitor Audio's flagship Platinum designs, should help to ensure low distortion levels even at high frequencies to beyond the limits of human hearing.

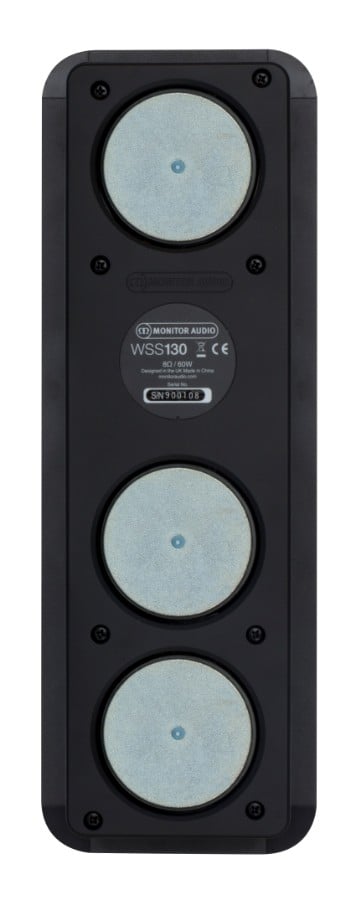

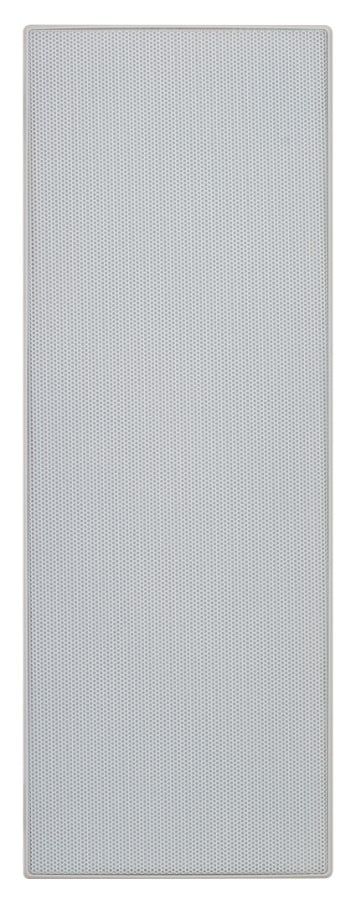

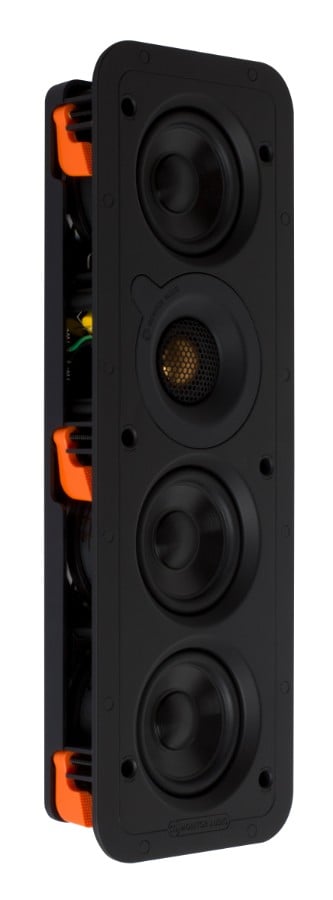

     Monitor_Audio_WSS130_Iso.jpg  Monitor_Audio_WSS130_Rear.jpg     Monitor_Audio_WSS_Grille.jpg

All the WSS speakers in the lineup will use a new dark blue WB3 pre-construction bracket and will feature Tri-Grip fixing technology and magnetic paintable, trimless grilles. All three speakers are designed for both portrait and landscape installation and will fit between standard 14” studded walls.

This series is shipping now, so if you’re in the middle of a new home buildout, remodel, or addition, you may want to take a close look at these slick new in-wall speakers from Monitor Audio. If you love their box speakers, this may be a great option to get you into a similar sound without taking up floor space.

Unless otherwise indicated, this is a preview article for the featured product. A formal review may or may not follow in the future.
