How to Add Wireless to Ethernet Only Equipment

by June 12, 2013
AV Tip: How to Add Wireless Internet to Hard-Wired Equipment

AV Tip: How to Add Wireless Internet to Hard-Wired Equipment

Nearly every piece of modern AV gear can connect to the internet, but many of them only offer hard-wire connections. And it isn't always possible, or worth the effort, to run an Ethernet cable to an equipment rack. Luckily, there are a couple methods to get an internet signal to a remote piece of gear, without ripping up your home running wires or spending hundreds of dollars. In this brief article, we offer two solutions to this common problem.

Wireless Bridge With Optional Switch

If you already have a wireless router and strong wireless signal in the area your equipment is located, then all you need to do is add a bridge. You might find people refer to these as wireless access points (WAP), but a WAP does the opposite of a bridge. A WAP allows wireless devices to connect to a wired network. An example of this is a wireless router. A bridge allows a hardwired device to connect to a wireless network.

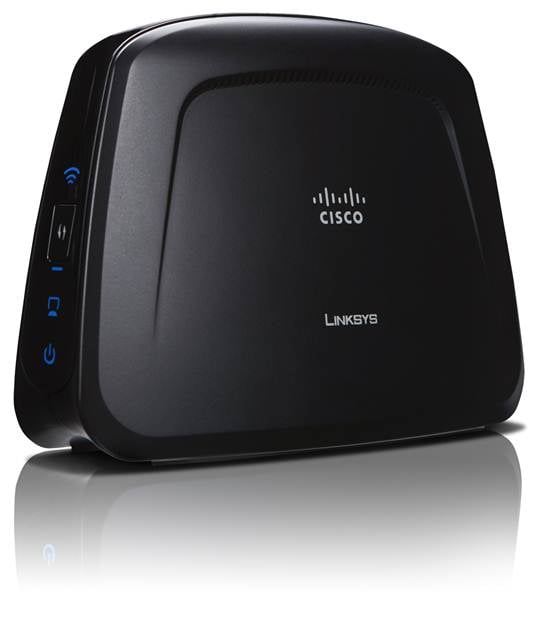

A bridge is a device somewhere between the size of a flashdrive and a router. Typically, they only have two jacks, power and Ethernet. Setting up a bridge is fairly straight forward, but I highly recommend reading the instruction manual because each device can vary. Set up usually consists of two basic steps:

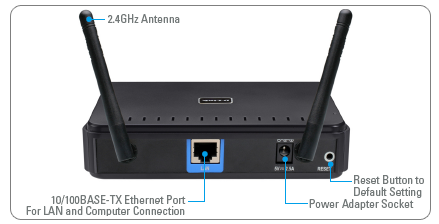

Wireless Bridge Rear View

Rear View of Wireless Bridge

Step 1) Connect bridge to wireless network - If your bridge and router are compatible with what's called WPS, then you can just press the WPS button on both devices and the bridge will connect to your wireless network automatically (hopefully, anyways). If not, then you will want to connect the bridge to a computer (preferably one that is currently on the wireless network) using a CAT5 or CAT6 cable. The ends of these cables look like wide phone cords. At this point, you will need to refer to the instruction manual. Most of the time you will open up and web browser and type in the IP address of the bridge (found in the manual). However, some modern bridges automatically take you to the setup page when you open your browser.

Step 2) Connect bridge to AV equipment -   Once the bridge is connected to the wireless network, you simply need to connect a CAT5 or CAT6 cable from the Ethernet jack on the bridge to the Ethernet jack on your AV equipment. There is no special setup to perform on most AV equipment. If you want to connect more than one piece of gear to the internet, using the bridge, then you will need a switch. In its simplest form, you can think of a switch as a splitter (please, no hate mail for calling it a simple splitter) that takes one Ethernet cable and splits it out to more connections, usually 4 or more. Below is an image of Belkin 5-port switch. One of the ports is used to connect the switch to the bridge, leaving 4 open ports for connecting other devices. A switch is only needed if you want to connect more than one device using the bridge. If your bridge has multiple Ethernet jacks, that means a switch is already built-in.

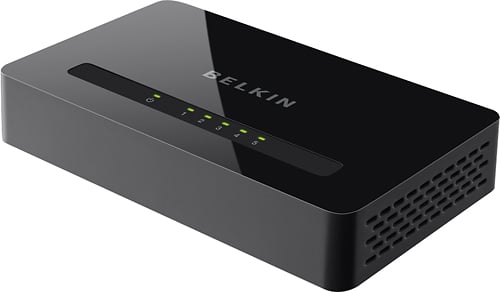

  Network Switch Angle            Network Switch Rear View

Belkin 5-Port Network Switch

2) Ethernet Over Powerline Kit

Okay, this isn't technically wireless, but sometimes it's difficult to get a strong wireless signal into certain areas of a home, in such cases, an Ethernet over powerline kit can be used. These kits utilize the existing electrical wire in your homes to extend the network. They usually come with two wall-wort style adapters, and unlike wireless bridges, there is virtually zero setup involved. One of the adapters is located where your router is at. It plugs into the wall for power and connects to the router via a CAT5 or CAT6 cable. The other adapter is located by your AV equipment. Again, it connects to power and then to your equipment using a CAT5 or CAT6 cable. If you want to hook up more than one device, you can either purchase a powerline kit with a built-in switch, or add one yourself.

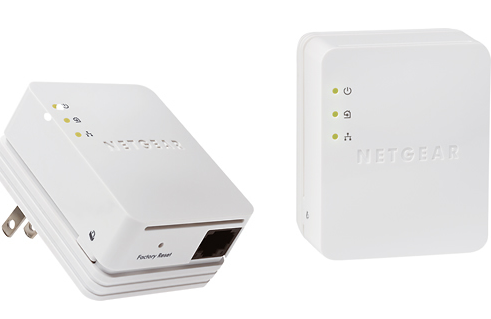

Netgear Powerline kit 1

Ethernet Over Power Line Kit With Switch

Conclusion

There you have, two quick and easy methods to get your equipment connected to the internet. A wireless bridge works well if you have a strong wireless network. Otherwise, powerline kits are also very fast and reliable, but can have troubles working in larger homes. Both devices come in a variety of form factors from numerous companies, and can be purchased at most big box retailers or online. Expect to spend between $50 and $100 dollars.

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!



About the author:

Cliff, like many of us, has always loved home theater equipment. In high school he landed a job at Best Buy that started his path towards actual high quality audio. His first surround sound was a Klipsch 5.1 system. After that he was hooked, moving from Klipsch to Polk to Definitive Technology, and so on. Eventually, Cliff ended up doing custom installation work for Best Buy and then for a "Ma & Pa" shop in Mankato, MN.

View full profile

Recent Forum Posts:

Stanton posts on June 22, 2013 12:53
For those with an old LinkSys Wireless Router lying around who aren't afraid to do some firmware flashing, you can achieve a similar result with DD-WRT; I've been using this (converted wireless bridge) configuration for a few years now and still have a couple of extra Ethernet ports for my home theater.
FLMike posts on June 17, 2013 14:51
Cliff, thanks for the informative article. I recently upgraded to a 50MB Cable Internet service from Comcast and went through figuring this out on my own. I ended up installing a Linksys EA-6500A along with a Linksys WUMC-710 Wireless AC Media Connector. Here are links to both for reference:

Buy Linksys EA6500 Wireless Router | Free Shipping
Buy Linksys WUMC710 Bridge Media Connector | Free Shipping

As someone mentioned earlier, 802.11 AC is the new wireless 5GHz draft standard. I have been extremely pleased with the results. I currently have my Squeezebox, Blu-Ray player and Xbox hooked up to the bridge. One benefit to this is that even though some of these legacy devices support wireless, it is older 802.11 a/b. By wiring them to the bridge, they get the benefit of much higher bandwidth without having to buy new adapters (when available) or upgrading to next-gen equipment. Setup is a breeze because the products are from the same Mfr and are designed to work together seamlessly. I am able to consistently stream HD video without a hiccup. Also, because the router supports two discreet channels, I am able to make the one the Bridge uses “AC Only” and force all of my legacy traffic to the other channel. This assures that the entire 5G band is reserved for devices connected to the bridge.

I should point out that this is probably NOT a solution for every environment. Because I have a direct line of site–window to window–from the router to the access point, there is nothing in the way to interfere with the signal. And while the 5G signal is supposed to be strong enough to paint a fairly large area with useable signal, I would want to see it in real world use before I commented upon the capabilities when walls and multiple floors were involved. But for my situation, this has proven to be a very good, stable solution that let's me leverage my increased bandwidth.

I bought the router at a local Tiger Direct store and the Bridge direct from Linksys. I did a support chat with one of their online reps (very helpful) and she pointed out that the unit was not only on-sale but that she could offer me another discount if I ordered through her. All in all a great experience with Linksys.

Thanks,

Mike
dingus48 posts on June 15, 2013 04:57
Cliff, thanks for the info. I think an article on extending wireless range would be informative. I've tried several of the options you listed, and a variant of Option A is the best I've found, but far from perfect. I tried Option A as you described, but my laptops and phones did not “hop” well between routers - instead of connecting to the strongest signal, my devices would only seek the best connection only when the current signal was lost. So most of the time I had weak connections with the single SSID approach. So I use different SSIDs with each router and manually scan and establish a connection as I move around the house.

I also tried repeaters, but the data speed was very slow even with a strong signal and connection - something about how repeaters repeat all network traffic all the time, leaving little room for what I really want to transmit and receive with my device. And the “one single powerful router” never worked well for me everywhere in a house with multiple floors, even when using the most powerful router with upgraded antenna.

The best info source I found in developing and evaluating options to try is smallnetbuilder.com.

All of my experience is with non 802.11s equipment, and it was my understanding that 802.11s was intended to radically improve ease and performance for consumer whole home needs, but maybe I am wrong and the mesh networking standard was intended for niche commerical uses or other uses unrelated to consumer use. Not an expert in any of this, so any enlightenment appreciated!
jotham posts on June 14, 2013 18:16
I've gone through all of the options highlighted above and I agree that a wireless bridge is probably the way to go, either Apple or other.

I think the key issue to figure out is how much speed and how little latency you need. I'll break it down into a rough guideline.

1. You need firmware upgrades and maybe netflix for kids and your laptop gets a horrible wireless signal in the same location.
– Borrow a powerline networking setup from a friend and see if it works decently. Ideally using a laptop with wireless off to test usability.
2. You need decent netflix speeds and your wireless signal is good with laptop
– buy a wireless bridge from a reputable manufacturer. Maybe repurpose an existing wireless router into a wireless bridge. Many routers can be essentially turned into bridges and a person like myself sometimes has spare ones that are decent.
3. You need great netflix speeds, play Xbox and want a rock solid configuration.
–Pay a local electrician to install two low voltage boxes and run a Cat-5 wire between them. It will probably cost roughly $100 per location but it will “just work”.

For my home, I've paid the electrician to install 3 low voltage boxes and run wires between them. The payoff has been knowing that the only thing that will take out the connection is a hungry mouse.

Jotham
P.S. Borrowing gear and a laptop can really help figure out the approach that actually works. This stuff comes close to voodoo at a certain point. House construction is a huge variable that wreaks havoc with rules of thumb.
P.P.S. I've also had a hard time setting up wireless networks that have overlapping nodes with the same SSID. It may work for someone, I've just never got it to work reliably with laptops that can move from zone to zone.
Cliff_is posts on June 13, 2013 22:14
phatcatcane, post: 972342
Another thing to check is your house wiring. If your house is fairly new, you likely have a low voltage box in your garage where your coax cable and telephone wiring runs to. Likely the telephone cable is Category 5 which means you could swap your telephone outlet for a data outlet (like you have at work ) and hardwire what you need directly to your router. Of course that's assuming you have a telephone jack by your stereo equipment but it is an option.

That's great advice.
