A Tale of 5 Installs Part 2 - Surfer Dude Gets Surround

by September 15, 2008

"Joe" is a single guy who has youth group meetings at his home and watches movies with friends. He used to have a roommate who had a decent TV and speakers but now it's time to replace the system that "moved out". Joe is a bit of an enigma. He's actually quite "metro" and concerned with aesthetics - much like... well, your typical girl, particularly the kind that always seem to be married to the average audioholic. OK, that's enough Joe-bashing. The good news is that Joe already owns a Sony home theater-in-a-box, complete with subwoofer (bass module). The only thing left to do was make it actually be usable by buying ceiling mounts and wiring up the living area for a full 5.1 system.

Vital Statistics:

  • Single with no prospects (just kidding)
  • Concerned with aesthetics - doesn't want a big, bulky system
  • Older home with attic
  • Open room whose area is larger than the part dedicated to the theater space
  • A/V Knowledge Level: "So will this take very long?"

You're Not a Chick If You Like Small Speakers… Technically Speaking

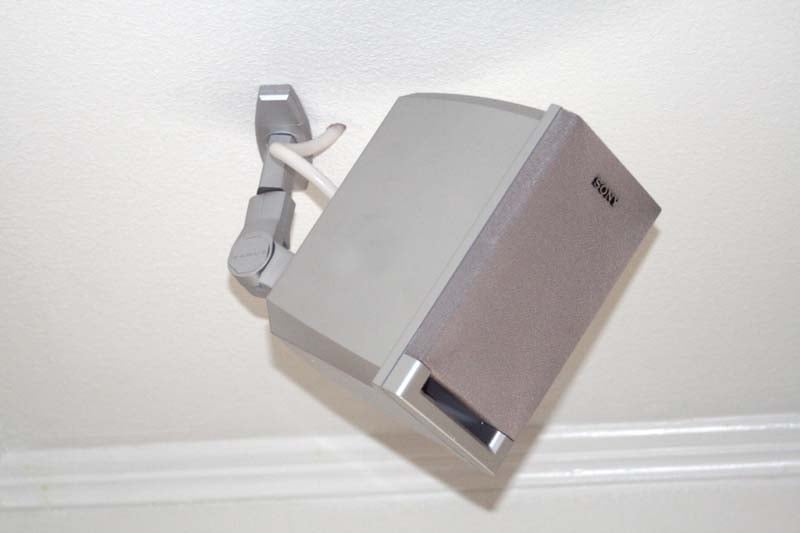

I quickly realize a few minutes after pulling up and checking out the living room that this install was going to be much different than the last one for a number of reasons. First, the owner (let's call him Joe - 'cause that's his name) was very concerned about a pair of Bose speakers. They were "too big for the room". Instead, he wanted to use his much smaller (dare I say dainty?) set of Sony satellite speakers. This was unfortunate, since this home could easily support a full 5.1 bookshelf system and even some floorstanding speakers. The second reason this install would be different was that I'd be going solo. Joe had to leave shortly for a meeting soon and I'd be fending for myself. Fine, I'd go ahead and install his "chick speakers" without him.

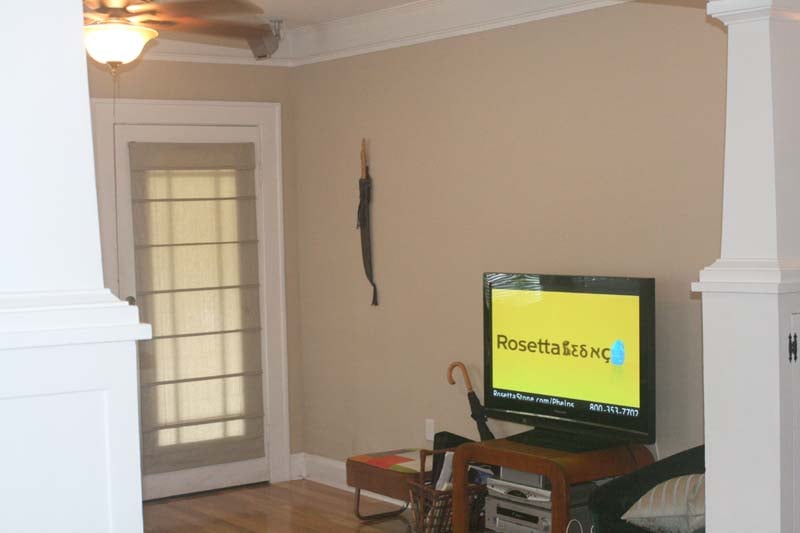

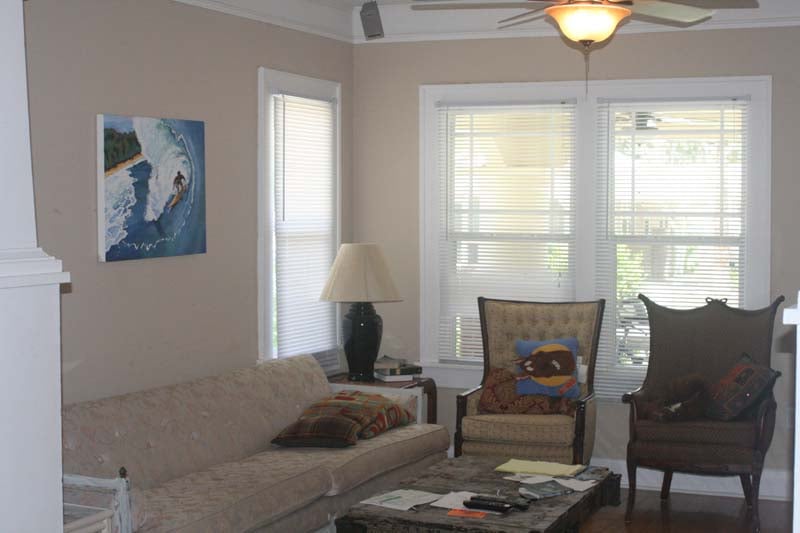

Glancing around I saw that the room, which was oriented to a corner-loaded position, could be quickly reconfigured so that the audio system could be placed against the East wall, giving us the ability to create a rectangular listening area. Of course, it meant that we had to leave a couch on the exposed front porch - but what's that in comparison to good sound? Fortunately, Joe said he wanted to toss the couch anyway… good riddance, better sound.

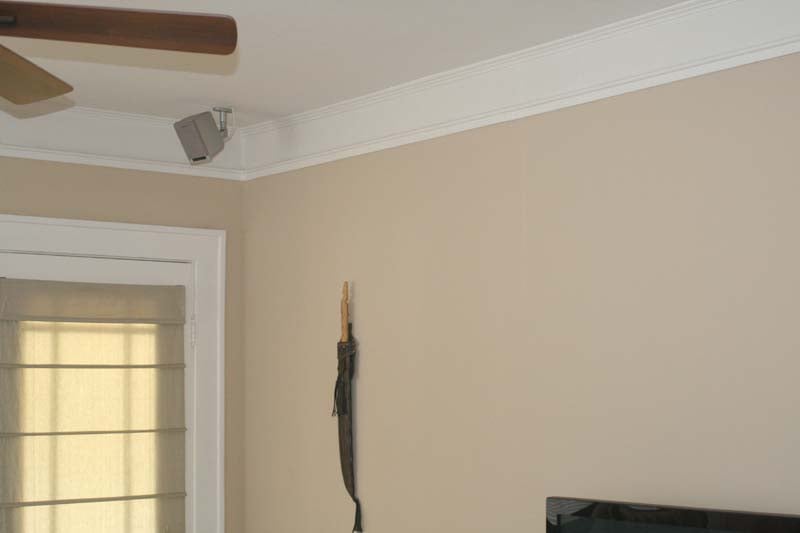

Once we decided on the configuration, we also settled on ceiling mounting the speakers. This was a very similar job to the last one and I was able to get started much more quickly. I also brought slightly less equipment, opting instead to go with plenty of wire, but not enough to drag a line across town.

I Hate Old Houses.. OK, Not Really.

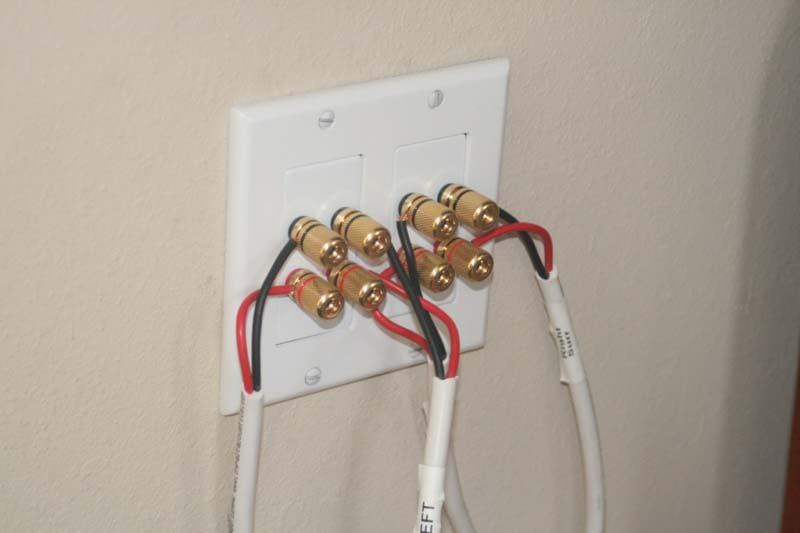

I located the place where I'd come down the wall and started drilling a hole into the plaster to form the beginning of what would house the electrical box and contain the banana connectors. With Murphy-inspired accuracy I drilled almost directly into the center of a stud (knock tests and stud sensors don't work so well on lath & plaster houses). It was close enough that I figured I could chisel the area out (not a load bearing wall) and access everything I needed. I was committed, so I plowed ahead and completed the box. It took way too long and I hated myself, but it got done. This is why people pay custom installers to wire these things up... but doing it yourself is certainly cheaper.

Into the Attic

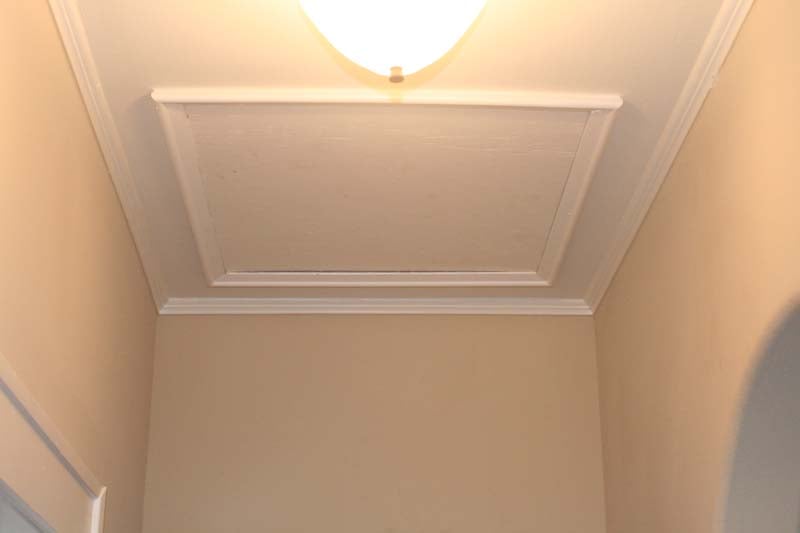

joe-attic.jpgAttic access was in the hallway adjacent to the listening room. I was actually able to measure distance to the desired location for the drop into the wall cavity. This was good since there wasn't a ton of other objects to help, save a power outlet which typically drop next to a stud. I measured over 18 feet or so from the opening and pulled myself up into the attic using a 5-foot ladder. As the ceilings were 9 feet tall, this was no small feat.

The attic was wired for light - very cool since the light extended over to my drilling locations - this saved a lot of headaches. I don't like headaches. I measured over to my point and checked for studs in the exposed header after pulling away the newspaper-based insulation (nifty, no scratching!) Finding the stud I needed, I went to the side having the most space and prepped to drill my holes.

It Sure Is Dark in There…

Pulling out my cordless Makita 18V drill (yeah, baby!) I slapped on a 3/4-inch spade bit and drilled my hole which would support all four speaker cables. The hole drilled easily enough and I peered inside. At this point I was curious as to why I didn't see any light coming from below (we did just cut out a large hole, you know.) Basically, when you drill into a header and have a hole in the wall below, you should be able to see some light if you kill the lights in the attic or cup your eyes over the drilled hole. I saw nothing. Nada. Zip. I was on the side of the stud I wanted to be on, so I quickly realized (because I'm smart like that) that there must be some kind of cross-brace in the wall. This was bad. Shining my headlamp LED light into the hole I just drilled I saw the culprit about 24 inches or so below the header. It was too far down for me to deal with - even using my drill bit extender.

Since my hole down below was straddling a 2x4, I jumped to the other side of the stud (after a brief time of quiet reflection and prayer) and drilled a new hole. Bingo - we had light. That was cool, because I'd hate to just randomly start drilling holes in the wall to find a cavity that wasn't covered by a random piece of wood. I widened my hole a tiny bit more and breathed a sigh of relief - thanking Murphy and his cursed law for having me cut a hole across a stud rather than on the wrong side entirely.

I forgot my cables, or rather, I wasn't prepared to run them just yet or didn't trust my hole. In either case I needed to head back down and pick up some wire.

Han "Solo" Had a Wookie…

I pulled myself back into the attic for some more fun. I measured and brought two rolls of wire, precut to the lengths I needed for the front speakers. I also brought my drill bit extender to use as a drop weight to get two of the ends down the wall. I hated not having a big enough ladder - next trip to Home Depot I committed myself to remedying that (this was not the first time I'd said this, but this time I really meant it).

Once I was in I sauntered over to the hole and used electrical tape to secure two runs to the drill extender (the extender, being a heavy but thin pole, pulled the cable down the wall without it tangling). It dropped down the wall easily enough and I could tell it had hit bottom by the sudden slack in the line. I don't have an assistant, so I had to go down (again) and pull it out myself.
