Yamaha RX-A830 AVENTAGE 7.2 Channel Network AV Receiver Preview
|Rated Output Power (1kHz, 2ch driven)||110 W (8 ohms, 0.9% THD)|
|Rated Output Power (20Hz-20kHz, 2ch driven)||100 W (8 ohms, 0.09% THD)|
|Dynamic Power per Channel (8/6/4/2 ohms)||140 / 180 / 210 / 250 W|
|Surround Sound Processing||CINEMA DSP||Yes (3D)|
|Compressed Music Enhancer||Yes|
|Dialog Level Adjustment||Yes|
|Virtual Presence Speaker||Yes|
|Dialogue Lift||Yes (No presence speakers required)|
|SILENT CINEMA / Virtual CINEMA DSP||Yes / Yes (AIR SURROUND XTREME)|
|Dolby Digital Plus||Yes|
|Dolby Pro Logic IIx||Yes|
|DTS-HD Master Audio||Yes|
|Audio Features||Pure Direct||Yes (With video on mode)|
|YPAO multi-point measurement||Yes (R.S.C. w/multi-point measurement)|
|Adaptive DRC (Dynamic Range Control)||Yes|
|Initial Volume & Maximum Volume Setting||Yes|
|Audio Delay||Yes (0-500 ms)|
|192kHz/24-bit DACs for all channels||Yes (Burr-Brown)|
|Video Features||4K Pass-through & 4K Upscaling||Yes|
|HDMI 3D passthrough||Yes|
|HDMI Audio Return Channel||Yes|
|Component upconversion||Yes (480i)|
|HDMI upscaling||Yes (Analog to HDMI/HDMI to HDMI)|
|Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync||Yes|
|Extensive Connection||HDMI Input/Output||8 (1 front) / 2 (Simultaneous)|
|HDMI CEC||Yes (SCENE, device control)|
|Extensive Connection||USB Input||iPod®/iPhone®/iPad®, USB memory, portable audio player (MP3, WMA, AAC up to 48 kHz / 16-bit, FLAC/WAV up to 192 kHz / 24-bit)|
|Network Port||Yes (AirPlay, Pandora, Rhapsody, DLNA 1.5, vTuner)|
|Extensive Connection||Front AV Input||HDMI (MHL support), USB, analog audio, composite|
|Connectivity||DC Out||Yes (USB DC output 5 V / 0.5 amp)|
|Extensive Connection||Digital Audio Input/Output: Optical||2 / 0|
|Digital Audio Input/Output: Coaxial||2 / 0|
|Analog Audio Input/Output||5 / 1|
|Component Video Input/Output||2 / 1|
|Composite Video Input/Output||5 (1 front) / 1|
|Tuner Section||FM/AM Tuner||Yes|
|User Interface||On-screen display||Graphical user interface|
|SCENE||Yes (Four sets)|
|App Control||Yes (iPhone/iPad, Android™ phone/tablet, Kindle Fire™)|
|Web Browser Control||Yes|
|Remote Control Unit||Yes (Preset)|
|Zone Control||Zone 2 Audio Output||Line output|
|Powered Zone||Zone 2|
|Zone B Output||Yes (HDMI)|
|+12V Trigger Output||Yes|
|Remote (IR) Input/Output||1 / 1|
|General||Standby Power Consumption (IR only)||≤0.1 W|
|Auto Power Standby||Yes|
|Dimensions (W x H x D)||17-1/8” x 6-3/4” x 14-1/2”|
Even for people that have the money, spending $2000+ on a receiver can be a lot to swallow. Once you look at the features, compare them to your needs, and figure out how much other gear you'd need to buy to do the same thing, maybe it makes sense. But for most of us, the price point of a receiver is a major sticking point. That's why manufacturers try to give us as many options as possible.
Yamaha's AVENTAGE receivers have really taken off and they are not letting up. The newest to the line is the RX-A830. This receiver represents the top-end of the budget side of their AVENTAGE line. There will certainly be more expensive (and feature-full) AVENTAGE receivers announced soon. But for now, the RX-A830 is the newest.
With 7.2 channels and 100 W per discrete channel (8 ohms, 20 Hz - 20 kHz, 0.09% THD, 2 ch driven), the 23.2 pound RX-A830 is no slouch. It features eight HDMI inputs (one of the front) and two outputs with 3D, ARC (Audio Return Channel), and standby pass-through. The second HDMI output can output to Zone B (mirrors the content of the main HDMI output).

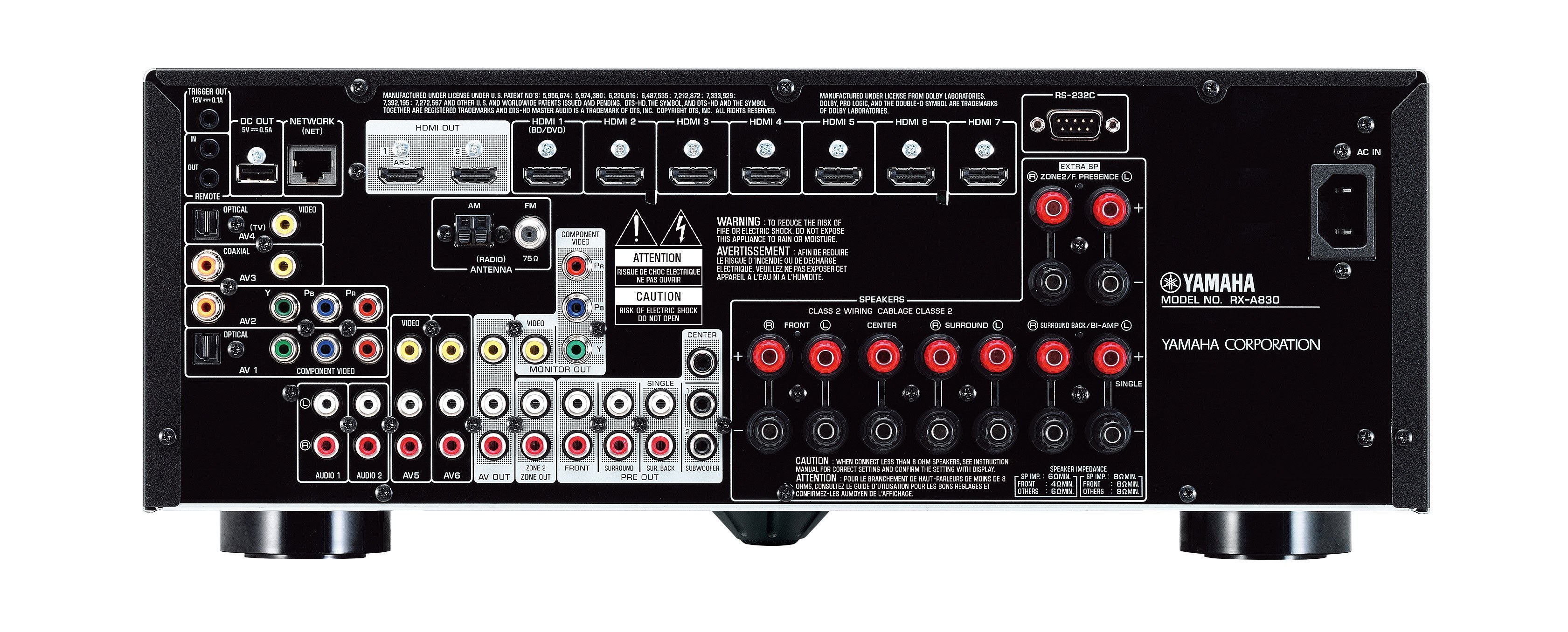

Glancing at the back, we find nine pairs of speaker terminals. The seven internal amps can power a 7.2 system or 5.2 system with the last two amps powering presence speakers or Zone 2. They can also be used to bi-amp the front speakers. There are two component video inputs, five composite video (one on the front) inputs, and one output for each. The RX-A830 can upcovert and scale all video to HDMI to 4K resolution.
The RX-A830 has a MHL HDMI port on the front for connecting your mobile devices. This allows for full HD video and audio from mobile phones and portable devices. The RX-A830 has an Ethernet port on the back for connecting to your home network. It supports Apple's AirPlay, Pandora, Rhapsody, and vTuner. The RX-A830 is DLNA 1.5 certified for streaming local content and can be controlled by Yamaha's remote app with your compatible iOS or Android device.
For ease of setup, Yamaha has included their upgraded YPAO with R.S.C. (Reflected Sound Control) that includes multi-point measurements. There is a GUI overlayed over the HDMI output (2D and 3D). The RX-A830 supports two zones of audio either by the internal amps or through the included pre-outs. The RX-A830 has 7.2 channel pre-outs for adding additional amps. There are no pre-ins for adding legacy gear.
The front of the RX-A830 has a USB port on the front that is iDevice certified allowing for a direct digital connection. This bypasses the DACs in your phone/pod/pad in favor of the ones in the Yamaha. It supports MP3, WMA, AAC up to 48 kHz / 16-bit, FLAC/WAV up to 192 kHz / 24-bit. While connected, iDevices will charge even if the receiver is in standby mode. When in use, iDevices song titles displayed in English and Western European languages on the front panel.
The most exciting thing about the new Yamaha AVENTAGE RX-A830 is the price. At under $900, it has enough features to please even the most ardent audiophile and feature-phile. A full suite of networking, iDevice compatibility, MHL, 7.2 inputs, 100 watts per channel, Burr-Brown 192 kHz/24-bit DACs for all channels, Pure Direct mode for bypassing any unnecessary circuitry, YPAO with multi-point measurements, 4k upconversion...the list goes on. At this price point, it is hard to believe that there is much more that could be offered. Anyone needing a new receiver would do well to keep the RX-A830 in mind.
For more information, please visit www.yamaha.com.
Unless otherwise indicated, this is a preview article for the featured product. A formal review may or may not follow in the future.
