Marantz NR1504 NR1604 Slim AV Receivers Preview

By

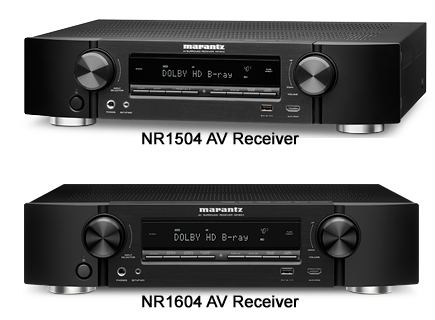

Marantz NR1504 NR1604 Slim Line AV Receivers

Marantz NR1504 NR1604 Slim Line AV Receivers

Summary

  • Product Name: NR1504 and NR1604 AV receivers
  • Manufacturer: Marantz
  • Review Date: April 03, 2013 21:05
  • MSRP: $499 (NR1504), $649 (NR1604)
  • First Impression: Gotta Have It!
  • Buy Now

NR1504

Power and Processing:
  • 5-channel amplifier
  • 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
  • Dolby® and DTS® surround sound decoding
  • Audyssey Laboratories' MultEQ® six-point auto setup and room calibration system (microphone included)
  • M-DAX™ (Marantz Dynamic Audio eXpander) for better sound from MP3s and other digital music files
Digital Music Options:
  • built-in Apple AirPlay® for ultra-convenient iTunes® music playback
  • AirPlay streaming requires a home Wi-Fi® network and a wired connection between your receiver and home network
  • direct digital connection for your iPod®/iPhone® via the front-panel USB port bypasses your player's digital-to-analog converter for better sound
  • Ethernet port for music and JPEG streaming from a wired PC network
  • DLNA (Digital Living Network Alliance) certified to ensure optimal compatibility with other network-enabled equipment
  • access Internet radio stations and digital streaming services (broadband connection required)
  • optional streaming services include SiriusXM Internet Radio, Pandora® and Spotify® (registration and subscription may be required)
  • wireless Bluetooth® capability with optional Marantz Bluetooth receiver
Audio Performance Features:
  • 192kHz/24-bit digital-to-analog converters for all channels
  • direct mode switches off unnecessary circuitry to provide cleaner sound
  • detachable power cord
Connections:
  • 1080p-compatible HDMI digital video switching (6 in, 1 out)
  • HDMI version 1.4 with support for 3D video, Audio Return Channel, Deep Color, x.v.Color, auto lip-sync, and HDMI-CEC
  • Audio Return Channel function receives digital audio signals from a compatible HDTV's tuner via HDMI
  • digital audio inputs: 1 optical and 1 coaxial
  • 1 audio-only input
  • no phono input — to connect a turntable you'll need to add a phono preamp
  • 1 pair of main speaker outputs
General Features:
  • on-screen display for easier system setup and operation (via HDMI only)
  • built-in Easy Setup Assistant
  • free Marantz remote app lets you use your iPod touch®, iPhone®, iPad®, or Android™ device as a Wi-Fi® remote
  • sleep timer
  • HDMI standby pass-through allows HDMI switching without powering up receiver
  • 56 AM/FM presets
  • multibrand remote
  • 17-5/16"W x 4-1/8"H x 14-7/16"D
  • weight: 18 lbs.
  • warranty: 3 years

NR1604

Power and Processing:
  • 7-channel amplifier
  • 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven
  • Dolby® and DTS® surround sound decoding
  • Audyssey Laboratories' MultEQ® six-point auto setup and room calibration system (microphone included)
  • M-DAX™ (Marantz Dynamic Audio eXpander) for better sound from MP3s and other digital music files
Digital Music Options:
  • built-in Apple AirPlay® for ultra-convenient iTunes® music playback
  • AirPlay streaming requires a home Wi-Fi® network and a wired connection between your receiver and home network
  • direct digital connection for your iPod®/iPhone® via the front-panel USB port bypasses your player's digital-to-analog converter for better sound
  • Ethernet port for music and JPEG streaming from a wired PC network
  • DLNA (Digital Living Network Alliance) certified to ensure optimal compatibility with other network-enabled equipment
  • access Internet radio stations and digital streaming services (broadband connection required)
  • optional streaming services include SiriusXM, Internet radio, Pandora® and Spotify® (registration and subscription may be required)
  • wireless Bluetooth® capability with optional Marantz Bluetooth receiver
Multi-room Audio:
  • dual-room/dual-source output
  • powered stereo audio output for 2nd room
    • using powered 2nd-room output allows 5.1 home theater in main room
  • line-level stereo audio output for 2nd room (additional amplifier or powered speakers required)
  • optical/coaxial digital and HDMI audio sources are not output to Zone 2
  • USB and network-connected sources cannot be played back in different zones at the same time
Audio Performance Features:
  • 192kHz/24-bit digital-to-analog converters for all channels
  • direct mode switches off unnecessary circuitry to provide cleaner sound
  • detachable power cord
Connections:
  • 1080p-compatible HDMI digital video switching (7 in, 1 out)
  • HDMI version 1.4 with support for 4K, 3D video, Audio Return Channel, Deep Color, x.v.Color, auto lip-sync, and HDMI-CEC
  • Audio Return Channel function receives digital audio signals from a compatible HDTV's tuner via HDMI
  • component video switching (2 in, 1 out)
  • composite video switching (3 in, 1 out)
  • analog-to-HDMI video conversion to 1080p
  • HDMI-to-HDMI video conversion to 4K Ultra HD
  • digital audio inputs: 1 optical and 1 coaxial
  • 1 audio-only input
  • no phono input — to connect a turntable you'll need to add a phono preamp
  • 1 pair of main speaker outputs
General Features:
  • on-screen display for easier system setup and operation (via HDMI only)
  • first-time setup assistant
  • free Marantz remote app lets you use your iPod touch®, iPhone® iPad® or Android™ device as a Wi-Fi® remote
  • sleep timer
  • HDMI standby pass-through allows HDMI switching without powering up receiver
  • 56 AM/FM presets
  • multibrand remote
  • 17-5/16"W x 4-1/8"H x 14-7/16"D
  • weight: 18.5 lbs.
  • warranty: 3 years



Executive Overview

There are all types of people with AV needs out there. And just because something is important to one person, doesn't mean it will be important to everyone. Case in point - with the rash of flat-packed furniture that has made its way into people's homes, too often they are making purchasing decisions based on looks alone. Most don't even take into account the size of their TV much less where they are going to put the speakers or, gasp, receiver. So they are left with a pretty piece of furniture with absolutely no space for a full sized receiver.

Marantz has long heard this call with their NR line of receivers. The NR line are called Slim Line for a reason (why the model designation isn't SL beats us) - they are about 1/2 the height of a normal receiver. This makes them much more versatile in there placement options. We like to recommend them not only for people that haven't had the proper foresight when making furniture purchases, but for those that are looking for a bedroom or second, smaller, home theater receiver.

The NR1504 starts the NR line. This 5.1 channel receiver sports 50 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven and weighs in a 18 pounds. It is 17-5/16" wide and 14-7/16" deep (fairly standard receiver size) but only 4-1/8" tall.

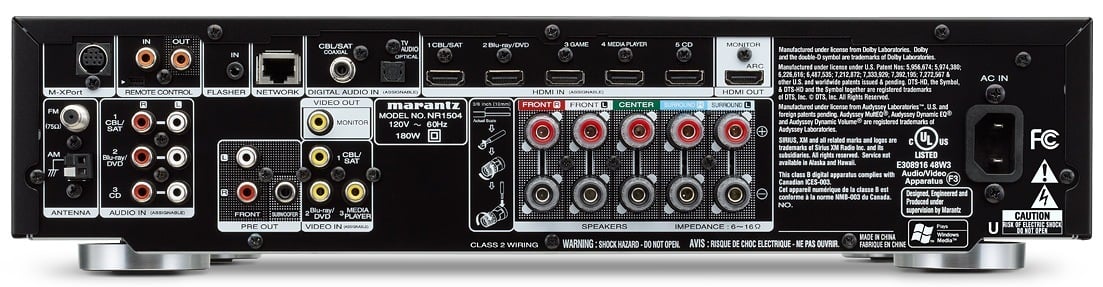

nr1504_back

The Marantz NR1504 has five way binding posts for all five channels, five HDMI inputs on the back and one on the front, and one HDMI output. There is a front mounted USB port for accessing a portable drive or phone. If you use it with an iDevice, the NR1504 will bypass the internal DACs of the iDevice in favor of its own. The HDMI output is version 1.4 and supports 3D pass-through, Audio Return Channel, Deep Color, standby pass thru, and HDMI-CEC. There are three composite video inputs and one output (monitor only - no analogue to HDMI upconversion). The NR1504 has three pairs of RCA-style analogue audio inputs and one coaxial and one optical digital audio inputs. There are pre-outs for the main channels for adding an external amplifier but no support for a second zone of audio.

The Marantz NR1504 had an HDMI overlay GUI and a built-in Easy Setup Assistant for first time users. There is an Ethernet port on the back for connection to your router. The NR1504 is DLNA certified and can stream Internet radio as well as SiriusXM Internet Radio, Pandora, and Spotify. Apple's AirPlay is supported as well, giving those with iDevices an easy way to send their content to their home theater. Marantz's remote app for iOS and Android allows you to use your portable device as a Wi-Fi remote.

Marantz has long stood for audio quality and they are not skimping on the NR1504. They've included Audyssey's MultEQ room correction and speaker setup. This allows for up to six measurement locations for the best possible sound. For those that have compressed all their music to MP3, Marantz has added their M-DAX (Marantz Dynamic Audio eXpander) for better sound from MP3s and other digital music files. Lastly, the NR1504 features 192kHz/24-bit digital-to-analog converters for all channels and a direct mode which switches off unnecessary circuitry to provide cleaner sound. The most impressive part of the NR1504 is the price. AT $499, Marantz has shoved a ton of features into the tiny chassis.

The NR1604 takes what the NR1504 started and brings it to the next level. First, they've added another HDMI input on the back as well as two additional channels of amplification (the NR1604 is a 7.1 channel receiver). They haven't upped the power, however, keeping it as 50 watts per channel. This has increased the weight only up to 18.5 pounds (half a pound heavier than the NR1504). The size of the chassis is the same.

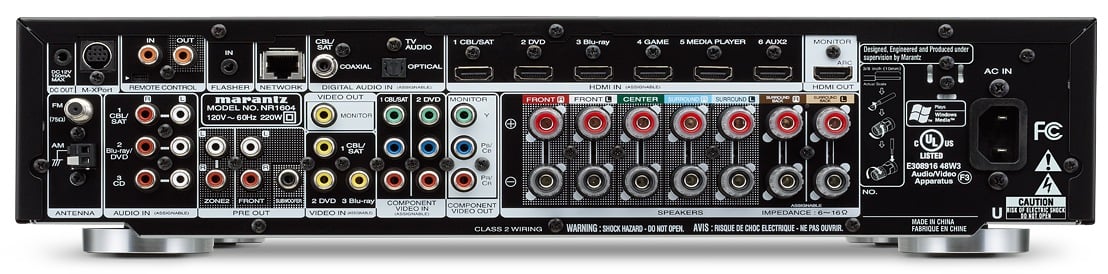

nr1604_back

Marantz has added two additional pairs of 5-way binding posts to accommodate the additional channels of amplification. These channels can be routed to a second zone of audio leaving 5.1 channels for the main home theater. Only analogue audio inputs can be sent to the second audio zone, however. Marantz has also added pre-outs for the Zone 2 for those that would prefer to use an external amplifier.

In addition to the extra HDMI input, Marantz has included two component video inputs and one output for those with legacy gear. It has also included video upconversion from analogue to HDMI for a true one-cable connection to your display. Scaling has been added as well up to 4k for the display you can't buy yet or 1080p for the one you already own. With an increase of $150 over the NR1504, the NR1604 adds a ton of features that not only look good on paper, but that you'll actually use.

Conclusion

We've long been fans of the Marantz NR line, and the new NR1504 and NR1604 have done nothing to change that. Sporting high end audio components, discrete amplification, Apple AirPlay, Audyssey MultEQ, and much, much more, there is a lot to like. At a starting price of $500, the NR line isn't going to break the bank either. With a low profile design, potential customers don't have to sacrifice audio quality, features, and style just because they have limited space.

For more information, please visit www.marantz.com.
