AudioEngine D1 24-bit DAC Review

By

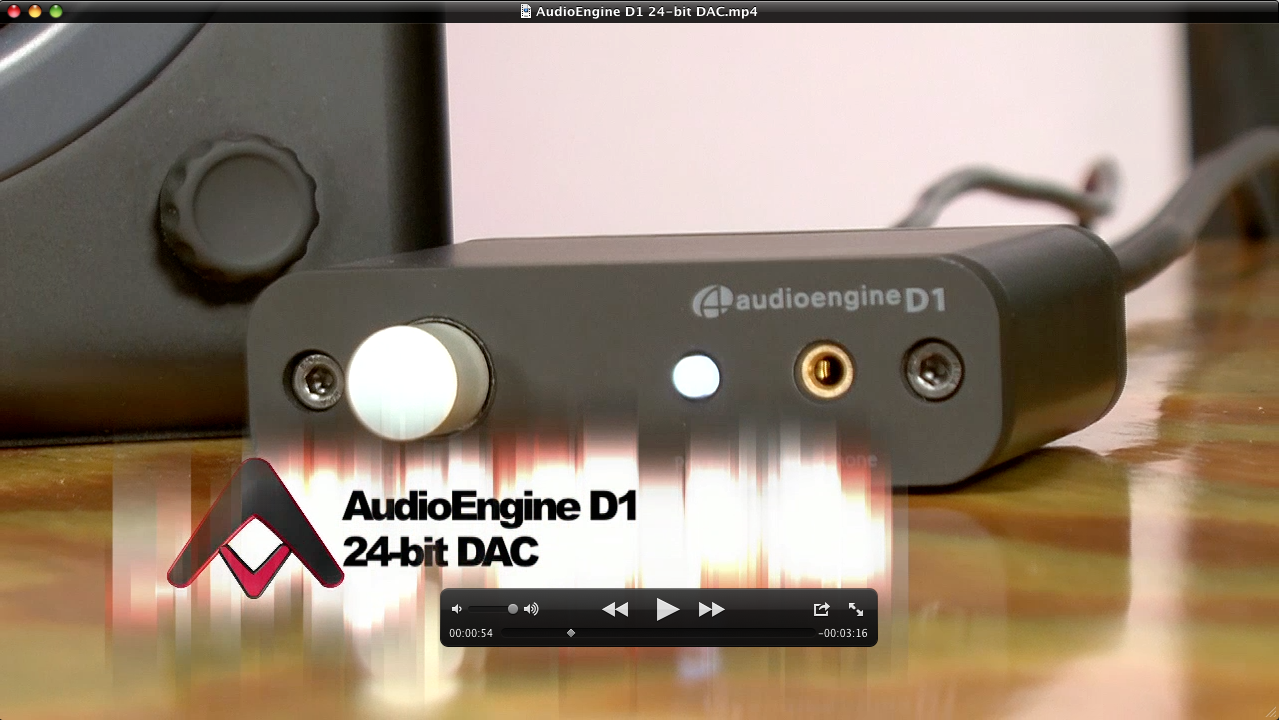

AudioEngine D1 24-bit DAC

AudioEngine D1 24-bit DAC

Summary

  • Product Name: D1 24-bit DAC
  • Manufacturer: AudioEngine
  • Review Date: March 27, 2012 07:05
  • MSRP: $169
  • First Impression: Pretty Cool
  • Buy Now
  • DAC type: Dual Mode USB and Optical (SPDIF)
  • Inputs: USB/Optical (SPDIF)
  • Outputs: RCA stereo/3.5mm headphone
  • D/A converter: AKM4396
  • Optical receiver: CS8416
  • USB controller: TI1020B
  • USB: Type 1.1 or above
  • Full-scale output: 2.0V RMS (RCA and Headphone)
  • Output impedance: 47 ohms RCA, 10 ohms headphone
  • Power source: USB 5V
  • Power requirements: 200mA
  • USB power filtering: 2-stage redundant regulation
  • SNR: >110db
  • THD+N: <0.002%
  • Crosstalk: <-85db
  • Frequency response: 10Hz - 25KHz +/- 0.5db
  • Input bit depth: up to 24 bits
  • Input data rate: up to 192KS/s (optical), 96KS/s (USB)
  • Product dimensions: 3.5x4x1"
  • Shipping weight: 1.0 lbs (0.5kg)
  • Included accessories: USB cable, 2ft, Setup Guide, Microfiber bag

Executive Overview

I didn't realize how crappy the preamp was that I was using to feed my AudioEngine 5+ speakers. Now we reviewed those speakers earlier this year and for our listening tests I used various source components, including an iPhone, a Blu-ray player and the stereo outputs of an A/V receiver. But after the review we hooked the speakers back up to my laptop using an external hybrid microphone DAC. That was a mistake. I wondered why the clarity and top end of the A5+'s seemed a bit lacking all of a sudden, when I had previously found them to be pretty darn good.

Then I connected this thing - the D1. This is Audioengine's 24-bit Digital Audio Converter - or DAC. It connects to your Mac or PC via USB (cable included) and acts as an external sound card. And it does it without any special drivers or software installation - which we really loved. It converts your digital music and audio to the analogue signals required by your speakers or amplifier. In our case, we were using the amplified A5+ speakers. Using a device like this is great for a number of reasons. For one, it gives you much better quality than the onboard sound device which is just there to get the job done as inexpensively as possible. Secondly, it gives you more options. Let's go over the physical features and you'll see what I mean.

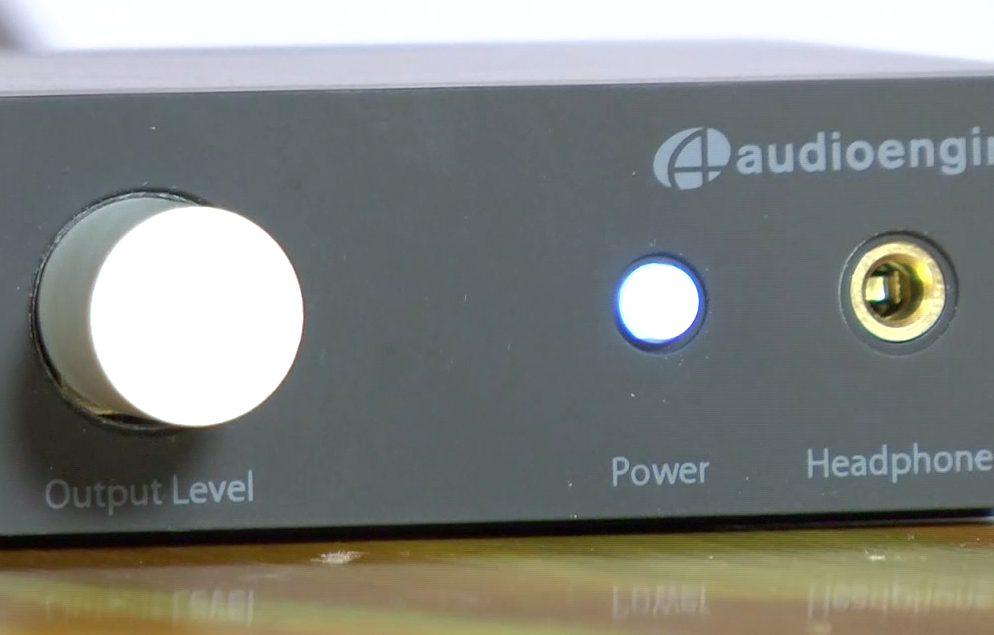

D1 volume knob

The front is fairly plain, with a single volume knob and a headphone jack for plugging in your phones - which incidentally mutes the rear outputs. This is good, and the way you want a system like this to work. A white LED lets you know the DAC is receiving power from the USB interface. There are no batteries or external power supplies needed.

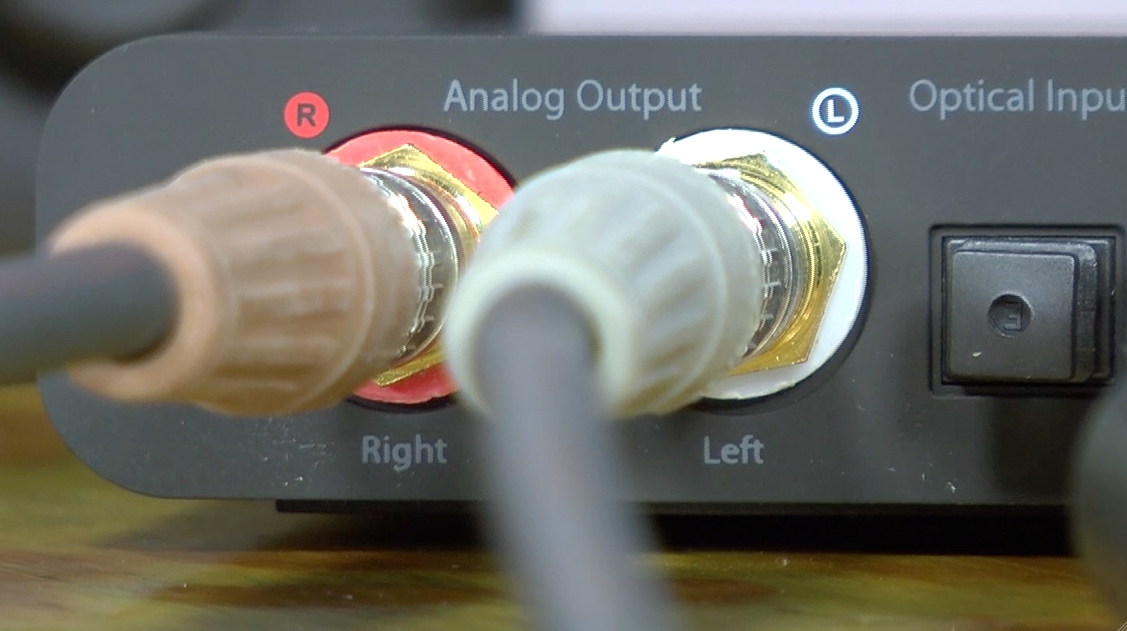

RCA connections TOSlink

On the back of the D1 you have a pair of high quality gold-plated RCA outputs as well as a digital optical TOSlink input. That's perfect for getting digital audio from a television or Blu-ray player into your system. Next to the optical input is the USB connection. Now, the thing to note here is that since there is no battery or dedicated AC adapter, if you use the D1 for converting digital audio to your speakers you need to connect the USB port to either a computer or a USB power supply.

Now, once all the connections were out of the way, what was left was using the D1 and listening to it. Using it was pretty simple. The volume knob is smooth and has a nice heft to it, and the front-located headphone jack was perfect for allowing me to switch from casual listening to podcasting mode. We loved the auto-mute function where the headphones broke the feed going to the speakers without us having to do anything. The improvement in audio quality was also very noticeable. I mean compared to the sound coming straight off the Mac, both headphones and our desktop speakers sounded clearer and less compressed. The bottom end even tightened up a bit and we heard a more natural decay on things like reverb and cymbal crashes. Overall we'd have to say that if you're going to spend good money on speakers for your home or office and you're driving your system with a PC or Mac, you really don't want to drop the ball and use the internal sound card - at least not for long. Save up the $169 and consider grabbing the AudioEngine D1. This is one upgrade you're going to be able to immediately hear and appreciate.

As always, thanks for watching and if you want more videos like this, then please comment and hit the 'Like' button in YouTube. Also, be sure to check out all the other great stuff we're doing at Audioholics by "liking" us at facebook.com/audioholics and following us on Twitter @AudioholicsLive.

About the author:

Clint Deboer was terminated from Audioholics for misconduct on April 4th, 2014. He no longer represents Audioholics in any fashion.

View full profile

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

Recent Forum Posts:

BoredSysAdmin posts on September 26, 2012 11:18
bikemig, post: 899037
Yeah but you won't be able to ding everyone who posts a question about dacs, . This just moved the whole discussion from why would anyone need to spend more than $50 to why would anyone need to spend more than $200!

Btw, I haven't listened to the audioengine dac/headphone amp but one downside to any usb powered headphone amp is that it may have difficulties in driving certain headphones.

ps: D1 is not exactly usb powered -as in it's not drawing any power from pc's USB port. I used external ac->dc usb adapter and D1 is rated to power headphones upto 300 Ohm

From D1 Faq:
Will the D1 work with my low-impedance HiFiMAN HE-500 headphones?The D1 includes a headphone amp based around the TI NE5532 low noise opamp. This headphone amp is able to provide low-impedance, high-fidelity audio to a wide range of headphones and supports headphones with impedances from 20 to 300ohms.
bikemig posts on August 06, 2012 20:22
BoredSysAdmin, post: 899024
Yes, I know… Think in these term - BSA Bought $150 external soundcard - much more plausible - right?

Yeah but you won't be able to ding everyone who posts a question about dacs, . This just moved the whole discussion from why would anyone need to spend more than $50 to why would anyone need to spend more than $200!

Btw, I haven't listened to the audioengine dac/headphone amp but one downside to any usb powered headphone amp is that it may have difficulties in driving certain headphones.
BoredSysAdmin posts on August 06, 2012 19:28
bikemig, post: 899016
Wow, BSA broke down and bought a dac that costs more than the $50 Behringer,

Yes, I know… Think in these term - BSA Bought $150 external soundcard - much more plausible - right?
bikemig posts on August 06, 2012 18:51
BoredSysAdmin, post: 897990
long story short, after long consideration I decided to wet my feet in the world of DAC and get myself a D1 dac - yes - you read this right… And the only reason is not attempt to improve SQ, but to get rid of annoying RF interference which become really annoying after I recently replaced my video card

I haven't tested my main setup just yet (just got it today) , but for now tested with my Fostex T20RP headphones (Impedance - 50 ohms, Sensitivity 96dB SPL/mW) - not exactly easy load for typical headphone amp… Behringer uc202 struggled and failed and eventually I had to supplement it with Fiio E5 which was highly reviewed by NwGuy - It made a big difference

D1 took this difference and took it a bit further with a bit more push in the low end and better overall clarity in low and mids - it's not brighter, just a bit more clear - drums sound a bit more punchier and precise ..

That said - I wish D1 had more juice as running with classical tracks (01. London Symphony Orchestra & Bernard Haitink - Beethoven Symphony No.5 - I. Allegro con brio.flac) - running Max volume - I wish I could add a bit more volume, but this is minor as I rarely do critical listening at work anyhow..

Overall for now I'm happy with the purchase and the big test will running D1 on main rig at home.. To be continued….

Wow, BSA broke down and bought a dac that costs more than the $50 Behringer,
bikemig posts on August 06, 2012 18:47
BoredSysAdmin, post: 875283
too bad Outlaw only accept usb as only digital input and not spdif
p.s: HK 990 does look rather interesting, but since it has bass management and autosetup - it's really more of modern avr (minus video switching and tuner) than integrated amp

Actually the usb input on the Outlaw is mediocre; otherwise it is a great receiver.
