Emotiva XPR-5 Five-Channel Reference Power Amplifier Preview

By
Emotiva XPR-5 Five-Channel Reference Power Amplifier

Emotiva XPR-5 Five-Channel Reference Power Amplifier

Summary

  • Product Name: XPR-5
  • Manufacturer: Emotiva
  • Review Date: July 08, 2012 18:00
  • MSRP: $1999 (currently $1799.10)
  • First Impression: Gotta Have It!
  • Buy Now
  • Topology: Fully discrete, dual differential, high current, short signal path Class A/B amplification with Optimized Class-H™ power supply topology.
  • Number of Channels: 5
  • Power Output (rated power; THD < 0.1%):
    400 watts / channel (x5); all channels driven; into 8 Ohms.
    600 watts / channel (x5); all channels driven; into 4 Ohms.
    500 watts / channel (x2); two channels driven; into 8 Ohms.
    750 watts / channel (x2); two channels driven; into 4 Ohms.
    575 watts / channel (x1); one channel driven; into 8 Ohms.
    1100 watts (1 .1 kW) / channel (x1); one channel driven; into 4 Ohms.
  • Rated Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz + /- 0.01 dB.
  • Minimum Recommended Load Impedance (each channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads per channel).
  • Frequency Response: 10 Hz to 80 kHz (+ 0 / - 1 dB).
  • THD + noise: < 0.015%
  • Signal to Noise Ratio (8 Ohm load):
    > 93 dB at 1 watt (A-weighted).
    > 109 dB at rated power (A-weighted).
  • Damping Factor (8 Ohm load): > 500
  • Speaker Output Connections:
    Super heavy duty audiophile speaker binding posts - with clear acrylic insulators and heavy duty gold plated contacts; designed to accept heavy-gauge bare cables, lugs, or banana plugs.
  • Power Supply:
    3.3 kVA toroidal power transformer.
    180,000 uF of storage capacitance.
  • Input sensitivity (for rated power; 8 Ohm load): 1.875 V
  • Gain: 29 dB
  • Input Connections:
    Unbalanced (Tiffany style, audiophile quality, gold plated RCA); one per channel.
    Balanced (XLR); one per channel.
    Each input may be independently switched to either unbalanced or balanced.
  • Input Impedance:
    47 kOhms (unbalanced).
    22 kOhms (balanced).
  • Trigger:
    Trigger Input: 5 - 20 V (AC or DC); <10 mA input current required.
    Trigger Output: 12 VDC; can drive any load up to 50 mA.
  • Power Requirements: 115 VAC or 230 VAC +/- 10% @ 50 / 60 Hz (user selectable).
  • Front Panel Controls and Indicators:
    Standby; push button (changes color to indicate Standby or On).
    Status LEDs (one per channel); illuminate blue for normal operation or red to indicate a fault (may be disabled by rear panel Status LED switch).
  • Rear Panel Controls:
    AC Power switch; rocker switch (switches AC mains power).
    Status LEDs switch; small slide switch on left rear (disables front panel Status LEDs).
  • Protection: The XPR-5 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions. If a fault occurs on one or more channels of the XPR-5, the LED above the Standby button, and the Channel Status LEDs and the LED Bargraph Meter LEDs associated with the channel that is reporting the fault will flash red. Returning the XPR-5 to Standby or switching off the AC Power will reset the protection circuitry.
  • Dimensions:
    unboxed: 17" wide x 9.5" high x 19.5" deep (includes feet and binding posts; requires additional 3-4" of depth clearance to accomodate the power cord).
    (double) boxed: 25" length x 23" width x 16" height
  • Weight: 94 lbs (net); 107 lbs (boxed)

Executive Overview

I wish I was paid by the word. I could just copy and paste "Emotiva Reference Amplifier" about a billion times and retire. Any true Audioholic would read every single word and get a little more excited with each reading. This is Emotiva we're talking about. The company that consistently slaps down their amplifier competition with lower cost amplifiers that outperform all comers. When they decide they are going to be putting out a "reference" product, you better hide your wallet before you money jumps out of it. Amps are about to get serious.

The new Emotiva XPR-5 is a five channel, 400 watt per channel, Class A/B beast that can push up to 575 watts into one channel at 8 Ohms or 1100 watts into one channel driven at 4 Ohms. The 400 watt rating is for all channels into 8 Ohms. The XPR-5 is stable into 4 Ohms and can push 600 watts all channels driven. It does this my pairing five high efficiency Optimized Class A/B amp modules with a Class H power supply  and a hulking 3.3kVA toroidal power supply.   The Class-H topology greatly improves efficiency over conventional Class A/B by modulating the supply rails so that the rails are only a few volts higher than the output signal at any given time.  This keeps the amplifier running cool, delivering maximum power from your wall outlet.  This amplifier approaches Class D efficiency, but without the performance variations typical of Class D amps caused by increased amplifier output impedance from the output filter which is designed to eliminate out of band modulation noise.

Wanna see? Yeah you do.

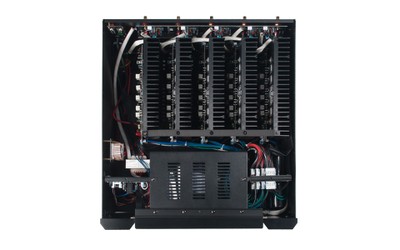

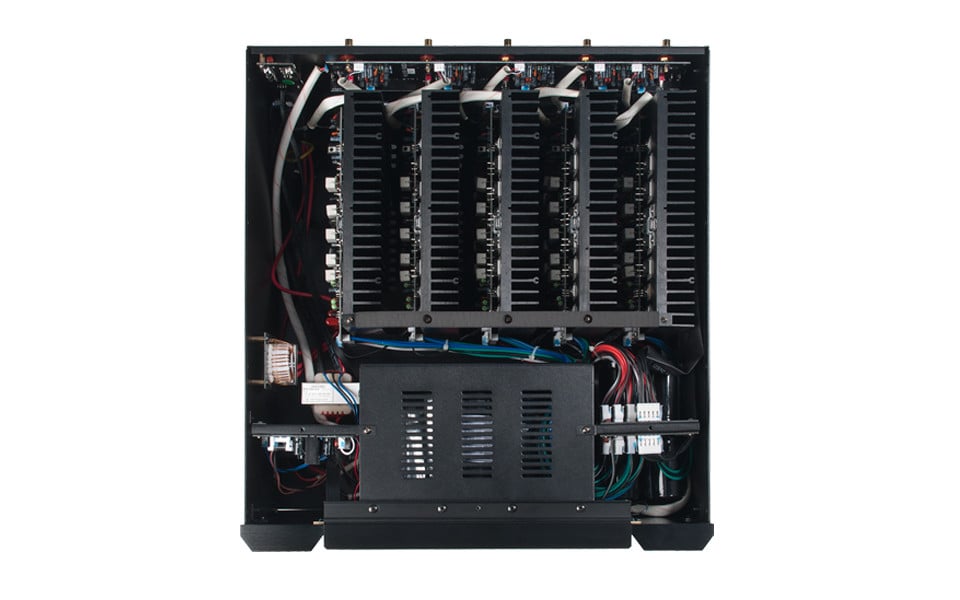

xpr5_top

When you are used to seeing the internal shots of a high end audio device with more empty real estate than one of those man-made islands in Dubai, the Emotiva XPR-5 is a welcome change. The massive power supply and 180,000 uF of storage capacitance means that the XPR-5 has power reserves to meet and exceed any real-world application. The enclosure is constructed out of steel with reinforcement to handle it's 95 pound bulk. Yes, you're going to need a friend to help you move this beast.

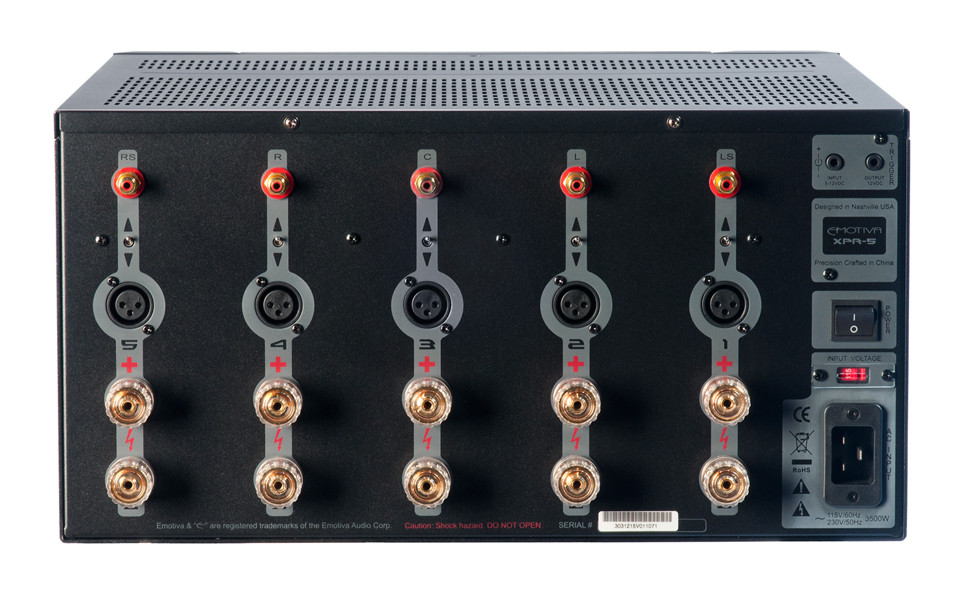

Turning the Emotiva XPR-5 around, we see exactly what you'd expect in a high quality amplifier offering.

xpr5_back

Each channel has a balanced and unbalanced input with a selection switch between. There are high-quality 5-way binding posts. Users can select between 115 VAC or 230 VAC +/- 10% at 50 or 60 Hz meaning the XPR-5 can be used all over the world with a simple power cord change. Twelve volt trigger in and outs allows seamless interaction with your other components.

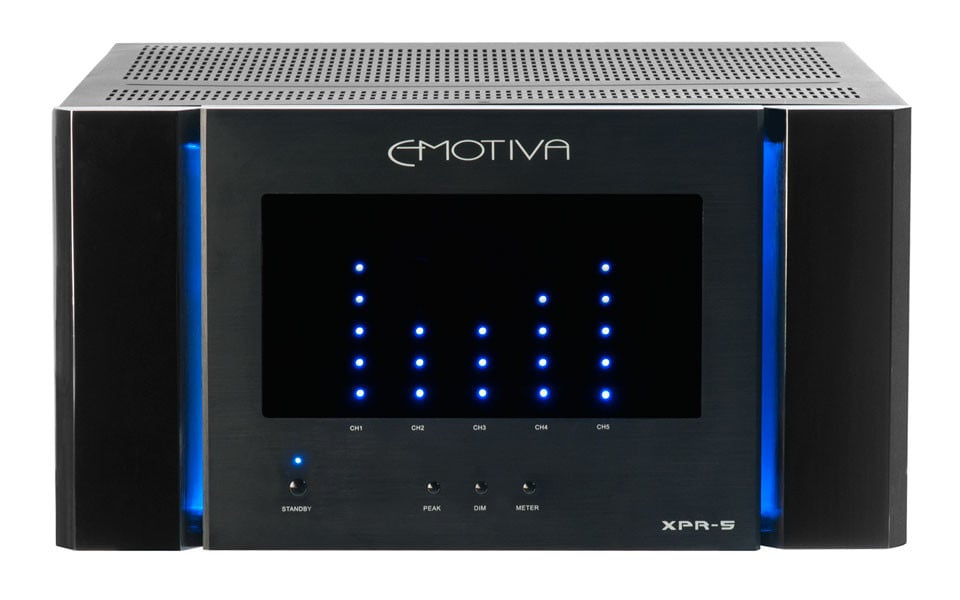

The 25mm billet aluminum, tooled, machined, and engraved faceplate of the Emotiva XPR-5 sports five LED Bargraph meters with selectable ballistics, one for each channel. There is also Channel Status LEDs which will indicate high temperature and fault conditions. The meters, of course, are defeatable for those that don't care to add extra light to their home theater. The readout can also be dimmed as will be the blue accent lights. A standby button on the front will power down the amp and a power button on the back powers it off completely.

Conclusion

Hardcore Emotiva fans may balk at the $2000 price tag for the XPR-5...but they are the only ones. People have gladly paid a lot more for a lot less with other brands. Sporting 400 watts into 8 ohms and 600 watts into 4 ohms all channels driven, the Emotiva XPR-5 redefines the idea of how much power is enough in an amplifier. With a 3.3kVA toroidal power supply and 180,000 uF of storage capacitance, headroom is not a problem. Emotiva promises that the XPR-5 is fully protected from all common fault conditions and it stable with virtually all real-world speakers. If that doesn't reassure buyers, we don't know what will. For a limited time, you can pick up the Emotiva XPR-5 for 10% off ($1799.10) during their summer sale. If you are looking for an amp that will outlast every other bit of gear in your system, this is the one.

For more information, please visit www.emotiva.com.
