Frame Dimensions: 5.25" wide x 3"
deep Available Viewing Surfaces: Da-Mat™, Pearlescent, Dual
Vision, Cinema Vision, High Contrast Da-Mat™, Da-Tex™; (rear), High Power, and
High Contrast Cinema Vision Frame: Standard with black
Pro-Trim fabric frame covering that absorbs light overspill surrounding the

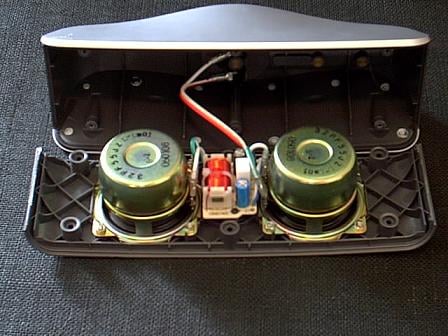

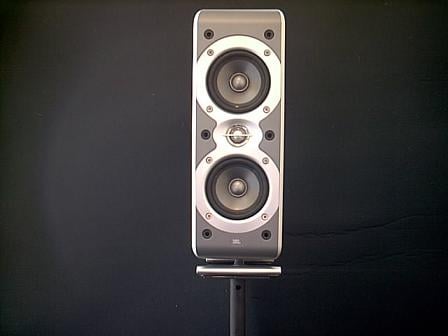

viewing area JBL PSS300.2 Main L/C/R
Speakers
Max Amp Power: 100
watts Nominal Impedance:
8-ohms Sensitivity: 88dB (1W/1m) Frequency
Response: 100Hz - 20kHz (-6dB) Tweeter: 0.5"
titanium-laminate dome Midrange: Two (2) 3"
drivers Video shielded: yes Dimensions:
11.5" x 4" x 3.5" Weight: 3 lbs.

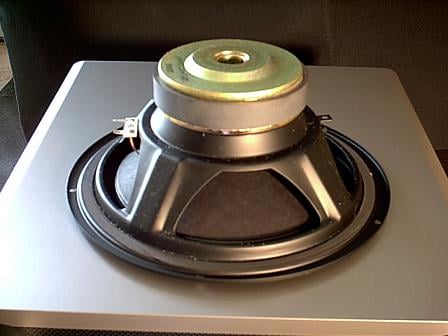

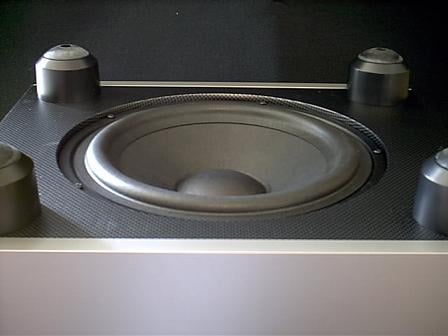

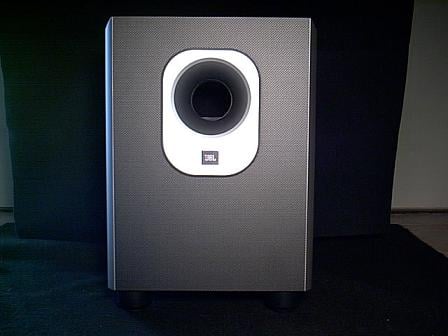

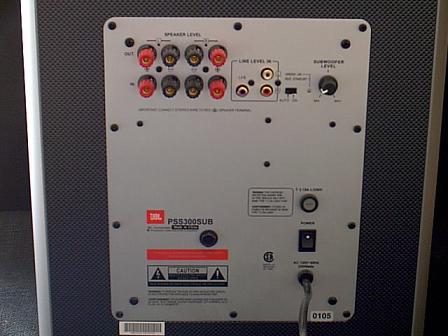

JBL PSS300.2 Subwoofer
Amplifier: 150 watts RMS Frequency
Response: 30Hz - 120Hz (-6dB) Woofer:

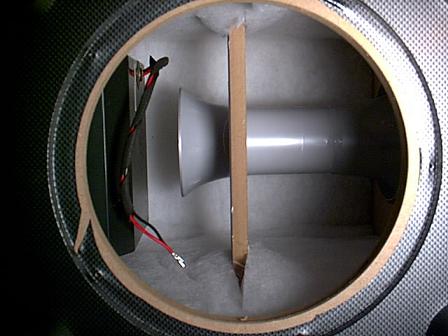

10" Enclosure: Bass reflex Dimensions:
20" x 13.75" x 15.75" Weight: 35 lbs.

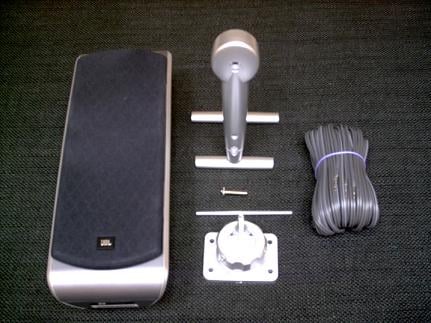

JBL PSS300.2 Surround
Speakers
Max Amp Power: 100
watts Nominal Impedance:
8-ohms Sensitivity: 88dB (1W/1m) Frequency
Response: 100Hz - 20kHz (-6dB) Tweeter: 0.5"
titanium-laminate dome Midrange: Two (2) 3"
drivers Video shielded: yes Dimensions:
11.5" x 4" x 3.5" Weight: 3 lbs.
Pros
Minimalist, innovative design is elegant and refined
Excellent build quality
Very good audio & video performance
Huge bang for the buck
Easy to integrate into room
Choice of screen material & sizes (including custom)
Great alternative to smaller flat monitor and cube speakers
Excellent customer service and support
Cons
Binding posts holes not big enough to accept 12 gauge stripped wire
Introduction

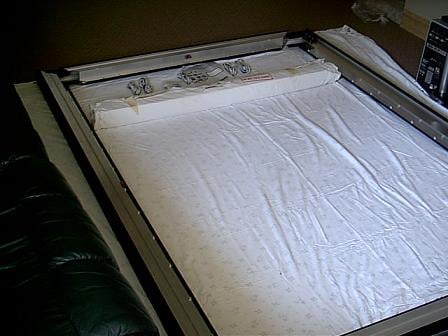

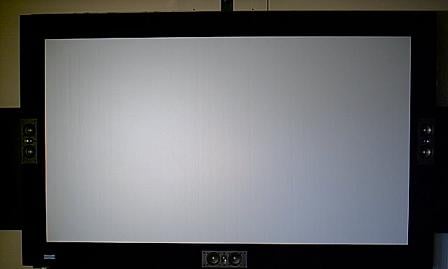

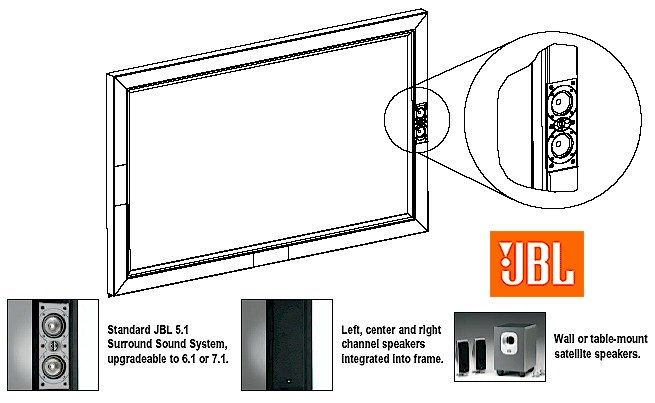

For those of you with a smaller budget and design concerns from the other half, a new product recently introduced by Da-Lite may make your dream of having a cinema-sized screen in your home a reality. Da-Lite Screen has partnered with JBL Audio and recently introduced the Da-Lite Acoustical Imager Screen. This is a fixed wall mount screen that incorporates the front left, center, and right speakers directly into the frame of the screen. The screen also comes complete from the manufacturer with a 10 inch, 150 watt powered subwoofer and two small satellite speakers to be used as the surrounds.
RLA Home Theater and Hi-Fi began as a hobby and has expanded into a business. Ray took his love of music and movies and turned it into his personal business to bring movie theater sound and quality into the homes of his customers. Ray brought great knowledge and expertise to us from a custom installer/integrator's perspective.
