Optoma HD70 Projector Review

by October 18, 2006

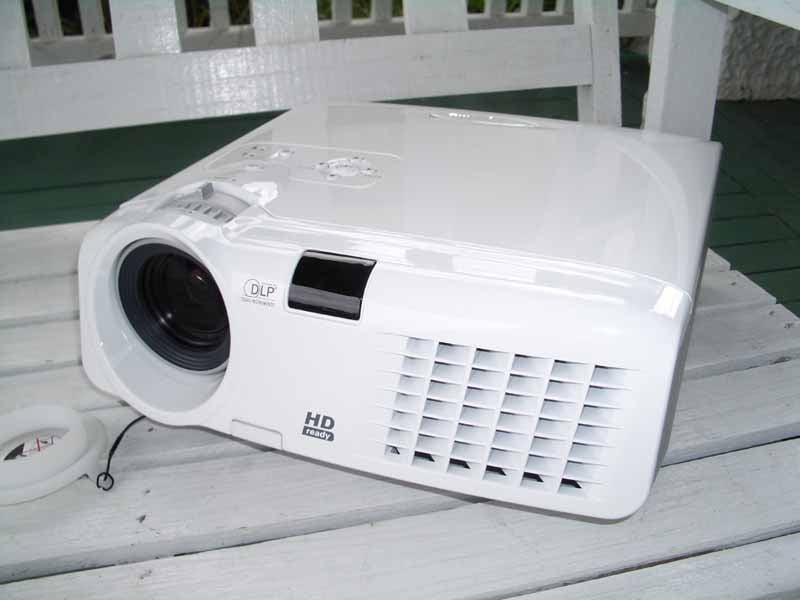

Optoma HD70 DLP Projector

Optoma HD70 DLP Projector

  • Product Name: HD70 Projector
  • Manufacturer: Optoma
  • Performance Rating: StarStarStarStar
  • Value Rating: StarStarStarStarStar
  • Review Date: October 18, 2006 20:00
  • MSRP: $ 1399
  • Buy Now

Brightness: 1000 ANSI lumens (high power mode)
Contrast: Up to 4000:1 (AI mode)
Resolution: 1280 x 720 native HD resolution
Aspect Ratio: Widescreen native 16:9 aspect ratio (4:3 compatible)
Supported Screen Size: 33-310 inches diagonal (theoretical)
DLP Technology: Single 0.62” DarkChip2 DLP
Optical System: 4x speed 7-segment color wheel (RGB, RGB, W)
Computer Compatibility: SXGA+, WXGA, XGA, SVGA, VGA Compression; VESA Standards; PC and Macintosh Compatible
Scanning Formats: 480i/576i/1080i and 480p/576p/720p/1080p/24/60 (PAL equivalents supported)
Video Inputs: HDMI, component video,VGA with component & SCART compatibility, composite video (RCA), S-Video
Misc Connections: RS-232, Dual IR Receivers, +12V Trigger Relay
Projection Lens
: 1.2x Manual Zoom and Focus; F = 2.5 ~ 2.8, f = 22.25 ~ 26.69mm

Keystone Correction: horizontal/vertical (digital)
Lamp: 200 W; 3000 hr life (Eco mode)
Mounting: ceiling, desk, front/rear (menu configurable)
Power Supply: 100-240 volts, 50-60Hz
Power Consumption: 250 watts (maximum)
Operating Temperature: 41 – 95 degrees F (5 – 35 degrees C); 80% max humidity (no condensation)
Fan: Whisper quiet 28dB operation (in Eco mode)
Projection Method: Front/rear/ceiling mount/table-top

Uniformity Ratio: 95% (center-to-corner)

Remote Control: Backlit IR remote Control with source selection, AAA x 2 batteries
Standard Accessories
: AC power cord, composite video cable, component video cable, s-video cable, remote control, 2x AAA batteries for remote, lens cap, user’s manual, quick start guide and warranty card

Optional Accessories: Ceiling mount, carrying case and GrayWolf II series screens

Dimensions: 15.5” x 4.4” x 11.8” in (395 x 112 x 300 mm)

Weight: 5.6 lbs (2.5 kg)
Warranty: 2 years limited parts and labor; 90 days lamp


Pros

  • First sub-$1000 720p DLP projector! (street price)
  • Deep blacks, rich colors
  • Consumer adjustment of RGB gain, cut and gamma
  • Backlit remote
  • 1080p support (downconverted)

Cons

  • Weak 1.2x Zoom Lens
  • Requires some calibration out of the box
  • IR sensor on front only
  • No RS-232 Support

Introduction

When I found out that Optoma was taking over the entry level projector market – excuse me, I mean introducing a 720p DLP projector for under $1000 – I quickly lined up a unit for review. You heard correctly, this is a 720p-native DLP projector that is debuting for $999 (street price). To suggest that this projector might be a popular item going into the holiday season and throughout 2007 would be like saying that Reality television might be getting a bit stale. I’ll just say it now – this should be the top-selling projector of the coming year, and for good reasons that I will outline in this review.
About the author:
author portrait

Clint Deboer was terminated from Audioholics for misconduct on April 4th, 2014. He no longer represents Audioholics in any fashion.

View full profile

Confused about what AV Gear to buy or how to set it up? Join our Exclusive Audioholics E-Book Membership Program!

Recent Forum Posts:

patriciogac posts on May 22, 2007 18:31
Clint:
Great review!
I tryed using Avia for calibration, but i did not like the results. can you publish the calibration numbers for the optoma d70 that the datacolor showed? Thank you!
nucoolmint posts on February 24, 2007 12:36
This was a problem with the DVD player. I now have the oppo 970HD and the component cables work fine.
billnchristy posts on December 20, 2006 19:09
What kind of time frame does it take for this to happen?
nucoolmint posts on December 20, 2006 12:18
phidelt
Great review, what led me here was a problem with my HD70 that I think may be easily corrected. I have 25FT runs of both SCART/Component and straight component cables - each of which I have hooked up to my 5-7 year old Sony DVD player (dont have model # handy). My issue is that during indiscriminate times or scenes, the HD70 will “drop” the image completely with its blue splash screen, 2-5 seconds later, the image comes back. I have tried it with a SCART/Component cable as well as the straight component port and the same thing happens, even at the exact same moment in the scene on the DVD. I ran DVD over SVIDEO and no signal problems at all. My HDMI source (cable TV) has never dropped either.

Is this a cable problem? A signal degradation problem? a projector problem? If I had a spare DVD player that was easily removeable, my plan was to move it closer to the projector and test a different DVD player with a shorter cable, but I haven't been able to do that yet. It seems to happen with action scenes/sequences, and less on dramatic slightly moving images.

Any ideas would be greatly appreciated.

I have the same problem it drops in and out. I have the Sony DVD S5550D and the HD70. It works fine on S-Video. My cable run is aprox 33 feet. The image on component when present looks great. Is this a cable problem or HD70 not being able to hold on to the sync or maybe just the DVD player.

Cheers
Lou223 posts on December 12, 2006 11:35
Convinced by your article…

Clint, after reading your article I went to BBUY to pick up my HD70 but when I arrived they had the Sony Cineza HS51A for the same price on sale. Should I go for the new DLP technology in the HD70 or for last years model Sony? Which would give me a better picture? Many thanks for your help!
