Epson Pro Cinema G6900WU Projector with HDBT

Epson Pro Cinema G6900WU Projector

Epson Pro Cinema G6900WU Projector


  • Product Name: Pro Cinema G6900WU Projector
  • Manufacturer: Epson
  • Review Date: September 28, 2013 03:10
  • MSRP: $7499
  • First Impression: Gotta Have It!
  • Projection System: High-aperture Epson 3-chip, 3LCD technology
  • Projection Method: Front / rear / ceiling mount
  • Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Color Brightness (Color Light Output): 6000 lumens
  • White Brightness (White Light Output): 6000 lumens
  • Lamp Type: 380 W UHE
  • Lamp Life: Normal mode: Up to 2000 hours, ECO mode: Up to 4000 hours
  • Brightness Uniformity: 90%
  • Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz); Horizontal: 15 KHz – 92 KHz, Vertical: 50 Hz – 85 Hz
  • Throw Ratio Range: 1.26 – 2.76
  • Keystone Correction: Horizontal: ±30 degrees, Vertical: ±30 degrees
  • Lens: Manual focus / zoom
  • F-number: 1.65 – 2.55
  • Focal Length: 21.28 mm – 37.94 mm
  • Zoom Ratio: Optical zoom 1.0 – 1.8
  • Lens Shift (standard lens): Vertical: ±67 degrees, Horizontal: ±30 degrees
  • Pixel works video chip
  • Interfaces: HDMI, DisplayPort, HD BaseT, HD-SDI, (2) D-sub 15 pin, 5-BNC, composite, BNC, S-Video, (3) Mini stereo, RCA, RJ-45, USB Type-A, USB Type-B, RS-232c, Hardwire Remote jack, Monitor-Out D-sub 15 pin
  • Fan Noise: Normal 39 dB, ECO 31 dB
  • Security cable hole, Lens lock, Kensington lock provision
  • Dimensions: With standard lens: 19.88" x 15.94" x 6.73"
  • Weight: 21.5 lb (with standard lens)

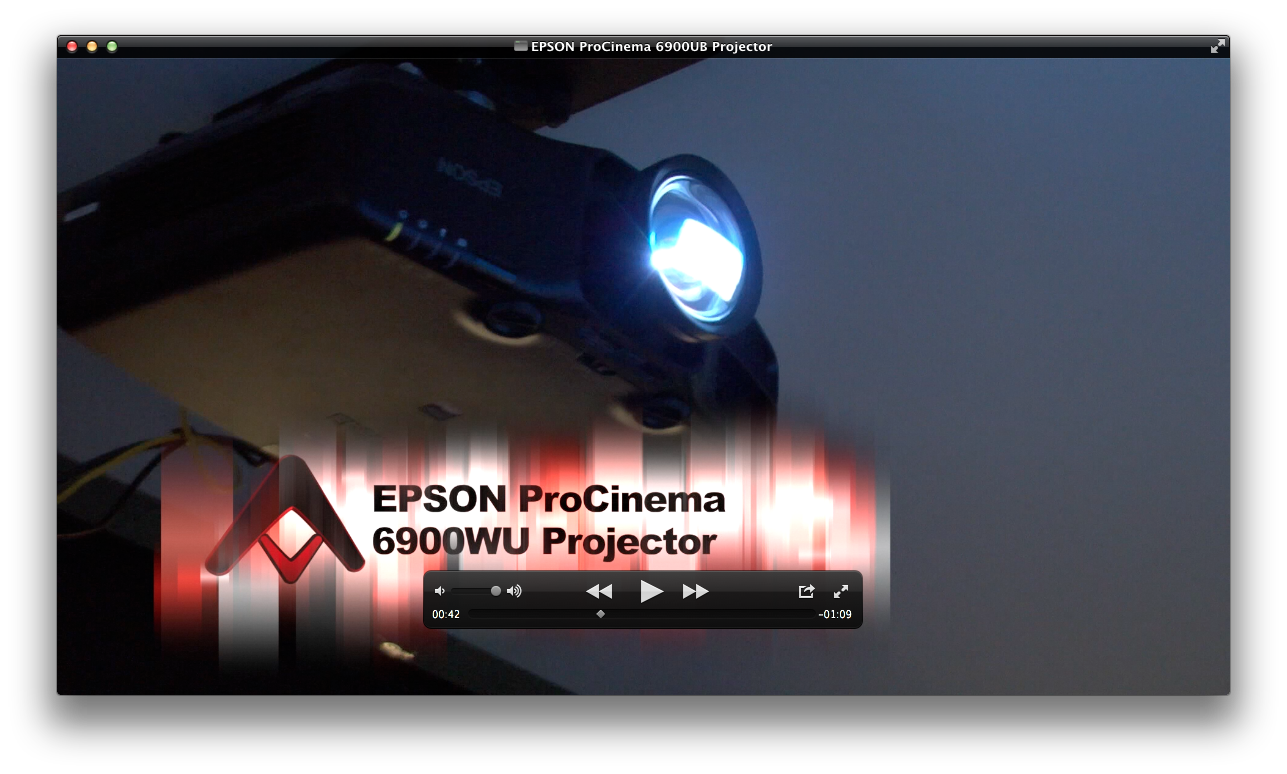

We got to interview Jason Palmer on the new Epson Pro Cinema G6900WU. This is actually a new product for Epson. Epson has never had this type of pro Cinema lineup of this type. The 6900UB has 6000 lumens of output and has features like a Faroudja DCDi Cinema chip. It uses HDBaseT (HDBT) technology so you can plug in Cat 6 and run it up to 328 feet. It has lens shift. and a lot of other features of the Pro Cinema lineup like frame interpolation—but in an incredibly bright projector suitable for larger projection screens or screens in bright rooms.

A lot of people are wanting to put 120-inch or 140-inch screens into rooms with ambient light. Including the mount, an extra lamp, 4th year overnight replacement warranty, plus a cable cover, the G6900WU comes in at $7499.

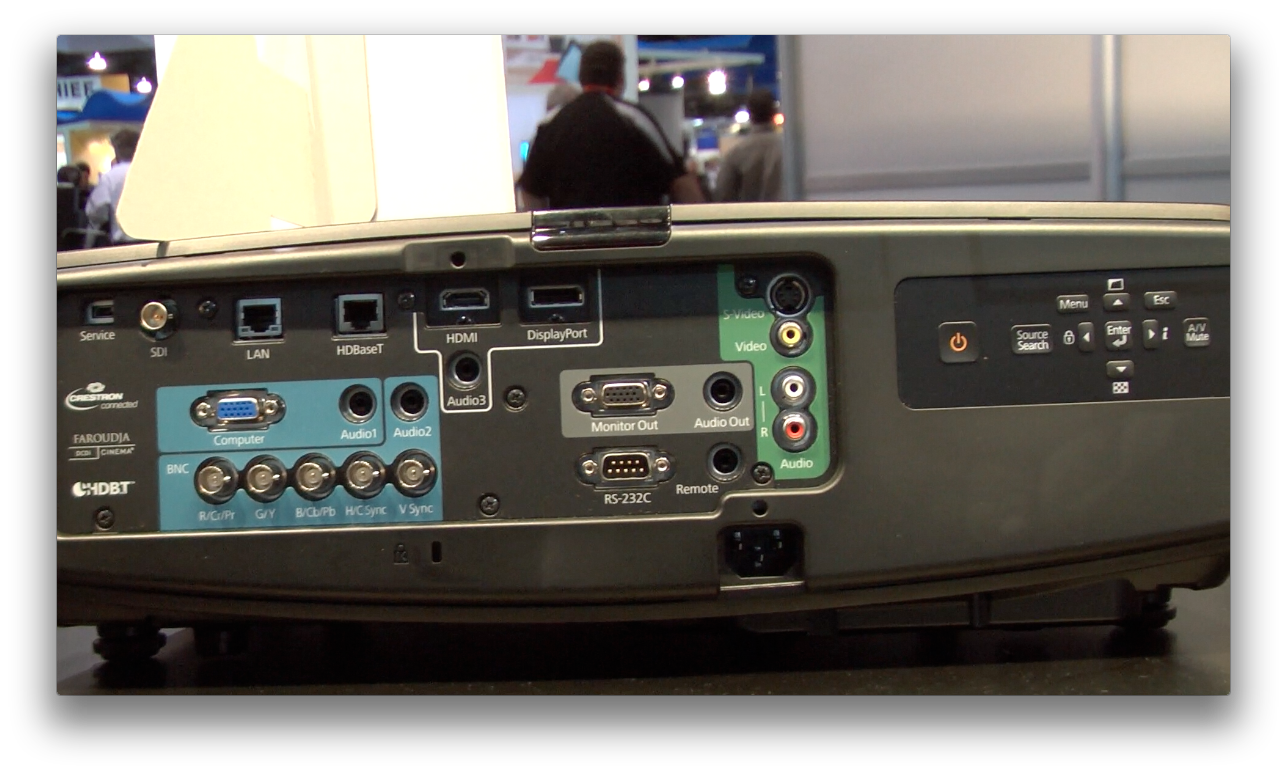

 Epson G6900WU Inputs


  • 3LCD, 3-chip technology
  • 6,000 lumens of color brightness
  • 6,000 lumens of white brightness
  • Color uniformity and pixel alignment adjustments
  • Lens shift lock
  • Advanced split screen to watch two HD connections at once
  • Additional lenses available
  • Included ceiling mount, cable cover and extra lamp
  • 4th year overnight replacement warranty

Unless otherwise indicated, this is a preview article for the featured product. A formal review may or may not follow in the future.
