Capture from a Digital Camcorder via the DV port
on Instant DVD + DV with full device control.
USB 2.0 connection to the PC, backward compatible to USB 1.1
Capture audio and video via the USB port with "Audio-Lock" technology
for perfect lip sync
Use temporal and spatial video pre-processing filters to remove noise
from old VHS tapes or TV signals.
Supports MPEG 1 Layer 2 compressed Audio VCD, SVCD and DVD formats
via RCA (Composite) or S-VHS video inputs.
Supports LPCM or MPEG audio
Capture DVD (MPEG-2) at video bit rates from 1 Mb/sec. up to 15
Mb/sec. (up to 6 Mb/sec.for USB 1.1 connections)
Capture using Constant or Variable bit rates and other custom
settings.
Features a 9 bit video digitizer with 2x oversampling and 4 line
comb filter
Brightness, Contrast, Chroma, Saturation and Hue controls
"Direct to Disk" feature to capture and burn to disk in one simple
step.
Preview edited movies on TV before burning to disk
Export edited video to VCR for recording to tape.

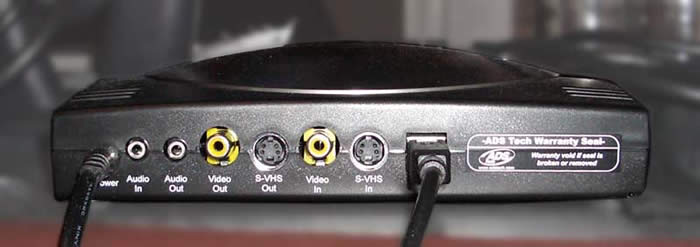

Inputs/Outputs Front: RCA Video In,
Right and Left Audio In Rear: RCA Video In, S-VHS Video In, RCA-Video Out,
S-VHS Video Out USB connector 3.5 mm stereo In 3.5 mm stereo
Out Power Connector 1394/FireWire connector
Contents:
Instant DVD + DV Device Audio/Video and USB

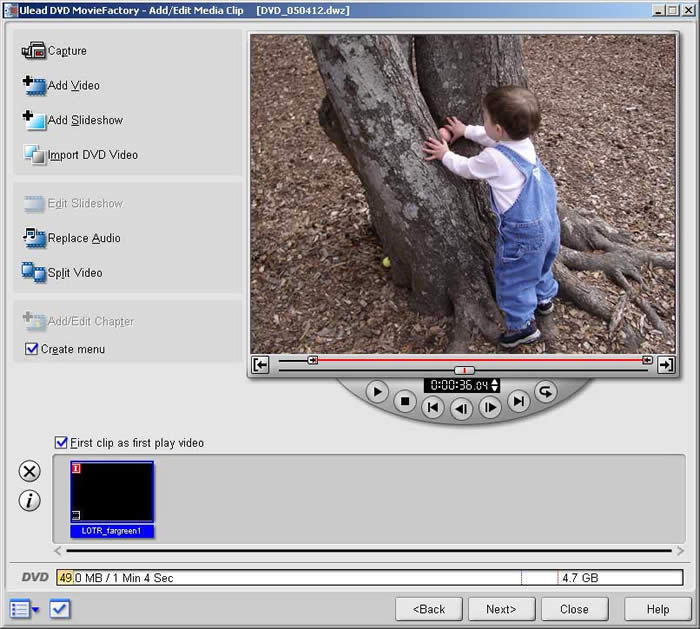

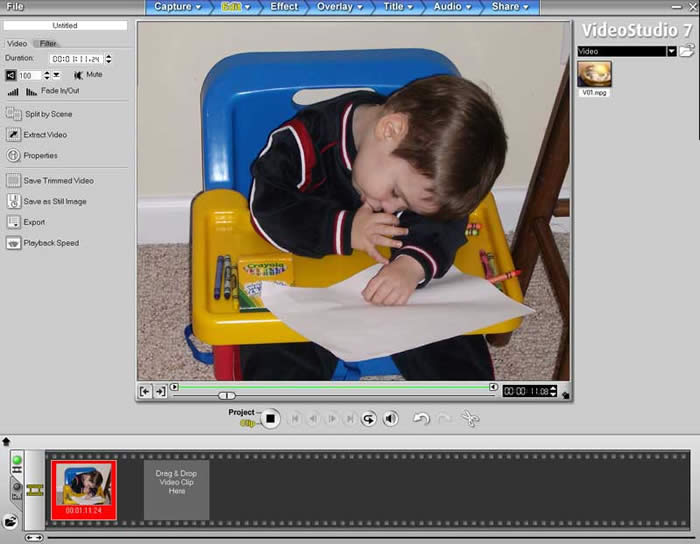

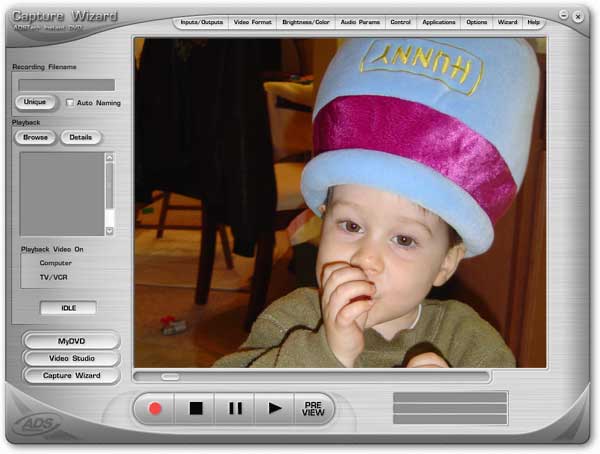

cables CD Containing: Capture Wizard 3.0, Video Studio 7 SE, DVD Movie

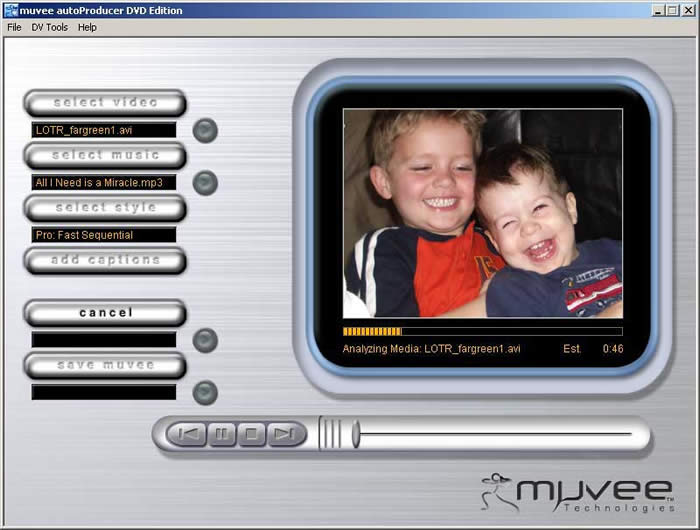

Factory SE DVD, Muvee autoProducer DVD SE Power Supply User
Manual
UPC: 7-57887-70300-4 Part #: USBAV-703
Pros
Undemanding hardware compatibility
Full suite of inputs and outputs
Record Direct to DVD+R in real-time
Easy DVD authoring and video editing for novices
Cons
Cannot record (print) to DV
Software is very limited and cumbersome
Introduction
ADS Tech is a worldwide company specializing in USB and IEEE-1394/FireWire solutions for the personal computer. Since the company's inception in 1992, the cornerstone of the company's success has been to introduce niche or high-end technologies to the consumer marketplace with quality devices sold at a reasonable cost.
Over the years, ADS Technologies, Inc. has brought a wide range of products to market including VGA-to-TV scan converters, video capture and TV Tuner cards, which enabled ADS Technologies to sustain steady growth and sales during the mid-1990's. They have only continued in growth and now manufacture higher end products marketed under the “PYRO” brand in addition to their more consumer-oriented products.
