Cable Distortion and Dielectric Biasing Debunked

by Bruno Putzeys August 29, 2004

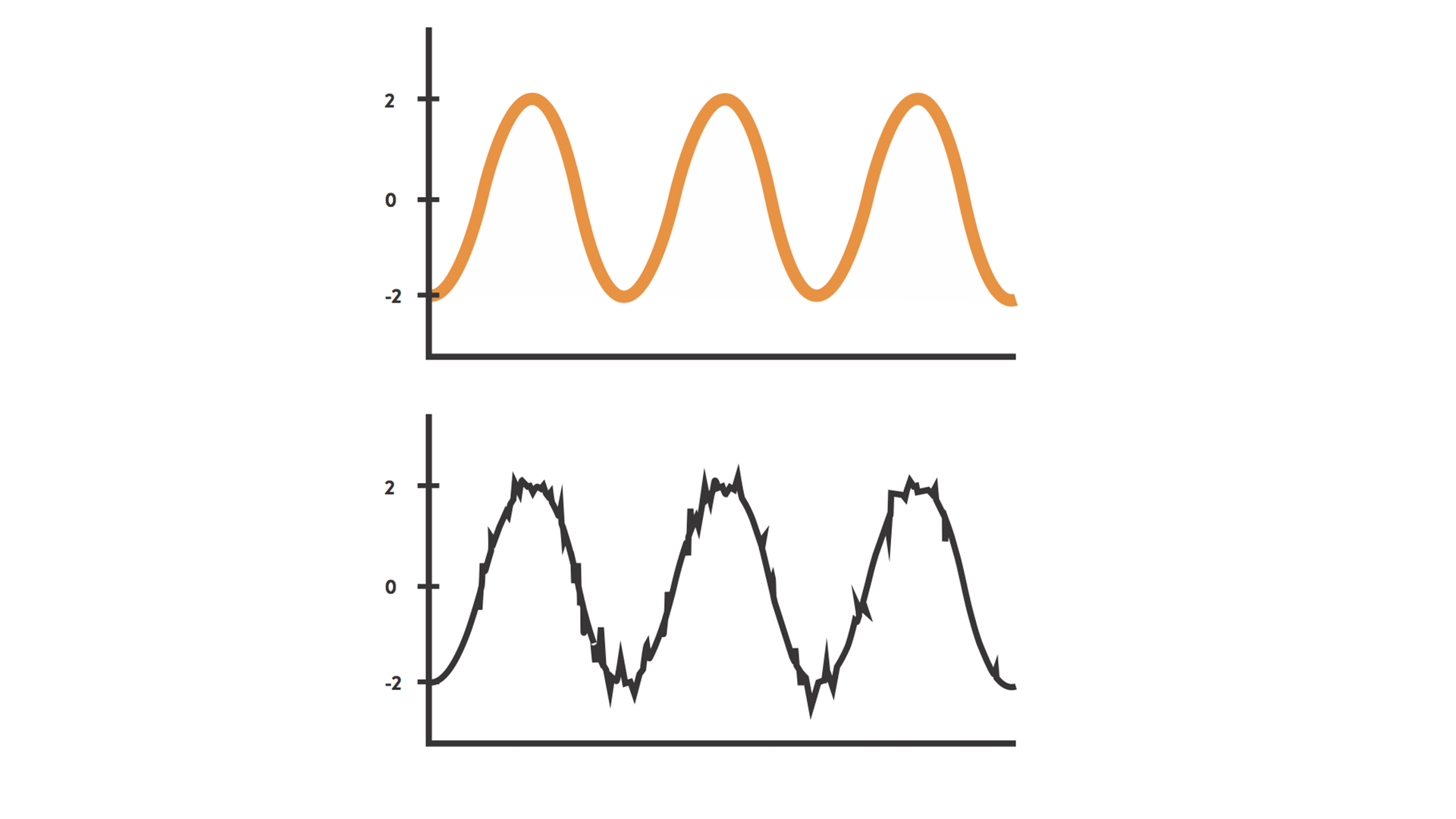

Distortion Waveform

Distortion Waveform

Recently I've done a collection of measurements and tests on interconnect cables to see what I could find that would explain the sonic differences that many people, including myself, have grown accustomed to hearing. The test equipment was an Audio Precision System 2 Cascade. Test objects were a handful of cables of varying construction and claims to audiophile performance.

  • Distortion: Not only sine wave, but also extremely complex full-spectrum multitone testing (including signal sequences derived from actual music). There were NO differences between the cables tested.
  • Phase noise: While this would have shown up anyway in the above tests, it was separately checked at frequencies well above the audio band. Nothing showed up .
  • "Micro phase shifts": The AP2's resolution is so good you can read the length of a cable to within a few inches by measuring the phase difference between input and output. Apart from this, nothing turned up.
  • In-Out difference. Actually, two different cables of equal length were fed the above distortion test signals in opposite phase. The two outputs were summed through a trimmable network to null the output. Well, the output nulled completely (better than 120dB across the audio band).

In short, apart from a constant time delay of a few nanoseconds (depending on length), an interconnect will have the same voltage at its output as at its input.

But What If...?

Or will it? There's one well known (and usually ignored) effect in unbalanced connections, which is that the same conductor that connects the chassis also serves as reference to the signal. In a normal cable, these are 100% coupled, which means that the part of the chassis error voltage that drops across the inductive part of the cable impedance (end-to-end impedance of the shield) will couple into the conductor and be compensated 100% (Yes! Unbalanced connections have got CMRR in some way). However, lower frequencies will cause more voltage drop across the resistive component of the shield, and this appears as an error voltage at the receiving end. Take a coaxial cable, take the jacket (sheath) off and dress it in a number of extra layers of shield salvaged from other cables. Hear the sound improve... This addresses the same problem as "mains conditioners" but it does so much more effectively.

The intelligent solution however, is to use balanced connections. In a balanced connection, two conductors are used in addition to the shield. Sometimes, they are driven with opposite-phase signals, sometimes one is simply tied to ground at the source end through a series resistance equal to that of the source. Both options are fine. The crux of the affair is that the receiver looks only at the voltage difference between the signal conductor and the reference (or inverted signal) conductor. This will remove the effect of voltages across the shield completely as the signal reference and chassis connection functions are duly separated.


There may not be a difference between what goes into a cable and what comes out, but this does not mean that the presence of the cable can't modify the signal. I'm talking about microphonics of course. This effect has two causes: triboelectric charging and condenser mic effect .

Triboelectric charging is the same effect that causes you to accumulate electric charge when walking across a thick carpet in winter. The charge is siphoned off to the terminating resistances (mostly the output impedance of the source) and creates a voltage there as long as the cable is moving.

Condenser microphones work by varying the capacitance of a cap that has a more or less constant charge stored in it. This is done by connecting it across a voltage source with a very high internal resistance. As sound waves change the capacitance, the actual voltage across the capacitor changes too. In a cable, the transmitted signal takes the function of bias voltage. Motion of the conductors will change the capacitance.

Applying a "bias voltage" as is done by certain cable companies in a bid to linearise the dielectric (the purported nonlinearity of which consistently fails to show up in any test) is extremely counterproductive in this respect! The higher the voltage on the cable, the greater the condenser microphone effect.

Reducing triboelectric charging is done by using a dielectric/conductor duo that produces little contact charge. Aluminium and paper are one such combination, cotton and steel another. Unfortunately, paper and especially cotton are quite soft, making the cable particularly susceptible to the condenser mic effect. A method to reduce triboelectric noise in normal insulators consists of lubricating the shield/insulator interface with graphite.

Reducing the condenser mic effect requires a tough (hard to deform) dielectric. Teflon is a famous example. Unfortunately, teflon is incredibly triboelectric against practically any other substance. In addition to this, the stiffness of teflon and also silver makes the cable nearly lossless, mechanically speaking. Measured microphonic impulse responses show tremendous ringing in the upper audio band. This could explain the "brightness" often attributed to silver/teflon cables.

To make matters worse, teflon and silver are about the worst thinkable combination in terms of triboelecticity .

On the other hand, there is the "sound engineering" solution: use a signal source with the lowest possible impedance. Charges generated and transferred because of either effect are absorbed at the source and the receiving end will never get to see it. I have been surprised, though, of how low this drive impedance should be before cable microphonics disappear below the noise floor of good audio gear.



To recap: to make cables disappear from the sonic equation, all that is needed is balanced transmission combined with sub-1ohm output impedance line drivers. I would like to propose this as a standard for audiophile equipment makers.

It shows that people who claim that cables do not make a difference are plainly deluding themselves. On the other hand, those that say that cables should not make a difference, are dead right.
