Rotel DX-5 Integrated Amp Introduction

Rotel describes its compact DX-5 ($1,699) as “the ultimate Personal Audio Integrated Amplifier.” The “Personal Audio” moniker, paired with the amp’s tiny size, might lead you to assume that this desktop-friendly component doesn’t have what it takes to anchor a full-size audio system, but I’ll tell you right now that this is not the case. Sure, the DX-5 may be just half the width of a standard audio product, measuring 8.5 inches wide, 3 inches high, and 10 inches deep, and its relatively modest power specs might give you pause. The amp promises to deliver 25 watts per channel into 8 ohms, and 33 watts into 4 ohms. But being a Rotel, the DX-5 contains a robust Class AB amplifier powered by a beefy, in-house wound, high-current toroidal transformer, which contributes a significant amount of the amp’s 9.1-pound weight. I would not be a bit surprised if the DX-5’s measured power easily outperformed the spec sheet.

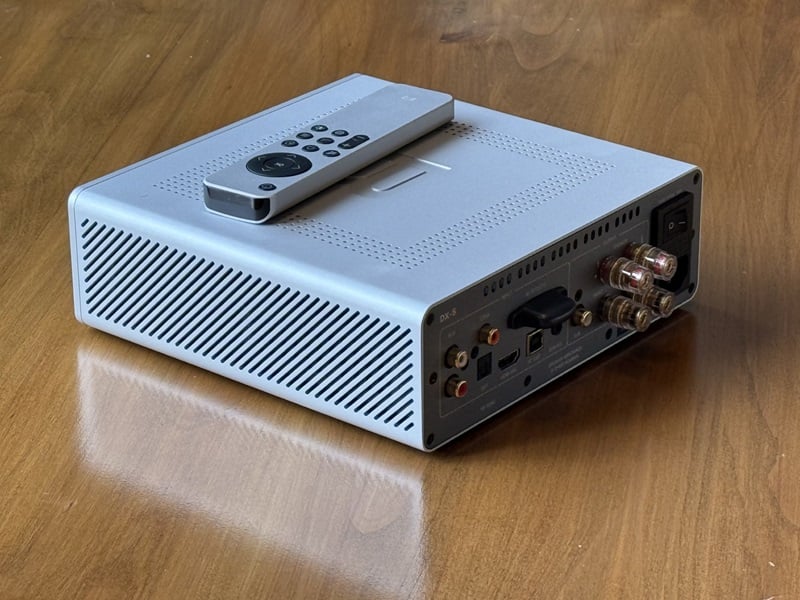

The DX-5 is just as gorgeous in person as it appears in photos, but a picture cannot convey how dense and solidly-built the unit is. In the hand, it feels like a cross between a Rolex and a sledge hammer. Owing to its compact form factor, however, there are some practical limitations that might prevent it from being a contender for your main system. Around back you’ll find just a single single set of analog line inputs. So if you use both a turntable and an outboard DAC, for example, you’ll need to look elsewhere. That analog input has a usefully high 100kΩ input impedance, which is good news if you use a source with unusually high output impedance, such as the popular R2R DACs from Denafrips. The DX-5 does have a built-in DAC section based on the 32-bit ESS ES9039Q2M DAC chip, which can be fed via the optical and coaxial S/PDIF inputs, the USB-B port, or HDMI ARC. There is also a built-in Bluetooth receiver, with aptX HD support, in addition to AAC for Apple iOS users. The optical and coax inputs can handle 24-bit/192kHz PCM, while the USB-B port accepts up to 32-bit/384kHz PCM and DSD256. (The DAC’s default setting handles both 24-bit PCM and DSD; you can also choose to omit DSD compatibility in favor of 32-bit PCM capability. I left it in the default setting for my testing.)

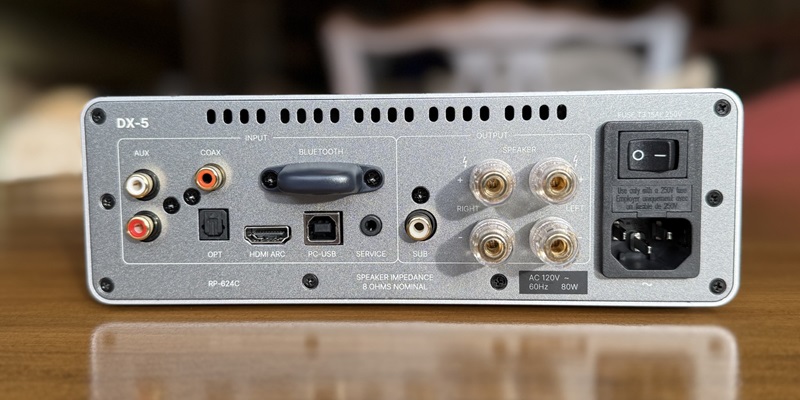

Another practical limitation you’ll notice when perusing the DX-5’s tidy rear panel is the absence of stereo preamp outputs for connecting to an external power amplifier. But that limitation becomes less significant when you discover just how capable the DX-5’s power amp section is. It’s worth pointing out, though, that the nearly identical Rotel DX-3 headphone amp has preamp outputs on both RCA and XLR. It also has a higher-spec DAC section built around the ESS Sabre ES9028PRO 8-channel DAC chip, but the only built-in amplification is for headphones. Will Rotel eventually offer a matching DX series power amp to pair with the DX-3 (or a dedicated DX preamp)? I would hope and expect so, but I have no insider information to offer on the subject. While the DX-5 integrated lacks stereo pre-outs, it does have a single subwoofer output on RCA. There’s no bass management onboard, however. The sub output is an unfiltered, full-range output, so you’ll have to rely on your subwoofer’s low-pass filter. There’s no high-pass option for the speaker outputs either. The DX-5 is obviously not trying to beat the competition by offering the most exhaustive list of features.

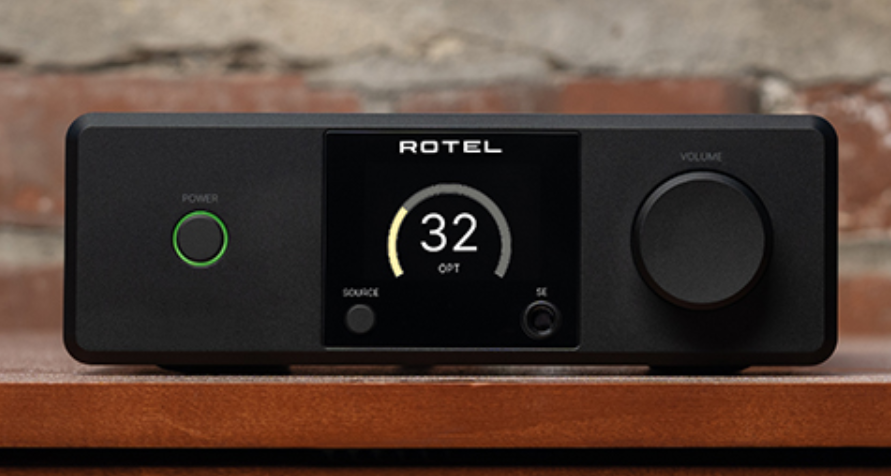

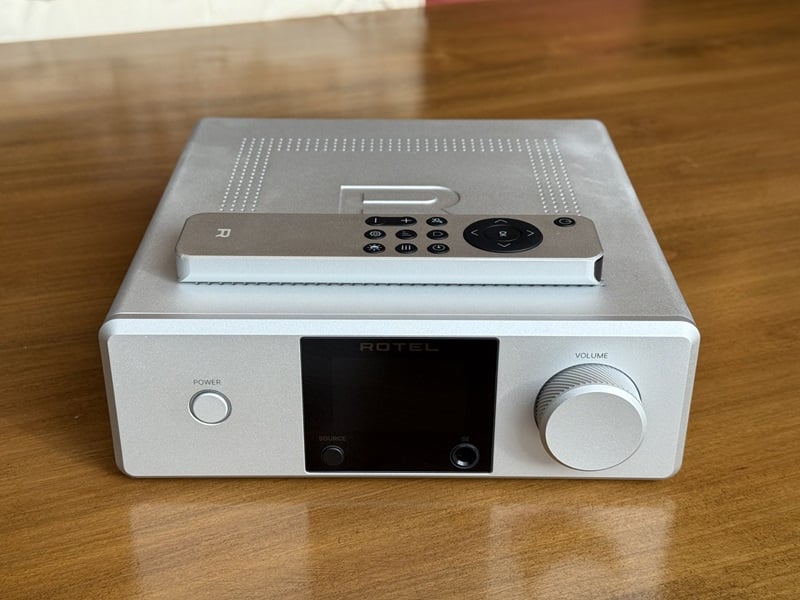

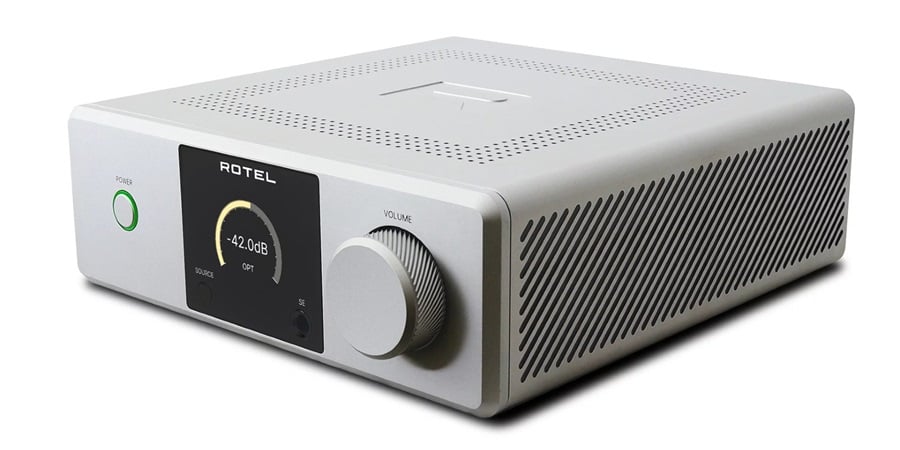

The unit’s handsome front panel is home to an illuminated standby/power button, a source selection button, a large, diamond-knurled volume knob, a 6.35mm headphone jack, and a small but unusually crisp full-color TFT display — one of the nicest I have seen. The display shows the source selected, volume level, and stream format when using a digital source. The display can be dimmed using the setup menu via the all-metal RR-DX1 IR remote, which also controls volume, mute, input selection, and menu navigation. Because the amp’s uncluttered front panel has so few buttons, you must use the remote to delve into the DX-5’s menus. The ability to rename inputs is especially welcome — you can change the optical input to “CD,” for example, if you have attached a CD transport, as I did. And you can rename ARC to “TV” (or whatever name you prefer) to simplify operation for even the least tech-savvy member of the household. Because the DX-5’s display screen is quite small, I couldn’t make these adjustments from my listening position, though if you’re using the amp on a desktop, this won’t be an issue.

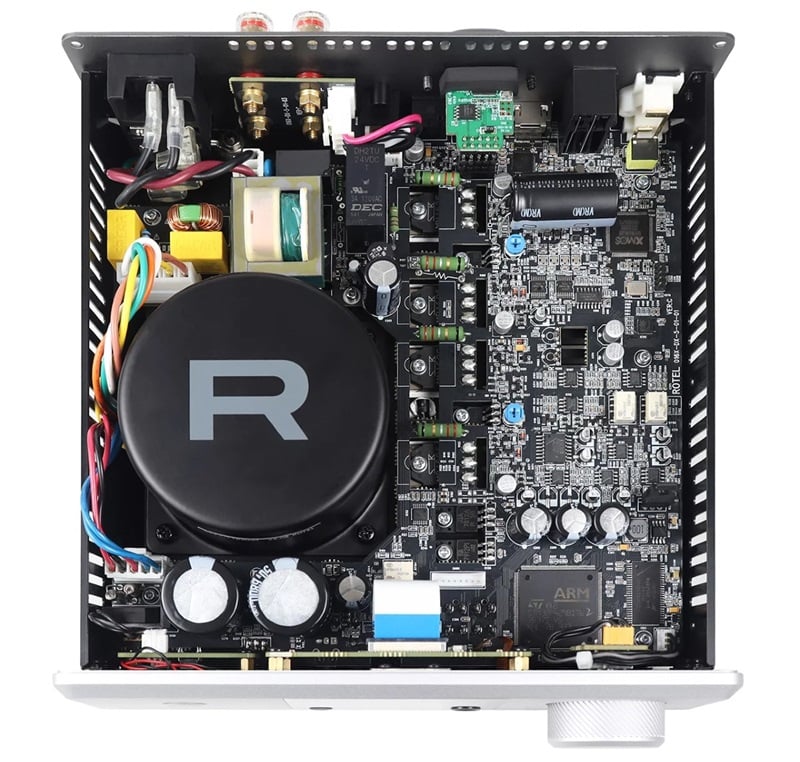

Under the hood, the DX-5 is packed. The biggest component is, of course, the substantial, shielded toroidal transformer. The power supply feeds an amp based on transistors from Japan’s Sanken Electric. The digital PCB reportedly includes an ARM mainboard processor, an XMOS USB receiver, the ESS ES9039Q2M DAC chip, and a Burr-Brown PGA2311 volume chip.

Rotel DX-5: In Use

This is my first review in my new listening room, and it can be daunting to work out how to listen critically, and with certainty, in a new space. As many Audioholics readers will know, room acoustics play an enormous role in shaping the sound that reaches our ears. In order to be absolutely sure that I had a deep understanding of what the DX-5 was contributing to the sound, I took a maximalist approach to this review, using no fewer than three pairs of speakers and making side-by-side comparisons using two other high-quality amplifiers: the QUAD 3 Integrated Amplifier ($1,895) and the NAD Masters Series M10 V3 ($2,999). The QUAD is a Class AB amp with more power and more inputs than the Rotel, but a larger footprint to match. The compact NAD isn’t much bigger than the Rotel, but costs more in large part because of its enormous feature-set, which includes built-in BluOS streaming, bass management, Dirac Live, and a large touchscreen. It uses a HybridDigital amplifier based on nCore Class D technology. Both the QUAD and the NAD have built-in phono stages, which the Rotel lacks.

Setup of the DX-5 was a breeze. Users who are accustomed to do-it-all units like the NAD M10 might be disappointed at the Rotel’s lack of built-in streaming, but I was grateful that there was no app to download, no firmware updates required, and no frustrating hiccups. (By comparison, setting up the NAD was a chore.) With the Rotel, I didn’t even need to consult the user manual until I determined that the amp sounded best after warming up for a while — a process that takes about 30 minutes, give or take. The DX-5 ships with an auto-off feature engaged by default; if you leave it on with no music playing, the amp will turn itself off after 20 minutes. It turned out to be a simple process to change this setting. You can adjust the amount of time after which the unit enters standby mode, or turn off the feature altogether. I turned it off, and the amp stayed warmed up and ready to sing at a moment’s notice. Even after being left on for days and playing music for hours, the amp only ever got pleasantly warm to the touch.

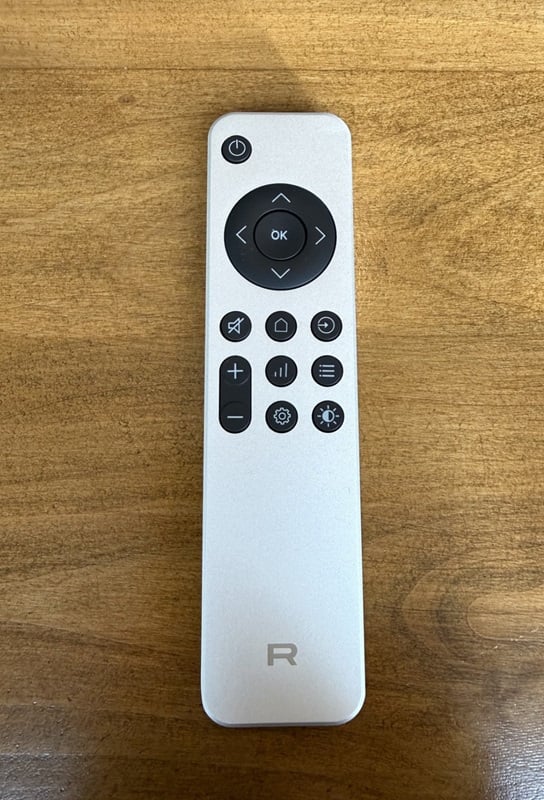

To get into the DX-5’s menus, you must use the included remote control. I wanted to love this remote. It is all metal, with satisfyingly clicky buttons, and feels both more substantial and more luxurious than the plastic remotes that ship with the NAD and QUAD amps. But this remote is unbelievably finicky about line-of-sight with the amplifier. If pointed directly at the DX-5, the remote works flawlessly. But if you’re off by just a few degrees, even with no obstacles in the way, your button-presses will not register. I never quite got to the point where aiming it perfectly every time became second nature. My other minor quibble about the remote involves the battery cover, which must be removed using an infinitesimal tool that comes in the box. Even if you’re unusually anal about organization (which I am), this tool is destined to get lost. You could probably use something like a safety pin in a pinch, but the user manual says to “use only the tool supplied with the unit to remove the battery cover to avoid damage to the cover.” I am choosing to mention these nitpicks about the remote control up front because in every other way, the Rotel DX-5 is an absolute pleasure to use. The build quality and design are exemplary, and every button, knob, and mechanical part feels reassuringly solid. The amp never behaved strangely or gave me a moment’s consternation. It was as simple and reliable to operate as a good toaster.

Rotel DX-5: Sound Quality

As I mentioned above, I arrived at my conclusions about the Rotel’s sound quality only after extended use and a variety of comparisons. The speakers that I used were the SVS Ultra Evolution Bookshelf speakers ($1,200/pair), the RBH Sound 5-ir ($1,200/pair), and the DALI KUPID ($600/pair), which will be the subject of my next review. The system was relatively simple. I streamed music using the Cambridge Audio MXN10 streamer, which fed the coax input of the Cambridge Audio DacMagic 200M digital-to-analog converter. This was connected via RCA to the Rotel. I also played CDs using a Cambridge Audio CXC v2 CD transport, which was connected to the DAC via an optical cable. But to keep things simple, all of the music I reference in this review was streamed from Qobuz.

Rotel DX-5 with the SVS Ultra Evolution Bookshelf Speakers

If you’re a fan of both classic Disney music and 20th-century jazz (isn’t everybody?), I recommend checking out Dave Digs Disney, a 1957 studio album by The Dave Brubeck Quartet. Their version of “When You Wish Upon a Star” (24-bit/96kHz) sounded superb on the SVS speakers when powered by the Rotel DX-5. Of all the combinations of speakers and amps that I had on hand, I kept coming back to the Rotel/SVS combo for its balanced presentation and overall delivery of musical satisfaction. Here, Paul Desmond’s alto saxophone was reproduced with breath, buzz, and resonance in realistic-sounding proportions. I was enjoying myself so much that I had to remind myself to take notes. If I had to find a criticism, it would be that Brubeck’s right hand didn’t seem to extract every last shred of resolution from the piano strings, and some megabuck systems are capable of this. But that is the kind of observation that would never occur to me outside of reviewer mode. Although a mono recording, the music sounded spacious, organic, and engaging.



Wanting to examine the amp’s way with vocals and stereo imaging, I listened to Why Should The Fire Die?, the 2005 album by Nickel Creek. I know this 24-bit/192kHz recording very well. Staying on the Rotel/SVS combo, the sound of the track “Doubting Thomas” was deeply satisfying, with a top-to-bottom completeness that was impossible to criticize. The upright bass was both articulate and full, with impeccable tonality and definition. Whether by microphone choice or by the judicious application of studio wizardry, the lead vocal from mandolinist Chris Thile has a subtle EQ effect on this song (it sounds like a high-pass filter), which was easy to hear but not at all distracting. As fun as it is to dream about owning mega-expensive gear, nothing excites me more than hearing music I love played back on reasonably-priced gear and thinking, “damn, that sounds good.”

Rotel vs NAD Listening Comparison

I listened to the song three times in a row before switching to the NAD M10 V3 for a side-by-side comparison using that amp’s built-in streamer and DAC, since that is how 99.9% of M10 users would go about streaming music. At $3K, the NAD costs a few hundred more than the Rotel combined with the Cambridge stack, but for many, the draw of Dirac Live will more than make up for the price difference. The NAD/SVS combination sounded markedly different from the same speakers driven by the Rotel rig. It was both drier and leaner sounding, with a greater emphasis on transients and detail — more pluck and less resonance on the acoustic string instruments featured on Why Should The Fire Die?. The presentation was more laser-focused. Individual performers were easier to pinpoint within the soundstage because they all sounded a bit smaller and a bit narrower than through the Rotel. Although some listeners might appreciate this more precise placement of voices and instruments, it came at the cost of a narrower soundstage and a less enveloping, less 3D sound. Depending on the speakers being used and the personal preferences of the listener, I could easily see some folks preferring the NAD’s more purposeful presentation, while others might go for the Rotel’s more lush and liquid way of reproducing the music.

For me, the one area where the NAD was at a definite disadvantage was in its exaggerated and somewhat harsh treatment of sibilance. By comparison, vocals played back by the Cambridge/Rotel combo sounded more natural and more relaxed, though no less detailed. I wondered whether the NAD’s struggle with the nuances of sibilance was related to the amp’s built-in DAC or its use of Class D amplification, so I did a quick experiment. I connected the Cambridge DAC to the NAD’s analog input and listened again. Sure enough, the sibilance issue was all but gone, and the amp’s nCore Class D amplification escaped with its reputation for excellent sound unscathed. With the Cambridge DAC in play, the general character of the NAD amp remained as described above, but with more natural-sounding reproduction of vocals, and a wider, though slightly more diffuse soundstage. It is possible that the use of Dirac could alleviate the NAD’s sibilance issues when using the built-in DAC (which is designed around the excellent ESS Sabre ES9039 chip), but that level of tweaking fell outside the purview of this amplifier review. To keep things as fair as possible, the above comparisons were made without Dirac engaged.

Back on the Rotel/SVS combo, the audio obsessive in me gave way to the music obsessive. At the moment, I am inexplicably infatuated with the song “Never My Love” by the American sunshine pop band The Association. The original version sounds terrific on The Association Greatest Hits! (24-bit/192kHz), but I have moved onto trying to track down every interesting cover version, of which there are many. This preoccupation led me to Astrud Gilberto’s 1967 album Windy (24-bit/192kHz), which includes the Brazilian singer’s takes on a number of popular songs of the day. Her version of “Never My Love” is a delight, as is her cover of “In My Life,” one of my favorite Beatles songs. Here, the Rotel/SVS combo did a great job with the micro-dynamics in Gilberto’s singing — the subtle flickers of sound that, when rendered properly, allow vocal inflections to come across as they do in real life. The snare drum on this track also sounded startlingly present. At no point during my time with the Rotel/SVS combo did I feel the need to stop and ask myself whether the little DX-5 was delivering enough juice to the Ultra Evolution Bookshelf speakers, which have a nominal impedance of 6 ohms and a fairly average 87dB sensitivity spec. This was simply a match made in audio heaven.

Rotel DX-5: Movie Night with the DALI KUPID Speakers



I was happy to see that Rotel squeezed an HDMI ARC port onto the back of the DX-5. For some folks, a 2-channel or 2.1-channel home entertainment setup is a better choice than a soundbar, particularly if music listening is a priority. So I wanted to test the DX-5’s HDMI capability, but I ran into a couple of obstacles that had nothing to do with the amp itself. I don’t have a TV in my listening room, and the one in my living room is not very accessible to me. (It’s installed in an entertainment center, and my chronic back pain makes it virtually impossible for me to reach the TV’s back panel.) Thanks to the DX-5’s tiny size, however, I found a workaround. My friend Aaron just got a new TV and has no audio gear to go with it. So last weekend, I boxed up the Rotel and the equally diminutive DALI KUPID loudspeakers, and took them to Aaron’s place for dinner and a movie with him and his kids. They chose the 2018 Peter Rabbit movie starring James Corden, Rose Byrne, and Domhnall Gleeson, alongside an ensemble of first-rate British character actors. Despite the incredible cast, the movie wasn’t great, but the kids loved it, and the whole evening only cost me $9.87 — the price of a 6-foot HDMI cable. It also afforded me an opportunity to test the DX-5’s potential for 2-channel home theater duty.

When the DX-5 was connected to Aaron’s Sony BRAVIA 8 OLED, the TV automatically recognized the amp and switched its sound output from the TV’s built-in speakers to the HDMI eARC output. However, no sound played through the amp until I went into the TV’s settings and instructed it to export PCM audio. By default, the TV had been sending a bitstream that the DX-5 is not equipped to decode. Once we had sound, I was pleased to see that the auto-lip-sync worked as advertised, which is not something you can take for granted, even in 2026. Bad lip-sync can be a deal-breaker for me on a product like the DX-5. Unlike a good AVR or AV processor, 2-channel gear with HDMI capability often doesn’t allow the user to make manual lip-sync adjustments.

Although the DX-5 had proved itself to be more powerful than I initially expected, I had my doubts about the Rotel/DALI combination. The KUPID speakers have a nominal impedance of 4 ohms and a very low 83dB sensitivity spec. DALI recommends between 40 and 120 watts per channel, and the DX-5 falls well short, on paper at least. Peter Rabbit’s soundtrack proved to be surprisingly demanding, with its constant kerfuffles, explosions, and general troublemaking, and yet the Rotel/DALI combination pumped out a clean and energetic sound that was a night-and-day improvement over the Sony’s built-in speakers (which are among the best available on a mid-priced TV). The bass was not very deep, but down to about 50 or 60 Hz, it was powerful enough to provide a brawny yet fleet-footed foundation for the movie. Had we had a subwoofer to augment the low frequencies, this setup could have been a soundbar killer for sure. Dialogue clarity was excellent, even from my seat slightly to the left of the sweet-spot, and I left Aaron’s house determined to test the Rotel and the DALI KUPIDs together in a nearfield system, since both products are small enough to be desktop-friendly. For those results, stay tuned for my full review of the DALI KUPID speakers, coming soon.

Rotel DX-5 with the RBH 5-ir Speakers

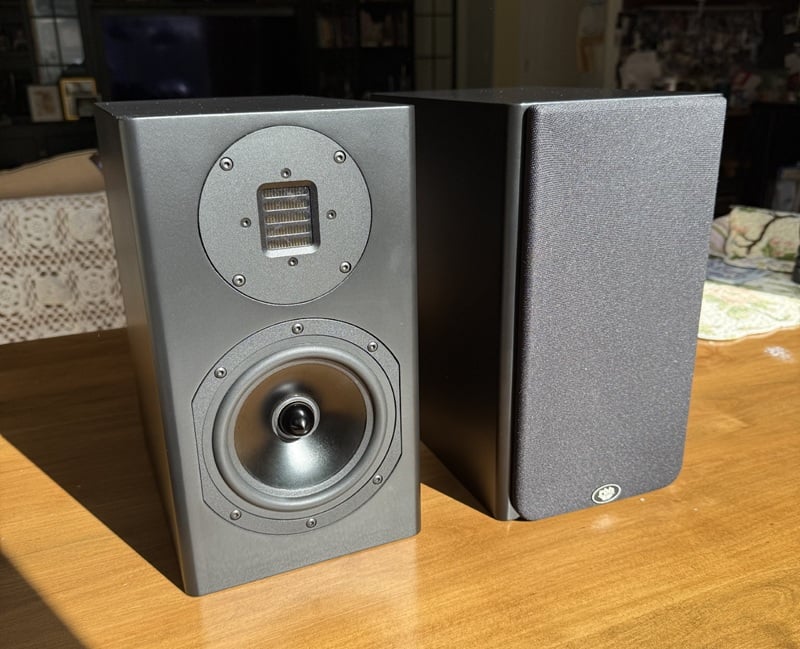

Part of RBH Sound’s 3rd-Gen Impression Series, the unassuming 5-ir bookshelf speakers don’t seem as if they’d be hard to drive, with a nominal impedance of 8 ohms and an 88dB sensitivity spec. But the speakers respond well to power, and RBH recommends 50 to 150 watts. How would the DX-5 fare?

Qobuz doesn’t offer a feature similar to Spotify Wrapped, which tells users at the end of each year what music they listened to the most. But I don’t need Spotify Wrapped to know that the album I listened to the most in 2025 was Straight Line Was a Lie (24-bit/96 kHz) by The Beths. I just can’t get enough of bandleader Elizabeth Stokes’s catchy yet sincere songwriting. The song “Mosquitoes” starts off with a gentle, sparse arrangement that sees Stokes’s voice accompanied by acoustic guitar and some quiet keyboards providing mellow vibes. Here, the DX-5 allowed the RBH speakers to play to their strengths of studio-monitor clarity and texture reproduction. The music was presented with a light tonal balance, but that is to be expected from these speakers, which do not deliver heaps of bass power even above 70 Hz. Below that, there isn’t much extension; these speakers perform best with a subwoofer, but I wasn’t using one here. So on a song like “Metal,” with its driving beat, the sound was missing a certain amount of oomph. Would a more powerful amp fare better?

I switched to the QUAD 3 Integrated amplifier (MSRP: $1,895), which is on loan from the very helpful folks at MoFi Distribution. The QUAD delivers 65 watts per channel into 8 ohms, and 100 watts per channel into 4. Still using the Cambridge stack as the source, I listened once again to “Metal.” Right off the bat, the QUAD/RBH combination made the song’s bass line more pronounced in the mix, and the kick drum had more authority. The overall dynamics were noticeably more alive and more arresting. By comparison, dynamics were just a bit subdued when the RBH speakers were being driven by the Rotel amp. This was the first time that I began to understand the Rotel’s power limitations. The DX-5 may be more powerful than anyone could reasonably expect, but the QUAD 3 simply delivers a healthier helping of wallop, without sacrificing much in the way of finesse. The QUAD’s tonal balance is also a tad warmer than the Rotel’s, which might make it a better match for the lean-and-clean RBH speakers.



Still, the Rotel/RBH system had its moments, and I especially enjoyed listening to Olivia Dean on this combination. This young English singer-songwriter is everywhere now, having just won the Grammy for Best New Artist in February of 2026. But in the fall of 2025, I had never heard of her. It was then that my friend Frannie flew in from Las Vegas so we could see The Beths perform at The Wiltern theater (they’re awesome live) and Frannie turned me onto Olivia Dean while we were stuck in LA traffic. At the time, Dean’s album The Art of Loving had just been released (24-bit/44.1 kHz). The song “So Easy (To Fall in Love)” sounded resplendent on the Rotel/RBH system, and Olivia is right: one song is all it took for her voice to sweep me off my feet. The Rotel/RBH combination made the tonal shading in her lead vocal performance sound lifelike, intimate, and emotionally impactful. On this music, which is admittedly a bit less dynamic than The Beths, the Rotel’s slight edge in transparency hit back against the QUAD amp’s clear advantage in the power department. There’s no clear winner between these two amps, and there’s certainly no loser.

Rotel DX-5: Conclusion

If it’s not clear by now, I am thoroughly impressed with the Rotel DX-5’s many strengths. In my mind, the only element preventing this amp from being a perfectly-executed product is its onboard DAC, which sounds clean, crisp, and detailed, but a bit thin and edgy. Depending on your speakers and listening preferences, the DX-5’s DAC may become fatiguing; I preferred the smoother and richer sound of the Cambridge DAC. There are many good DACs at similarly affordable prices, such as the Schiit Mimir ($299) and the FiiO K13 R2R ($320). Those of us who enjoy the audiophile’s game of mix-and-match will find that the DX-5 is transparent enough to make changes to upstream electronics easy to hear and appreciate. Since I tend to use an external DAC and don’t have a turntable to occupy the DX-5’s single analog input, the fact that I don’t love the built-in DAC is not a deal-breaker for me, but it could be for some. Of course, you might want certain features that the DX-5 simply doesn’t offer, such as bass management, a phono preamp, or streaming smarts. The built-in headphone jack had no trouble driving the Meze 109 Pro headphones, but if you’re primarily a headphone user, you might be better served by Rotel’s DX-3 headphone amp, used alongside a pair of powered speakers. And given the DX-5’s relatively low power output compared to larger amps, it would likely not be the best choice for certain low-sensitivity speakers, especially if you listen in a large room and/or at high volumes. For example, if you have just bought a pair of the new Arendal Sound 1610 Series 8 loudspeakers, the DX-5 might not be a suitable companion. Rotel makes plenty of larger, more powerful, and more expensive amplifiers that would fit the bill. All this to say, the only people to whom I would not recommend this lovely little amp are people who are looking for something that the DX-5 is not trying to be. For its intended purpose as a “Personal Audio Integrated Amplifier,” it is a triumph.

Hopefully you know by now whether the Rotel DX-5 might be for you. As a reviewer, I am anxious to see whether Rotel will release more DX products, as they’ve clearly come up with a winning formula. I do think the internal DAC could be better, and that will take half a star away from what would otherwise be a flawless product. The DX-5’s design and build are exemplary, and it’s a pleasure to use on a daily basis. Its overall sound quality is excellent, with a carefully-considered tonal balance that lands just a hair on the warm side, but still within the range that most would consider neutral. And of course, it pumps out a surprising amount of power for such a tiny device. The DX-5 drove the SVS speakers in particular to some truly impressive sonic destinations. If you have a pair of high-sensitivity speakers from Klipsch, Zu Audio, or JBL, for example, the DX-5 could absolutely be the centerpiece of a simple, but kickass large-room system. The DX-5 delivers far more than the “Personal Audio Integrated Amplifier” name would suggest, and it looks very good doing it.

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

• — Excellent
• — Very Good
• — Good
• — Fair
• — Poor

Metric	Rating
Fit and Finish
Ergonomics & Usability
Build Quality
Appearance
Performance
Value
