SVS SB12-NSD Subwoofer Review
- Product Name: SB12-NSD Subwoofer
- Manufacturer: SVS Sound
- Performance Rating:
- Value Rating:
- Review Date: July 02, 2012 00:00
- MSRP: $ 649 each / $1149 pair (Shipping Included)
- 12” forward firing long throw “NSD” woofer
- MDF enclosure
- Curved non-resonant steel mesh grill
- Amplifier: 400 watts rms (STA-400D Sledge/Class D)

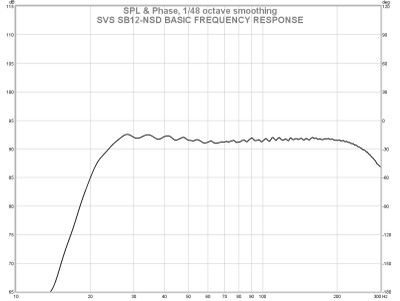

- Frequency Response: 23-270Hz +/-3dB (quasi-anechoic)
- Finishes: Charcoal black textured vinyl or piano gloss black
- Dimensions (H/W/D): 14.6” x 14.2” x 14.2”
- Weight: 35 lbs.
- Warranty: 5 years (Bumper to bumper)
- FEA optimized motor structure
- Rubber long throw surround
- Nomex linear roll spider
- Aluminum cone with composite dust cap
- Powder coated die-cast aluminum frame
- Integrated tinsel leads
- Dual shorting rings and pole piece extenders
- Double stacked ferrite magnets
- 2” diameter voice coil with high temperature former materials
- Vented pole piece
- Bumped back plate
- Gain control
- Variable phase 0-180deg

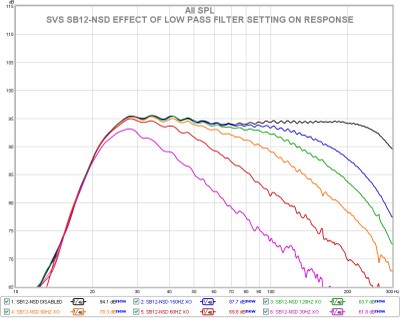

- Adjustable low pass filter with disable setting (30-150Hz/Disabled)
- Stereo line-level RCA I/O connections
- Unfiltered (for daisy-chain) and 80 Hz high pass filtered line level RCA outputs
- Detachable power cord with main power switch and fuse
- RoHS compliant, lead-free construction and world-wide safety certifications
- Auto-On / On switch with "green" standby mode
- Customized EQ and DSP limiter settings specifically for the SB12-NSD
- Limiter LED
- Diminutive form factor + light weight allows plenty of placement options
- Impeccable design execution and optimization
- Unflappable operation at the limit
- Exceptional warranty term
- Basic connections and controls only
- Best suited to smaller spaces and/or moderate playback levels
the CEA-2010 measurements presented here are taken at 2 meters outdoor groundplane and are "rms" not peak values. This is equivalent roughly to a 1 meter anechoic (free space) SPL measurement.
The indoor SPL levels are considered to be a corner loaded subwoofer which puts the sub in 1 meter 1/8th space which adds +18dB over a 1m anechoic (free space) measurement. We are considering the listening distance from the subwoofer as being roughly 4 meters in most cases which drops the spl by 12dB (18-12= +6dB at this point.) A peak SPL report of the same signal reported via an rms calculation method will produce about 3dB higher numbers. (Add 3+6= +9dB) So that is why we are adding 9dB to the reported CEA-2010 numbers to compare them with the indoor peak SPL numbers required.
Note that if a sub just barely misses in one frequency band by a single dB or less, for example falling short by 0.7dB at 31.5Hz only, we will go ahead and give it the benefit of the doubt as long as it meets the other criteria since it is a drastic 6dB drop back to the next smaller room size.
