Outlaw Audio LFM-1 EX Subwoofer Review
By Josh Ricci
—
Summary
- Product Name: LFM-1 EX
- Manufacturer: Outlaw Audio
- Performance Rating:
- Value Rating:
- Review Date: November 16, 2011 07:00
- MSRP: $ 649
- Specifications
-
- 12” downward firing long throw woofer
- Vented cabinet with dual 3” flared ports
- Amplifier: BASH 350 watts rms

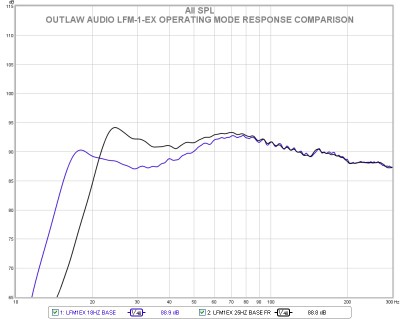

- Frequency Response: 22-180Hz +/-2dB (2 port mode), 16-180Hz +/-2dB (1 port open mode)
- SPL: 118dB (Subject to placement and room gain)
- Finishes: Ebony black
- Dimensions (H/W/D): 22.75” x 17” x 24”
- Weight: 80 lbs.
- Warranty: 3 years (Bumper to bumper)
Driver features
- Rubber surround
- Inverted dust-cap
- Double sacked magnets
- Bucking magnet
- Vented pole piece
- Bumped back plate
Additional Features
- Variable low pass filter, 30-180Hz, 4th order Linkwitz Riley (Defeatable)
- Phase: Variable from 0 to 180 degrees
- Selectable power mode: On, Auto-On, Standby
- Selectable operation mode, 1 port or 2 ports
- Detachable power cord
- Detachable floor spikes
- Plexi-glass top
Inputs/Outputs
- Unbalanced (RCA) input
- Speaker level left and right inputs
- Speaker level left and right outputs
Pros
- Overall measured performance
- Huge bang for the buck
- Real 20Hz output
Cons
- Driver / enclosure system is not quite optimized to each other
- Limited connectivity
- Basic controls only
Introduction
The Outlaw Audio LFM-1 EX is a moderately large 12” ported powered subwoofer with a built in 350 watt rated amplifier. Based on our extensive testing, the LFM-1 EX proved to be an overachiever at its mere $650 price tag. We did find the sub to be slightly mistuned but keeping both ports open produced the best overall sound and measured results. Two ports open also allowed us to achieve its most dynamic output while minimizing port chuffing. The fit and finish was good, though the product wasn’t quite as buttoned up as some of the multi thousand dollar units we’ve tested. The Outlaw Audio LFM-1 EX receives the Audioholics “Bassoholic Large Room” rating, which means that this sub is recommended as maintaining adequate headroom in rooms or spaces of 3,000 to 5,000 cubic feet and/or for users who usually listen at moderate to high volume levels. The LFM-1 EX does a lot right and makes no major mistakes all while providing huge bang for the buck value and meaningful 20Hz extension. Outlaw has knocked this one out of the park as far as I’m concerned. Budget conscious sub shoppers looking to fill a large space take note.
