Cadence CSX15 Mark II Subwoofer Review
- Product Name: CSX15 Mark II Subwoofer
- Manufacturer: Cadence Sound
- Performance Rating:
- Value Rating:
- Review Date: June 12, 2012 18:00
- MSRP: $ 499
- Single front firing 15” long throw woofer
- Computer tuned slot vented enclosure
- ¾” MDF cabinet construction, glued and internally braced
- Removable grille
- Amplifier: 300 watts rms, 600 watts dynamic power
- Frequency Response: 25-250Hz (No tolerance)
- Finish: Black wood grain with hand polished gloss black front panel
- Dimensions (H/W/D): 21.5” x 19” x 18”
- Weight: 88 lbs
- Warranty: 2 years bumper to bumper
- 120oz motor structure with extended pole piece
- 2.5” diameter 4 layer voice coil on a Kapton former
- Vented and bumped back plate
- Dual spiders and double laminated surround
- Linear Class A operation
- High current output stage utilizing 6 Ring Emitter Technology Sanken studio grade Japanese transistors
- Damping factor > 400 @ 80Hz
- 33K ohm input impedance
- Auto on/off with 1mV sensitivity
- Signal/Noise Ratio >110dB
- Slew rate 80 volts per uS in full range operation
- 110/220v ac mains selector

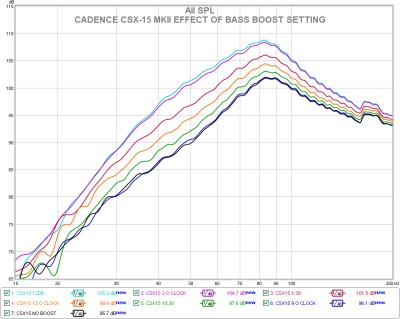

- Bass boost equalizer 0 to +12dB @ 50Hz
- Adjustable input gain

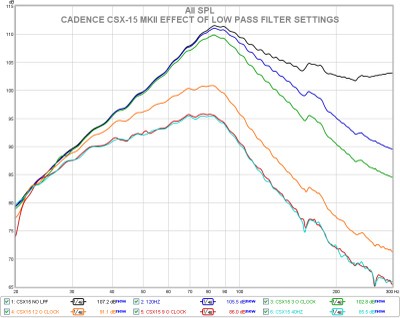

- 40-120Hz variable low pass crossover with bypass switch(12dB/octave)
- Phase: Adjustable from 0-180 degrees
- Detachable AC cord set
- Unbalanced (RCA) input
- Multi-Link master/slave control for daisy chaining units
- Nice fit and finish
- Very limited deep bass extension
- Protection circuits not optimized/Can be overdriven
