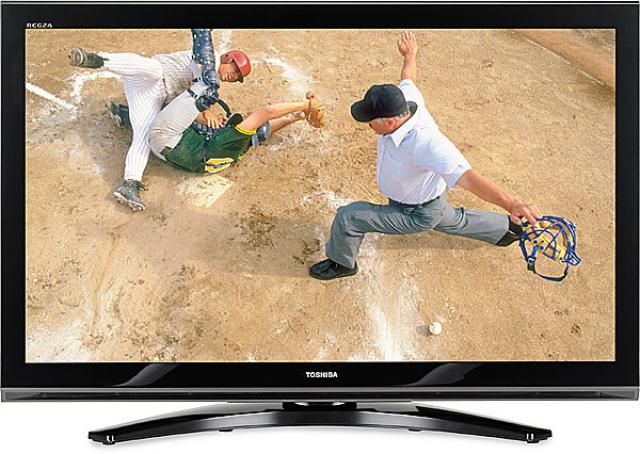

Toshiba REGZA 46LX177 LCD Review

46LX177 Features and Build Quality

Now that everyone is doing 1080p these days it seems the next big advance has to do with display “speed”. The new Toshiba REGZA LCD TVs sport 120Hz ClearFrame technology. This means that images are displayed twice as fast on the screen and flicker and display-induced motion blur is reduced. Toshiba is not the only game in town that has this technology but it is definitely promoting it well and introducing consumers to the ideas and concepts behind these faster displays.

Features

When comparing displays quality is first, but it also helps to start at the top and determine if a display has the features you want. In the case of the 46LX177, Toshiba has a healthy list of impressively-named technologies and features that will help differentiate it from the competition:

• 1080p with Deep Color and 24p support

• 3) HDMI inputs

• 120Hz ClearFrame technology

• THINC Ethernet network system with email, photo and music support

• DynaLight dynamic backlight control

• ATSC, NTSC and QAM tuners (single RF input)

• Premium gloss black cabinetry

Delivery and Build Quality

The Toshiba REGZA 46LX177 comes, as you'd expect in a large box with removable lid. The form-fitted foam corners protected the display well, but fell apart when I unboxed the system. Most people I know won't be saving the box or re-shipping the unit after it is received so I doubt this is any kind of practical issue. The first thing I noticed was that the display has a beautiful piano-gloss finish that really makes it look like a piece of fine furniture. On power up a small and unobtrusive orange light appears at the bottom right of the display. After witnessing all manner of blue LEDs and fluorescent buttons this year, it was nice to see that Toshiba didn't believe in the super-bright indicators we've seen in many other models.

There are several locations where the display's inputs are to be found:

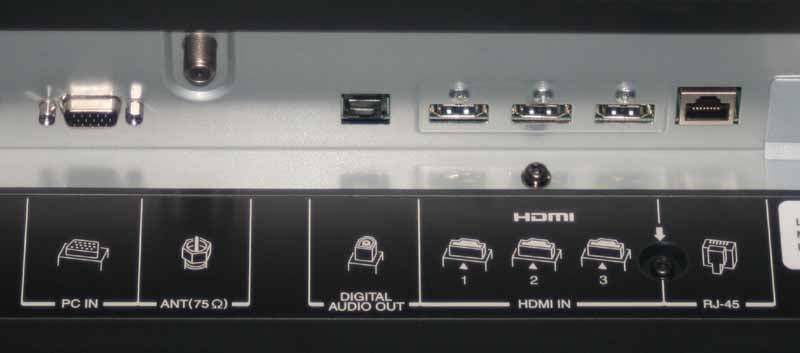

On the rear we have bottom-facing HDMI inputs (3), an optical TOSlink output, RF antenna input, RJ45 for THINC functionality and an HD15 PC input.

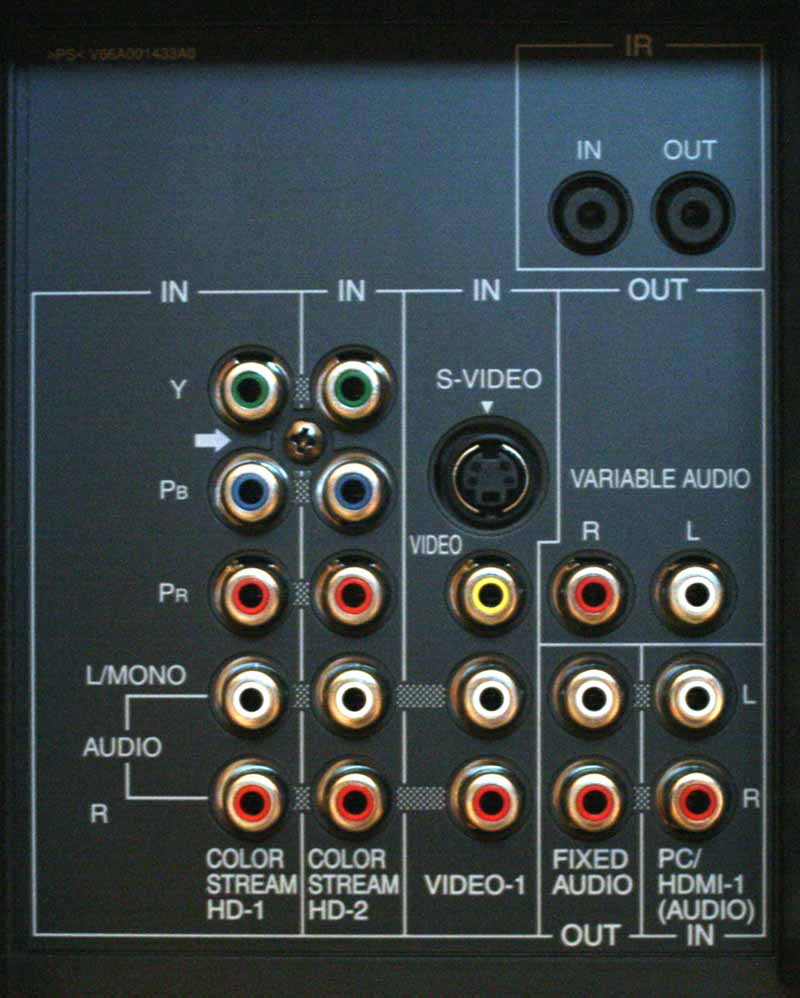

Analogue component (2), composite (1) and S-video (1) inputs are located on the back as are dedicated audio inputs for PC/HDMI-1 and a couple of fixed and variable analogue audio outputs. IR in and out jacks are also provided for use with an optional dual-want IR emitter or IR repeater (not included). The side of the TV features some hard buttons as well as a set of AV inputs (handy for plugging in a camcorder or other digital camera).

The Toshiba correctly stores independent picture controls for each input (we specifically tested both component inputs and the three HDMI inputs to make sure. This means that you can calibrate each device independently. While this may have been a bit less significant in the past, the advent of multiple gaming systems and high-definition DVD players means that each video device can interact with a custom calibrated input that ensures black levels and color are accurate for all.

46LX177 Menu System

I found the menu system for the Toshiba 46LX177 to be very easy to use. It was well organized for the major functions and had direct access via the remote for commonly used features like the THINC system and Picture-in-Picture functions. There was a bit of drill-down to get to the more advanced features, but no more than you would expect to keep the upper levels from being too cluttered. I'll move through each of the major menu functions here:

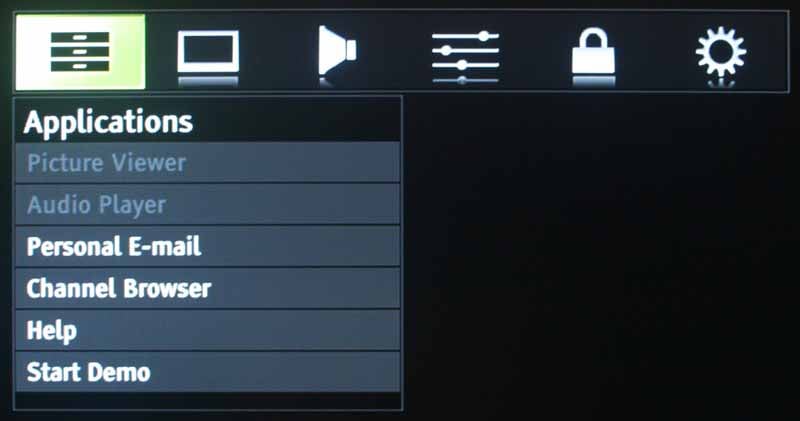

Applications
This menu connects you to the Picture Viewer, Audio Player and Email systems. It also allows access to the incredibly cool Channel Browser which is sophisticated enough to allow for some very cool ways to browse though and select channels on your television. I'll go into more detail on this system later in the review. The Applications menu also allows you to start up the Demo mode as well as access the integrated Help system. The Help system is a very slick-looking subsystem that would benefit from additional time and development. For the most part the Help topics ranged from 'mildly useful' to 'go fix it yourself'. Here is one of my favorite screens when selecting help with setting up your PC for filesharing:

Help says: “Go figure it out on your own!”

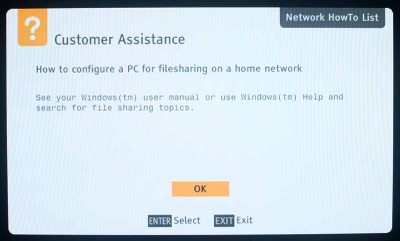

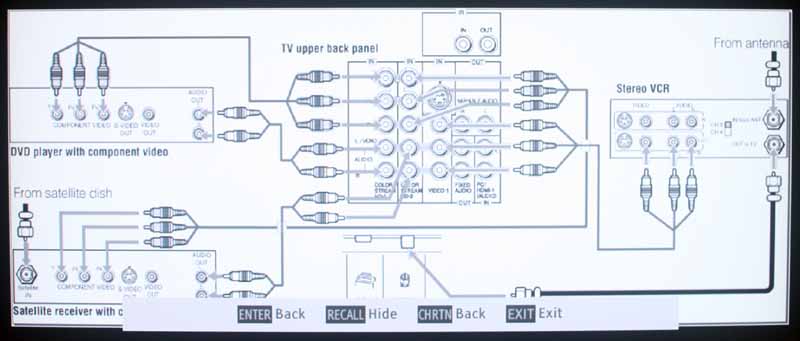

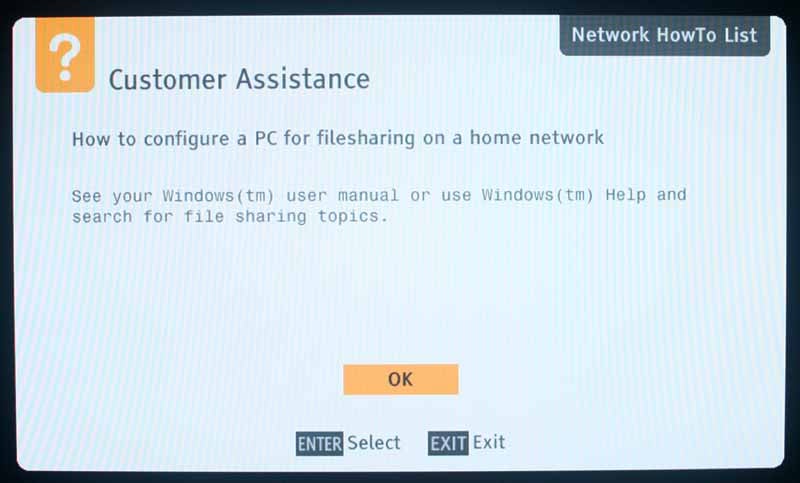

They made up for it with such helpful screen as this one located under a connections section:

Now that is pretty helpful!

I'd love to see more development in this area as I feel it is a trend-setting feature. An integrated Help system only makes sense with the ever-increasing complexity of our AV devices. Future versions of the Help system should not be afraid to venture into multi-page solutions. Also, running the text by someone who has English as a first language would likely help in smoothing over some of the wording to more consumer-friendly jargon (friends don't let friends use overseas engineers to write their help manuals).

Video

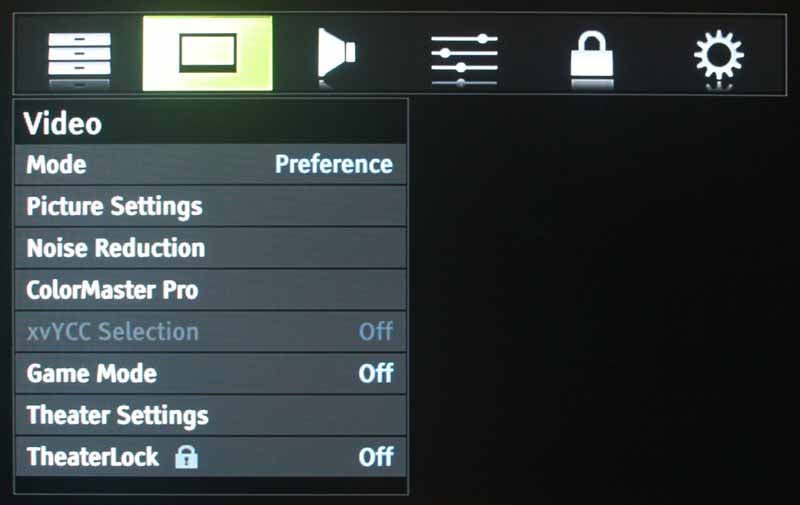

The Video menu provides most of the settings and configuration you'll need to get the basic tweaking done for your display. The [Picture] Mode is located here as are the Picture Settings, Noise Reduction modes, Game Mode, xvYCC (Deep Color), Theater Settings and aspect ratio settings. ColorMaster Pro is a neat gimmicky color adjustment control that is fun to play with but doesn't do anything practical towards garnering more accurate color. The Game Mode turns off some of the internal video processing and in exchange speeds up the display's response time (reduces frame delays) in order to avoid lag time from the gaming console. Gaming Mode disables ClearFrame, Cinema Mode (2-3 pull-down) and Film Stabilization.

The Theater Settings sub-menu allows you to select the Picture Size (Natural, Theater Wide 1/2/3, Full, 4:3, and Native. This affects the way the picture is stretched (or not) to occupy the screen. Toshiba provides some of the more extensive scaling options I've seen to date and they add a feature I'd not seen until now, Picture Scroll, which allows you to take TheaterWide 2/3 modes and scroll the picture up and down vertically. This means you can really take advantage of the flexibility to get a truly custom position on the screen when dealing with letterboxes, closed captioning, etc.

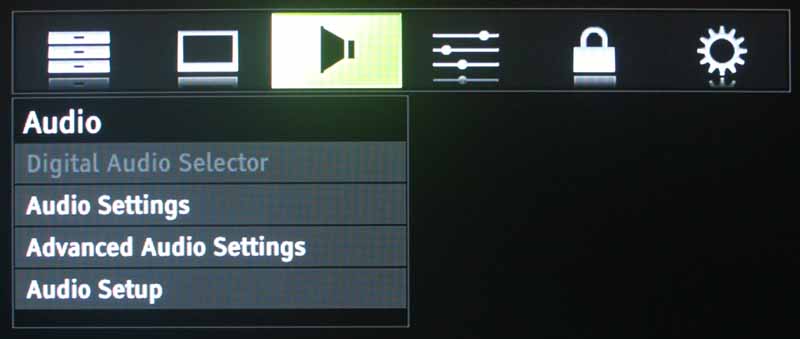

Audio
What at first appears to be a very small menu does expand somewhat when you go into Audio Setup (there is both an Audio Settings and Audio Setup sub-menu as well as an Advanced Audio setting believe it or not). Audio Setup allows configuration of whether the PC (HD15) input will receive audio from the analogue audio inputs which are shared with HDMI input #1. It also sets the MTS mode, Language and whether or not the speakers are engaged (a nice feature if you utilize an external set of speakers.) You can also configure Dolby Digital Dynamic Compression and change the optical audio output from Dolby Digital (default) to PCM audio.

Preferences

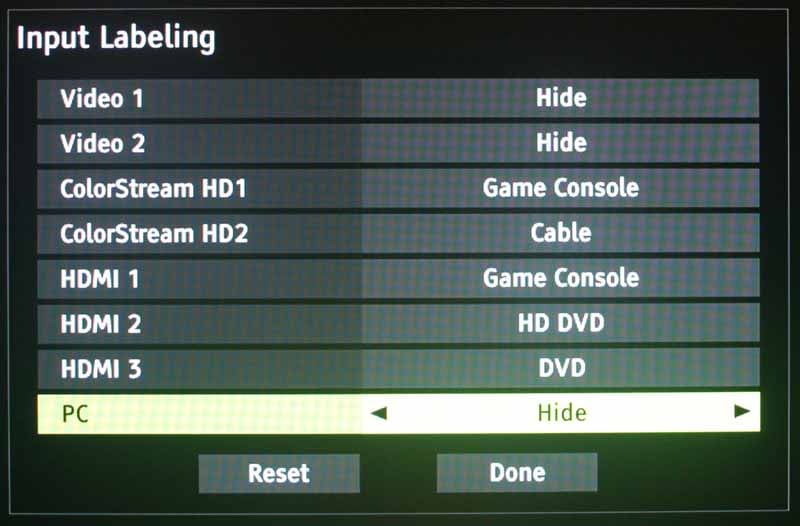

In Preferences you find your catch-all settings for Closed Captioning, Menu Language and auto-input switching, but you also have access to custom Input Labeling which is cool (though limited) and the Channel Browser setup which lets you determine how channels and inputs will be selected in that menu.

Input Labels are cool, but they could use a few more - like Game Console 2, 3, 4... And while Toshiba included HD DVD in the available selections, Blu-ray was conspicuously absent.

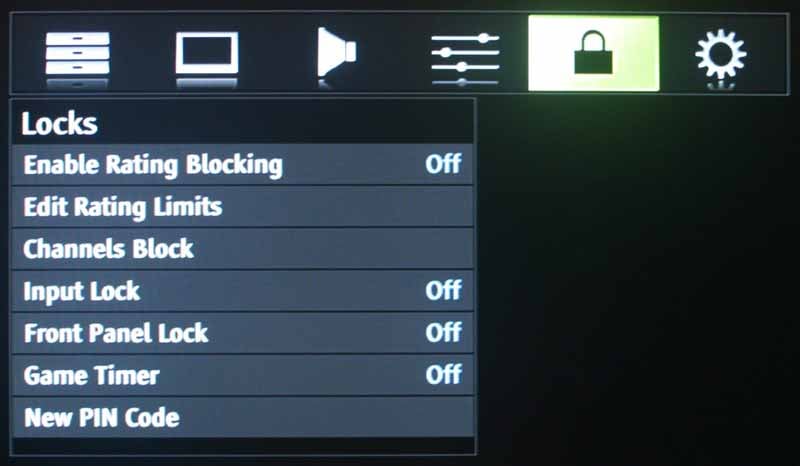

Locks

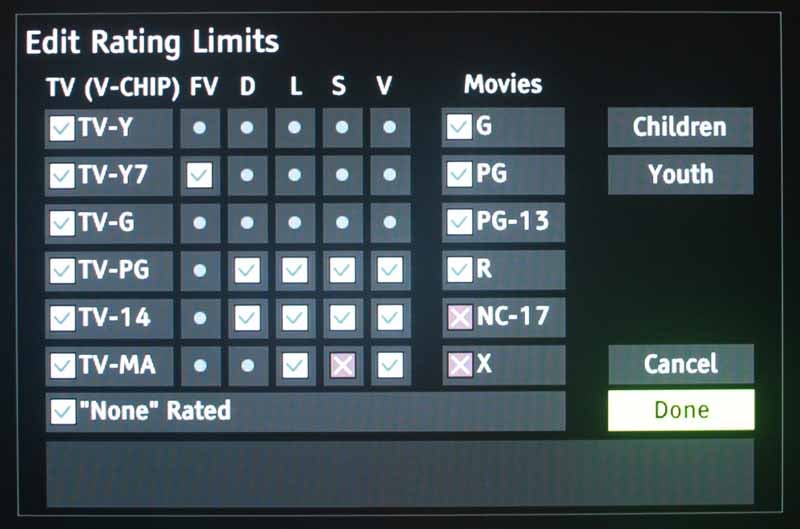

This is the menu everyone often skips over, but it's actually very useful. Most programming these days, as you may have noticed, carries ratings in the form of TVY, TVY7, TVPG, MA, etc... The Toshiba's V-chip, like most other televisions can filter out what is allowable. The 46LX177 implements these filters fully, allowing you to not only select which rating you will allow, but also for what reason. Don't mind TVMA as long as the content isn't sexual in nature? No problem, you can enable a block just for that aspect. Now, I can't vouch for how accurate these blocks work or what shows are marked correctly, however it seems to be a very nice feature for parents to use and the Toshiba implementation is very well thought out.

Don't mind the violence, but don't want the sex-shows... not a problem.

Setup
Whether it's your cable/antenna system, THINC network settings or just whether or not you intend to use the CE-Link system, the Setup menu is where it's at. I liked the optional Power-Saving mode – it lets people who care about saving power feel good about being inconvenienced while allowing more performance-based people like me to have a quick turn-on mode and retain my Channel Browser settings. It's also in this menu where you can configure the Slide Show Interval for photos and also enable automatic Demo mode which is nice for retailers.

If you're in possession of a new HD-DVD player (of either flavor) you can enable both Deep Color and xvYCC support to benefit from these new color-enhancing technologies.

Technical Note: What's the difference between Deep Color and xvYCC?
This is a good question and the two terms are often, incorrectly, used interchangably. Deep Color refers to the increasing of the bit depth per channel of RGB from 8-bits to 12-bits. This means that Deep color allows for more color resolution within the RGB or YCbCr color range. xvYCC actually expands the color range to what is essentially 1.8x the sRGB color space. Deep Color gives us more resolution (all but eliminates banding), and xvYCC gives us more colors.

46LX177 Remote and Interactive Features

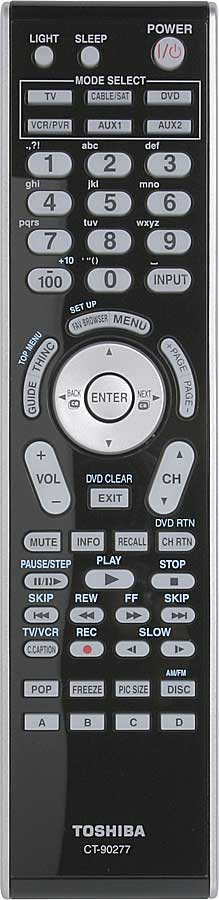

The Toshiba remote will appeal to some. It is fully backlit, mostly in a pleasing amber but with orange buttons for changing the device control. It is very large, as most display remotes are. It is not a learning remote, so don't expect it to run your entire AV system flawlessly, though it does have enough buttons to be more than functional. I have big hands but I found it to be less than comfortable to use all of the controls. Typing in a direct channel, for instance, is most easily accomplished as a two-handed gesture. The light button is remotely located at the top left of the remote – completely out of reach and thus inconvenient. A side switch or option to have it go on automatically would be most welcome. The remote lacks direct input selection – a disappointment, especially given its ample size. Overall I'd say it was average and not particularly bad, but certainly not a great remote.

Using the Television's Media and Interactive Features

The Toshiba 46LX177 was fun to use. Seriously, it was fun. That is not typically a description I use when reviewing televisions. Most are boring and don't do very much. I found myself taking copious notes on the REGZA, astounded that I was actually finding new things to discuss about an LCD TV. When you first turn the unit on it goes into an Initial Setup mode and requests the following:

• Language (English, Espanol, Francais)

• Demo Mode (set to Off unless you are setting this up for a retail environment)

The system then dumps you into the first channel. When you activate the Setup > Installation > Terrestrial channel setup it begins first with the available analogue channels and then proceeds to the unencrypted digital channels. The 46LX177 indicated that it found 427 channels and took 5-6 minutes to complete the full scan. When it was finished there were far less listed. Presumably the secondary digital channels beyond the xxx-1 designations existed, but were not of sufficient strength to register as tunable.

The analogue NTSC tuner is of high quality. I have seen very poor tuners that show scaling, noise, interference and any many other artifacts on analogue channels. The Toshiba's rendition of even lower numeric analogue stations was quite clear, with acceptable edge detail. Tuning was quick for today's standards and I could hit about 1 channel per second. If I held down the Channel button I could continue to channel scan at that pace.

Channel Browser
Channel selection is easy with the Toshiba REGZA. You can either dial in a channel directly, tune up and down with the Channel buttons or use the Fav Browser which brings up the Favorites list in the Channel Browser. The Channel Browser brings up your first stored favorites, but you can scroll left and right to select from others. Scrolling up and down gives you access to:

• History List – Saves the last 32 channels or inputs you've viewed

• ANT List – Cruise through or tune through your regular antenna or cableTV channels.

• Inputs List – Select a different input/source

• Favorites List – Browse or tune through stored Favorite channels

The Channel Browser works in two modes: Browse or Select. Browse lets you jump through the displayed selections and forces you to click to indicate your choice. Select mode will actually change the channel/input as you move through the list. Either mode can be selected from the Preferences Menu.

THINC System with Personal Email

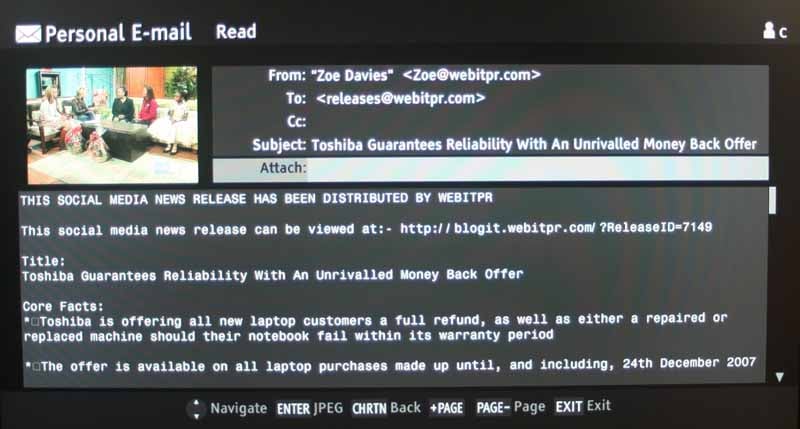

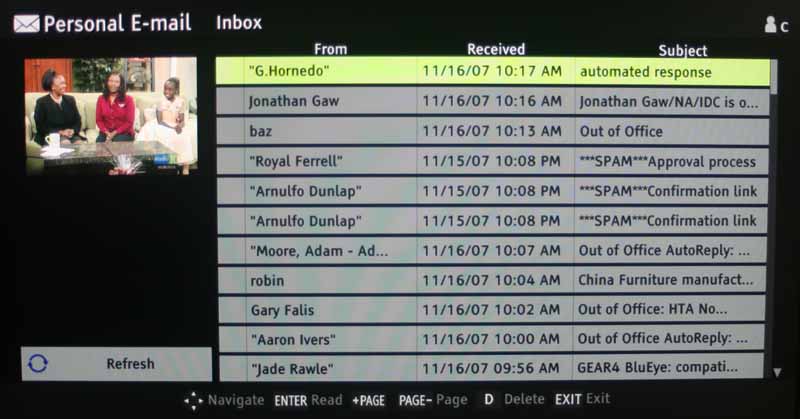

When setting up my home network the Toshiba easily pulled my IP address from the router. The first thing I had to try out was the email system. I mean, jumping over to check your email during commercial? That's like the coolest geek idea I've heard in a long time. And what's even better than that? It works! I entered my information including POP server and password and the system grabbed my email... spam and all for me to see. Now if that isn't the neatest diversion in the history of television I don't know what is.

The only thing cooler than this would be integrated Pong or Tetris...

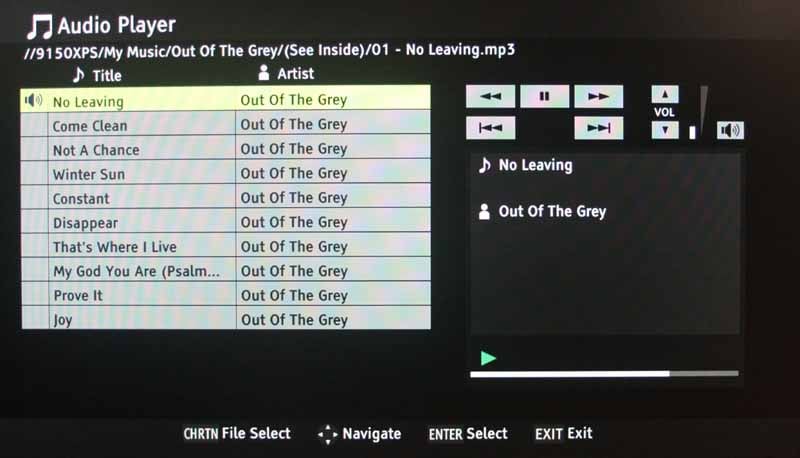

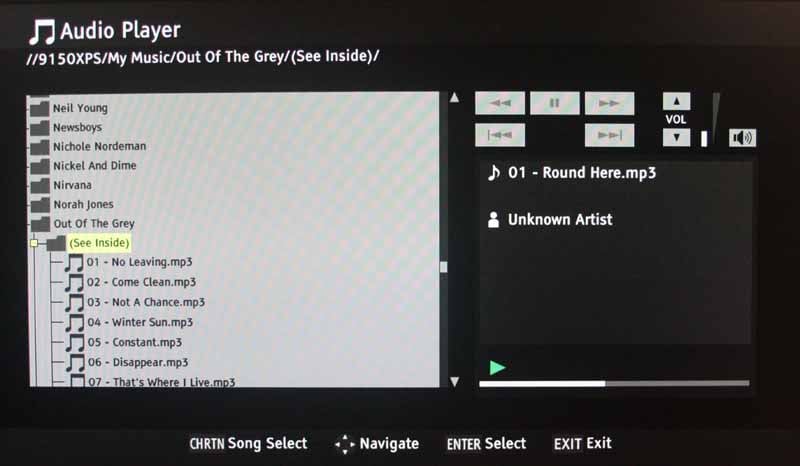

Audio Player
Since the networking was a breeze, enabling the Audio Player of the Toshiba 46LX177 was quick and painless. It easily located the Shared folders on my primary PC and I was able to quickly browse and get some tracks playing right away. The file list can be expanded by using the left and right navigation buttons. Up and down sends you quickly through your music or album list.

When you call up a track or album, the system scans the MP3 meta data and renames the titles and artist accordingly. There are no visualizations, but basic player controls are provided.

Picture Viewer
Picture viewing was good, but pulling large 3-4MB files across the network meant a slow top-down load which, when it finally came in, almost immediately jumped to the next photo. A slide show interval (delay) setting is available in the Setup menu, so you can extend this period of time beyond the default 5 seconds. The system will also load up to 6 photos at one time during the preview process – this helps speed up the display process when evaluating which images to load.

46LX177 Calibration and Benchmark Testing

We used Datacolor’s Colorfacts Professional 6.0 software to measure the 46LX177's performance in various modes and Color temperature settings. Unfortunately, there are no User calibration controls for RGB Cut and Gain (you can adjust Blue and Green Drive only) so we didn't include a post-calibration set of measurements in our review (as is our policy, which encourages manufacturers to make these controls available outside of a service menu). Surprisingly, the Toshiba showed a dramatic deficiency in Green. How it can do this and boast xvYCC support was beyond us, however the tristimulus sensor has been fairly accurate to date. We also noted a very odd gamma value of around 1.55 which is unusual and way off our target of between 2.2 and 2.5. Blacks took off quickly and whites got bright far too early in the grayscale as a result. Tweak the Static Gamma setting down (like all the way) to produce a more appealing curve. There was no perceived banding.

We took some ANSI contrast measurements and got the following, disappointing results:

• 192:1 – Movie Mode (backlight standard)

• 344:1 – Standard Mode

• 467:1 – Sports Mode

• 177:1 – Movie Mode (backlight all the way down)

In terms of real-world performance I like to see at least 400:1 on displays while in Theater picture modes. The results of our tests here backed up our viewing tests which showed that the Toshiba simply didn't have the ability to achieve very dark black levels.

Color temperature was pretty good. Here are what the various modes yield in their default settings:

• 14300K – Sports Mode

• 8700K – Standard Mode

• 6750K – Movie Mode (Color Temp Warm)

• 8800K – Document Mode

With these results, you'll see below how well the Movie Mode with a Warm Color Temperature setting fared (pretty well as far as grayscale was concerned.)

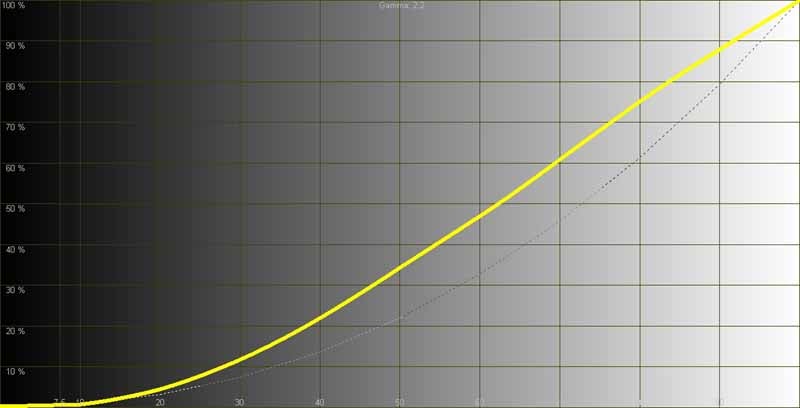

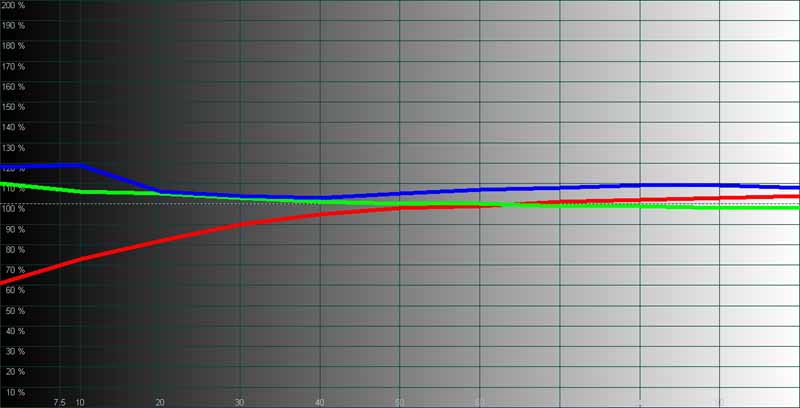

Left: After taking a few measurements in the Movie Mode with color temperature set to Warm we received these results. Not too shabby from 30 to 100IRE. Right: While the curve looks smooth, the overall gamma curve comes in close to a straight diagonal line, meaning that the gradual slope from black to white was a bit too harsh for our tastes. Adjusting the Static Gamma setting to -4 helped this a bit.

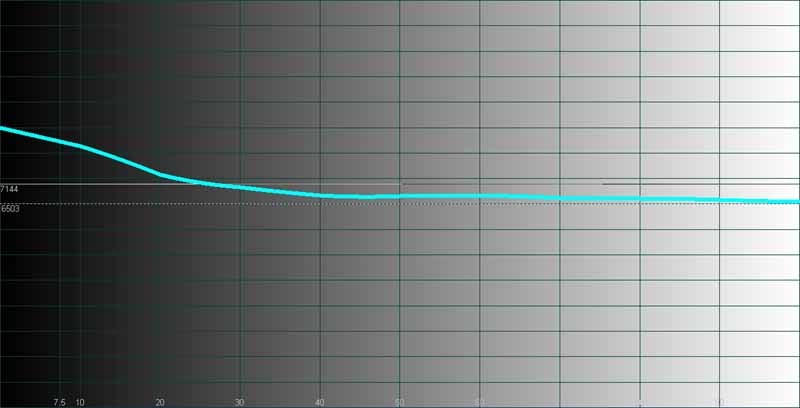

Color temperature as pretty good from 30 to 100IRE.

The measurements of the Toshiba 46LX177 were not up to what we had been expecting, especially with all the talk of xvYCC support. We next employed the 120Hz ClearFrame processing to see how it held up in real-world testing. On movies it indeed seemed to help remove some motion blur, but this was only perceptible a very minimal manner at lower speeds. Throwing up a Rainbow & Dither test from AVIA Pro, for example, we witnessed increased meaningful clarity at speeds of up to '5'. Beyond that the system simply resulted in slightly decreasing the thickness of blurred and trailing edges as they screamed across the display. Beyond '8' and the difference was unnoticeable.

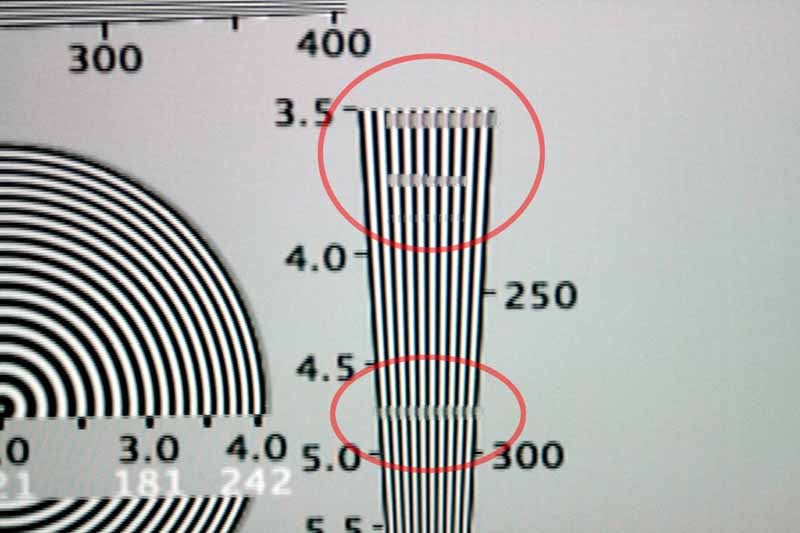

When we ran some fine detail tests on it, however, the ClearFrame mode rendered artifacts in our Moving Zone Plate test pattern:

These artifacts could be toggled on and off in real-time with the ClearFrame setting.

While I never witnesses these artifacts in any movie viewing, the real strength of the technology seemed to be in its adaptation of 24p source material which it rendered with very little apparent judder effects.

Audioholics/HQV Bench Testing Summary of Test Results

Perfect Score is 130
Toshiba REGZA 46LX177 Benchmark Score: 53 (one of the worst performers we've seen this year)

Test	Max Points	Score	Pass/Fail
Color Bar	10	10	Pass
Jaggies #1	5	3	Pass
Jaggies #2	5	0	Fail
Flag	10	5	Pass
Detail	10	10	Pass
Noise	10	5	Pass
Motion adaptive Noise Reduction	10	0	Fail
Film Detail	10	0	Fail
Cadence 2:2 Video	5	0	Fail
Cadence 2:2:2:4 DV Cam	5	0	Fail
Cadence 2:3:3:2 DV Cam	5	0	Fail
Cadence 3:2:3:2:2 Vari-speed	5	0	Fail
Cadence 5:5 Animation	5	0	Fail
Cadence 6:4 Animation	5	0	Fail
Cadence 8:7 animation	5	0	Fail
Cadence 3:2 24fps film	5	0	Fail
Scrolling Horizontal	10	10	Pass
Scrolling Rolling	10	10	Pass
Total Points	130	53

*We tested via HDMI at 480i resolution and confirmed via component video inputs at 480i

Comments on HQV Testing

Ouch. The Film Detail tests and 2:3 cadence tests almost never fail, however the lock-on time was extremely slow and for some reason the Toshiba never cleanly locked on to an unflagged 2:3 cadence. Feed this display a good, solid progressive scan source as the onboard video processing left us wanting for more. Let me reiterate: if you have a nice DVD or HD DVD player and a cable box that can output 1080i then you won't have a problem with this display. If you plan on feeding it a 480i source you may want to take another look at your options.

46LX177 Viewing Tests and Conclusions

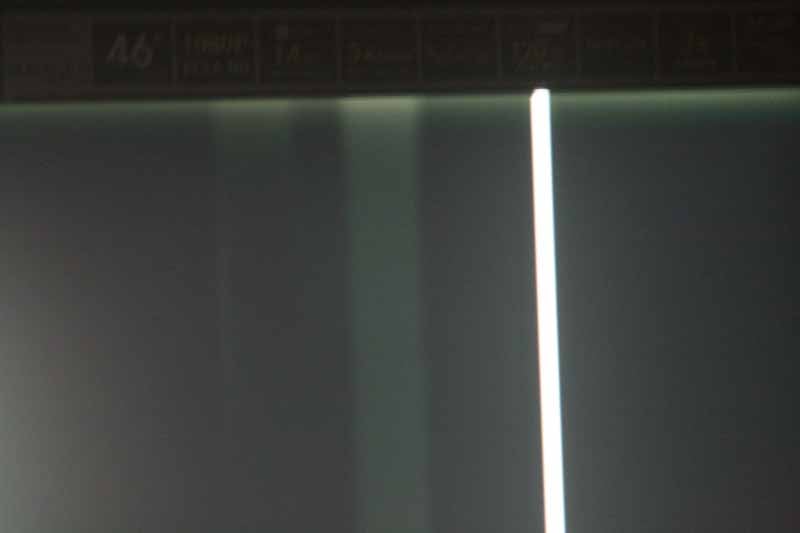

We viewed a lot of material on this display and for the most part it looked very good. There was one anomaly we witnessed regarding the black level capabilities of the display. A halo effect surrounded the borders of the display whenever a dark black pattern or video was present. The edges of the backlight seemed to bleed through and kill any hope of a crisp, clean black edge. The system also failed to pass a blacker than black test pattern.

Despite our pickiness, movies and television looked excellent on this display. After all, we do watch more than just test patterns around here...

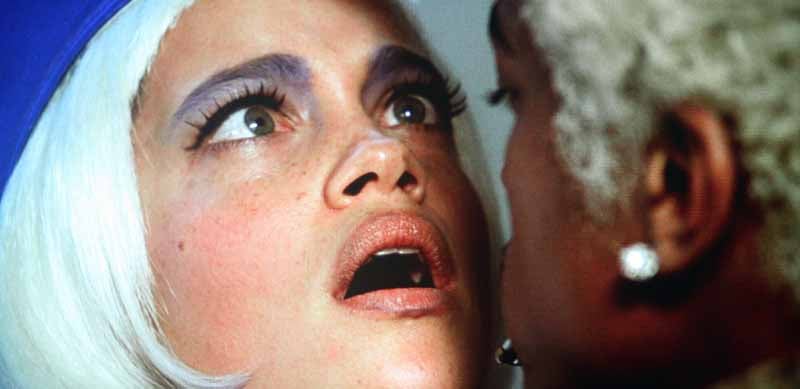

BD: The Fifth Element (Revised Version)
The revised edition of this movie sports excellent picture quality and looked fabulous on this display. Bangalore's looked perfectly textured and realistic with incredible detail and color, while the skin tones of the airline stewardesses will have the woman of the house able to guess what type and brand of lipstick and eyeshadow they were wearing.

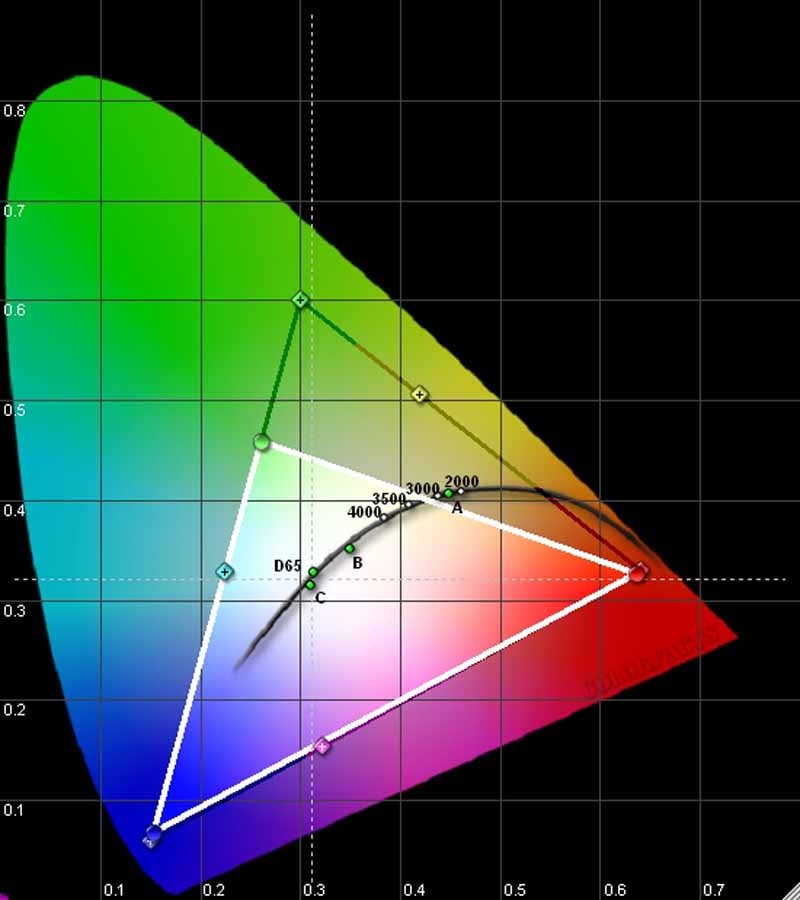

Colors absolutely popped on this display, despite the apparent green deficiency shown in the CIE chart. I flipped between 120Hz ClearFrame mode and saw a difference on the flying cars scene but not too many other places. For the most part the effects were vague as the display attempts to interpolate a hybrid cross-frame blend of two 60Hz frames. With the 24p mode engaged I wasn't really certain what was happening in terms of the combined video processing modes, and only noticed that judder was all but gone.

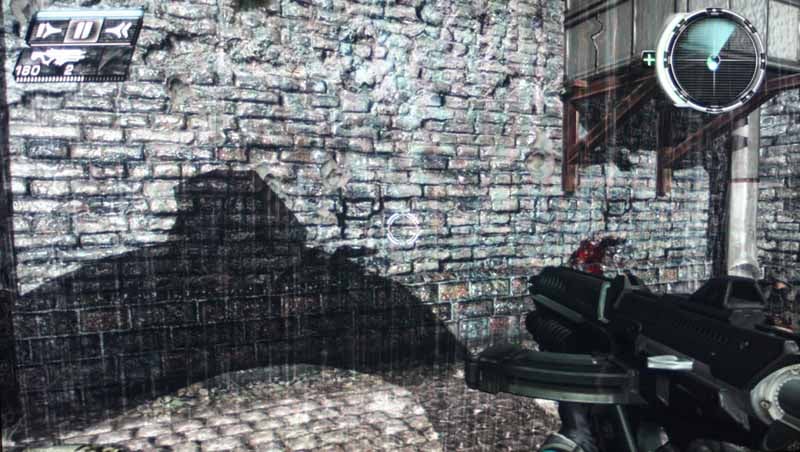

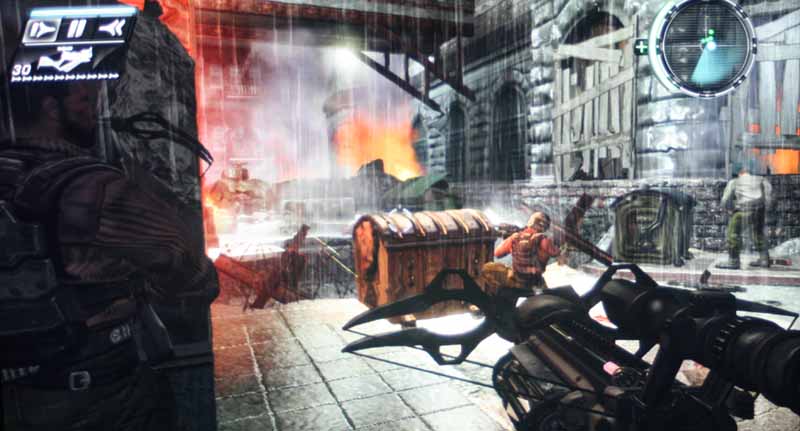

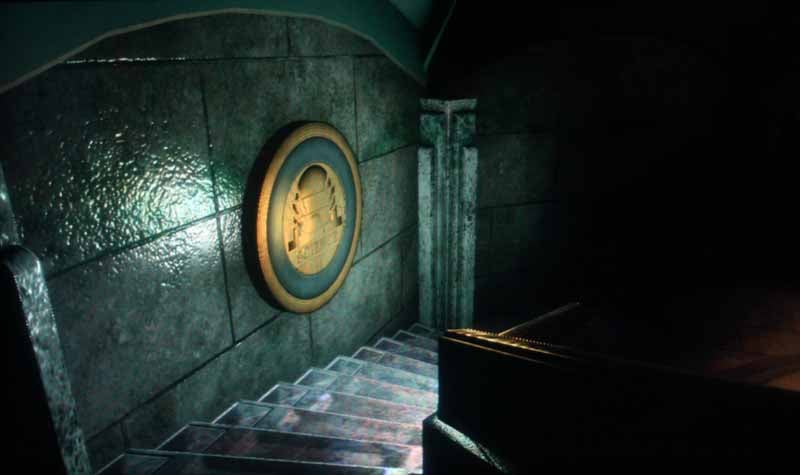

Xbox 360: Bioshock and Timeshift

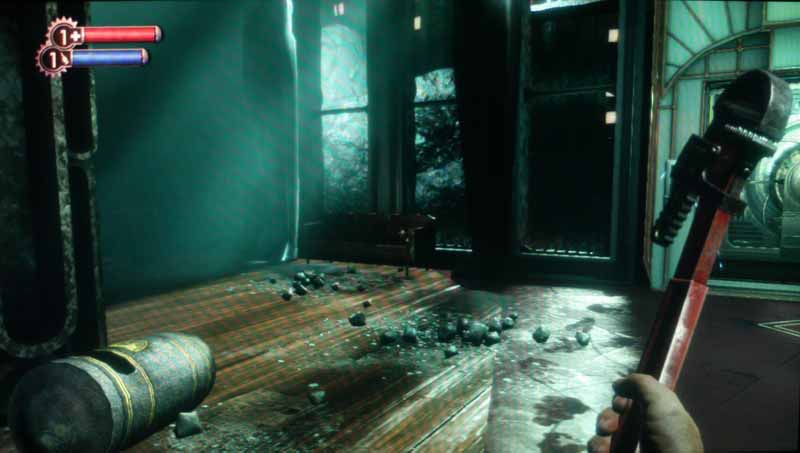

Black levels? Check. Dark corridors with lots of detail and inky black shadows? Check. Bioshock has them all and was a great game to test out on the Toshiba REGZA display. While I felt the black levels could be a tad deeper, the range of detail was present and the system seemed capable of providing a very detailed and pleasing picture overall. Timeshift was equally compelling, with it's strengths being over-the-top game detail and lots of explosions to check banding and white level detail.

HDTV: Bones
This show is in its third season and I've always enjoyed the opportunity it presents to observe good clean environment set detail as well as outdoor scenes which tend to appear at least once or twice per episode, often at night. I grabbed a couple of screen captures which showed some real-world scenes which would test the 46LX177's ability to render moire-free lines as well as posturization-free facial texture.

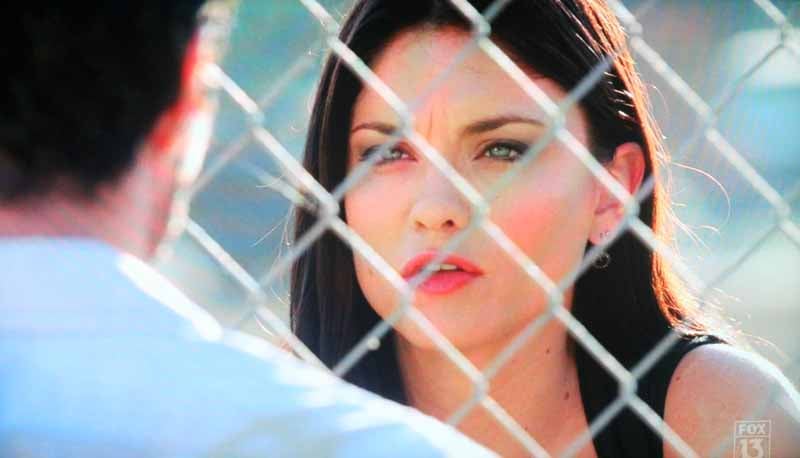

HDTV: Prison Break

Who doesn't like a good show about tough smart guys wrongfully imprisoned and trying to break their way out before a corrupt government can have them killed? Mix, stir, change the season number to 3 and you have this show in a nutshell. They keep you guessing, though and the sets are designed incredibly well, with plenty of test fodder for any display reviewer to love. I especially like this year's constant juxtaposition of colorful outdoor sequences mixed with dark interior scenes.

John Leguizamo's love child? (right)

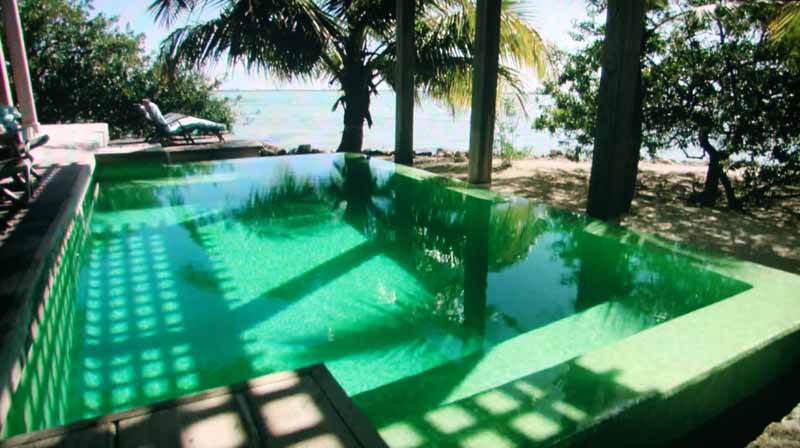

HDTV: DiscoveryHD
I don't even know what this show was about, but it looked cool and I snapped off a shots. The leaves in the trees were pristine as was the subtle texture of the water. The greens here are slightly accentuated due to the camera setting, but the vivid colorful tone of the scene made me reach for the camera.

Conclusion

This is a very pleasing display to look at overall. I was disappointed by the lack of standard definition video performance and I can't say that the 120Hz mode was definitive enough to make me say it's now a must-have feature in LCD TVs. It certainly seemed promising and with the right video processing seems to be the answer to a lot of challenges in the software playback arena. Black levels should be a tad better in a premier-branded LCD display and contrast ratio for this display was well below what we'd expect or look for. Overall I'd rate this a sleek-looking display with some very cool network features. If that's your bag, then fill it with this. If you can spend a little more and want better performance you will be able to find it.

Toshiba REGZA 46LX177
Street Price: $2699
http://www.tacp.toshiba.com/
800-631-3811

About Toshiba Digital Electronics
Toshiba America Consumer Products, L.L.C. is owned by Toshiba America, Inc., a subsidiary of Toshiba Corporation, a world leader in high technology products with subsidiaries worldwide. Toshiba is a pioneer in HD DVD, DVD and DVD Recorder technology and a leading manufacturer of a full line of home entertainment products, including flat panel TV, rear projection and direct view televisions, combination products and portable devices. Toshiba America Consumer Products, L.L.C. is headquartered in Wayne, New Jersey. For additional information please visit www.tacp.toshiba.com.

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

• — Excellent
• — Very Good
• — Good
• — Fair
• — Poor

Metric	Rating
Detail and Resolution
Deinterlacing & Scaling
Contrast and Black Levels
Color Reproduction
Noise Reduction
Calibration Options
Build Quality
Ergonomics & Usability
Ease of Setup
Features
Remote Control
Fit and Finish
Performance
Value
