Bass Management: The Right Stuff
It has been over a decade since the first generation of Dolby Digital Receivers hit the market. These Receivers implemented a crude and inflexible bass management system, had limited power for the rear channels, and did not have an upgradability path for future surround formats, or onboard DTS decoding for that matter.
Home Theater Receivers have since then come a long way. Each new generation offers more power, more features, newer technologies, added bells and whistles, etc. The idea of discrete surround sound even transcended into the high-end community as separate Preamp/Processors and multi-channel power amplifier combos for those audiophiles who demanded the pinnacle of performance.
So here we are in the 21st century, yet many of the audio companies who manufacture these home theater Receivers and Preamp/Processors still cannot correctly implement one very simple and fundamental concept into their products that is crucial for proper performance: FLEXIBLE BASS MANAGEMENT!
To make matters worse, many manufacturers tend to follow a standard such as Dolby Digital too closely without considering how exact implementation, according to the specification, may hinder user flexibility for two channel operation and various loudspeaker configurations. When the Dolby Digital processing standard was originally written, its target application was for movie theaters. At the time it was realized that speakers in movie theaters had limited bass capabilities. To achieve the full dynamics of these bandwidth limited speakers, as well as the modest amps that powered them, it was decided that a dedicated channel would serve to produce all Low Frequency Effects (LFE) bass, hence the 0.1 in the 5.1 discrete surround sound scheme.
Dolby labs defined the LFE as a supplementary bass boosted channel, which also may contain bass content derived from the five surround channels set to small (IE. Left and Right Front, Center and Left and Right Rear).
Thus it was assumed that 80 Hz would make for a good crossover point between bass incapable speakers and the subwoofer. In most movie theaters, all of the speakers are rolled off at 80 Hz because of their bass limitations and thus the bass from all of these channels is feed to the LFE, or subwoofer channel. This configuration serves movie theaters quite well and thus seems to have been a good choice for a huge movie theater like rooms where bass localization is not as critical. However, it may not always be the best choice for all home theater configurations.
Please review the article I wrote " Turn That LFE Setting Down" for more elaboration on this topic.
Those thin boxy horn loaded speakers may have worked for the movie theater environment, but they don't necessarily cut it for a serious audiophile who demands uncompromised home theater performance. Many of use prefer high quality loudspeakers that don't compress the sound to the nth degree to achieve more loudness with less required amplifier power. In fact, many of us, myself included, have large tower, bass capable, speakers that can handle music and movies with equal favor. That being the case, we enjoy listening to our bass capable speakers complimented by our powerful but musical subwoofers. To keep these subwoofers musical and non-localizable, while also avoiding bass doubling at frequencies typical of common room modes, the crossover setting of the subwoofer often needs to be adjusted below 80 Hz, especially for critical two-channel listening. Unfortunately the Dolby spec, as well as THX, recommends 80 Hz as the choice setting and thus 90% of the receivers and processors on the market are hard coded to this setting without the option of variation or bypass. Using the built in LPF of the receiver / processor in conjunction with the LPF of the subwoofer may lead to phasing problems causing cancellation of some bass frequencies and excessive additive properties of others.
Please refer to the article I wrote regarding the " Marriage between the Tower Speakers and Subwoofer " for further elaboration on this topic.
THX to the Rescue?
THX has become a recognized industry standard. Aside from THX's proprietary post processing, many of the requirements set by THX can easily achieved by quality electronics but several of these electronics manufacturers choose not to pay the premium to advertise this.
My biggest issue with THX is:
No channel shall have bass info below 80 Hz other than the subwoofer channel.
While this may serve movie theater purposes, it is not always acceptable for home theater in my opinion for my previously mentioned reasons that many of us utilize bass capable speakers in our systems that produce linear bass extension below 80Hz and that the pressure waves of 80 Hz bass frequencies can be localizable to the ear if the subwoofer is placed too closely to the listening position. I believe THX is configured like this for ease of speaker integration and to preserve dynamic range of all channels by limiting their received bandwidth. This in turn may allow for easier certification of less capable power amplifiers and speakers since they are not tasked to produce the low frequencies that require ample power and driver excursions. Therefore this helps manufacturers certify a greater amount of their products resulting in guaranteed system compatibility and consistency. THX carried over much of its philosophies of the movie theater environment to home theater, especially relating to the satellite subwoofer speaker systems. While these systems don't always offer the pinnacle of performance, they usually are easier to integrate and set-up in most home theaters. For those who don't want to fuss with the acoustical tribulations of multiple bass sources, this type of system with a fixed 80Hz crossover may be the right choice. However, for those who enjoy bass capable speakers supplemented with their subs, choosing a receiver/processor with multiple crossover settings and flexible bass management can offer more setup versatility.
THX is about two things in my opinion:
- Their spec.
The reason they stick to their spec is to promote compatibility. Then, regardless of which manufacturer you choose, if you go with a product with the THX certified good housekeeping seal of approval, you know they will work well together. This is turn allows them to attract more manufacturers, which increases the generation of licensing revenue.
Now Let's Talk About Flexible Bass Management
In order to achieve the most out of your home theater system, I have devised a flexible bass management scheme, regardless of standards, to realize all possible user combinations for maximum performance realization for all speaker, amplifier, and room combos.

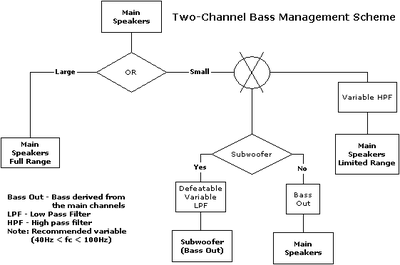

Summary of Flowcharts
The point I was attempting to convey in the bass management flowcharts was versatility in the system that can accommodate all speaker types and configurations. The same basic two channel audio bass management principals should be carried over for multi channel applications. For example, if you have large bass capable main speakers and a musical subwoofer that you wish to cross over below 50 Hz to provide added bass boost to your mains, your Receiver / Processor should have the ability to route bass signals to your subwoofer at the desired cut-off frequency, or offer a defeat option on its internal LPF for you to use the LPF of your sub, while still maintaining full frequency range output to your main speakers. There are so many Receivers / Processors on the market from the big name brands that still don't understand this concept and thus either do not allow you to operate your subwoofer in two channel mode at all, or if you have the mains set to large. In fact only about 10-15% of the Receivers and Processors on the market allow for an adjustable LPF for the subwoofer, and fewer units allow you to defeat the internal LPF in case you desire to use the one built into your subwoofer. Why?

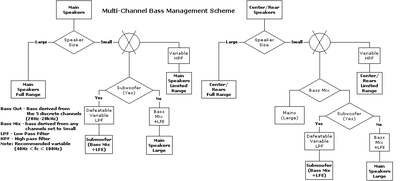

The multi channel bass scheme does add complexity over that of the two channel one, but the fundamental concepts are the same. The bottom line is as follows:
Any speaker set to small must route the bass information for that speaker to the main channels if no subwoofer is present, or to the subwoofer if one exits.
