Velodyne MiniVee Subwoofer Review

Velodyne MiniVee Introduction

Last year when I reviewed the Velodyne MicroVee, a question was left in my mind of how it would directly compare against their very own slightly larger, and less costly, MiniVee.  The MiniVee is a sealed 8" subwoofer design with a hulking 1000 watt amplifier. Not fully realizing that we already reviewed a near-clone of the MiniVee via the Chrysalis Acoustics Photon-8 (identical performance, different cosmetics), I requested a review sample. This gave me the opportunity to directly compare a MicroVee and MiniVee under the same test conditions and listening environment.

Is this sub evil enough to satisfy Dr. Evil or will it become the illegitimate step child?  You're gonna have to read on to find out.

Design Overview

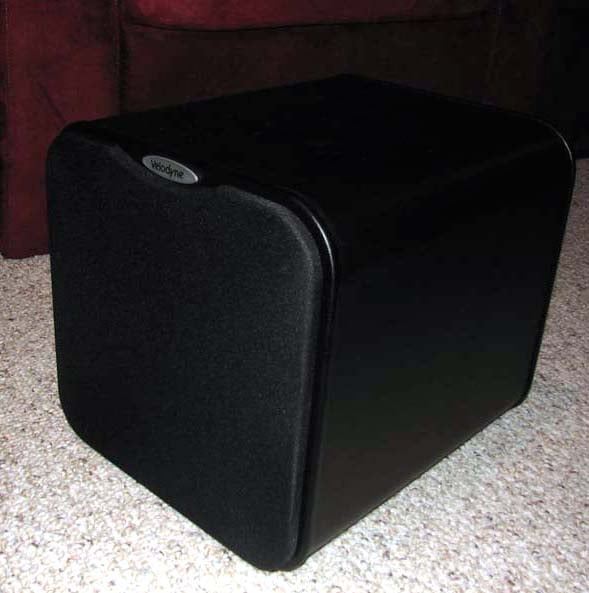

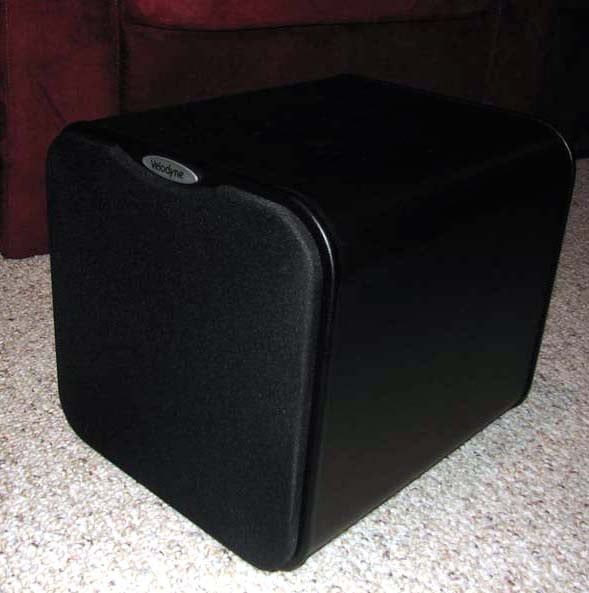

The Velodyne MiniVee, like most upper echelon Velodyne products cabinet features beautiful radiused edges. The driver is internally mounted with no visible mounting screws and recessed into the baffle. The black cloth grille sits flush on the front baffle with a cutout displaying the Velodyne badge top and center. The MiniVee sports 4 rubber mounting feet with no provisions for carpet spikes.

The MiniVee comes in only one finish option which is a dullish black.  It certainly lacks the charm of a real wood veneer, but given its small footprint and ease to blend into any nook or cranny of a room, it can easily be tucked away to be "heard but not seen" as my late uncle used to say about children, or was it the other way around?  Hmm...

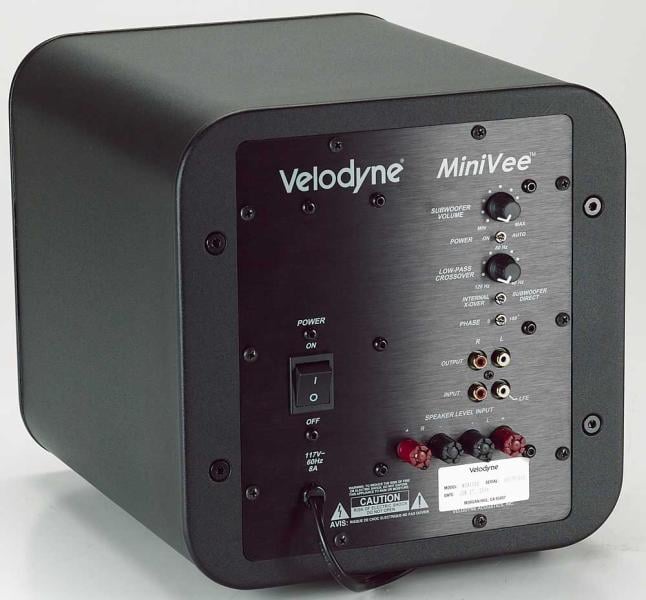

Velodyne MiniVee Backpanel View

The rear of the unit is home to the typical mounting plate for the amplifier and controls you find on most powered subwoofer products. To the left side is a large rocker styled master power switch and a non-detachable power cord.  It's kinda a bummer Velodyne didn't make the power cord detachable.   To the right side of the plate amp are all the controls and inputs. These controls include two knobs allowing continuously variable settings for volume and the low pass crossover frequency. There are toggle switches for activating the auto on/off feature, the internal crossover, and setting the subwoofer phase between 0 and 180 degrees. Below the controls are two pairs of gold plated RCA connections for line level input and output as well as two pairs of five way binding posts for speaker level input.  There are no speaker level outputs. For those analog two-channel buffs wanting to apply bass management to their satellite speakers, you will need to do so via other means.

The internal crossover system for signal input is adjustable from 40 to 120 Hz and uses staged for low pass filtering that according to Velodyne varies between 12 dB/octave at the crossover frequency to 48dB/octave above the crossover frequency. The line level output is fixed at 80Hz with a 6dB/octave slope

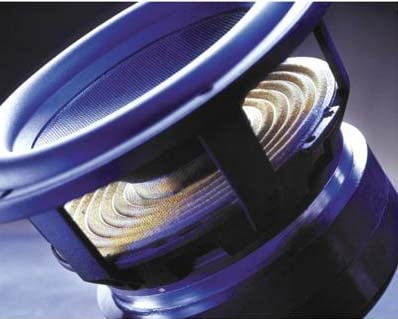

The driver used in the Photon-8 has an 8 inch outside diameter with an actually 6.5 inch effective piston diameter. The cone itself is a composite resin that is reinforced with Kevlar fibers and is mounted to the frame with an oversized EPDM rubber surround while the internal suspension is said to use an oversized spider, both to accommodate high excursion but retain linearity.

The motor structure on the back of that cone is also appreciably oversized. The magnet structure weighs in at 204 oz (12.7 lbs) that effectively constitutes fully 1/3 of the entire subwoofer system's weight and weighs more than some comparably sized subwoofer systems. In between the cone and that magnet is a high temperature, 2.5” diameter, dual wound coil. Coupled with a cast aluminum basket frame and we have the makings of what should prove to be a very potent little driver.

The MiniVee is not video shielded but this is an ever diminishing problem in this era of post CRT display technologies. If video shielding is an important consideration the MiniVee-10 is shielded, which provides an accommodating option in the product line.

The Velodyne MiniVee also boasts a digitally controlled class D amplifier (up to 95% claimed efficiency at full load) section that is said to deliver 1000 watts rms power and 2000 watts dynamic power.  The amplifier, which is separated into two sections, occupies the entire back plate. One board dedicated to the power supply supporting the transformer and main fuses. The second tiered board supports the preamp functions and six 470 microFarad, 200 V power supply capacitors. There is a small heat sink to the side of the capacitors while the majority of the circuitry lives under a grilled metal housing to reduce radiated RFI noise inherent in high frequency switching amp designs. Based on the power consumption rating of 8 amperes listed on the back of the unit at the standard 120 volts we get a power rating of P = 0.95(8A * 120V) = 912 watts which is close enough to the 1000 watt rating that with a slo-blow fuse leaves little to suspect the rated power of the amplifier.

Both the amplifier and driver feature overload protection circuitry. The driver is digitally controlled with a current limiting driver servo to limit distortion by prevent clipping and over excursion. The amplifier section has thermal protection as well as protection against excessive voltage drops.  As you will see in our measurements section, this little sub is unbreakable.

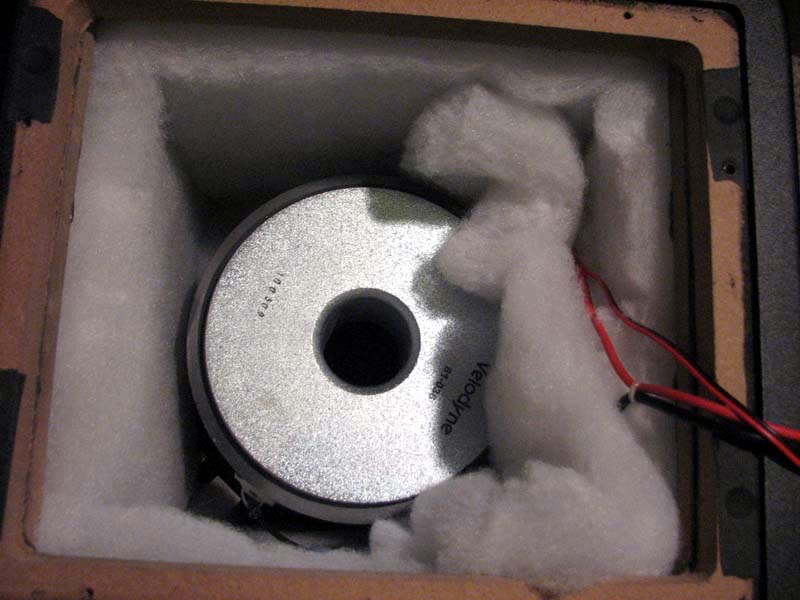

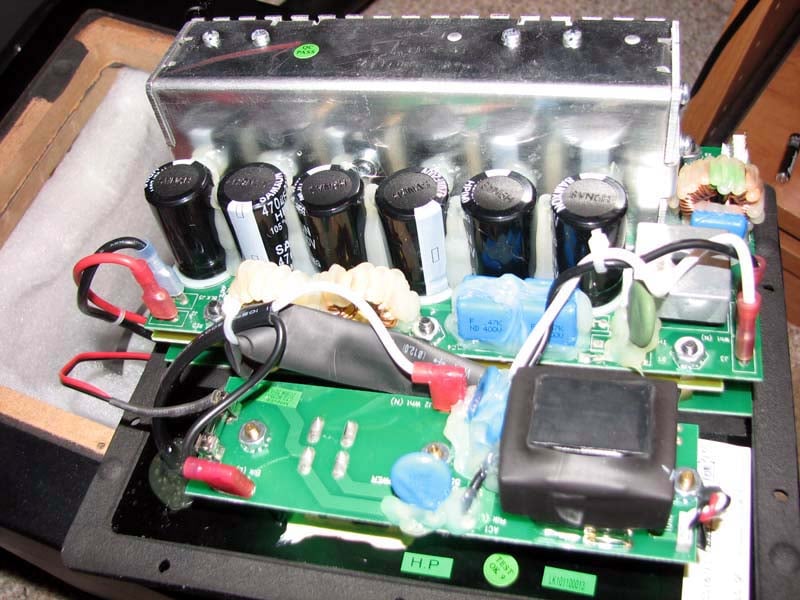

Velodyne MiniVee Internal View

Disassembly of the MiniVee to reveal the internals can only (safely) occur through the rear amplifier plate, which is secured with 10 wood screws around the perimeter. Inside the cabinet, fiber batting is wrapped around the outside faces of the cube and a second piece separates the driver from the electronics mounted to the back. The cabinet itself is constructed of 1/2” MDF with glued joints and triangular wedges used to reinforce the outside corners.  The driver is secured down with metal clamps.  It's obvious Velodyne designed this sub to be rattle-free at even the highest power levels.

Set-Up & Installation

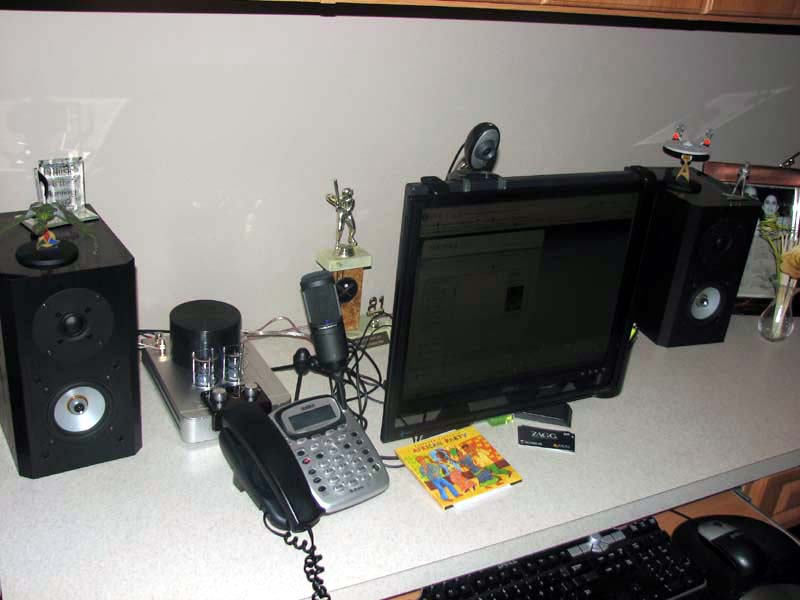

I tried the MiniVee in several locations in my office, but found it blended best with my speakers when placed on the floor below the left speaker and flush to my desk.  I tried placing it under my desktop by my feet but it produced such a large tactile response that it seemed artificial when listening to bass-intense music.  The MiniVee was connected to my EMP VT40.2 Hybrid Tube Amp Speaker System via speaker level paralleled to the 41-SE/B speakers.  I found the line level outputs of the VT-40.2 amp to be about 10dB too hot for this sub which caused it to reach excessively high output when the volume control on the sub was set any higher than a finger nail thickness from zero.  A more graduated level adjustment would have been appreciated.  I was unable to make coarse level adjustments using the volume control because the sub reached a high gain state with the volume barely turned a few clicks past minimum regardless of what source device I connected to it.  When using speaker level connections to my EMP VT40.2, I still only needed to set the master volume of the MiniVee just below 1/3 up from zero to reach the right output level for my listening setup.  The volume control was quite finicky and I wished Velodyne would have instead employed a stepped potentiometer so you could lock your setting in place without fear of being blown off your chair because the volume control got accidentally bumped higher when you were moving the sub to do some spring cleaning.

Because of the premature rolloff above 70Hz of the MiniVee, I found running it full-range with no bass management worked best in my situation.  The added output in the 70-100Hz region running the sub full-range really helped to provide the much needed bass fill for my desktop speakers.

Velodyne MiniVee Listening Tests

Unless otherwise noted, all listening tests were conducted using the streaming services of Pandora.com fed from my PC to my Headroom micro preamp and DAC connected directly to the EMP VT-40.2 Hybrid Tube Amp Speaker system in my office space which is roughly a 6' x 10' room.  The source material was streamed from Pandora.com via their high resolution paid membership which is said to be 192 kbps/sec.  Given the really good audio quality I hear from their service, I have no reason to doubt their claim.

Will Smith: Miami
This song had my chest pumping.  Bass from the Velodyne MiniVee hit hard and tight without any hint of overhang.  It was just clean, clean, clean.  The MiniVee was providing real subwoofer action to the music, not a fake one notey boom box that so many small high compression subs tends to be.

Technotronic: Pump up the Jam
This is not music I normally listen to but I wanted to get some hard hitting bass tunes to break in this little sub.  Bass enveloped my room with excellent sustain and clarity making me feel like I was in a nightclub sans the smoke and cheesy dancing. Bass from the MiniVee seemed like extension to the speakers not a separate entity which is a sign of good integration.

Bluetech: Triangle
New age music with some prodigious bass.  The Minivee really plunged the depths of this song that the MiniVee simply could not.  I felt the full tactile impact of the bass.  I was really digging the laser and other keyboard effects of this song while being pelted with the intoxicating bass.

Pat Metheny: H & H
It's an absolute must for me to throw in a little Metheny to any listening session. The realness of the drums in this song was kinda freaky as the snare was so lifelike and dynamic while the bass just thumped my chest.  The EMP & Velodyne pair were belting out the goods.  Pat's guitar was like butter.  The Velodyne MiniVee never got in the way, it just did its thing and provided a level of realism and depth to the soundstage that would have otherwise been impossible without it.  I was having that "better than being there experience" I often notate in reviews of products that really dazzle me.

Donald Fagen: On the Dunes
I always listen to Steely Dan / Donald Fagen music when testing a new sub.  If a sub doesn’t sound right playing kick ass music like this, what's the point?   Donald Fagen's "On the Dunes" was a great song to give the MiniVee a good workout.  Long sustain on bass notes was heavenly.  The thumping had great impact and added a new dimension to this song that simply wasn't there without the MiniVee pumping away.  When I switched over to the MicroVee, the bass was still tight and plentiful but it just didn’t have the tactile impact that the MiniVee provided.

Steve Perry: Foolish Hearts
Steve' voice just captivates you making it impossible to just turn this song off when I pops up on Pandora.  The weight of the bass in this song was so well delivered via the Velodyne MiniVee subwoofer.  I loved how the bass struck while I was sitting back enjoying pristine vocals overlayed with digital piano.

Tangerine Dream: Scrap Yard
The deep continuous bass in this song had my office shaking and my phone ringing with complaints from my wife on the first floor being hammered with the boom.  Apparently I was distracting her from her favorite cooking show on the Food network.  I was quite impressed with how the Velodyne just kept slamming out the bass with no signs of distress.  This system just loved to be played loud, which I especially took advantage of while the wife wasn't watching Giada.

Lee Ritenour: Module 105
Man can Lee whale on the guitar like only a few handful of proficient jazz guitarists can.  I'm so glad he started putting lumps in his Jazz again as for a time in the late 90s he like most jazz musicians went the "smooth" Jazz route for radio playtime.  The Velodyne sub just belts out tight snappy bass from the bass drum which really provided a dimension of realism to the music that was enjoyed more as the volume level was turned up.

Peter Gabriel: Down to Earth
The bass output was monstrous on this wonderful Peter Gabriel song popularized by the Wall-E movie.  I felt some good room shake I just wasn’t expecting from this song.

Banzai Republic: Faetter Dub
Holly cow the bass had my ceiling lights in my main theater room adjacent to my office rattling.  I never heard of this band, but I am totally digging and the MiniVee apparently was as well.  Bassheads should definitely check this out!

Velodyne MiniVee Measurements and Analysis

I measured the Velodyne MiniVee in my office space using the antiquated but accurate Linear X LMS measurement system.  No smoothing was used unless otherwise indicated.  I also used the new Dayton Audio OmniMic system to measure system distortion.

Velodyne MiniVee Nearfield Frequency Response

I measured the MiniVee at various output levels using the groundplane technique at 3 inches from the front driver.  The output was scaled -19dB down to give the actual SPL output I could hear at my listening position which was roughly 4 feet away.  The subs highest output is centered around 50Hz but rolls off significantly below 30Hz where there is a deliberate HPF employed to protect the drive unit and keep things from getting ugly.  I was a bit surprised to see about 5dB of rolloff at 80Hz even with the subs internal crossover bypassed.  I could only surmise that the inductance of the large voice coil and heavy cone of this smallish driver was contributing to this phenomenon.  It certainly explains why I opted to use no bass management at all on this sub when mating it with my EMP 41-SE/B desktop speakers.

Unlike the MicroVee that drops off like a rock below 50Hz, the MiniVee has about a 10Hz true usable extension advantage.  I was able to hit 106dB SPL at my listening seat with this potent little sub which was about 5dB more output than I measured on the MicroVee at 50Hz and whole lot more below 50Hz as you will see in my comparative measurements below.  Velodyne claims the -3dB point of the MiniVee is 28Hz.  Because of the bump at 50Hz, it’s a bit hard to give an exact figure here.  I would say its more like 30-32Hz.  At high SPL however where the sub compresses and the limiter kicks in, we see a 38Hz -3dB point with about an 18dB/Oct roll off.  This is very respectable performance for a product smaller than a shoebox.

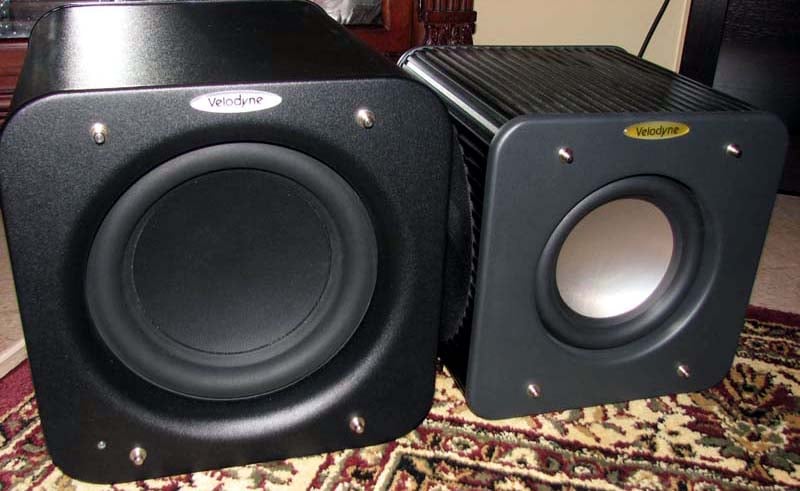

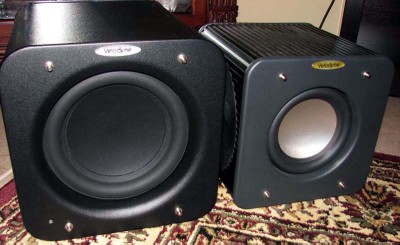

I found it to be revealing to compare the output of the Velodyne MiniVee to the smaller but more expensive MicroVee model.  I tested both subs identically using in-room nearfield groundplane scaled to the listening position 4ft away.

Editorial Note about Continuous Sweep testing vs CEA Burst Testing
Our sweep tests were conducted at a constant input level across the entire bandwidth whereas CEA burst tests are typically conducted at discrete frequencies (ie. 20Hz, 25Hz, …etc) by varying input voltage until max SPL per a fixed distortion limit is achieved at each test frequency.  Our tests reveal max SPL where the subwoofers begin to compress but there is typically more output left above the compression point of each subwoofer if the subwoofer under test is not amplifier limited. For more info on this, read our 2010 Subwoofer Shootout Measurements Overview article.

Velodyne MiniVee (left pic); Velodyne MicroVee (right pic)

As you can see the MiniVee pwnes the MicroVee below 60Hz with a whopping 24dB output advantage at 20Hz.  Only above 70Hz does the MicroVee exhibit appreciable (+3dB) more output than the MiniVee.  The MiniVee is just a whole lot more sub than the MicroVee but it's also almost twice the size.

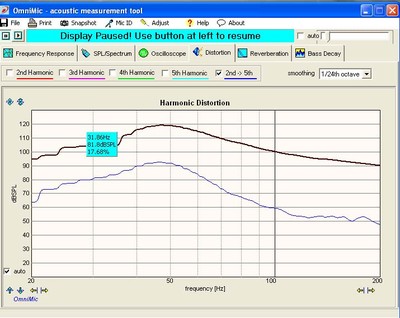

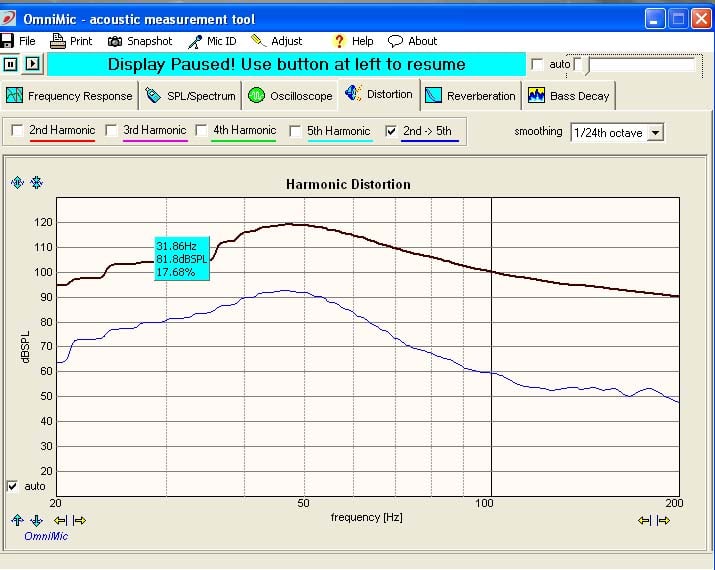

Velodyne MiniVee Distortion @ Max Output

At moderate listening levels which would equate to about (81dB @ 40Hz) at my listening position, I measured under 1% distortion below 60Hz on the MiniVee.  It wasn't until I ran the sub to its max output that you could see distortion rise appreciably.  At 31Hz max usable output, I measured 17.68% which is actually quite excellent for a subwoofer driver.  Distortion below 30Hz dropped thanks to the HPF system limiter doing what its supposed to do to protect the driver and ensure you can't hear any audible distress.

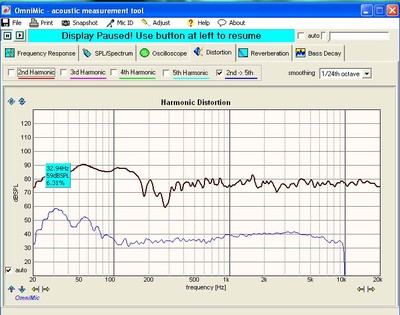

I measured distortion of the Velodyne MiniVee sub used in conjunction with my EMP 41-SE/B bookshelf speakers as you can see below.

Velodyne MiniVee + Speakers System Distortion vs Frequency

If you subtract the frequency response curve (brown) from the distortion curve (blue), you can calculate THD +N. using the table below:

So in our case, above 200Hz we see 80dB SPL level - 40dB distortion level yielding 1% THD + N.  The overall distortion profile of this system from 20Hz to 20kHz is quite excellent which explains why I enjoy listening to my desktop system often moreso than any other system in my home.  It plays plenty loud and clean with great bass extension thanks to the MiniVee.  What else could anyone want from a desktop system?

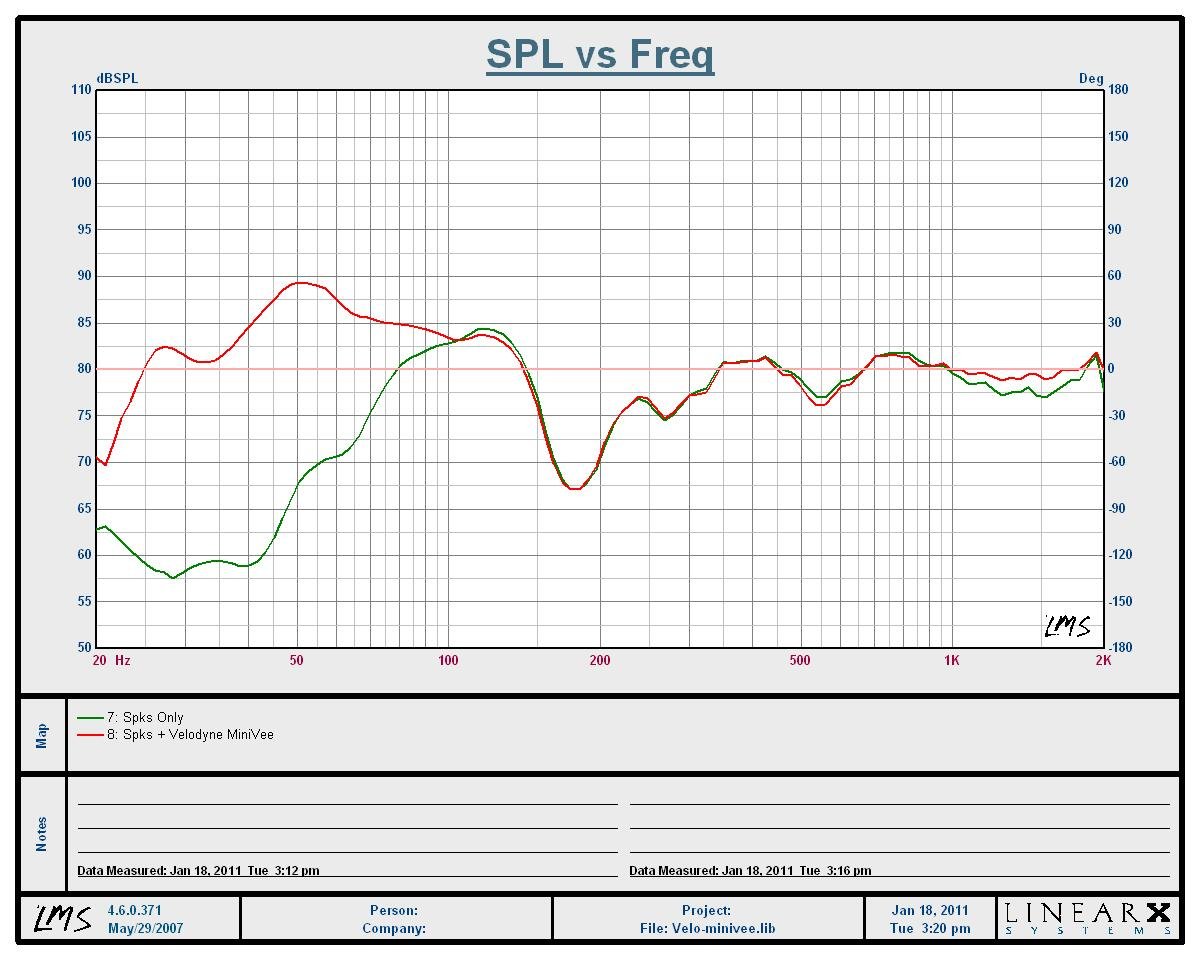

Velodyne MiniVee + EMP 41-SE/B In-Room System Frequency Response
Green Trace: 41-SE/B; Red Trace: MiniVee + 41-SE/B

As you can see in the measurement above, my little EMP 41-SE/B speakers don't have much usable bass below 80Hz.  Adding the Velodyne MiniVee into the picture was like giving that system a shot of Red Bull.  With the MiniVee playing in my little office, I had true mid 20Hz extension at my listening seat.

Velodyne MiniVee Conclusion

Based on my time with the MiniVee, I declare Velodyne the king of bass per square inch.  Not only did the MiniVee simply deliver more output and extension than I could have hoped for from such a small box, but it delivered rich quality bass that never sounded muddy.  The only minor criticism I have of the MiniVee is the premature rolloff I measured above 70Hz.  I would have liked to see this sub play flat to 100Hz, especially since the majority of users are mating it with a small satellite speaker system in need of more output in the 70-90Hz region.  Bypassing the internal crossover of the MiniVee helped to resolve this, especially since the sub is so well behaved above its passband.

I really can't think of any situations where I'd recommend their slightly more expensive MicroVee sub over the MiniVee unless you are really tight on space or need a little more output above 70Hz.  This is no knock on the mighty little MicroVee as I still enjoy that sub for what it is.  The MiniVee however is simply a MicroVee on steroids undergoing a serious workout regimen. Suffice it to say, I managed to work the larger MiniVee box into my tight office space and I have no plans on moving it out anytime soon.

Although the MiniVee doesn't come cheap, one must realize it's quite costly to engineer a small potent sub over a much larger alternative.  Small subs require costly high excursion drivers and high power amplifiers.  Velodyne managed to keep the cost reasonable considering the amount of performance they were able to eek out of such enclosure.

It wouldn’t be right for me not to mention the fact that Velodyne is offering a limited special promotion ($799) on the Audioholics E-store for the MiniVee-10.  For an extra $50 you get the 10" version of this sub which is said to have 5Hz lower extension than the MiniVee.  Wow!

With the Velodyne MiniVee on bass, mated with a potent pair of bookshelf speakers, you could very easily be enjoying full-range sound from a compact PC system that rivals most (if not all) of your friends dedicated home theater systems.  Highly Recommended both by myself and the great Dr. Evil!

 MiniVee Review
MSRP: $749

 Velodyne Acoustics
345 Digital Drive
Morgan Hill, CA 95037
www.velodyne.com

Read Consumer Reviews on

About Velodyne Acoustics
Velodyne Acoustics is the industry leader in loudspeaker styling, performance, and value. Since the company's inception in 1983, Velodyne has been acclaimed by industry experts, audiophiles and home theater enthusiasts for its innovative designs, close tolerance manufacturing and exceptional performance.

The Score Card

The scoring below is based on each piece of equipment doing the duty it is designed for. The numbers are weighed heavily with respect to the individual cost of each unit, thus giving a rating roughly equal to:

Performance × Price Factor/Value = Rating

Audioholics.com note: The ratings indicated below are based on subjective listening and objective testing of the product in question. The rating scale is based on performance/value ratio. If you notice better performing products in future reviews that have lower numbers in certain areas, be aware that the value factor is most likely the culprit. Other Audioholics reviewers may rate products solely based on performance, and each reviewer has his/her own system for ratings.

Audioholics Rating Scale

• — Excellent
• — Very Good
• — Good
• — Fair
• — Poor

Metric	Rating
Fit and Finish
Ergonomics & Usability
Features
Build Quality
Bass Extension
Bass Accuracy
Dynamic Range
Performance
Value
