JL Audio Fathom f110 Subwoofer Review

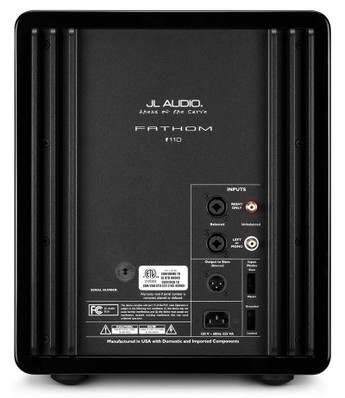

JL Audio Fathom f110
Summary
- Product Name: f110
- Manufacturer: JL Audio
- Performance Rating:
- Value Rating:
- Review Date: June 22, 2009 23:16
- MSRP: $ 2,100(satin black) / $2,200 (gloss black)
- Specifications
-
Enclosure Type: Sealed
Driver: Single 10-inch (nominal diameter)
Frequency Response (Anechoic): 27 – 111 Hz (±1.5dB)
–3 dB at 25 Hz / 120 Hz
–10 dB at 19 Hz / 155 Hz
Effective Piston Area: 60 sq. in. / 0.0387 sq. m.
Effective Displacement: 160 cu. in. / 2.6 liters
Amplifier Power: 900 watts RMS short-term
Dimensions (H x W x D): 15.64 in x 12.92 in. x 17.27 in.
Net Weight: 67 lbs.
Cabinet Finish: High-Gloss Black or Satin Black
Pros
- Tactile response and slam defies its diminutive size
- A pair of f110s have the ability to transform your systems overall performance to new heights
- Beautifully crafted with superb fit and finish
Cons
- Premature high frequency rolloff above 80Hz
- Available only in black
- Expensive
Introduction
The JL Audio Fathom f110 may be small in size, but its not lacking in the performance department. While there are certainly much larger subs from other brands at the same price or less, you will be hard pressed to find all of the performance attributes the f110 has to offer in such a compact box. Not once did I find the f110s output lacking as they were always able to rattle my walls and shake my couches when the source material required it. It’s clear to me that JL Audio is as serious about high fidelity in the home environment as they have been in mobile audio since their inception. Bassaholics rejoice as JL Audio has produced a reference level product that will thump, and thump well, without requiring a refrigerator sized box that you neither have the space nor the accepting wife to accommodate.
See also:
Recent Forum Posts:
Post Reply
lsiberian posts on July 06, 2009 18:25
This thread I feel has been unecessarily hi-jacked. I've seen the work put into these subs and it's not something I'd expect from very many places. Every sub uses fiber dampening and has very good bracing from the pictures I've seen in the factory. It also uses an exceptional driver and has a very sleek look. Of course a person could build something cheaper with better overall performance, but I remind you that these types of subs are usually sold at a fraction of the retail cost on the audiogon website come with warranty for everything.
I suggest this sub to anyone with the funds and lack of desire for the effort required to orchestrate a DIY project.
Chris this really is an exceptional deal commercially speaking. Can a kappa style box with the 12w7 best it? I'd be willing to bet so. But seriously it's not as simple as it's stated. Even coordinating such a project costs money and time. Ordering a JL Audio takes a click and a check.
I suggest this sub to anyone with the funds and lack of desire for the effort required to orchestrate a DIY project.
Chris this really is an exceptional deal commercially speaking. Can a kappa style box with the 12w7 best it? I'd be willing to bet so. But seriously it's not as simple as it's stated. Even coordinating such a project costs money and time. Ordering a JL Audio takes a click and a check.
WmAx posts on July 05, 2009 03:40
bandphan;591657
The head up the arse comment prompted me to re-post the challenge,
That comment was simply an outburst of my annoyance that so many people prefer to just buy a name brand pre-made item, rather than do minimal work to end up with much more for their money. No DIY is even needed in many case - as you can have the box easily built by any car audio shop for cheap and I offer to guide anyone along the process - or they can even choose among pre-fabbed/prefinished cabinets from some sources.
Sometimes you come across as a demi god, especially when discussing products you havent measured or listened to.
scott
I can understand why some people may think I am crazy to discuss products I have not personally analyzed. But when someone gets to the level of knowledge that I have in regards to physical behaviour/limits of specific construction and principles and the measured result expectations, it's just no mystery at all to me; I know the specific limitations and potential performance possible - and I can accurately make comments based on these pre-known performance windows. Of course, an unknown factor could throw me way off base... but in the case of the Fathom F113 and the JTR speaker in another thread... I have seen no evidence of a special factor/variable being present that would allow for something I can't already accurately guess. In the case of the Fathom 113; it's already been measured accurately b a credible 3rd party (so I have extensive data on it's actual performance) add I have used 'raw' JL audio drivers, including W7 units (same tech used in the Fathom, with minor changes), I know their performance abilities/limits.
-Chris
bandphan posts on July 05, 2009 01:48
WmAx;591408
If you apply this to me, I don't poke fun at anyone, not in any serious way. I don' t know about 'twice the performance' of the Fathom for 1/2 the price, I have never made any such claim as possible with a sealed cabinet of comparable size to the Fathom, but you can certainly build it's equal for about 1/2 or a bit more the price. There is no secret to this: you can buy a variant of the W7 13" driver JL used in the Fathom for about $600. You can build a virtual clone of the unit for just a tad over 1/2 the cost of the authorized retailer selling price of the Fathom 13", and the DIY will be superior because the DSP I will specify will be more powerful and have more capabilities to seamlessly integrate the subwoofer with the main speakers. Although, 'auto' setup feature will not be present - you will have to do manual setup instead. The amplification and processing hardware will be external, not internal to the sub, as I am not aware of an appropriate internal mounting set up for this subwoofer that is available to the general public.
You can even exceed the JL version if the person wants to go to a larger cabinet size and go ported; LF output will be dramatically increased and distortion radically reduced. If cabinet size is increased, one can even mount the pro-amp and processing unit into the cabinet.
This sounds so bold and impressive, but it's not. Why would anyone spend $1500-$1700 to build a sub and send it off to some person just to look superior on an internet post? How could the DIY version be any worse than the commercial one? You are using the same technology driver and using superior amplification and DSP hardware. You could even exceed it if an Audiopulse ULTRA LMS or AXIS driver was available in 13", but they are not, and it would be 'cheating' to use the 15" version against the 13" W7. But if you want to compare to the 12" Fathom, then there are 12" LMS ULTRA and AXIS drivers available - which are superior to the W7 drivers - as verified in Klippel analysis.
-Chris
my point was is, has anyone taken craig up on this? I have zero doubt that a better sub can be built with 3db more output with a large ported design, but does anyone in the dyi group(which includes me) want to take the challenge? The head up the arse comment prompted me to re-post the challenge, as some just do not care to go dyi or want a one box small footprint solution regardless of the cost, thats all. I guess some are not wanting to be called dumb arses beacuse they dont want to follow your end all design plans. Its nothing personal, as i respect your ability to build high quality products. Sometimes you come across as a demi god, especially when discussing products you havent measured or listened to.
scott
chris357 posts on July 04, 2009 12:26
how about picking up a nice used one for about half the money ?? doesnt that accomplish everything?
WmAx posts on July 04, 2009 10:48
bandphan;591324
Quote:Originally Posted by craigsub
Manville is correct.
It is ridiculous to have to continue to tolerate these meaningless posts from people who have never even auditioned a Fathom, and who have no interest in one, either.
This trend to poke fun at people buying the Fathom for "having more money than sense" and the constant claims of "I could build a sub with twice the performance for half the price" gets really old.
If you apply this to me, I don't poke fun at anyone, not in any serious way. I don' t know about 'twice the performance' of the Fathom for 1/2 the price, I have never made any such claim as possible with a sealed cabinet of comparable size to the Fathom, but you can certainly build it's equal for about 1/2 or a bit more the price. There is no secret to this: you can buy a variant of the W7 13" driver JL used in the Fathom for about $600. You can build a virtual clone of the unit for just a tad over 1/2 the cost of the authorized retailer selling price of the Fathom 13", and the DIY will be superior because the DSP I will specify will be more powerful and have more capabilities to seamlessly integrate the subwoofer with the main speakers. Although, 'auto' setup feature will not be present - you will have to do manual setup instead. The amplification and processing hardware will be external, not internal to the sub, as I am not aware of an appropriate internal mounting set up for this subwoofer that is available to the general public.
You can even exceed the JL version if the person wants to go to a larger cabinet size and go ported; LF output will be dramatically increased and distortion radically reduced. If cabinet size is increased, one can even mount the pro-amp and processing unit into the cabinet.
When called upon to prove it, of course there is a plethora of excuses why the DIY guru cannot do so. I particularly like the "I cannot afford to build you a subwoofer" excuse. Afterall, based on the claims, I would be doubling the DIY guy's money when purchasing the sub from him.
This sounds so bold and impressive, but it's not. Why would anyone spend $1500-$1700 to build a sub and send it off to some person just to look superior on an internet post? How could the DIY version be any worse than the commercial one? You are using the same technology driver and using superior amplification and DSP hardware. You could even exceed it if an Audiopulse ULTRA LMS or AXIS driver was available in 13", but they are not, and it would be 'cheating' to use the 15" version against the 13" W7. But if you want to compare to the 12" Fathom, then there are 12" LMS ULTRA and AXIS drivers available - which are superior to the W7 drivers - as verified in Klippel analysis.
-Chris
