RBH Sound WM-24, WM-30, FM-45 M Series Loudspeaker System Review
Summary
- Product Name: RBH Sound WM-24, WM-30, FM-45 M Series Loudspeaker System
- Manufacturer: RBH Sound
- Performance Rating:
- Value Rating:
- Review Date: July 16, 2007 20:00
- MSRP: $999/pair (WM-24); $1,199pair (WM-30); $1999/pair (FM-45)
- Specifications
-
RBH Sound WM-24 & WM-30
Primary Use: On-wall LCR
System Type: 2-way, Sealed
Frequency Response: 50Hz — 20kHz ± 3dB (WM-24)
47Hz — 20kHz ± 3dB (WM-30)
Sensitivity: 90dB (2.83 Volts @ 1 Meter)
Recommended Power: 75-120 Watts
Drive Units: (2) 4” active aluminum cone woofers;
(2) 4” passive aluminum cone woofers;
(1) 1” silk dome tweeter
Crossover Frequency: 3000 Hz
Crossover Slope: 12dB/Octave
Nominal Impedance: 6 Ohms
Color: Hairline brushed black or brushed aluminum
Grille: Black or silver cloth
Video Shielding: No
Dimensions: 7 1/8” W x 24” H x 3 3/4” D (WM-24)
7 1/8” W x 30” H x 3 3/4” D (WM-30)
Weight: 9.5 Lbs./unit (WM-24)
11.0 Lbs./unit (WM-30)
Warranty: 5 YearsRBH Sound FM-45
Primary Use: Floor standing
System Type: 3-way, Vented
Frequency Response: 40Hz — 20kHz ± 3dB
Sensitivity: 89dB (2.83 Volts @ 1 Meter)
Recommended Power: 75-250 Watts
Drive Units: (2) 8” active aluminum cone woofers;
(2) 4” active aluminum cone midrange drivers;
(1) 1” silk dome tweeter
Crossover Frequency: 100 Hz, 3000 Hz
Crossover Slope: Asymmetrical 6-18dB/Octave
Nominal Impedance: 8 Ohms
Color: Brushed aluminum/Black
Grille: Black or silver cloth
Video Shielding: No
Dimensions: 7 1/8” W x 45” H x 16 1/4” D
Weight: 42.0 Lbs./unit
Warranty: 5 Years
Pros
- Very stable imaging
- Truly timber matched design
- Well constructed
- FM-45 is biampable
Cons
- Limited choice of finishes
- WM-24 & WM-30: Banana plugs difficult to access
Introduction
Recent Forum Posts:

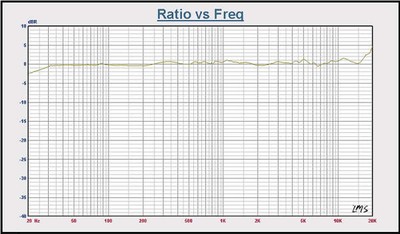

You might have put in the wrong SPL vs FREQ graphics. The ones there show roll offs at 70 hz & 10K hz. On the other hand, I can't recall another review that used the phrase "remains largely within +/- 3dB of that figure from about". It's usually "IS within +/- 3dB".
Check the graphs again. Despite the dip at 10kHz, its still within +-3dB as Mark states. Its 3dB point is also around 45Hz on the low end as he states.
as for his choice of wording, hey he is Canadian, and they do things a little differently
