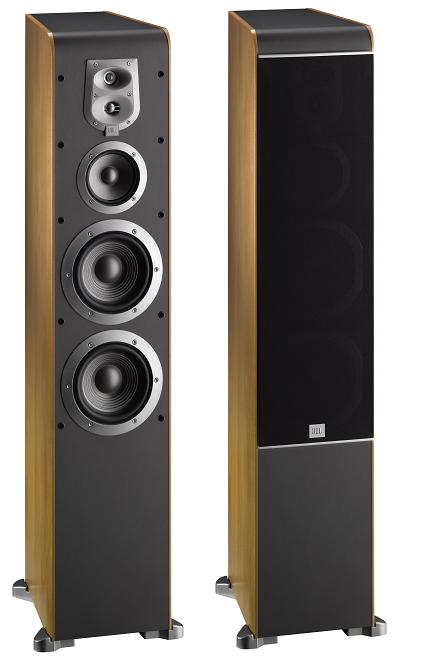

JBL ES80 Floorstanding Loudspeaker
The JBL ES80 is a 4-way loudspeaker with dual 6"
woofers, one 4" midrange and one 3/4" titanium dome tweeter and one
3/4" ring radiator super tweeter.
The crossover points are 700Hz, 3.6kHz and 12kHz. The reported sensitivity is 91dB which
theoretically is about 3dB more sensitive than the EMP E55ti towers, yet I
measured similar sensitivity of both speakers.
The frequency response is rated from 45Hz to 40kHz (-3dB). These speakers have a nice clean look to
them, but I must admit that upon first glance I didn't expect much . This was
because I felt the midrange and tweeter drivers appeared to be very cheaply
designed. I was really blown away when I
hooked them up and was rewarded with tonally neutral sound. The bass was tight and well-extended and the
midrange was pronounced, though a bit dark and analytical sounding. The highs were detailed and not
fatiguing. I had high hopes for these
speakers in the blind test as I felt they were one of the most accurate
sounding among the four in this comparison.
JBL ES80 In-Room Frequency Response at Primary Listening Position
I measured the ES80's for all three test trials. The dip at 400-500Hz is caused by floor bounce which is a measurement anomaly. The variations between the three measurements were a due to positional differences whether they were located in the marked area closest to the left wall or further.
JBL ES80 Listener Comments for Blind Tests
When JBL directly compared to Axiom
Comments from trained listeners:
- Boxy midrange (female vocals).
- Somewhat thin and forward sounding and bright at times but good bass extension.
Comments from other listeners:
- Veiled highs, bass heavy, forward sounding and narrow soundstage.
- Poor imaging but punchy bass.
- Nice range of sound and well balanced from left to right.
- Harsh highs, excessive bass, average
mids.
When JBL directly compared to EMP
Comments from trained listeners:
- Not much texture in midrange, bass is deep but not as tight as the other speaker
- Similar sound to speaker C (Author's note: this was the Klipsch), don't care for the sound
Comments from other listeners:
- Bass heavy, lacks clear highs.
- Not as impressive as other speaker in all aspects.
- Lots of bass, full sound overall but lacks crispness of other speaker.
- Seemed to sound more balanced
overall than the other speaker.
When JBL compared to
Klipsch
Comments from trained listeners:
- Bass seems loose, midrange clear but recessed, overall boxy sounding.
- Crisp clean sound with smooth frequency response but a bit thin and would be better with a sub.
Comments from other listeners:
- Very good imaging but lacks soundstage.
- Less impressive than other speaker.
- Veiled highs but overall good sound.
- Music sounded pulled away compared to other speaker.
- Klipsch Rep: deeper soundstage than
other speaker.
