Axiom Audio On Wall Line of Speakers First Look

By
M22 On Wall Speakers

M22 On Wall Speakers

Summary

  • Product Name: On Wall Speakers
  • Manufacturer: Axiom Audio
  • Review Date: April 14, 2010 11:25
  • MSRP: $135-$470
  • First Impression: Pretty Cool
Specifications
Specs M2 On-wall M3 On-wall M22 On-wall VP100 On-wall VP150 On-wall
Max Rec. Amp Power 150 Watts 175 Watts 200 Watts 200 Watts 400 Watts
Min Rec. Amp Power 15 Watts 10 Watts 10 Watts 10 Watts 10 Watts
Response +/- 3db 80 Hz – 22 kHz 70 Hz – 22 kHz 70 Hz – 22 kHz 105 Hz – 22 kHz 95 Hz – 22 kHz
Response + 3db/- 9db 70 Hz – 22 kHz 60 Hz – 22 kHz 60 Hz – 22 kHz 75 Hz – 22 kHz 60 Hz – 22 kHz
Impedance : 8 Ohms 8 Ohms 8 Ohms 8 Ohms 6 Ohms
SPL In Room 1w/1m 90 dB 91 dB 92 dB 93 dB 95 dB
SPL Anechoic 1w/1m 86 dB 87 dB 88 dB 89 dB 91 dB
X-Over 2.7 kHz 2.2 kHz 3.5 kHz 2.7 kHz 2.7 kHz
Tweeter Single 1" Single 1" Single 1" Single 1" Dual 1"
Woofer Single 5 1/4" Single 6 1/2" Dual 5 1/4" Dual 5 1/4" Triple 5 1/4"
On-wall Dimensions HWD mm 293 x 211 x 91 345 x 244 x 91 508 x 211 x 91 225 x 431 x 91 225 x 677 x 91
On-wall Dimensions HWD inches 11.5 x 8.3 x 3.6 13.6 x 9.6 x 3.6 20 x 8.3 x 3.6 8.85 x 16.95 x 3.6 8.85 x 26.65 x 3.6
Weight kg each 3.83 kg 4.08 kg 5.26 kg 5 kg 9 kg
Weight lbs each 8.45 lbs 9 lbs 11.6 lbs 11.05 lbs 17.6 lbs
Ported Yes Yes Yes No No
Bracket Power Bracket Power Bracket Power Bracket QS T-bracket QS T-bracket
Grille Traditional Traditional Traditional Traditional Traditional
Video Shielded Yes Yes Yes Yes Yes

Executive Overview

Some things are destined to happen. Celebrities are destined to get divorced, subwoofer's are destined to piss off neighbors, and Axiom was destined to extend their line of on-wall speakers. A while back we reviewed their Epic Accent M0 on walls which, at the time, were the only offering from the manufacturer for these type of products. We actually had a such an early version that they didn't even have logos on them. We were overall impressed with the speakers and the bracketing system. We figured it was only a matter of time before Axiom Audio extended their line of on-walls - and we were right.

Axiom has long had a reputation as a value leader. Internet Direct brands can be made or broken on word of mouth. That's why it is important to not only innovate but to maintain your level of quality. Axiom Audio has striven to do both with extending their speaker offerings to include in walls, hybrid in/on walls, in cabinet, and now on-walls. The Accent M0 speakers were actually branched off their computer speakers (at least they look similar) but their larger bookshelf speakers didn't have an on-wall equivalent. They do now.

M2OW     M3OW
M2 On-Wall                                                  M3 On-Wall

The Axiom line of bookshelves have included the M2's, M3's, and M22's for years. The M22's have long been considered to have a great value to performance ratio. All three of these speakers now have an on-wall equivalent. In addition, Axiom has created on-wall versions of their two center channel speakers - the VP100 and VP150. This will allow people that are looking for an entire on-wall system to have a dedicated, designed center. With the M0's it made sense to use one of the speakers as a center - it was perfectly timbre matched and small enough to easily place near a display. The larger speakers - especially the M22's - are a different story. They start to take up a lot of real-estate on the wall and it makes more sense to have a dedicated (and horizontally oriented) center.

VP100OW     VP150OW

VP100 On-Wall                                             VP150 On-Wall

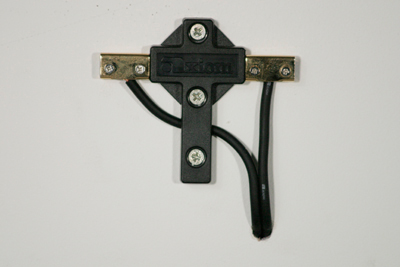

Axiom Power BracketThe M2, M3 and M22 on-walls are all ported. The VP100 and VP150 on-walls are not ported. The line-up comes with traditional grilles but we suspect that Axiom will make the move to magnetic across the board shortly. All the speakers are video shielded.   They are all listed on the Axiom Audio website with pictures and specs. Since the on-wall line-up was based on the hybrid in/on wall speaker counterparts the specs are similar (except for slightly less bass extension and efficiency for the on-wall versions).  All of the bookshelf speakers use the innovative Power Bracket combination wall bracket/binding post. We've had experience with this in our M0 review and overall like the way it works. Essentially, you wire to the bracket and slip the speakers on top. This holds the speaker flush to the wall (well, flush-ish) and makes the connection to the amplifier. Axiom has redesigned the bracket to address the few problems we noted in our M0 review to improve the security with locking mechanism, update the hardware and make it easier to align the speaker when attaching it to the bracket.

The center channels utilize the T-bracket long used by Axiom to wall mount their QS line of speakers. This makes sense as the Power Bracket is small and probably wouldn't hold the horizontally oriented speaker securely. With just one explosion played through one of their subs and the center would most likely come down. The T-bracket provides a very secure connection through it does mean that the VP100 and VP150 will need to be connected via traditional binding posts.

Expect the new on-wall speakers to be offered in the traditional vinyl wraps usually offered by Axiom plus custom wood veneered finishes for extra cost. Speaking of cost, Axiom could have easily justified raising the prices of the on-wall versions of their speakers based on the assumption that more technology has gone into them. But they didn't. All the on-wall versions of the speakers cost identical to the standalone counterpart. This makes them a very attractive option for those on a budget that don't have the floorspace for speakers or speaker stands. The M0's are available now and the rest of the speakers start production in May.

Conclusion

To get a feel for these new speakers you can take a look at our Epic Accent M0 review to get an idea of what to expect. We like that Axiom has gone in this direction as they are now offering their speakers in every possible configuration that a consumer might want - standalone, in-wall, in/on-wall hybrid, and on-wall. We look forward to more information and review samples so that we can see how well they perform.

For more information, please visit www.axiomaudio.com.

Post Reply
fredk posts on April 18, 2010 11:08
If that is the case, the Trebble should be exactly the same as the M22. I seem to remember the mids being in a sealed enclosure (within the speaker) so as long as the enclosure size and mid/trebble crossover are the same, the sound would be the same as the M22. Thats the theory as I understand it anyway.

I need to go visit them again.
AJinFLA posts on April 17, 2010 22:36
fredk;710174
I wonder how a wall would affect edge diffraction and if there are other boundry effects on the midrange or trebble.

Not much. The primary effect is in the upper bass/low mid, due to the proximity of the LF source (woofer) to wall and the (reflected) wavelengths involved. Thiel [thielaudio.com] has a paper that illustrates this effect and how they designed for it. It would be interesting to see the Axioms on wall measurements.

cheers,

AJ
fredk posts on April 17, 2010 09:51
I’m made even more curious because they publish FR graphs for there standalone speakers but not the wall mounted varieties. It would be interesting to see an anechoic FR graph and a wall mounted one to see if they tuned the speaker for wall mounting.

I wonder how representative anechoic would be. I would think that the wall would be part of the speaker by design. It should certainly affect the bottom end, but I wonder how a wall would affect edge diffraction and if there are other boundry effects on the midrange or trebble.
the grunt posts on April 16, 2010 12:09
GO-NAD
That raises a question in my mind. How do you test on- or in-wall speakers in an anechoic chamber? I can't picture how this might be done. Hmmmm....


Should be able to prop it up somehow w/o causing any added reflections. But since they are specifically designed to hang on a wall and not sit a few feet out like a standalone speakers I’m not sure that would really be a worthwhile test in itself.

I’m actually a little curious about these since I want to move my M22s off the back wall and put them up front as “wide” speakers again. If the new on-wall speakers are close enough to the standalone versions it would be easier for me to mount a couple of those on the back wall rather than build a shelf and put a couple standalone speakers on it. I know from running the auto-setup on my receiver the boundary effect from the wall is significant since it tried to set my M22s to a 40Hz crossover. I’m assuming the on-walls are “tuned” for that sort of placement but w/o seeing and FR graph it’s only a guess. Probably doesn’t matter as there’s still not a lot on the rear channels anyway.
GO-NAD! posts on April 16, 2010 05:57
What’s got me even more curious about these is that they changed the crossover point (at least on the M22 version) from 3.5kHz on the previous versions to 2.7kHz on the newer on-wall version. I wondering how that’s effected the frequency response knowing of course that all these will be up against walls which will have an effect.

I’m made even more curious because they publish FR graphs for there standalone speakers but not the wall mounted varieties. It would be interesting to see an anechoic FR graph and a wall mounted one to see if they tuned the speaker for wall mounting.

That raises a question in my mind. How do you test on- or in-wall speakers in an anechoic chamber? I can't picture how this might be done. Hmmmm....
