Yamaha RX-V565 5.1 Home Theater Receiver First Look
- Product Name: RX-V565 5.1 Home Theater Receiver
- Manufacturer: Yamaha Electronics
- Review Date: January 12, 2010 14:20
- MSRP: $429.95
- First Impression: Pretty Cool
90 watts x 7 into 8 ohms (1 kHz)
Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, Pro Logic IIx decoding
HDMI repeater (4 in / 1 out)
- HDMI upconversion to 1080p
iPod integration (requires optional Yamaha YDS-11 or YBA-10)
- Compressed music enhancer for MP3s
- 2 component video inputs
- YPAO speaker calibration and room optimizer
- 4 optical audio inputs (2 TOSlink, 1 coax)
Assignable power amps
Surround speaker preamp outputs
Night Listening Enhancer
Digital ToP-ART design
17-1/8"W x 6"H x 14-3/8"D
Weight: 18.7 lbs (24 lbs shipped)
Warranty: 2 years
This past year we reached a place where almost anyone can enjoy surround sound. There are two paths to home theater nirvana - or at least the start if it: a home theater-in-a-box system, or building a 5.1 or 7.1 system from quality entry level components. Yamaha's RX-V565, with its typical selling price of just $429.95 gives consumers a very inexpensive way to get into an HDMI-equipped AV receiver. The receiver has four HDMI inputs, each of which are capable of reading and decoding the new high resolution audio formats. This provides a great way to feed four components into a newer HDMI-equipped HD television. Because these HDMI inputs decode the latest HD audio formats, you can all but say goodbye to optical or multi-channel 5.1 analogue audio sources. You can also say goodbye to switching inputs on your television, should you decide to use the 1080p up-conversion that comes with this receiver.

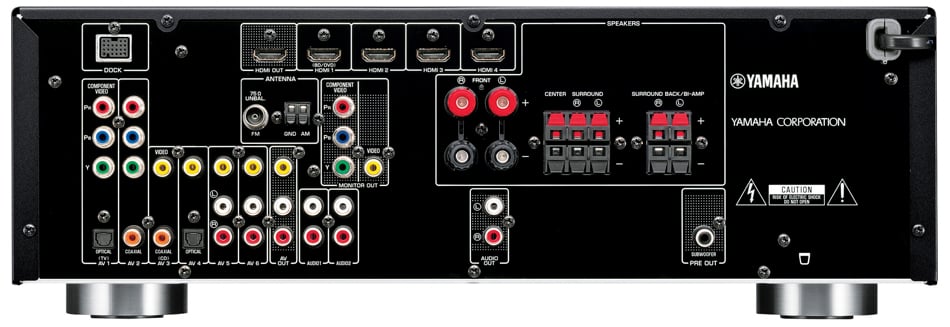

While this just-above-entry-level product from Yamaha comes in at very attractive price points, there are several downsides. For one, there are no preamp outputs on this product besides the subwoofer. This means that if you want to use an external amplifier, or even entertain the thought of using wireless surrounds, you're probably out of luck. There are also no S-video inputs on the back of the receiver - but since we absolutely hate S-video (as far as the connector is concerned) we'll call this a bonus feature. Hopefully your sources, by now, are almost exclusively either HDMI or component video (red, green, and blue, for those of you who pay more attention to colors than the official nomenclature). There are two decent quality 5-way plastic speaker binding posts on the rear of the receiver, but all other 7.1 speaker connections for center and surround speakers are of the plastic spring-clip variety. These are excellent for 18 gauge and higher (smaller) wiring, but work miserably for thicker cables and anything that is pre-terminated. There are no Speaker B connections on this receiver - odd since they are included on the lesser-priced Yamaha RX-V365 receiver.
The RX-V565 has plenty of inputs and iPod functionality - thanks to a multi-pin docking interface that works with the optional YDS-11 or YBA-10 iPod/iPhone docks. Four S/PDIF inputs (two coax and two optical) ensure ample connectivity for legacy DVD players, cable set top boxes and a gaming system, but you are really in for a treat should you make use of the 4 HDMI inputs. As for analogue multi-channel audio sources - you're out of luck, since the RX-V565 doesn't support any 5.1 analogue multi-channel inputs. The bump ups in Yamaha aren't all that straightforward, however. For example, jumping from an RX-V465 to an RX-V565 picks up HDMI upconversion to 1080p, but loses the surround speaker preamp outputs. And jumping to this receiver from an RX-V365 loses the B speaker assignment, and as we mentioned, the multi-channel analogue inputs.
The RX-V565, along with all of Yamaha's other AV receivers, features their new Compressed Music Enhancer which adds back in the missing "air" or high frequency information to MP3 and other compressed music sources. Yamaha's Cinema DSP audio processing is firmly planted on this product, giving users the ability to customize the sound field to Rock, Jazz, or German Bathroom (OK, that last one is a running joke). Silent Cinema technology is also included and essentially makes it possible to hear large-scale surround sound through standard headphones. This is really ideal for late-night home theater listening when the rest of the family is asleep. This receiver also features an on-screen display and YPAO, for automatic loudspeaker setup and equalization with the included microphone. Yamaha's new line of receivers have switched from the traditional amber LCD front display color to blue. This is a big change which makes Yamaha's receivers look like, well, just about everyone else's.
If you are looking for a great not-quite-entry-level budget HDMI-centric product you should heartily consider this receiver from Yamaha. It has the basics and offers some bonuses as well - all for under $430.
