VSX-818V First Impressions
To see how much Pioneer has progressed in its entry level receivers and determine if manufacturers are truly taking advice from consumers and review publications like Audioholics, I compared the VSX-818V to the Pioneer VSX-815 which we reviewed in 2005.
| Pioneer VSX-815 | Pioneer VSX-818V | |
| Surround Power: | 100 watts
x 7 (1% THD @ 8-ohms, 1kHz) |
120 watts x 5 (.05% THD @ 8 ohm, 1kHz) |
| Stereo Power: | 100 watts
x 2 (20Hz-20kHz; 0.7% THD @ 8-ohms) |
95W per channel (20Hz to 20kHz, THD .06%, 8-ohms) |
| DSP: | Dolby Digital 5.1/EX, DTS-ES 6.1 Discrete, DTS 96/24/Neo6, Pro Logic IIx/Game Mode, WMA9 Pro, 9 Advanced Surround modes, 7-channel stereo, Virtual surround back | Dolby Digital 5.1/EX, DTS-ES 6.1 Discrete, DTS 96/24/Neo6, Pro Logic IIx/Game Mode, WMA9 Pro, 9 Advanced Surround modes, 7-channel stereo, Virtual surround back, EX HD Surround |
| Inputs: | 3 component video, 4 A/V, 5 digital ins (2 optical/1 front optical/2 coax), 5.1 multi-channel input, front AV inputs (including optical) | 2 HDMI (switching only), 3 component video, 4 A/V, 5 Audio in
(including tuner and front), 5
digital ins (2 optical/1 front optical/2 coax), iPod compatible through USB, XM and
Sirius ready |
| HDMI: |
None |
2 in/1 out (switching only) |
| Outputs: | 1 component, 2 A/V,
headphone output |
1 component, 1 A/V, 1 Audio out, 2 Digital optical outs, headphone output |
| Analogue Pre-outs: |
7.1 preamp outputs (includes subwoofer) | Subwoofer only |
| Room EQ: | Auto/Manual MCACC (including 5-band EQ) | Auto/Manual MCACC (including 5-band EQ) |
| Additional Features | Sleep timer, dimmer option, multi-way loudspeaker binding posts, AM/FM tuner | Sleep Timer, Display Dimmer, Front A/V Terminals, 30 AM/FM Presets |
| On-screen Display: |
No |
Yes |
| Dimensions: | 16 9/16 " W x 6 1/4" H x 15 13/16" D | 16 9/16 x 6 1/4 x 13 7/8 |
| Weight: | 22 lbs. 4 oz. | 17 lbs 9 oz |
| Warranty: | 1 year | 1 Year |
| MSRP: | $365 | $249 |
Although comparing a 7.1 channel receiver (which retailed at over $100 more) to a 5.1 channel receiver may seem like comparing apples to oranges, the VSX line has made some notable improvements over the last 3 years. Our two biggest concerns against the VSX-815 in 2005 were that it didn’t have video upscaling or on-screen display. The VSX-818V does come with on-screen display, but still leaves video upscaling to its bigger brothers (we really didn’t expect it at this price point anyways.) It does however have 2 switching-only HDMI inputs and 1 output, something that wasn’t possible at this price point just last year. The lowest price model that Pioneer offers with video upscaling is the VSX-1018AH which comes in at $599.
First Impressions

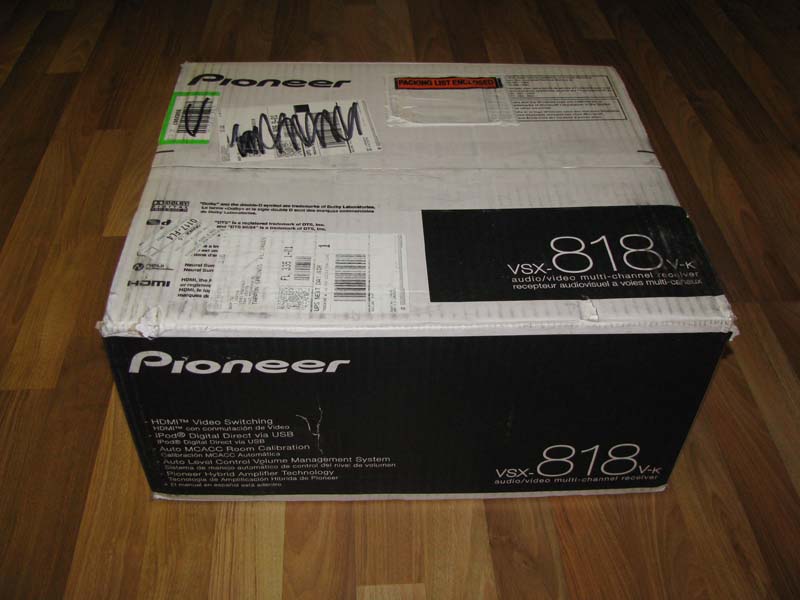

Pioneer shipped the unit directly to my
house and it arrived in a standard off-the-shelf retail box. I was a little leery at what
I was going to find inside. If you are
considering buying the VSX-818V off the Internet, keep in mind that it will most
likely be shipped in the same way (ie, not double-boxed - so you won't want UPS leaving this outside your house if you're not home).
With all the complaints we have with big box stores, the one benefit is
that you can always walk back in and return a damaged unit (assuming you
can get any service).

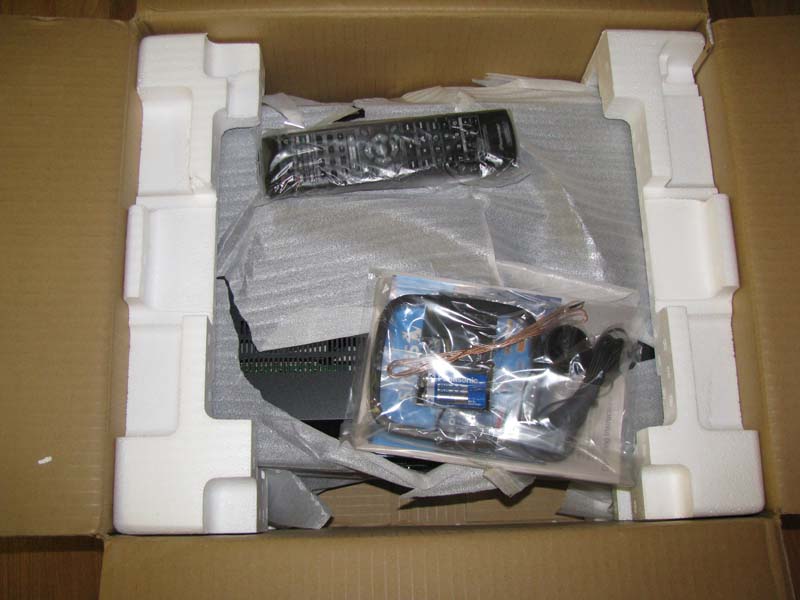

As I opened the box my concerns were not alleviated. The remote, MCACC microphone, and am loop antennae were freely moving around the box right against the single layer of corrugated cardboard. The only thing separating them from the receiver was a thin layer of plastic and the foam packaging.
I unpacked the components and visually inspected them for damage. Luckily everything seemed to be fine.
Build Quality

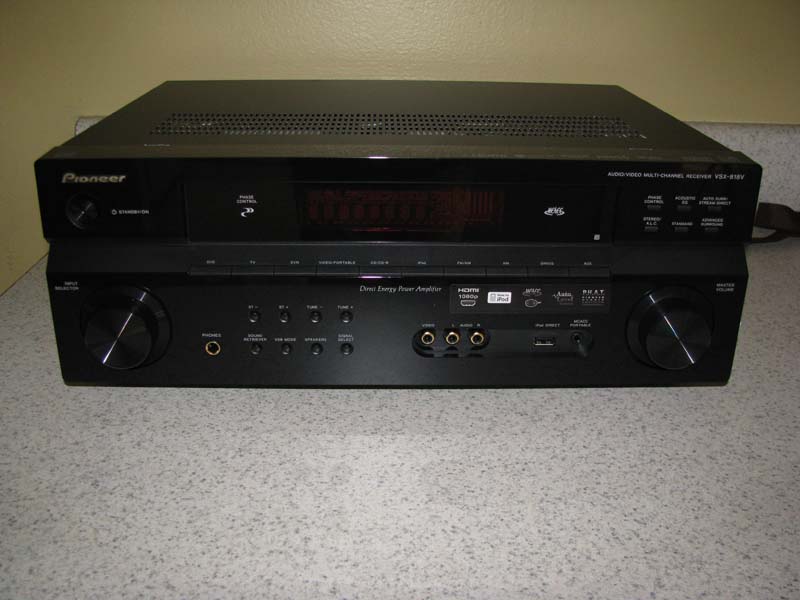

The unit itself had a clean design. The labels were easy to read and the buttons
were arranged in practical groupings. Two rotating knobs are located at either
end of the unit. The left one is for changing the input selection, and the
right is the master volume. I found the
redundancy of an input knob impractical (and likely a holdover form the more complex models) since the buttons for the inputs are
clearly labeled in the middle of the receiver.
Why scroll through all the selections, when you can simply press a
button?
I was
excited to see that the VSX-818V came equipped with a front audio/video
terminal on the receiver. My 42” Panasonic
Plasma TV did not come with front A/V jacks
so every time I want to use a piece of portable equipment, I either have to
move the display, or leave a length of A/V cable connected to the TV (which
doesn’t rate very high on the WAF [Wife Acceptance Factor] scale).

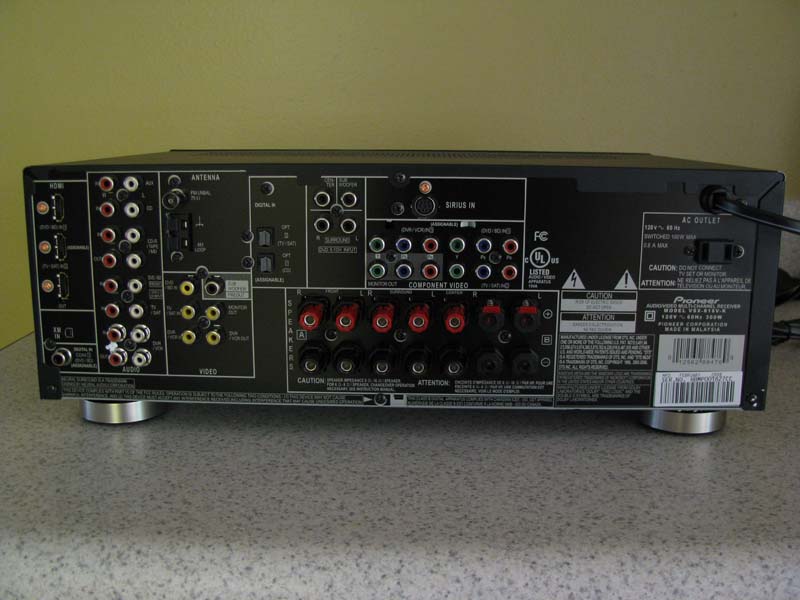

Most budget-minded consumers will be pleased to see that the VSX-818V comes with plenty of
inputs for an entry level receiver, including: 2 HDMI inputs, 3 component
video inputs, 4 composite inputs, 2 digital optical inputs, and 1 digital coaxial
input. This receiver
provides a multitude of connections for a receiver in this price range. Outputs include 1 HDMI, 1 component, and 1 composite video connection. There are no S-video connections (good riddance!)
One of the most surprising features are the large binding posts for speaker connections that come with this unit. Many receivers under $250 only provide spring clips for most of the channels. Instead, this unit sports binding post connectors on all the channels with good quality spring clips for the “Speaker B’ connection.

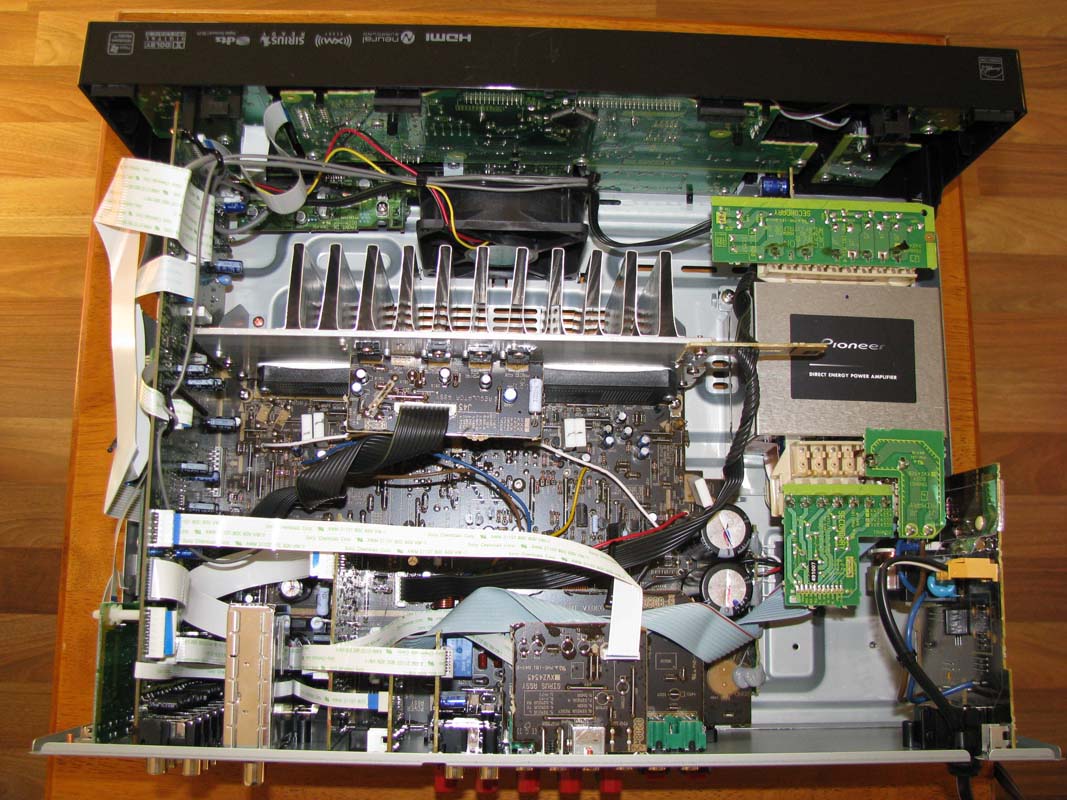

The
interior of the unit again provided a clean arrangement of components. Although
the receiver’s components weren’t remarkable, the arrangement of parts was well thought
out for an efficient use of space. Though we were mildly disappointed that Pioneer used power opamps for the center and surround channels instead of discrete output devices for all channels. This is an understandable sacrifice one must make to get HDMI switching built in at this price level.
Heat issues are addressed through the use of an ultra quiet fan positioned at the front of the receiver. Even during the quietest of intervals in my listening sessions I never did hear the fan turn on.
