by Clint DeBoer — last modified December 07, 2007

Panasonic PT-F100U LCD Projector Review

Summary

Product Name: PT-F100U
Manufacturer: Panasonic
Performance Rating:
Value Rating:
Review Date: November 08, 2007 16:21
MSRP: $ 3599

Specifications: Brightness: 3200 ANSI lumens
Resolution: 1024 x 768
Aspect Ratio: 4:3 or 16:9 aspect ratio (4:3 native)
Supported Screen Size: 33-300 inches diagonal
LCD Panel: 3 x 0.7” polysilicon active matrix
Optical System: Dichroic mirror separation/prism synthesis system
Video Features: Ambient Luminance Sensor (ALS)
Scanning Formats: 480i/576i/1080i and 480p/576p/720p (PAL equivalents supported)
Video Inputs: component, composite, S-video, and 2xPC/RGB (HD15)
Projection Lens: 2x optical zoom; f = 21.6 – 43.0 mm. F/1.7 – 2.6, manual focus & zoom
Lens Shift: Vertical and horizontal (50% vertical, 32% horizontal)
Keystone Correction: +/- 30 degrees (vertical)
Lamp: 250 W UHM lamp
Mounting: ceiling, desk, front/rear (menu configurable)
Power Supply: 100-240 volts, 50-60Hz
Power Consumption: 330 watts (maximum), 3.5 watts (standby mode with fan stopped)
Operating Temperature: 32 – 104 degrees F (0 – 40 degrees C); 20-80% humidity (no condensation)
Audio: 3W output via onboard speaker
Projection Method: Front/rear/ceiling mount/table-top
Remote Control: Standard (non-backlit) remote with laser pointer, AA x 2 batteries
Standard Accessories: Power cord, Wireless remote control, batteries for remote control, safety cable
Optional Accessories: Ceiling bracket (ET-PKF100H/ET-PKF100S), AV cables (TY-SC10CP)
Dimensions: 17” x 4.9” x 12.5” in (432 x 125 x 319 mm)
Weight: 13.2 lbs (6.0 kg)

Pros

Super bright
Auto-Rolling Filter (ARF) system reduces LCD panel dust
Easy lamp replacement
Ambient Luminance Sensor (ALS) great for commercial use

Cons

No deinterlacing or 2:3 pulldown

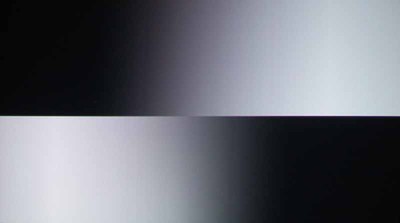

Crushed black levels
No 12 volt trigger

Introduction

Houses of worship are faced with many challenges when considering projectors. Ambient light conditions, placement, input requirements, and resolution are just some of the things that grace the top of the list. It was with surprise that I began a journey with the PT-F100U, discovering that many of the features I associated with and loved about home theater projectors were present on this commercially-targeted product. As multimedia needs advance in both the corporate and house of worship venues, technology seems to be ready to oblige our needs in the form of products willing to cross over and provide features previously thought to be distinct.
