Overview, Setup and Basic Installation

I got an email the other day from a friend I hadn't heard from in a long time. We caught up with each other about a few things, and then he asked me: What's the best projector out there for under $1500? Wow, that's a good question, isn't it? A couple of years ago the level of quality you'd be able to expect from that price was much different. Today, it's almost amazing what consumers are getting for their money. I told him I was reviewing the Epson Home Cinema 720 LCD projector and that if it even remotely resembled its "bigger brother" the 1080 or 1080UB it would be high on my list. As I launched into the review process I found that some consumers might just do very well to eschew 1080p - especially if they are using smaller screens or sitting back more than 2x the screen width.

Hey, This Projector Looks Awfully Familiar…
It was hard for me to find any tangible differences between this projector and the stock Epson Pro Cinema 810 (sans HQV external video processor, of course.) Epson has loosely indicated that it is using a next-generation LCD panel in the new HC 720, but from the specs alone it's impossible to tell. Even the difference in HQV scores could possibly be attributed to by a slight difference in implementation of the same processing circuitry. In either case, both are excellent projectors and we noticed some exceptional color and black level potential on the Home Cinema 720:

*As tested without the external HQV video processing option

There are two things consumer should know. First, Epson recently stopped selling its Pro Cinema models online. Second, this is the first model to come to market that gives a consumer model number to the Pro Cinema 810 (720p) projector. Am I saying they are exactly the same? No, no, no… yes. OK, so there are possibly tiny little differences (aside from the fact that the 810 is black), however for the most part, Epson has brought the $1599 pro model to consumers - and for even less money. To put it bluntly, the incredibly low cost of entry for the new Home Cinema 720 makes it a veritable steal.

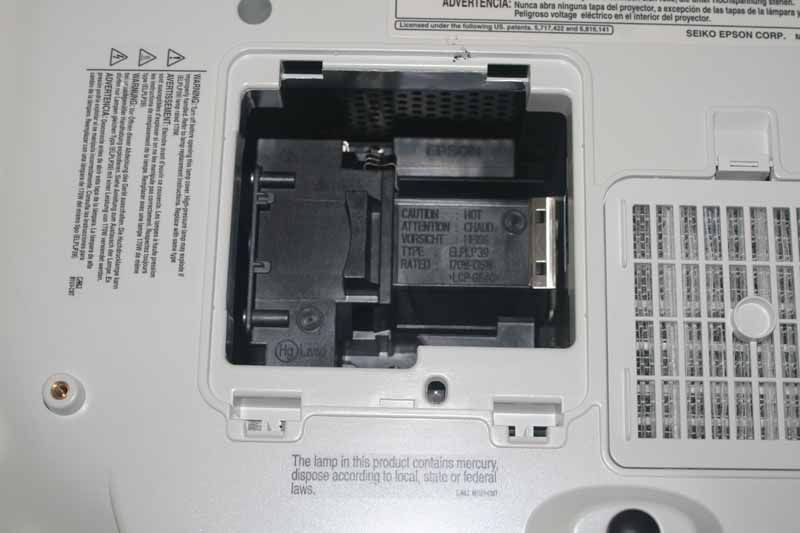

Let's pop the hood. Underneath the Epson you can find easy access to the lamp replacement compartment. While the lid comes off without any screws, its location means that you'll need to remove it from any ceiling mount before you can replace the bulb. We prefer rear- or side-entry locations for bulbs, but this isn't the end of the world. The two front feet screw down for angling the projector upwards from a tabletop location. Epson didn't include a "quick drop" mechanism, so you simply unscrew… and unscrew… and unscrew… until the height is correct. Obviously, the better installs for this projector will have the unit on a level platform so that the lens shift, and not manual or digital keystoning, will be sufficient to hit the screen perfectly.

Basic Setup and Installation

Installation of the Epson Home Cinema 720 was just as simple as can be. Physically, we mounted a universal PRG-UNV Peerless Precision Gear projector mount to the four screw positions located at the bottom of the unit. After putting it into place, it was simply a matter of first dialing in the pitch and then the lens shift. The Epson HC 720 comes with 100% vertical and 50% horizontal lens shift - making it as easy to position as any projector I've installed to date. If you mount the unit anywhere within the projector screen's plane of existence, save the extreme corners, you'll be set for a perfect keystone-free viewing experience. The projector is light and, compared to our reference Marantz VP-15S1, it was a breeze to physically mount. We fed HDMI to the rear of the projector and easily connected it to our standard power feed cable. Focus and Zoom are manual, and with the incredible 2.1:1 ratio of the lens system we could hit our screen at a distance anywhere from roughly 9 1/2 to 20 feet away. Now that's flexibility.

Once installed, it was a simple matter to test the system out and grab the best initial settings, which we found to be Theatre Black 1 with the Absolute (Abs.) Color Temperature set to 7000K. We also recommend the use of the Dynamic Iris since it can only be located in the 'On' or 'Off' position. If left 'Off' it doesn't enable the Home Cinema 720 to reach its Blackest potential. I never found the Epson's iris system to be a nuisance and it certainly wasn't audible to me - even from just 5 feet away from my seated position.

Throw Chart for Distancing the Projector from a 16:9 Projection Screen

The Epson's amazing zoom lens is on this model as well and allows for a very flexible placement. In our room we had the unit positioned at around 11 feet back and projecting onto a Carada Masquerade Projection Screen Masking System with a 92-inch Precision Series Brilliant White Screen.

Connections

The connections on the Home Cinema 720 are identical to the both the Pro Cinema 720 and the Home Cinema 1080 models. You'll find one each of composite, S-video, component and HDMI, plus an SCART connection left over from the UK model. An RS-232C serial port means that Epson is serious about making this unit available for us in custom home theater systems and a trigger output is present for anyone wanting to signal a dropdown or electric screen system.

Home Cinema 720 rear connections
