Emotiva PMC-1 7.1 Media Processor-Controller First Look
- Product Name: PMC-1 7.1 Processor
- Manufacturer: Emotiva
- Review Date: September 30, 2010 09:20
- MSRP: $2999
- First Impression: Pretty Cool
- State-of-the-art, audiophile grade pre/pro
- Integrated Control4 HC200 Processor
- Full HDMI 1.4 capability
- Full color OSD with transparency over live video
- Intuitive and useful feature set
- Balanced outputs on 7.1 channels
- Balanced inputs
- Rack mountable
- 7 HDMI 1.4 inputs with ARC
- Dual HDMI outputs
- Fully balanced preamplifier outputs with dual subwoofer support
- Balanced pure analog input
- Twin dual core Cirrus 32 bit DSPs support all HD formats with advanced post-processing
- Dolby Volume
What happens when the manufacturer of budget products decides to pull out all the stops? After years of saving their nickles and dimes from their barely-over-cost products, they finally have the capital to put out a true flagship product? Emotiva has been making a living selling amps and pre-pros to the masses direct from the Internet for years now. They've been undercutting other manufacturers by hundreds, thousands, and in some cases tens of thousands of dollars. At the same time they haven't sacrificed performance. This has garnered them a large (and sometimes quite rabid) following.
This new direction for Emotiva is quite a departure from what they've done in the past. As can be witnessed at emotivapro.com, they are not only looking to sell new gear but also create a dealer network. The products carried by the dealers will be state of the art with a price tag to match. Dealer are sure to be enticed by the built-in Control4 HC200 on select models (including the PMC-1), 10 year warranty, 1 year advance replacement program, direct manufacturer support, online ordering and tracking, and international availability. The first product in the new Pro lineup is their new flagship processor, the PMC-1.
The Emotiva PMC-1 Media Processor/Controller has a lot of features that dealers and custom installers will find attractive. First of all, the PMC-1 looks amazing. The front looks to be a milled black aluminum face with a pair of vertical blue lights flanking the controls and display. There are seven HDMI 1.4 inputs (with Audio Return Channel) and two outputs (no, we're not seeing a second one on the back and no provision for one on the front panel but the literature says they'll have two so we're going with that). There are RCA and balanced outputs for 7.2 channels plus a pair of RCA analogue outputs for a second zone. There are four stereo audio inputs, the first of which has the option of using balanced. This balanced input will bypass all the digital components and remain purely in the analogue realm for audio purists. There are four optical and four coaxial digital audio inputs (with an single output for each) and a set of stereo outputs for mix and record. There is an IR in and out with a set of four outputs for IR control. Four 12 volt trigger outputs are included as well. There are 7.1 channel analogue inputs for integrating legacy gear.
Speaking of legacy gear, one thing you won't find on the PMC-1 is any sort of analogue video inputs. No composite, S-video, or component are available. While seven HDMI inputs should be enough for most setups, the lack of analogue video (at least component) seems to be a potential misstep by Emotiva - or a huge incentive for installers to up the ante on their jobs. With the prevalence of the Wii and early pre-HDMI Xbox 360s, not to mention cable boxes without HDMI output, installers may be forced to upgrade their clients, or integrate some sort of component to HDMI convertion in order to use some of their gear.

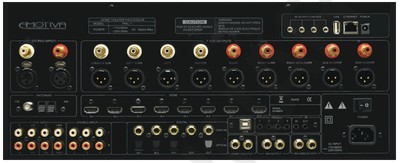

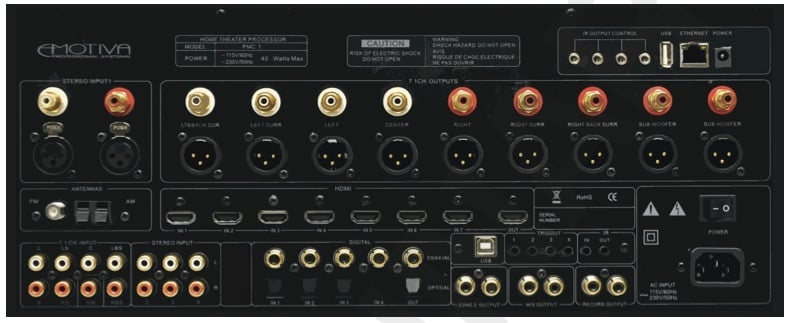

There are a few things on the back of the PMC-1 that haven't been fully explained yet (other than Emotiva's nebulous "intuitive and useful feature set" statement). Obviously the Ethernet port is present for control, but it suggests at least the portential for additional networking functions. There are two USB inputs on the back with uses as yet unspecified. Next to the Ethernet port is a power port which seems to be out of place. We'll be curious to see what all of these things do as Emotiva releases more details.

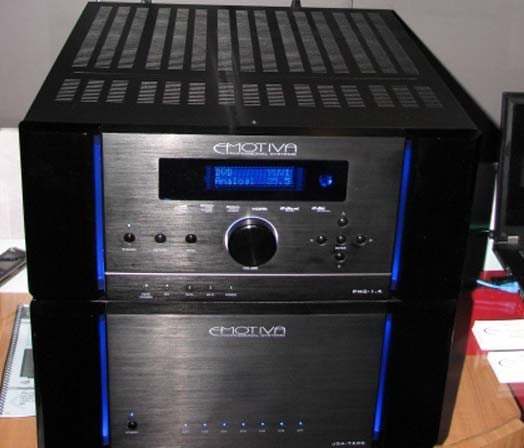

Getting a closer look at the front, you'll notice a fairly basic two line display. Emotiva has announced that there will be a "full color OSD with transparency over live video" overlay via HDMI (remember there are no analogue video outputs) so that shouldn't be much of a problem. There is a directional pad for navigating the menu system, a volume knob, and a few indicator lights. If you look closely, you'll see both a headphone and a Mic jack as well. This suggests some sort of as yet unannounced room correction system (or at least auto speaker calibration).
All the latest HD audio formats are supported and Dolby Volume is also on board. Twin dual core Cirrus 32 bit DSPs are included for advanced post-processing. There seems to be no provision for any of the more recent height/width channels that have been showing up in recent years. With all the video inputs being HDMI, we're unsure as to whether or not video processing will be available. With the focus on audio, we're surprised to see that the PMC-1 has no Phono input with the dedicated grounding screw.
For just shy of $3000, the Emotiva PMC-1 is a modern product that will present a breath of fresh air to some, and a potential for mandatory upgrades for others. We love the focus on audio purity and flexibility but recognize the difficulty of integrating products like the Wii. The PMC-1 looks amazing but Emotiva hasn't released enough details for us to really know if their "intuitive and useful feature set" is really something we want. While they showed off a prototype at CEDIA this year, final details are still a little sketchy. While we're sure dealers will be salivating to get their hands on some of these, until the final specs are released, we'll have to withhold judgment.
For more information, please visit www.emotivapro.com.
